19080-04820 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-04820 GOVERNOR ASSY, MEC
Rating:
23
Buy GOVERNOR ASSY, MEC 19080-04820 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

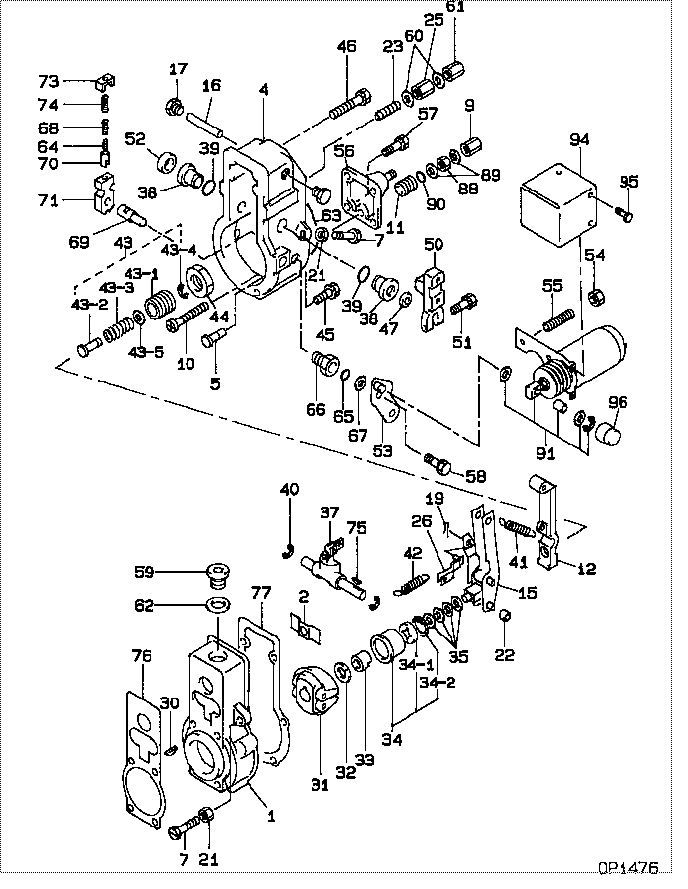

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-04820 GOVERNOR ASSY, MEC ME736707
001. [01] 09081-00660 HOUSING SUB-ASSY, ME736230
002. [01] 09087-80030 PLATE ME703402
004. [01] 09101-11670 COVER, GOVERNOR ME728821
005. [01] 09101-40090 PIN, STOP ME703487
007. [02] 09102-40031 SCREW, ADJUSTING ME023074
009. [01] 09103-10151 NUT, CAP ME703404
010. [01] 09100-60150 SCREW, STROKE ADJU ME703405
011. [01] 09094-40310 BUSHING ME703406
012. [01] 09090-10150 LEVER, TENSION ME703906
015. [01] 09093-00510 LEVER ASSY, CONTRO ME728044
016. [01] 09098-90010 SHAFT, LEVER SUPPO ME022453
017. [02] 09099-10010 PLUG, SCREW ME702777
019. [01] 90400-02101 PIN, SPLIT ME023402
021. [02] 94805-30051 NUT, HEXAGON, W/HO ME022467
022. [01] 09104-60010 SLIDER, SUPPORTING ME728045
023. [01] 09056-00160 CAPSULE, FULL STOP ME728037
025. [01] 09092-30060 NUT, ADAPTER LOCK ME703410
026. [01] 09097-00170 SHACKLE ASSY ME703411
030. [01] 94913-00050 KEY, WOODRUFF ME702747
031. [01] 09084-00520 FLYWEIGHT ASSY ME703541
032. [01] 94901-50500 WASHER, SPRING ME008373
033. [01] 09084-40010 NUT, ROUND ME702749
034. [01] 09086-00200 SLEEVE SUB-ASSY, F ME728046
034-001. [01] 09086-80040 PLATE, THRUST ME728294
034-002. [01] 90567-30000 RING, HOLE SNAP ME728356
035. [4C] 94901-34100 WASHER, PLATE, SK ME702893
035. [4C] 94901-34090 WASHER, PLATE, SK ME702892
035. [4C] 94901-34080 WASHER, PLATE, SK ME702891
035. [4C] 94901-34070 WASHER, PLATE, SK ME702890
035. [4C] 94901-34060 WASHER, PLATE, SK ME702889
037. [01] 09088-00140 LEVER ASSY, SWIEVE ME736177
038. [02] 09089-20080 BUSHING, LEVER ME703414
039. [02] 90801-20160 O-RING ME703415
040. [02] 94907-10090 WASHER, SNAP ME702795
041. [01] 09099-20051 SPRING, SPEED CONT ME022444
042. [01] 09099-30260 SPRING, START ME728039
043. [01] 09091-01530 ADAPTER ASSY ME736965
043-001. [01] 09091-10010 SCREW, ADPTER ME022483
043-002. [01] 09091-90010 ADAPTER ME703418
043-003. [01] 09091-81810 SPRING, MECHANICAL ME736966
043-004. [01] 09089-40010 E-RING ME702112
043-005. [1C] 94901-37880 WASHER, PLATE, SK ME703917
043-005. [1C] 94901-34020 WASHER, PLATE, SK ME728059
043-005. [1C] 94901-34040 WASHER, PLATE, SK ME022485
043-005. [1C] 94901-34030 WASHER, PLATE, SK ME022517
043-005. [1C] 94901-33880 WASHER, PLATE, SK ME022484
044. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
045. [04] 94904-71760 BOLT, W/WASHER ME702581
046. [02] 94904-71750 BOLT, W/WASHER ME702202
047. [01] 94915-00210 SEAL, OIL ME022455
050. [01] 09107-12870 LEVER, ADJUSTING ME703500
051. [01] 94904-71190 BOLT, W/WASHER MM500583
052. [01] 09109-40060 CAP, LEVER ME703589
053. [01] 09109-01030 LEVER SUB-ASSY, ST ME736231
054. [03] 94905-05120 NUT, HEXAGON ME736232
055. [03] 94904-32250 BOLT, STUD ME736233
056. [01] 09105-00410 PLATE SUB-ASSY, CO ME703421
057. [01] 94904-72700 BOLT, W/WASHER ME702204
058. [01] 94904-74850 BOLT, W/WASHER ME703933
059. [01] 09116-70050 PLUG, SCREW MM500969
060. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
061. [01] 09103-10030 NUT, CAP ME022202
062. [01] 94901-81550 WASHER, COPPER PLA ME039681
063. [01] 94906-21270 PACKING, RUBBER PL ME703422
064. [01] 09103-80040 SPRING, B ME703423
065. [01] 94914-00130 O-RING ME702207
066. [01] 09101-60020 BUSHING, BEARING ME702636
066. [01] 09101-60360 BUSHING, BEARING ME743361
067. [01] 94901-32220 WASHER, PLATE, SK ME702868
067. [01] 09133-10540 SHIM ME743137
068. [01] 09103-80050 SPRING, B ME703424
069. [01] 09103-50240 SHAFT, MECHANICAL ME703425
070. [01] 09103-60010 CUP, SPRING ME703953
071. [01] 09103-40130 LEVER, SUPPORT ME728056
073. [01] 09103-30030 PLATE, CAP ME703427
074. [01] 09103-80030 SPRING, B ME703428
075. [01] 94913-00030 KEY, WOODRUFF ME702205
076. [01] 09082-30460 GASKET ME736516
077. [01] 09082-30420 GASKET ME736188
088. [01] 94905-03390 NUT, HEXAGON ME703433
089. [02] 94901-81020 WASHER, COPPER PLA ME022309
090. [01] 90801-10120 O-RING ME703434
091. [01] 19089-00600 OVER-HAUL KIT, GOV ME736957
094. [01] 09109-50303 PLATE ME736237
095. [03] 91518-05081 BOLT, W/WASHER ME703300
096. [01] 09007-80141 COVER ME736238

Include in #3:

09300-05391 as GOVERNOR ASSY, MEC
09300-05470
19080-04820

Cross reference number



Part num Firm num Firm Name
19080-04820  ME736707  GOVERNOR ASSY, MEC
ME736707    MITSUBISHI GOVERNOR ASSY, MEC




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The 557-7633 Fuel Injector Gp has stayed the same, but the design level has changed to -02.The following injectors are affected by this issue:
387-9427
387-9432
387-9433
557-7633For fuel injectors leaking oil into the fuel and/or experiencing pressure too low symptoms, replace the o-ring seals and back-up rings prior to replacing the fuel injectors. If oil leakage is experienced after seal replacement, replace the fuel injector.The table below contains the parts needed for seal and ring replacement.
Table 1
Required Parts
Item Qty Part Number Part Name
1 1 109-3207 O-Ring Seal
2 2 148-2903 O-Ring Seals
3 1 149-5240 Backup Ring
4 1 293-0730 Backup Ring

Have questions with 19080-04820?





19080-07130 GOVERNOR ASSY, MEC 19080-07120 19080-07110 19080-07100 19080-07090
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533

Group cross 19080-04820
