19080-04530 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-04530 GOVERNOR ASSY, MEC
Rating:
3
Buy GOVERNOR ASSY, MEC 19080-04530 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170
Governor assy, mec 1908900170

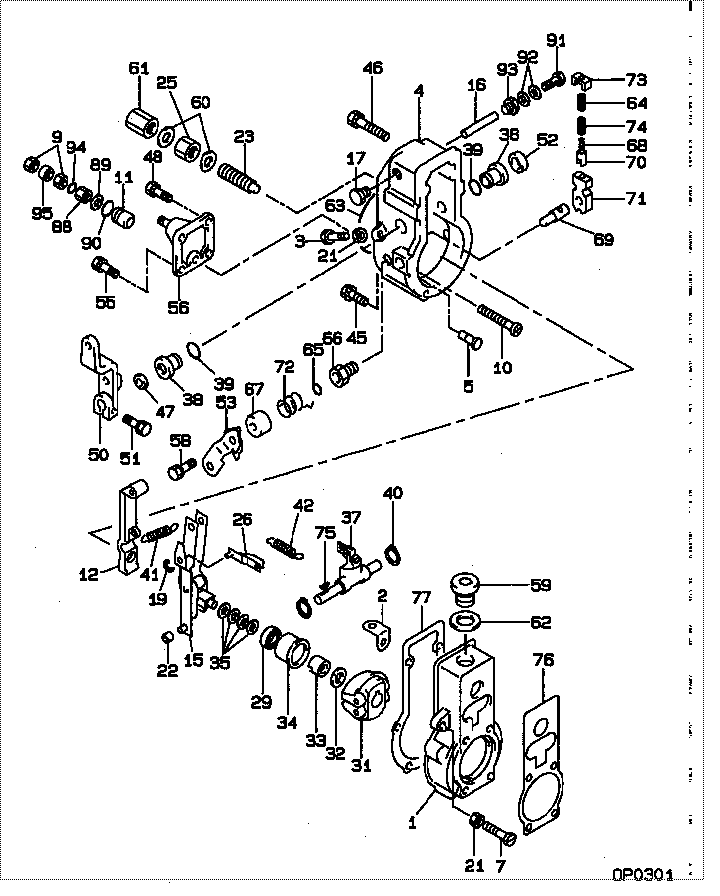

Scheme ###:

000. [01] 19080-04530 GOVERNOR ASSY, MEC
001. [01] 09081-00501 HOUSING SUB-ASSY,
002. [01] 09087-80200 PLATE
003. [01] 09082-10080 STOPPER 09082-10080
003. [01] 09102-40031 SCREW, ADJUSTING 09102-40031
004. [01] 09101-11781 COVER, GOVERNOR
005. [01] 09101-40090 PIN, STOP
007. [01] 09102-40031 SCREW, ADJUSTING 09102-40031
009. [02] 09124-70051 NUT
010. [01] 09100-60190 SCREW, STROKE ADJU
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-10150 LEVER, TENSION
015. [01] 09093-00690 LEVER ASSY, CONTRO
016. [01] 09098-90060 SHAFT, LEVER SUPPO
017. [01] 09099-10010 PLUG, SCREW 09099-10010
019. [01] 09089-40010 E-RING 09089-40010
021. [02] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
022. [01] 09104-60010 SLIDER, SUPPORTING 09104-60010
023. [01] 09056-00160 CAPSULE, FULL STOP
025. [01] 09092-30060 NUT, ADAPTER LOCK
026. [01] 09097-00400 SHACKLE ASSY
029. [01] 94910-00010 BEARING, BALL 85264-00028
031. [01] 09084-00720 FLYWEIGHT ASSY
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 85264-00026
034. [01] 09086-10010 SLEEVE, GOVERNOR 85264-00027
035. [4C] 94901-34100 WASHER, PLATE, SK 94901-34100
035. [4C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [4C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [4C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [4C] 94901-34060 WASHER, PLATE, SK 94901-34060
037. [01] 09088-00110 LEVER ASSY, SWIEVE 09088-00110
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
039. [02] 90801-20160 O-RING 90801-20160
040. [02] 94907-10090 WASHER, SNAP 85264-00037
041. [01] 09099-20410 SPRING, SPEED CONT
042. [01] 09099-30280 SPRING, START
045. [04] 94904-71760 BOLT, W/WASHER 94904-71760
046. [02] 94904-71750 BOLT, W/WASHER 94904-71750
047. [01] 94915-00210 SEAL, OIL 94915-00210
048. [02] 91418-06201 BOLT, W/WASHER 91418-06201
050. [01] 09107-00360 LEVER SUB-ASSY, AD 09107-00360
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
053. [01] 09109-00560 LEVER SUB-ASSY, ST
055. [02] 94904-72700 BOLT, W/WASHER
056. [01] 09105-00410 PLATE SUB-ASSY, CO
058. [01] 91418-06141 BOLT, W/WASHER 91418-06141
059. [01] 09116-70050 PLUG, SCREW 09116-70050
060. [02] 09024-10010 WASHER, AIR BLEEDE MM500486
061. [01] 09103-10030 NUT, CAP 09103-10030
062. [01] 94901-81550 WASHER, COPPER PLA
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
064. [01] 09103-80040 SPRING, B 09103-80040
065. [01] 94914-00130 O-RING 85264-00073
066. [01] 09101-60020 BUSHING, BEARING 09101-60020
066. [01] 09101-60360 BUSHING, BEARING
067. [01] 09104-30010 COVER, SPRING 85264-00075
068. [01] 09103-80050 SPRING, B 09103-80050
069. [01] 09103-50240 SHAFT, MECHANICAL 09103-50240
070. [01] 09103-60010 CUP, SPRING 85264-00065
071. [01] 09103-40130 LEVER, SUPPORT 09103-40130
072. [01] 09104-20010 SPRING, RETURN 09104-20010
073. [01] 09103-30030 PLATE, CAP 09103-30030
074. [01] 09103-80030 SPRING, B 09103-80030
075. [01] 94913-00030 KEY, WOODRUFF 94913-00031
076. [01] 09011-90160 GASKET, PUMP BODY
077. [01] 09082-30420 GASKET
088. [01] 09116-90051 NUT
089. [01] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 90801-10120 O-RING EZ40058081
091. [01] 09316-60070 SCREW, HOLLOW
092. [02] 09024-80010 WASHER, DRAIN SCRE 09024-80010
093. [01] 09012-10210 NIPPLE
094. [01] 90801-10060 O-RING
095. [01] 94919-25920 COLLAR, STEEL

Include in #3:

09300-05032 as GOVERNOR ASSY, MEC
19080-04530

Cross reference number



Part num Firm num Firm Name
19080-04530    GOVERNOR ASSY, MEC




Information:

The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Program can only be administered after a failure occurs. The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS0904" as the Part Number and "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
This Revised Service Letter replaces the February 4, 1996 Service Letter. Changes have been made to the Problem, Affected Product, Parts Needed, Action Required, and Service Claim Allowances.
Termination Date
February 28, 1998Problem
Fuel injector tips may fail on certain 3176 and 3176B Truck Engines and Challenger 75 and 85 Tractors.
Affected Product
Model & Identification Number
3176 (7LG7500-Up)
3176B (9CK1-9353)
CH75C (4KK500-840)
CH85C (9TK1-1407)
Parts Needed
Reference the Rework Procedure to determine the quantity of parts to be replaced.
3176 (7LG) Parts
Up to 6 - 0R4523 Injector [7LG7500 - Up (325, 350 and 360 HP)]Up to 6 - 0R4525 Injector Gp [7LG7500 - Up (275 and 300 HP)]Up to 6 - 9X7317 Seal-O-Ring (injector tip o-ring)Up to 6 - 9X7557 Seal-O-Ring (injector upper o-ring)Up to 6 - 9X7722 Seal-O-Ring (injector lower o-ring) 3176B (9CK) Parts
Up to 6 - 0R4526 Injector Gp [9CK (275 HP)]Up to 6 - 0R4527 Injector Gp [9CK (300 and 325 HP)]Up to 6 - 0R4528 Injector Gp [9CK (342, 350, 365 and 335/365MT HP)]Up to 6 - 9X7317 Seal-O-Ring (injector tip o-ring)Up to 6 - 9X7557 Seal-O-Ring (injector upper o-ring)Up to 6 - 9X7722 Seal-O-Ring (injector lower o-ring) CH75C/85C (4KK and 9TK) Parts
Up to 6 - 0R4520 Injector GpUp to 6 - 9X7317 Seal-O-Ring (injector tip o-ring)Up to 6 - 9X7557 Seal-O-Ring (injector upper o-ring)Up to 6 - 9X7722 Seal-O-Ring (injector lower o-ring) Additional parts may be needed with contingent damage to engine such as cylinder head, cylinder pack, turbocharger, etc..
Action Required
1. Inspect the failed injector for a cracked or broken tip. If the tip is not cracked or broken, this program does not apply. Refer to the attached rework procedure.2. Replace the fuel injectors according to the attached rework procedure and repair any additional damage caused by the cracked tip.Service Claim Allowances (Truck Engines)
Service Claim Allowances (Tractors)
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Attach.(1-Rework Procedure)Rework Procedure
1. Remove the necessary air piping, air cleaners, valve covers, Jake Brakes, and rocker arm assemblies. Remove the lower plug at the rear of the fuel manifold and drain the fuel from the cylinder head and manifold. Reinstall the plug.2. Diagnose the problem to the specific injector. Inspect the failed injector for a cracked or broken tip. If the tip is not cracked or broken, this program does not apply.3. Determine if the other injectors should or should not be replaced. Remove the other injectors and check the date code stamped on the nozzle cone. 4. If a portion of the
