19080-04040 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-04040 GOVERNOR ASSY, MEC
Rating:
36
Buy GOVERNOR ASSY, MEC 19080-04040 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170

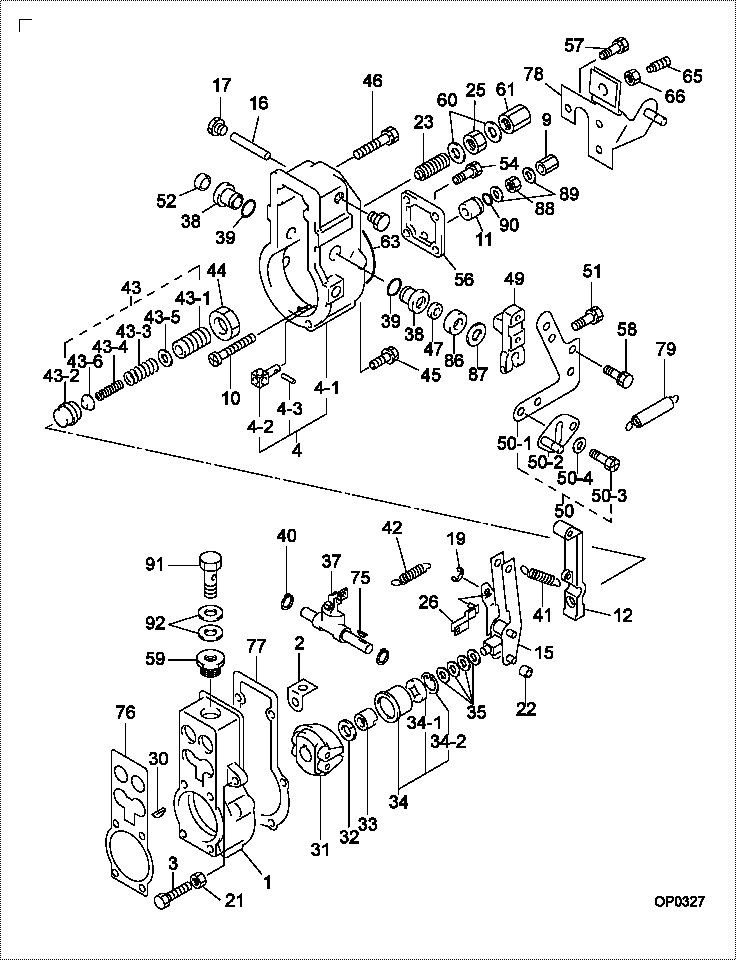

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-04040 GOVERNOR ASSY, MEC
001. [01] 09081-00540 HOUSING SUB-ASSY,
002. [01] 09087-80260 PLATE
003. [01] 09102-40031 SCREW, ADJUSTING 09102-40031
004. [01] 19089-00120 OVER-HAUL KIT, GOV
004-001. [01] 09101-11691 COVER, GOVERNOR
004-002. [01] 09101-30050 JOINT, FORK 09101-30050
004-003. [01] 09101-40080 PIN, STOP
009. [01] 09103-10151 NUT, CAP 09103-10151
010. [01] 09100-60150 SCREW, STROKE ADJU 09100-60150
011. [01] 09094-40310 BUSHING 09094-40310
012. [01] 09090-10150 LEVER, TENSION 09090-10150
015. [01] 09093-00490 LEVER ASSY, CONTRO
016. [01] 09098-90010 SHAFT, LEVER SUPPO 09098-90010
017. [02] 09099-10010 PLUG, SCREW 09099-10010
019. [01] 09089-40010 E-RING 09089-40010
021. [01] 94805-30051 NUT, HEXAGON, W/HO 94805-30051
022. [01] 09104-60010 SLIDER, SUPPORTING
023. [01] 09056-00200 CAPSULE, FULL STOP
025. [01] 09092-30060 NUT, ADAPTER LOCK 09092-30060
026. [01] 09097-00350 SHACKLE ASSY
030. [01] 94913-00050 KEY, WOODRUFF 94913-00050
031. [01] 09084-00520 FLYWEIGHT ASSY
032. [01] 94901-50500 WASHER, SPRING 94901-50500
033. [01] 09084-40010 NUT, ROUND 09084-40010
034. [01] 09086-00200 SLEEVE SUB-ASSY, F 09086-00200
034-001. [01] 09086-80040 PLATE, THRUST 09086-80040
034-002. [01] 90567-30000 RING, HOLE SNAP
035. [4C] 94901-34090 WASHER, PLATE, SK 94901-34090
035. [4C] 94901-34080 WASHER, PLATE, SK 94901-34080
035. [4C] 94901-34070 WASHER, PLATE, SK 94901-34070
035. [4C] 94901-34060 WASHER, PLATE, SK 94901-34060
035. [4C] 94901-34100 WASHER, PLATE, SK 94901-34100
037. [01] 09088-00140 LEVER ASSY, SWIEVE
038. [02] 09089-20080 BUSHING, LEVER 09089-20080
038. [02] 09089-20160 BUSHING, LEVER
039. [02] 94914-05760 O-RING
040. [02] 94907-10090 WASHER, SNAP 94907-10090
041. [01] 09099-20480 SPRING, SPEED CONT 09099-20480
042. [01] 09099-30280 SPRING, START
043. [01] 09091-01630 ADAPTER ASSY
043-001. [01] 09091-10020 SCREW, ADPTER 09091-10020
043-002. [01] 09091-90341 ADAPTER
043-003. [01] 09091-80011 SPRING, MECHANICAL 09091-80010
043-004. [01] 09091-82000 SPRING, MECHANICAL 09091-82000
043-005. [1C] 94901-33890 WASHER, PLATE, SK 94901-33890
043-005. [1C] 94901-34110 WASHER, PLATE, SK 94901-34110
043-006. [1C] 94901-33750 WASHER, PLATE, SK 94901-33750
043-006. [1C] 94901-34450 WASHER, PLATE, SK 94901-34450
044. [01] 09092-30011 NUT, ADAPTER LOCK 09092-30010
045. [04] 94904-71760 BOLT, W/WASHER
046. [02] 94904-71750 BOLT, W/WASHER
047. [01] 94915-02690 SEAL, OIL
049. [01] 09107-11420 LEVER, ADJUSTING 09107-11420
050. [01] 09107-04250 LEVER SUB-ASSY, AD
050-001. [01] 09107-15010 LEVER, ADJUSTING
050-002. [01] 09107-01050 LEVER SUB-ASSY, AD 09107-01050
050-003. [02] 91518-08161 BOLT, W/WASHER
050-004. [01] 09241-70010 WASHER, COUPLING S 09241-70010
051. [01] 94904-71190 BOLT, W/WASHER 94904-71190
052. [01] 09109-40060 CAP, LEVER 09109-40060
054. [01] 94904-72700 BOLT, W/WASHER
056. [01] 09105-10500 PLATE, COVER 09105-10500
056. [01] 09105-10930 PLATE, COVER
057. [03] 94904-71770 BOLT, W/WASHER
058. [02] 91418-06161 BOLT, W/WASHER
059. [01] 09022-40140 SCREW,PLUG
060. [02] 09024-10010 WASHER, AIR BLEEDE 09024-10010
061. [01] 09103-10030 NUT, CAP 09103-10030
063. [01] 94906-21270 PACKING, RUBBER PL 94906-21270
065. [01] 09056-00131 CAPSULE, FULL STOP 09056-00131
066. [01] 94805-30090 NUT, HEXAGON, W/HO 94805-30090
075. [01] 94913-00030 KEY, WOODRUFF 94913-00030
076. [01] 09011-90080 GASKET, PUMP BODY 09011-90080
076. [01] 09011-90160 GASKET, PUMP BODY
077. [01] 09082-30230 GASKET
077. [01] 09082-30420 GASKET
078. [01] 09097-50670 ARM, SPRING
079. [01] 09104-10130 SPRING SUB-ASSY, R 09104-10130
086. [01] 09094-40440 BUSHING
087. [1C] 94901-38210 WASHER, PLATE, SK
087. [1C] 94901-38220 WASHER, PLATE, SK
087. [1C] 94901-38230 WASHER, PLATE, SK
088. [01] 94905-01020 NUT, HEXAGON 94905-01020
089. [02] 94901-81020 WASHER, COPPER PLA 94901-81020
090. [01] 94914-05740 O-RING
091. [01] 09024-50230 SCREW, HOLLOW
092. [02] 09022-20120 WASHER, FUEL PIPE 09022-20120

Include in #3:

19080-04040 as GOVERNOR ASSY, MEC
19100-09791

Cross reference number



Part num Firm num Firm Name
19080-04040    GOVERNOR ASSY, MEC




Information:


Table 1
Part Number Part Description Qty
378-3187 Diesel Exhaust Fluid Filter Gp 1
423-3251 Connector 1
391-5262 Gasket 1
425-0385 Filter As 1
452-6055 Filter Base As 1
453-1604(1) Diesel Exhaust Fluid Filter Gp 1
453-1605(1) Diesel Exhaust Fluid Filter Gp 1
453-1606(1) Diesel Exhaust Fluid Filter Gp 1
(1) Use Table 2 to choose the correct part that corresponds to the DEF heater
Table 2
DEF Heater Part Number Required DEF Filter
434-3241 453-1604
434-3242 453-1605
434-3243 453-1606 The effective serial numbers for this change are related to the Pump Electronic Tank Unit (PETU) serial numbers and not the machine serial numbers. Table 3 contains the effective serial numbers for the PETU tank. Refer to illustration 1 and illustration 2 for examples of where to locate the PETU serial number.
Illustration 1 g06018843
Typical example
(1) The location of the PETU serial plate.
Illustration 2 g03418749
Typical example
Table 3
PETU Effective Serial Numbers
S/N:PET007086T-UP Refer to Special Instruction, M0066142, A New Diesel Exhaust Fluid Filter is Now Available for C7.1 Engines for installation instructions.

Have questions with 19080-04040?





19080-07140 GOVERNOR ASSY, MEC 19080-07130 19080-07120 19080-07110 19080-07100
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533
