19080-03460 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-03460 GOVERNOR ASSY, MEC
Rating:
72
Buy GOVERNOR ASSY, MEC 19080-03460 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900210
Governor assy, mec 1908900210

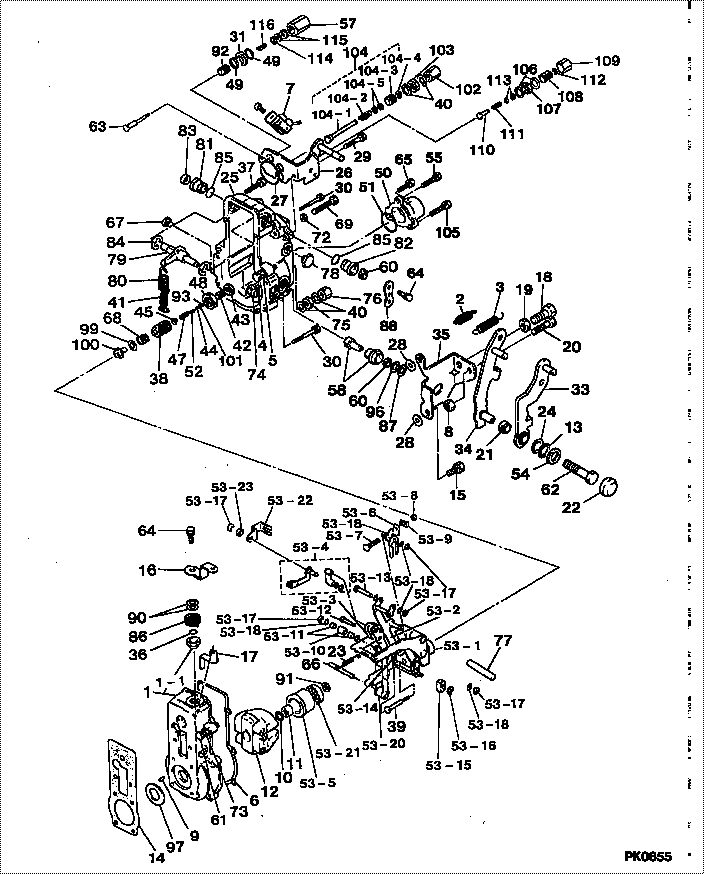

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-03460 GOVERNOR ASSY, MEC ME728539
001. [01] 09081-00450 HOUSING SUB-ASSY, ME728361
001-001. [01] 09101-60020 BUSHING, BEARING ME702636
002. [01] 09104-10540 SPRING SUB-ASSY, R
003. [01] 09104-10550 SPRING SUB-ASSY, R
004. [01] 09082-10254 STOPPER ME702106
005. [01] 09116-90024 NUT ME702132
006. [01] 09082-30141 GASKET ME702746
006. [01] 09082-30400 GASKET
007. [01] 09009-90602 SWITCH KIT, CONTRO ME728209
008. [01] 90160-06051 NUT, HEXAGON ME702588
009. [01] 94913-00050 KEY, WOODRUFF ME702747
010. [01] 94901-50500 WASHER, SPRING ME008373
011. [01] 09084-40010 NUT, ROUND ME702749
012. [01] 09084-00450 FLYWEIGHT ASSY ME702750
013. [01] 09154-60100 SHIM
014. [01] 09011-90140 GASKET, PUMP BODY ME736185
014. [01] 09011-90060 GASKET, PUMP BODY ME728315
015. [01] 91418-06251 BOLT, W/WASHER ME703889
016. [01] 09109-81540 STOPPER ME702752
017. [01] 09115-90460 ARM SUB-ASSY
018. [01] 94904-03110 BOLT, HEXAGON ME702859
019. [01] 90190-08651 NUT, HEXAGON ME702860
020. [01] 09082-10230 STOPPER
021. [01] 09007-80161 COVER
022. [01] 09007-80171 COVER
023. [01] 09099-30160 SPRING, START ME702754
024. [01] 09154-60091 SHIM
025. [01] 09101-11591 COVER, GOVERNOR ME702755
026. [01] 09105-00580 PLATE SUB-ASSY, CO
027. [01] 94914-02030 O-RING ME702853
028. [02] 90200-06511 WASHER, PLATE ME703364
029. [02] 94904-71790 BOLT, W/WASHER ME702203
030. [03] 94904-71740 BOLT, W/WASHER ME702855
031. [01] 94905-30150 NUT, HEXAGON, W/ H ME728373
032. [02] 91418-06351 BOLT, W/WASHER ME702594
033. [01] 09107-03341 LEVER SUB-ASSY, AD
034. [01] 09107-03331 LEVER SUB-ASSY, AD
035. [01] 09069-11361 BRACKET, STOP WIRE
036. [01] 94914-00130 O-RING ME702207
037. [01] 94904-72220 BOLT, W/WASHER ME702854
038. [01] 09091-10200 SCREW, ADPTER ME702756
039. [01] 09091-90540 ADAPTER ME703648
040. [04] 09025-10010 WASHER, INJECTION ME702595
041. [01] 09133-70040 DAMPER, FLYWEIGHT ME702758
042. [01] 09091-10340 SCREW, ADPTER ME703647
043. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
044. [01] 09091-82760 SPRING, MECHANICAL ME728524
045. [01] 09091-70070 SEAT, SPRING ME702762
047. [01] 09091-81680 SPRING, MECHANICAL ME728527
048. [01] 09092-30050 NUT, ADAPTER LOCK ME702765
049. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
050. [01] 09105-00520 PLATE SUB-ASSY, CO ME702767
051. [01] 94914-01900 O-RING ME702768
052. [01] 09091-82730 SPRING, MECHANICAL ME728526
053-001. [01] 09092-00400 LEVER KIT, CONTROL ME728375
053-002. [01] 09143-60220 LEVER SUB-ASSY, FL ME702896
053-003. [01] 09093-00740 LEVER ASSY, CONTRO ME728522
053-004. [01] 09093-00810 LEVER ASSY, CONTRO ME728376
053-005. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
053-006. [01] 09094-00470 LEVER SUB-ASSY, CO ME702900
053-007. [01] 09152-40190 SCREW, STOPPER ME702901
053-008. [01] 90177-06361 NUT, HEXAGON ME702902
053-009. [01] 09140-30100 WASHER, LOCK ME702903
053-010. [01] 09104-90260 COLLAR ME702904
053-011. [02] 09104-90250 COLLAR ME702905
053-012. [01] 09098-30370 PIN, CONNECTING ME702906
053-013. [01] 09098-30191 PIN, CONNECTING ME702907
053-014. [01] 09104-21400 SPRING, RETURN ME728377
053-015. [01] 09094-40120 BUSHING ME702909
053-016. [01] 09089-40070 E-RING ME702910
053-017. [04] 90577-05000 E-RING ME702911
053-018. [5C] 94901-33950 WASHER, PLATE, SK ME702912
053-018. [5C] 94901-33960 WASHER, PLATE, SK ME702190
053-020. [01] 09095-90280 LEVER ASSY, GUIDE ME702913
053-021. [01] 94910-00010 BEARING, BALL ME702914
053-022. [01] 09094-10500 LEVER, CONTROL
053-023. [01] 94901-33960 WASHER, PLATE, SK ME702190
054. [01] 09140-30501 WASHER, LOCK
055. [01] 91418-06161 BOLT, W/WASHER ME702149
057. [01] 09103-10230 NUT, CAP ME728378
058. [01] 09102-60040 SHAFT & BUSHING KI ME702986
060. [02] 94915-01150 SEAL, OIL ME702772
061. [01] 09102-40031 SCREW, ADJUSTING ME023074
062. [01] 09243-30190 BOLT, HEXAGON
063. [01] 09091-90601 ADAPTER ME728379
064. [02] 91418-06141 BOLT, W/WASHER ME702592
065. [01] 91418-06301 BOLT, W/WASHER ME702850
066. [01] 09098-90051 SHAFT, LEVER SUPPO ME702776
067. [01] 09099-10010 PLUG, SCREW ME702777
068. [01] 09091-82220 SPRING, MECHANICAL ME702778
069. [01] 09082-10100 STOPPER ME702773
072. [01] 94905-30140 NUT, HEXAGON, W/ H ME702861
073. [01] 09116-90034 NUT ME702862
074. [01] 09100-60180 SCREW, STROKE ADJU ME702779
075. [01] 09092-30070 NUT, ADAPTER LOCK ME702780
076. [01] 09003-20080 CAP ME702781
077. [01] 09103-50183 SHAFT, MECHANICAL ME702782
078. [02] 09101-60221 BUSHING, BEARING ME702783
079. [01] 09104-80110 LEVER SUB-ASSY, SU ME702784
080. [01] 09099-20720 SPRING, SPEED CONT ME702785
081. [01] 09089-20011 BUSHING, LEVER ME702792
082. [01] 09089-20040 BUSHING, LEVER ME702793
083. [01] 09109-40010 CAP, LEVER ME702794
084. [02] 94907-10090 WASHER, SNAP ME702795
085. [02] 94914-00080 O-RING ME702863
086. [01] 09104-20750 SPRING, RETURN ME702796
087. [01] 09154-60010 SHIM ME702864
088. [01] 09107-10941 LEVER, ADJUSTING ME702797
090. [2C] 94901-32220 WASHER, PLATE, SK ME702868
090. [2C] 94901-31970 WASHER, PLATE, SK ME702867
090. [2C] 94901-31960 WASHER, PLATE, SK ME702866
091. [1C] 94901-34060 WASHER, PLATE, SK ME702889
091. [1C] 94901-34070 WASHER, PLATE, SK ME702890
091. [1C] 94901-34080 WASHER, PLATE, SK ME702891
091. [1C] 94901-34090 WASHER, PLATE, SK ME702892
091. [1C] 94901-34100 WASHER, PLATE, SK ME702893
092. [01] 09091-10360 SCREW, ADPTER ME728380
093. [05] 94901-35550 WASHER, PLATE, SK ME702869
096. [ C] 09154-60030 SHIM ME702870
096. [ C] 09154-60040 SHIM ME702871
096. [ C] 09154-60050 SHIM ME702872
096. [ C] 09154-60080 SHIM ME702873
097. [1C] 94901-15890 WASHER, STEEL PLAT ME702791
097. [1C] 94901-13280 WASHER, STEEL PLAT ME702790
097. [1C] 94901-13270 WASHER, STEEL PLAT ME702789
097. [1C] 94901-13260 WASHER, STEEL PLAT ME702788
097. [1C] 94901-13250 WASHER, STEEL PLAT ME702787
097. [1C] 94901-13240 WASHER, STEEL PLAT ME702786
099. [1C] 09091-70210 SEAT, SPRING ME702886
099. [1C] 09091-70200 SEAT, SPRING ME702885
099. [1C] 09091-70190 SEAT, SPRING ME702884
099. [1C] 09091-70180 SEAT, SPRING ME702883
099. [1C] 09091-70170 SEAT, SPRING ME702882
099. [1C] 09091-70160 SEAT, SPRING ME702881
099. [1C] 09091-70150 SEAT, SPRING ME702880
099. [1C] 09091-70140 SEAT, SPRING ME702879
099. [1C] 09091-70130 SEAT, SPRING ME702878
099. [1C] 09091-70120 SEAT, SPRING ME702877
099. [1C] 09091-70110 SEAT, SPRING ME702876
099. [1C] 09091-70100 SEAT, SPRING ME702875
099. [1C] 09091-70090 SEAT, SPRING ME702874
100. [01] 09104-90270 COLLAR ME702798
101. [1C] 94901-31360 WASHER, PLATE, SK ME702887
101. [1C] 94901-35040 WASHER, PLATE, SK ME702888
102. [01] 09103-10240 NUT, CAP ME728381
103. [01] 09092-30090 NUT, ADAPTER LOCK ME728382
104. [01] 09091-02000 ADAPTER ASSY ME728383
104-001. [01] 09091-90591 ADAPTER
104-002. [01] 09091-80441 SPRING, MECHANICAL ME702944
104-003. [01] 09091-10350 SCREW, ADPTER
104-004. [01] 90577-03000 E-RING
104-005. [2C] 94901-36590 WASHER, PLATE, SK
104-005. [2C] 94901-36580 WASHER, PLATE, SK
104-005. [2C] 94901-36570 WASHER, PLATE, SK
104-005. [2C] 94901-36560 WASHER, PLATE, SK
104-005. [2C] 94901-36550 WASHER, PLATE, SK
104-005. [2C] 94901-36540 WASHER, PLATE, SK
104-005. [01] 09133-10450 SHIM
105. [01] 94904-74620 BOLT, W/WASHER ME728101
106. [02] 94901-80350 WASHER, COPPER PLA ME702922
107. [01] 94805-30090 NUT, HEXAGON, W/HO ME702856
108. [01] 09002-60030 SCREW, ADJUSTING MM500482
109. [01] 09003-20040 CAP ME702858
110. [01] 09091-90050 ADAPTER MM500743
111. [01] 09091-82740 SPRING, MECHANICAL ME728384
112. [01] 09089-40010 E-RING ME702112
113. [2C] 94901-33880 WASHER, PLATE, SK ME022484
113. [2C] 94901-34020 WASHER, PLATE, SK ME728059
113. [2C] 94901-34030 WASHER, PLATE, SK ME022517
113. [2C] 94901-34040 WASHER, PLATE, SK ME022485
113. [2C] 94901-37880 WASHER, PLATE, SK ME703917
114. [01] 90200-04011 WASHER, PLATE ME728385
115. [02] 91160-04321 NUT, HEXAGON ME728386
116. [01] 09091-82750 SPRING, MECHANICAL

Include in #3:

19080-03460 as GOVERNOR ASSY, MEC
19100-08820

Cross reference number



Part num Firm num Firm Name
19080-03460  ME728539  GOVERNOR ASSY, MEC
ME728539    MITSUBISHI GOVERNOR ASSY, MEC




Information:

Remove Shutoff Housing
Before any service work is to be done on the fuel system, the outer surface of the injection pump housing must be clean.
Illustrations show fuel injection pump housing and governor removed from engines. Service work can be done with it installed on engine. 1. Remove the flange (1) and flange assembly (2) from the cover (3).2. Remove the cover from the pump housing by removing seven bolts. 3. Remove the solenoid (4) from the cover.4. Remove cover (6).5. Remove two bolts (5) that hold the cover to the shutoff housing. 6. Remove the cover from the shutoff housing (7). 7. Remove the lever (10) from the shaft (11).8. Remove the shaft (9) from the shutoff housing.9. Remove the lever (8) from the shaft (11).10. Remove the shaft (11) from the shutoff housing.11. Remove the seal (12) from the shutoff housing.Install Shutoff Housing
1. Put 5S1454 Sealing Compound on the outside diameter of the seal and install the seal (1) with tooling (A) in the shutoff housing with the lip toward the outside. The outer face of the seal must be .039 in. (1.0 mm) below the surface of the housing. Remove the extra sealing compound from the housing and the seal after installation. 2. Install the shaft (3) in the shutoff housing.3. Install the lever (5) on the shaft (3).4. Install shaft (2) in the shutoff housing.5. Install the lever (4) on shaft (3). 6. Put the cover (6) in position on the shutoff housing and install two bolts that hold the cover to the housing. 7. Install the cover (8).8. Install the solenoid (7) on the cover.9. Install the cover (6) on the pump housing.10. Install the flange assembly and the flange on the cover.

Have questions with 19080-03460?





19080-07140 GOVERNOR ASSY, MEC 19080-07130 19080-07120 19080-07110 19080-07100
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533
