19080-03320 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-03320 GOVERNOR ASSY, MEC
Rating:
62
Buy GOVERNOR ASSY, MEC 19080-03320 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900210
Governor assy, mec 1908900210

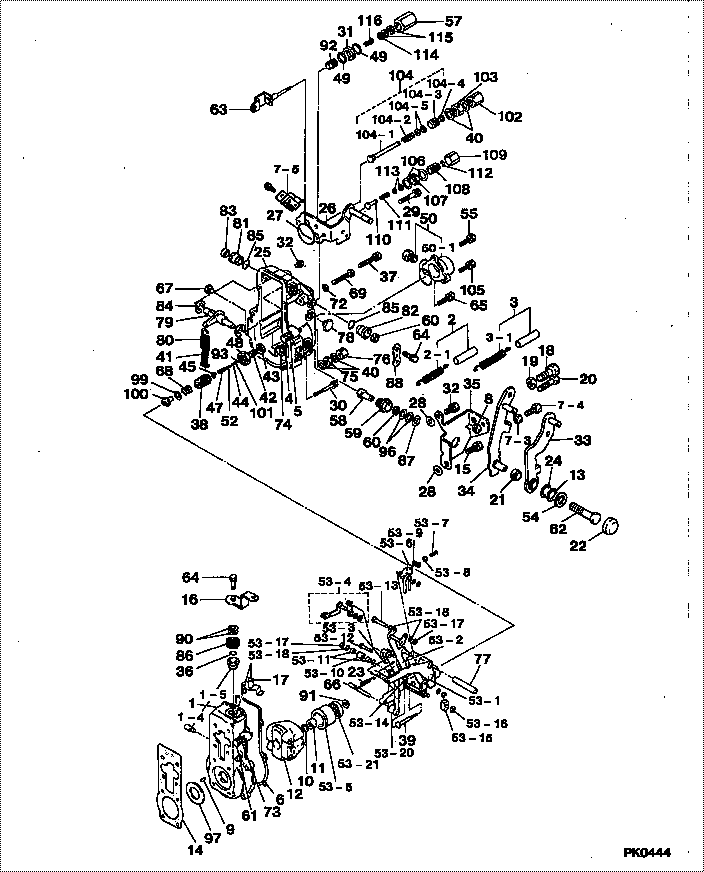

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-03320 GOVERNOR ASSY, MEC ME728342
001. [01] 09081-00450 HOUSING SUB-ASSY, ME728361
001-004. [01] 09096-40030 PIN ME702940
001-005. [01] 09101-60020 BUSHING, BEARING ME702636
002. [01] 09104-10540 SPRING SUB-ASSY, R
002-001. [01] 09104-21320 SPRING, RETURN ME728745
003. [01] 09104-10550 SPRING SUB-ASSY, R
003-001. [01] 09104-21330 SPRING, RETURN
004. [01] 09082-10254 STOPPER ME702106
005. [01] 09116-90024 NUT ME702132
006. [01] 09082-30400 GASKET ME736187
006. [01] 09082-30141 GASKET ME702746
007. [01] 09009-90602 SWITCH KIT, CONTRO ME728209
007-003. [01] 90160-06051 NUT, HEXAGON ME702588
007-004. [01] 94904-03840 BOLT, HEXAGON ME702201
007-005. [01] 09105-10710 PLATE, COVER ME702608
008. [01] 90160-06051 NUT, HEXAGON ME702588
009. [01] 94913-00050 KEY, WOODRUFF ME702747
010. [01] 94901-50500 WASHER, SPRING ME008373
011. [01] 09084-40010 NUT, ROUND ME702749
012. [01] 09084-00450 FLYWEIGHT ASSY ME702750
013. [01] 09154-60100 SHIM
014. [01] 09011-90140 GASKET, PUMP BODY ME736185
014. [01] 09011-90060 GASKET, PUMP BODY ME728315
015. [01] 91418-06251 BOLT, W/WASHER ME703889
016. [01] 09109-81540 STOPPER ME702752
017. [01] 09115-90400 ARM SUB-ASSY ME702753
018. [01] 94904-03110 BOLT, HEXAGON ME702859
019. [01] 90190-08651 NUT, HEXAGON ME702860
020. [01] 09082-10230 STOPPER
021. [01] 09007-80161 COVER
022. [01] 09007-80171 COVER
023. [01] 09099-30160 SPRING, START ME702754
024. [01] 09154-60091 SHIM
025. [01] 09101-11591 COVER, GOVERNOR ME702755
026. [01] 09105-00580 PLATE SUB-ASSY, CO
027. [01] 94914-02030 O-RING ME702853
028. [02] 90200-06511 WASHER, PLATE ME703364
029. [02] 94904-71790 BOLT, W/WASHER ME702203
030. [03] 94904-71740 BOLT, W/WASHER ME702855
031. [01] 94905-30150 NUT, HEXAGON, W/ H ME728373
032. [02] 91418-06351 BOLT, W/WASHER ME702594
033. [01] 09107-03341 LEVER SUB-ASSY, AD
034. [01] 09107-03331 LEVER SUB-ASSY, AD
035. [01] 09069-11361 BRACKET, STOP WIRE
036. [01] 94914-00130 O-RING ME702207
037. [01] 94904-72220 BOLT, W/WASHER ME702854
038. [01] 09091-10200 SCREW, ADPTER ME702756
039. [01] 09091-90540 ADAPTER ME703648
040. [04] 09025-10010 WASHER, INJECTION ME702595
041. [01] 09133-70040 DAMPER, FLYWEIGHT ME702758
042. [01] 09091-10340 SCREW, ADPTER ME703647
043. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
044. [01] 09091-82760 SPRING, MECHANICAL ME728524
044. [01] 09091-82292 SPRING, MECHANICAL ME703646
045. [01] 09091-70070 SEAT, SPRING ME702762
047. [01] 09091-81351 SPRING, MECHANICAL ME702764
048. [01] 09092-30050 NUT, ADAPTER LOCK ME702765
049. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
050. [01] 09105-00520 PLATE SUB-ASSY, CO ME702767
050-001. [01] 09105-10770 PLATE, COVER
051. [01] 94914-01900 O-RING ME702768
052. [01] 09091-82770 SPRING, MECHANICAL ME728523
052. [01] 09091-82300 SPRING, MECHANICAL ME702769
053. [01] 09092-90450 ASSY DRAWING, CONT ME728374
053-001. [01] 09092-00400 LEVER KIT, CONTROL ME728375
053-002. [01] 09143-60220 LEVER SUB-ASSY, FL ME702896
053-003. [01] 09093-00460 LEVER ASSY, CONTRO ME702897
053-004. [01] 09093-00810 LEVER ASSY, CONTRO ME728376
053-005. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
053-006. [01] 09094-00470 LEVER SUB-ASSY, CO ME702900
053-007. [01] 09152-40190 SCREW, STOPPER ME702901
053-008. [01] 90177-06361 NUT, HEXAGON ME702902
053-009. [01] 09140-30100 WASHER, LOCK ME702903
053-010. [01] 09104-90260 COLLAR ME702904
053-011. [02] 09104-90250 COLLAR ME702905
053-012. [01] 09098-30370 PIN, CONNECTING ME702906
053-013. [01] 09098-30191 PIN, CONNECTING ME702907
053-014. [01] 09104-21400 SPRING, RETURN ME728377
053-015. [01] 09094-40120 BUSHING ME702909
053-016. [01] 09089-40070 E-RING ME702910
053-017. [05] 90577-05000 E-RING ME702911
053-018. [5C] 94901-33960 WASHER, PLATE, SK ME702190
053-018. [5C] 94901-33950 WASHER, PLATE, SK ME702912
053-020. [01] 09095-90280 LEVER ASSY, GUIDE ME702913
053-021. [01] 94910-00010 BEARING, BALL ME702914
053-022. [01] 09094-10500 LEVER, CONTROL ME728749
053-023. [01] 94901-33960 WASHER, PLATE, SK ME702190
054. [01] 09140-30501 WASHER, LOCK
055. [01] 91418-06161 BOLT, W/WASHER ME702149
057. [01] 09103-10230 NUT, CAP ME728378
058. [01] 09108-20150 SHAFT ME702770
059. [01] 09101-60280 BUSHING, BEARING ME702771
060. [02] 94915-01150 SEAL, OIL ME702772
061. [01] 09102-40031 SCREW, ADJUSTING ME023074
062. [01] 09243-30190 BOLT, HEXAGON
063. [01] 09091-90601 ADAPTER ME728379
064. [02] 91418-06141 BOLT, W/WASHER ME702592
065. [01] 91418-06301 BOLT, W/WASHER ME702850
066. [01] 09098-90051 SHAFT, LEVER SUPPO ME702776
067. [01] 09099-10010 PLUG, SCREW ME702777
068. [01] 09091-82220 SPRING, MECHANICAL ME702778
069. [01] 09082-10100 STOPPER ME702773
072. [01] 94905-30140 NUT, HEXAGON, W/ H ME702861
073. [01] 09116-90034 NUT ME702862
074. [01] 09100-60180 SCREW, STROKE ADJU ME702779
075. [01] 09092-30070 NUT, ADAPTER LOCK ME702780
076. [01] 09003-20080 CAP ME702781
077. [01] 09103-50183 SHAFT, MECHANICAL ME702782
078. [02] 09101-60221 BUSHING, BEARING ME702783
079. [01] 09104-80110 LEVER SUB-ASSY, SU ME702784
080. [01] 09099-20720 SPRING, SPEED CONT ME702785
081. [01] 09089-20011 BUSHING, LEVER ME702792
082. [01] 09089-20040 BUSHING, LEVER ME702793
083. [01] 09109-40010 CAP, LEVER ME702794
084. [02] 94907-10090 WASHER, SNAP ME702795
085. [02] 94914-00080 O-RING ME702863
086. [01] 09104-20750 SPRING, RETURN ME702796
087. [01] 09154-60010 SHIM ME702864
088. [01] 09107-10941 LEVER, ADJUSTING ME702797
090. [2C] 94901-32220 WASHER, PLATE, SK ME702868
090. [2C] 94901-31970 WASHER, PLATE, SK ME702867
090. [2C] 94901-31960 WASHER, PLATE, SK ME702866
091. [ C] 94901-34060 WASHER, PLATE, SK ME702889
091. [1C] 94901-34070 WASHER, PLATE, SK ME702890
091. [1C] 94901-34080 WASHER, PLATE, SK ME702891
091. [1C] 94901-34090 WASHER, PLATE, SK ME702892
091. [1C] 94901-34100 WASHER, PLATE, SK ME702893
092. [01] 09091-10360 SCREW, ADPTER ME728380
093. [05] 94901-35550 WASHER, PLATE, SK ME702869
096. [2C] 09154-60030 SHIM ME702870
096. [2C] 09154-60040 SHIM ME702871
096. [2C] 09154-60050 SHIM ME702872
096. [2C] 09154-60080 SHIM ME702873
097. [ C] 94901-15890 WASHER, STEEL PLAT ME702791
097. [ C] 94901-13280 WASHER, STEEL PLAT ME702790
097. [ C] 94901-13270 WASHER, STEEL PLAT ME702789
097. [ C] 94901-13260 WASHER, STEEL PLAT ME702788
097. [ C] 94901-13250 WASHER, STEEL PLAT ME702787
097. [ C] 94901-13240 WASHER, STEEL PLAT ME702786
099. [ C] 09091-70210 SEAT, SPRING ME702886
099. [ C] 09091-70200 SEAT, SPRING ME702885
099. [ C] 09091-70190 SEAT, SPRING ME702884
099. [ C] 09091-70180 SEAT, SPRING ME702883
099. [ C] 09091-70170 SEAT, SPRING ME702882
099. [ C] 09091-70160 SEAT, SPRING ME702881
099. [ C] 09091-70150 SEAT, SPRING ME702880
099. [ C] 09091-70140 SEAT, SPRING ME702879
099. [ C] 09091-70130 SEAT, SPRING ME702878
099. [ C] 09091-70120 SEAT, SPRING ME702877
099. [ C] 09091-70110 SEAT, SPRING ME702876
099. [ C] 09091-70100 SEAT, SPRING ME702875
099. [ C] 09091-70090 SEAT, SPRING ME702874
100. [01] 09104-90270 COLLAR ME702798
101. [ C] 94901-31360 WASHER, PLATE, SK ME702887
101. [ C] 94901-35040 WASHER, PLATE, SK ME702888
102. [01] 09103-10240 NUT, CAP ME728381
103. [01] 09092-30090 NUT, ADAPTER LOCK ME728382
104. [01] 09091-02000 ADAPTER ASSY ME728383
104-001. [01] 09091-90591 ADAPTER ME728750
104-002. [01] 09091-80441 SPRING, MECHANICAL ME702944
104-003. [01] 09091-10350 SCREW, ADPTER ME728751
104-004. [01] 90577-03000 E-RING ME728752
104-005. [2C] 94901-36590 WASHER, PLATE, SK ME728761
104-005. [2C] 94901-36580 WASHER, PLATE, SK ME728760
104-005. [2C] 94901-36570 WASHER, PLATE, SK ME728759
104-005. [2C] 94901-36560 WASHER, PLATE, SK ME728758
104-005. [2C] 94901-36550 WASHER, PLATE, SK ME728757
104-005. [2C] 94901-36540 WASHER, PLATE, SK ME728756
104-005. [ C] 09133-10450 SHIM ME728753
105. [01] 94904-74620 BOLT, W/WASHER ME728101
106. [02] 94901-80350 WASHER, COPPER PLA ME702922
107. [01] 94805-30090 NUT, HEXAGON, W/HO ME702856
108. [01] 09002-60030 SCREW, ADJUSTING MM500482
109. [01] 09003-20040 CAP ME702858
110. [01] 09091-90050 ADAPTER MM500743
111. [01] 09091-82740 SPRING, MECHANICAL ME728384
112. [01] 09089-40010 E-RING ME702112
113. [2C] 94901-33880 WASHER, PLATE, SK ME022484
113. [2C] 94901-34020 WASHER, PLATE, SK ME728059
113. [2C] 94901-34030 WASHER, PLATE, SK ME022517
113. [2C] 94901-34040 WASHER, PLATE, SK ME022485
113. [2C] 94901-37880 WASHER, PLATE, SK ME703917
114. [01] 90200-04011 WASHER, PLATE ME728385
115. [02] 91160-04321 NUT, HEXAGON ME728386
116. [01] 09091-82780 SPRING, MECHANICAL ME728387

Include in #3:

19080-03320 as GOVERNOR ASSY, MEC
19100-08440

Cross reference number



Part num Firm num Firm Name
19080-03320  ME728342  GOVERNOR ASSY, MEC
ME728342    MITSUBISHI GOVERNOR ASSY, MEC
