19080-03300 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-03300 GOVERNOR ASSY, MEC
Rating:
2
Buy GOVERNOR ASSY, MEC 19080-03300 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900210
Governor assy, mec 1908900210
Governor assy, mec 1908900210

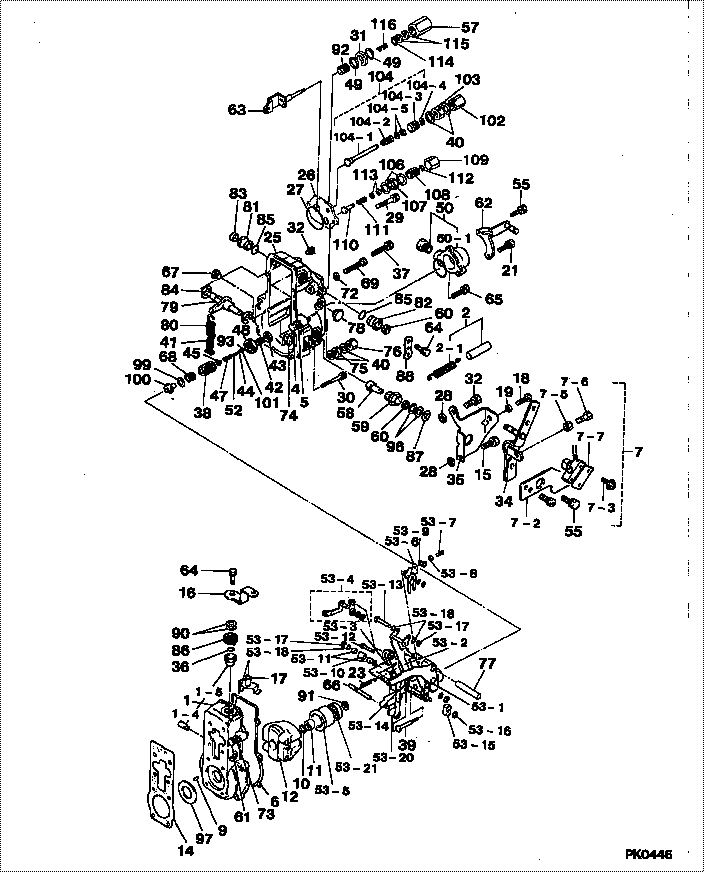

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-03300 GOVERNOR ASSY, MEC ME728341
001. [01] 09081-00450 HOUSING SUB-ASSY, ME728361
001-004. [01] 09096-40030 PIN ME702940
001-005. [01] 09101-60020 BUSHING, BEARING ME702636
002. [02] 09104-10560 SPRING SUB-ASSY, R ME728318
002-001. [02] 09104-21340 SPRING, RETURN ME736119
004. [01] 09082-10254 STOPPER ME702106
005. [01] 09116-90024 NUT ME702132
006. [01] 09082-30141 GASKET ME702746
006. [01] 09082-30400 GASKET ME736187
007. [01] 09009-90612 SWITCH KIT, CONTRO ME728206
007-002. [01] 09069-11470 BRACKET, STOP WIRE
007-003. [02] 94901-12070 WASHER, STEEL PLAT
007-005. [01] 90160-06051 NUT, HEXAGON ME702588
007-006. [01] 94904-03201 BOLT, HEXAGON 30861-27400
007-007. [01] 09105-10710 PLATE, COVER ME702608
009. [01] 94913-00050 KEY, WOODRUFF ME702747
010. [01] 94901-50500 WASHER, SPRING ME008373
011. [01] 09084-40010 NUT, ROUND ME702749
012. [01] 09084-00450 FLYWEIGHT ASSY ME702750
014. [01] 09011-90060 GASKET, PUMP BODY ME728315
014. [01] 09011-90140 GASKET, PUMP BODY ME736185
015. [01] 91418-06251 BOLT, W/WASHER ME703889
016. [01] 09109-81540 STOPPER ME702752
017. [01] 09115-90400 ARM SUB-ASSY ME702753
018. [01] 94904-03110 BOLT, HEXAGON ME702859
019. [01] 90190-08651 NUT, HEXAGON ME702860
021. [01] 94904-71770 BOLT, W/WASHER ME702851
023. [01] 09099-30160 SPRING, START ME702754
025. [01] 09101-11591 COVER, GOVERNOR ME702755
026. [01] 09105-11010 PLATE, COVER ME728372
027. [01] 94914-02030 O-RING ME702853
028. [02] 90200-06511 WASHER, PLATE ME703364
029. [02] 94904-71790 BOLT, W/WASHER ME702203
030. [03] 94904-71740 BOLT, W/WASHER ME702855
031. [01] 94905-30150 NUT, HEXAGON, W/ H ME728373
032. [02] 91418-06351 BOLT, W/WASHER ME702594
034. [01] 09107-03350 LEVER SUB-ASSY, AD ME728317
034-003. [01] 09098-20550 PIN, SHACKLE
035. [01] 09069-11041 BRACKET, STOP WIRE ME702751
036. [01] 94914-00130 O-RING ME702207
037. [01] 94904-72220 BOLT, W/WASHER ME702854
038. [01] 09091-10200 SCREW, ADPTER ME702756
039. [01] 09091-90540 ADAPTER ME703648
040. [04] 09025-10010 WASHER, INJECTION ME702595
041. [01] 09133-70040 DAMPER, FLYWEIGHT ME702758
042. [01] 09091-10340 SCREW, ADPTER ME703647
043. [01] 09092-30011 NUT, ADAPTER LOCK ME702760
044. [01] 09091-82760 SPRING, MECHANICAL ME728524
044. [01] 09091-82292 SPRING, MECHANICAL ME703646
045. [01] 09091-70070 SEAT, SPRING ME702762
047. [01] 09091-81351 SPRING, MECHANICAL ME702764
048. [01] 09092-30050 NUT, ADAPTER LOCK ME702765
049. [02] 09024-10010 WASHER, AIR BLEEDE ME702102
050. [01] 09105-00520 PLATE SUB-ASSY, CO ME702767
050-001. [01] 09105-10770 PLATE, COVER
051. [01] 94914-01900 O-RING ME702768
052. [01] 09091-82770 SPRING, MECHANICAL ME728523
052. [01] 09091-82300 SPRING, MECHANICAL ME702769
053. [01] 09092-90450 ASSY DRAWING, CONT ME728374
053-001. [01] 09092-00400 LEVER KIT, CONTROL ME728375
053-002. [01] 09143-60220 LEVER SUB-ASSY, FL ME702896
053-003. [01] 09093-00460 LEVER ASSY, CONTRO ME702897
053-004. [01] 09093-00810 LEVER ASSY, CONTRO ME728376
053-005. [01] 09086-10010 SLEEVE, GOVERNOR ME702899
053-006. [01] 09094-00470 LEVER SUB-ASSY, CO ME702900
053-007. [01] 09152-40190 SCREW, STOPPER ME702901
053-008. [01] 90177-06361 NUT, HEXAGON ME702902
053-009. [01] 09140-30100 WASHER, LOCK ME702903
053-010. [01] 09104-90260 COLLAR ME702904
053-011. [02] 09104-90250 COLLAR ME702905
053-012. [01] 09098-30370 PIN, CONNECTING ME702906
053-013. [01] 09098-30191 PIN, CONNECTING ME702907
053-014. [01] 09104-21400 SPRING, RETURN ME728377
053-015. [01] 09094-40120 BUSHING ME702909
053-016. [01] 09089-40070 E-RING ME702910
053-017. [05] 90577-05000 E-RING ME702911
053-018. [5C] 94901-33960 WASHER, PLATE, SK ME702190
053-018. [5C] 94901-33950 WASHER, PLATE, SK ME702912
053-020. [01] 09095-90280 LEVER ASSY, GUIDE ME702913
053-021. [01] 94910-00010 BEARING, BALL ME702914
053-022. [01] 09094-10500 LEVER, CONTROL ME728749
053-023. [01] 94901-33960 WASHER, PLATE, SK ME702190
055. [02] 91418-06201 BOLT, W/WASHER ME702041
057. [01] 09103-10230 NUT, CAP ME728378
058. [01] 09108-20150 SHAFT ME702770
059. [01] 09101-60280 BUSHING, BEARING ME702771
060. [02] 94915-01150 SEAL, OIL ME702772
061. [01] 09102-40031 SCREW, ADJUSTING ME023074
062. [01] 09097-51081 ARM, SPRING ME728316
063. [01] 09091-90601 ADAPTER ME728379
064. [02] 91418-06141 BOLT, W/WASHER ME702592
065. [01] 91418-06301 BOLT, W/WASHER ME702850
066. [01] 09098-90051 SHAFT, LEVER SUPPO ME702776
067. [01] 09099-10010 PLUG, SCREW ME702777
068. [01] 09091-82220 SPRING, MECHANICAL ME702778
069. [01] 09082-10100 STOPPER ME702773
072. [01] 94905-30140 NUT, HEXAGON, W/ H ME702861
073. [01] 09116-90034 NUT ME702862
074. [01] 09100-60180 SCREW, STROKE ADJU ME702779
075. [01] 09092-30070 NUT, ADAPTER LOCK ME702780
076. [01] 09003-20080 CAP ME702781
077. [01] 09103-50183 SHAFT, MECHANICAL ME702782
078. [02] 09101-60221 BUSHING, BEARING ME702783
079. [01] 09103-50110 SHAFT, MECHANICAL
080. [01] 09099-20720 SPRING, SPEED CONT ME702785
081. [01] 09089-20011 BUSHING, LEVER ME702792
082. [01] 09089-20040 BUSHING, LEVER ME702793
083. [01] 09109-40010 CAP, LEVER ME702794
084. [02] 94907-10090 WASHER, SNAP ME702795
085. [02] 94914-00080 O-RING ME702863
086. [01] 09104-20750 SPRING, RETURN ME702796
087. [01] 09154-60010 SHIM ME702864
088. [01] 09107-10941 LEVER, ADJUSTING ME702797
090. [2C] 94901-32220 WASHER, PLATE, SK ME702868
090. [2C] 94901-31970 WASHER, PLATE, SK ME702867
090. [2C] 94901-31960 WASHER, PLATE, SK ME702866
091. [ C] 94901-34060 WASHER, PLATE, SK ME702889
091. [ C] 94901-34070 WASHER, PLATE, SK ME702890
091. [ C] 94901-34080 WASHER, PLATE, SK ME702891
091. [ C] 94901-34090 WASHER, PLATE, SK ME702892
091. [ C] 94901-34100 WASHER, PLATE, SK ME702893
092. [01] 09091-10360 SCREW, ADPTER ME728380
093. [05] 94901-35550 WASHER, PLATE, SK ME702869
096. [2C] 09154-60030 SHIM ME702870
096. [2C] 09154-60040 SHIM ME702871
096. [2C] 09154-60050 SHIM ME702872
096. [2C] 09154-60080 SHIM ME702873
097. [ C] 94901-15890 WASHER, STEEL PLAT ME702791
097. [ C] 94901-13280 WASHER, STEEL PLAT ME702790
097. [ C] 94901-13270 WASHER, STEEL PLAT ME702789
097. [ C] 94901-13260 WASHER, STEEL PLAT ME702788
097. [ C] 94901-13250 WASHER, STEEL PLAT ME702787
097. [ C] 94901-13240 WASHER, STEEL PLAT ME702786
099. [ C] 09091-70210 SEAT, SPRING ME702886
099. [ C] 09091-70200 SEAT, SPRING ME702885
099. [ C] 09091-70190 SEAT, SPRING ME702884
099. [ C] 09091-70180 SEAT, SPRING ME702883
099. [ C] 09091-70170 SEAT, SPRING ME702882
099. [ C] 09091-70160 SEAT, SPRING ME702881
099. [ C] 09091-70150 SEAT, SPRING ME702880
099. [ C] 09091-70140 SEAT, SPRING ME702879
099. [ C] 09091-70130 SEAT, SPRING ME702878
099. [ C] 09091-70120 SEAT, SPRING ME702877
099. [ C] 09091-70110 SEAT, SPRING ME702876
099. [ C] 09091-70100 SEAT, SPRING ME702875
099. [ C] 09091-70090 SEAT, SPRING ME702874
100. [01] 09104-90270 COLLAR ME702798
101. [ C] 94901-31360 WASHER, PLATE, SK ME702887
101. [ C] 94901-35040 WASHER, PLATE, SK ME702888
102. [01] 09103-10240 NUT, CAP ME728381
103. [01] 09092-30090 NUT, ADAPTER LOCK ME728382
104. [01] 09091-02000 ADAPTER ASSY ME728383
104-001. [01] 09091-90591 ADAPTER ME728750
104-002. [01] 09091-80441 SPRING, MECHANICAL ME702944
104-003. [01] 09091-10350 SCREW, ADPTER ME728751
104-004. [01] 90577-03000 E-RING ME728752
104-005. [2C] 94901-36590 WASHER, PLATE, SK ME728761
104-005. [2C] 94901-36580 WASHER, PLATE, SK ME728760
104-005. [2C] 94901-36570 WASHER, PLATE, SK ME728759
104-005. [2C] 94901-36560 WASHER, PLATE, SK ME728758
104-005. [2C] 94901-36550 WASHER, PLATE, SK ME728757
104-005. [2C] 94901-36540 WASHER, PLATE, SK ME728756
104-005. [01] 09133-10450 SHIM ME728753
106. [02] 94901-80350 WASHER, COPPER PLA ME702922
107. [01] 94805-30090 NUT, HEXAGON, W/HO ME702856
108. [01] 09002-60030 SCREW, ADJUSTING MM500482
109. [01] 09003-20040 CAP ME702858
110. [01] 09091-90050 ADAPTER MM500743
111. [01] 09091-82740 SPRING, MECHANICAL ME728384
112. [01] 09089-40010 E-RING ME702112
113. [2C] 94901-33880 WASHER, PLATE, SK ME022484
113. [2C] 94901-34020 WASHER, PLATE, SK ME728059
113. [2C] 94901-34030 WASHER, PLATE, SK ME022517
113. [2C] 94901-34040 WASHER, PLATE, SK ME022485
113. [2C] 94901-37880 WASHER, PLATE, SK ME703917
114. [01] 90200-04011 WASHER, PLATE ME728385
115. [02] 91160-04321 NUT, HEXAGON ME728386
116. [01] 09091-82780 SPRING, MECHANICAL ME728387

Include in #3:

19080-03300 as GOVERNOR ASSY, MEC
19100-08400
19100-08420

Cross reference number



Part num Firm num Firm Name
19080-03300  ME728341  GOVERNOR ASSY, MEC
ME728341    MITSUBISHI GOVERNOR ASSY, MEC




Information:


Illustration 1 g00596626
(1) Potentiometer (2) Light Emitting Diode (3) The Normally Closed Contact (4) Common Contact (5) Normally Open Contact
Preset the variable voltage power supply to 22 VDC.
Secure the variable voltage power supply.
Use the 4P-4029 Adjustment Tool to turn the potentiometer for the low voltage alarm module counterclockwise. Turn the potentiometer 25 times.
Remove the wire from the low voltage alarm module's positive terminal. Remove the wire from the low voltage alarm module's negative terminal.
Connect the power supply's positive lead to the low voltage alarm module's positive terminal.
Connect the power supply's negative lead to the low voltage alarm module's negative terminal.
Connect the multimeter to the N.O. contact and connect the multimeter to the COM contact. Set the multimeter to the function for measuring ohms. The multimeter should read "OL".
Energize the power supply.
Verify that the voltage is 22 VDC.
If the voltage is not 22 VDC, adjust the power supply.
Slowly turn the potentiometer for the low voltage alarm module clockwise until the LED illuminates.Note: The relay will energize after the LED illuminates. This occurs in 50 15 seconds.
Observe the multimeter in order to verify that the relay energized. The resistance reading should be low when the relay is energized.
Increase the output of the power supply to 24 VDC.Note: The LED and the relay de-energize simultaneously.
Remove the power supply's negative lead from the low voltage alarm module.
Remove the power supply's positive lead from the low voltage alarm module.
Remove the multimeter's leads from the low voltage alarm module.
Connect the system's wire to the low voltage alarm module's positive terminal. Connect the system's wire to the low voltage alarm module's negative terminal.
