19080-01650 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-01650 GOVERNOR ASSY, MEC
Rating:
4
Buy GOVERNOR ASSY, MEC 19080-01650 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900170
Governor assy, mec 1908900170

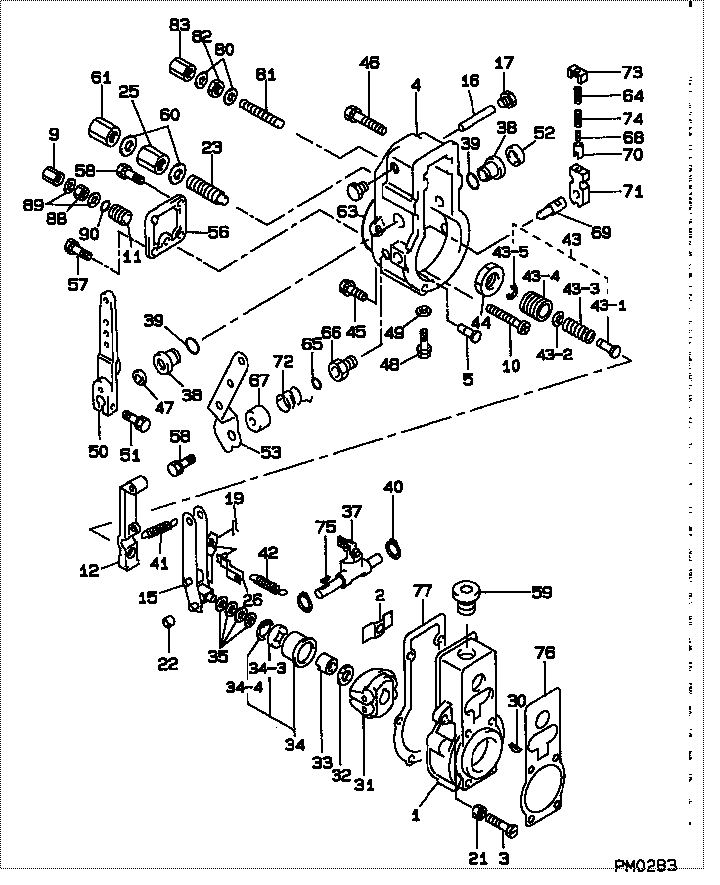

Scheme ###:

000. [01] 19080-01650 GOVERNOR ASSY, MEC
001. [01] 09081-00310 HOUSING SUB-ASSY,
001. [01] 09081-00470 HOUSING SUB-ASSY,
002. [01] 09087-80030 PLATE 21705880
003. [01] 09082-10010 STOPPER 21701480
004. [01] 09101-12030 COVER, GOVERNOR
005. [01] 09101-40090 PIN, STOP
009. [01] 09103-10151 NUT, CAP
010. [01] 09100-60150 SCREW, STROKE ADJU
011. [01] 09094-40310 BUSHING
012. [01] 09090-10150 LEVER, TENSION 21705940
012. [01] 09090-10200 LEVER, TENSION
015. [01] 09093-00360 LEVER ASSY, CONTRO
016. [01] 09098-90010 SHAFT, LEVER SUPPO 21706050
017. [02] 09099-10010 PLUG, SCREW 21703750
019. [01] 90400-02101 PIN, SPLIT
021. [01] 94805-30051 NUT, HEXAGON, W/HO 21705980
022. [01] 09104-60010 SLIDER, SUPPORTING 21705990
023. [01] 09056-00150 CAPSULE, FULL STOP
025. [01] 09092-30060 NUT, ADAPTER LOCK
026. [01] 09097-00170 SHACKLE ASSY 21706020
030. [01] 94913-00050 KEY, WOODRUFF 21703900
031. [01] 09084-00320 FLYWEIGHT ASSY 21706040
032. [01] 94901-50500 WASHER, SPRING 21703370
033. [01] 09084-40010 NUT, ROUND 21703910
034. [01] 09086-00180 SLEEVE SUB-ASSY, F 21706060
034-003. [01] 09086-80020 PLATE, THRUST 21706070
034-004. [01] 90567-30000 RING, HOLE SNAP 21706090
035. [ C] 94901-34100 WASHER, PLATE, SK 21705560
035. [ C] 94901-34090 WASHER, PLATE, SK 21705550
035. [ C] 94901-34080 WASHER, PLATE, SK 21705540
035. [ C] 94901-34070 WASHER, PLATE, SK 21705530
035. [ C] 94901-34060 WASHER, PLATE, SK 21705520
037. [01] 09088-00110 LEVER ASSY, SWIEVE 21706100
038. [02] 09089-20080 BUSHING, LEVER 21706110
039. [02] 90801-20160 O-RING 21706120
040. [02] 94907-10090 WASHER, SNAP 21703610
041. [01] 09099-20010 SPRING, SPEED CONT 21703630
042. [01] 09099-30110 SPRING, START 21705500
043. [01] 09091-01030 ADAPTER ASSY
043-001. [01] 09091-90010 ADAPTER 21704020
043-002. [ C] 94901-33880 WASHER, PLATE, SK 21704030
043-002. [ C] 94901-34020 WASHER, PLATE, SK 21704060
043-002. [ C] 94901-34030 WASHER, PLATE, SK 21704050
043-002. [ C] 94901-37880 WASHER, PLATE, SK
043-003. [01] 09091-80110 SPRING, MECHANICAL
043-004. [01] 09091-10010 SCREW, ADPTER 21704080
043-005. [01] 09089-40010 E-RING 21704100
044. [01] 09092-30011 NUT, ADAPTER LOCK 21704110
045. [04] 94904-71760 BOLT, W/WASHER
046. [02] 94904-71750 BOLT, W/WASHER
047. [01] 94915-00210 SEAL, OIL 21703680
048. [01] 09116-70031 PLUG, SCREW 21706130
049. [01] 09022-20060 WASHER, FUEL PIPE 21706140
050. [01] 09107-00350 LEVER SUB-ASSY, AD 0910700350
051. [01] 94904-71190 BOLT, W/WASHER 21706160
052. [01] 09109-40060 CAP, LEVER 21706170
053. [01] 09109-81090 STOPPER
056. [01] 09105-00390 PLATE SUB-ASSY, CO
057. [02] 94904-71790 BOLT, W/WASHER
058. [03] 91418-06141 BOLT, W/WASHER
059. [01] 09116-70050 PLUG, SCREW 21706210
060. [02] 09024-10010 WASHER, AIR BLEEDE 21703820
061. [01] 09103-10030 NUT, CAP
063. [01] 94906-21270 PACKING, RUBBER PL 21706230
064. [01] 09103-80040 SPRING, B 21706240
065. [01] 94914-00130 O-RING 21705590
066. [01] 09101-60360 BUSHING, BEARING
066. [01] 09101-60020 BUSHING, BEARING 21704300
067. [01] 09104-30010 COVER, SPRING 21705600
068. [01] 09103-80050 SPRING, B 21706270
069. [01] 09103-50240 SHAFT, MECHANICAL 21706280
070. [01] 09103-60010 CUP, SPRING 21704270
071. [01] 09103-40130 LEVER, SUPPORT 21706290
072. [01] 09104-20220 SPRING, RETURN 0910420220
073. [01] 09103-30030 PLATE, CAP 21706310
074. [01] 09103-80030 SPRING, B 21706320
075. [01] 94913-00030 KEY, WOODRUFF 21703650
076. [01] 09082-30460 GASKET
076. [01] 09082-30240 GASKET 21708470
077. [01] 09082-30230 GASKET
077. [01] 09082-30420 GASKET
080. [02] 09024-80010 WASHER, DRAIN SCRE 0902480010
081. [01] 09082-10190 STOPPER
082. [01] 90177-06361 NUT, HEXAGON
083. [01] 09103-10110 NUT, CAP 21706220
088. [01] 94905-01020 NUT, HEXAGON 9490501020
088. [01] 94905-03390 NUT, HEXAGON
089. [02] 94901-81020 WASHER, COPPER PLA 21706370
090. [01] 90801-10120 O-RING 21703030

Include in #3:

19080-01650 as GOVERNOR ASSY, MEC

Cross reference number



Part num Firm num Firm Name
19080-01650    GOVERNOR ASSY, MEC




Information:

Troubleshooting
Engine Vibration Troubleshooting
The troubleshooting chart provides a definite sequence to be followed for a logical procedure to determine the frequency and amplitude of vibration so that the source of the vibration can be located and corrected.1. The customer must be asked questions to determine whether his complaint is valid, or whether his diagnosis of the actual problem is correct.Some of the questions that must be asked are as follows: a. What components are vibrating?b. In what speed range does this vibration become excessive?c. Does clutch operation affect the vibration?d. What is the history of the problem?2. Run the engine through the idle speed range and note all vibrating components. Look for any loose or broken mounts, brackets, and fasteners. Repair and tighten any fixtures.3. Check idle speed range with clutch disengaged. If vibrations subside, there is a balance problem with the clutch disc. The clutch disc must be repaired or replaced.4. Further analysis requires the use of a vibration instrument. Any instrument which can accurately measure the displacement of the vibration (usually in mils-inch/1000) and the frequency (cycles per second) will be sufficient. The 4C3030 Vibration Analyzer Group can be used to provide a quick and complete identification of all vibration frequencies present in a constant speed measurement. Make reference to Operation Manual, Form No. NEHS0525 for additional information for troubleshooting vibration complaints with the 4C3030 Vibration Analyzer Group. The following steps assume the use of a vibration instrument such as the IRD Mechanalysis Model 320 or an equivalent instrument can be used to analyze vibration. Make reference to Special Instruction, Troubleshooting Engine Vibration In Vehicular Equipment, Form No. SEHS7914 for additional information for troubleshooting vibration complaints.5. Measure vibration of cab components which have the objectionable vibration.Run engine slowly through the speed range and measure vibration with
