19080-01640 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-01640 GOVERNOR ASSY, MEC
Rating:
49
Buy GOVERNOR ASSY, MEC 19080-01640 genuine, new aftermarket engine parts with delivery

KIT List:

Governor assy, mec 1908900210
Governor assy, mec 1908900210

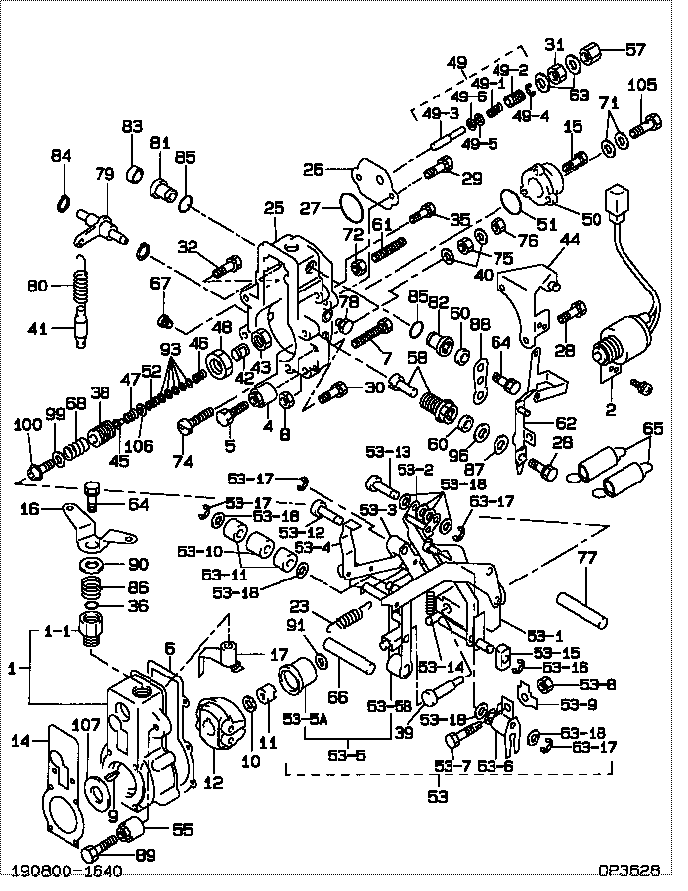

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-01640 GOVERNOR ASSY, MEC 22310-3820A
001. [01] 09081-00231 HOUSING SUB-ASSY, 22390-1160A
001-001. [01] 09101-60020 BUSHING, BEARING 22322-1180A
002. [01] 09009-90390 SWITCH KIT, CONTRO 22690-1350A
004. [01] 09116-90024 NUT 22825-1890A
005. [01] 09082-10310 STOPPER 22865-1360A
006. [01] 09082-30141 GASKET 22847-1800A
006. [01] 09082-30400 GASKET 22847-2390A
007. [01] 09128-40080 SCREW, ADJUSTING 22395-1470A
008. [01] 90160-06051 NUT, HEXAGON 22825-1480A
009. [01] 94913-00050 KEY, WOODRUFF 22891-1040A
010. [01] 94901-50500 WASHER, SPRING 22877-1540A
011. [01] 09084-40010 NUT, ROUND 22353-1070A
012. [01] 09084-00480 FLYWEIGHT ASSY 22360-1200A
014. [01] 09082-30240 GASKET 22847-1570A
014. [01] 09082-30460 GASKET 22847-2490A
015. [01] 94904-71770 BOLT, W/WASHER 22815-1450A
016. [01] 09109-81960 STOPPER
017. [01] 09115-90230 ARM SUB-ASSY 22348-1360A
023. [01] 09099-30140 SPRING, START 22331-1130A
025. [01] 09101-11591 COVER, GOVERNOR 22302-1270A
026. [01] 09105-10200 PLATE, COVER 22386-1240A
027. [01] 94914-02030 O-RING 22817-1310A
028. [03] 91418-06201 BOLT, W/WASHER 22815-1290A
029. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
030. [03] 94904-71740 BOLT, W/WASHER 22815-1460A
031. [01] 94805-30090 NUT, HEXAGON, W/HO 22825-1270A
032. [02] 94904-71780 BOLT, W/WASHER 22815-1470A
035. [01] 94904-72220 BOLT, W/WASHER 22815-2590A
036. [01] 94914-00130 O-RING 22817-1440A
038. [01] 09091-10200 SCREW, ADPTER 22375-1030A
039. [01] 09091-90380 ADAPTER 22385-1550A
040. [02] 09025-10010 WASHER, INJECTION 22865-1290A
041. [01] 09133-70050 DAMPER, FLYWEIGHT 22385-1060A
042. [01] 09091-10231 SCREW, ADPTER 22375-1050A
043. [01] 09092-30011 NUT, ADAPTER LOCK 22825-2090A
044. [01] 09097-50581 ARM, SPRING 22343-1960A
045. [01] 09091-70070 SEAT, SPRING 22351-1030A
046. [01] 09091-81210 SPRING, MECHANICAL 22411-1200A
047. [01] 09091-81380 SPRING, MECHANICAL 22411-1220A
048. [01] 09092-30050 NUT, ADAPTER LOCK 22825-1030A
049. [01] 09091-01160 ADAPTER ASSY 22403-1180A
049-001. [01] 09091-80441 SPRING, MECHANICAL 22411-1550
049-002. [01] 09091-10061 SCREW, ADPTER 22385-1370
049-003. [01] 09091-90390 ADAPTER
049-004. [01] 09089-40010 E-RING 22863-1810A
049-005. [01] 90200-05001 WASHER, PLATE 28241-1020A
049-006. [1C] 94901-33910 WASHER, PLATE, SK 6 303 1301 80
049-006. [1C] 94901-33920 WASHER, PLATE, SK 6 306 1319 00
050. [01] 09105-00480 PLATE SUB-ASSY, CO 22386-1510A
051. [01] 94914-01900 O-RING 22817-1550A
052. [01] 09091-81371 SPRING, MECHANICAL 22411-1860A
053. [01] 09092-90090 ASSY DRAWING, CONT
053-001. [01] 09092-00220 LEVER KIT, CONTROL 22350-1210A
053-002. [01] 09143-60220 LEVER SUB-ASSY, FL 22350-1200A
053-003. [01] 09093-00180 LEVER ASSY, CONTRO 22041-1050A
053-004. [01] 09093-00210 LEVER ASSY, CONTRO 22041-1340A
053-005. [01] 09084-30030 ASSY DRAWING, SLEE
053-006. [01] 09094-00111 LEVER SUB-ASSY, CO 22042-1320A
053-007. [01] 09152-40190 SCREW, STOPPER 22395-1090A
053-008. [01] 90177-06361 NUT, HEXAGON 22825-1220A
053-009. [01] 09140-30100 WASHER, LOCK 22877-1210A
053-010. [01] 09104-90260 COLLAR 22332-1150A
053-011. [02] 09104-90250 COLLAR 22332-1140A
053-012. [01] 09098-30370 PIN, CONNECTING 22455-1280A
053-013. [01] 09098-30191 PIN, CONNECTING 22455-1040A
053-014. [01] 09104-20740 SPRING, RETURN 22341-2030A
053-015. [01] 09094-40120 BUSHING 22322-1600A
053-016. [01] 09089-40070 E-RING 22456-1130A
053-017. [04] 90577-05000 E-RING 22887-1170A
053-018. [8C] 94901-33950 WASHER, PLATE, SK 22855-1020A
053-018. [8C] 94901-33960 WASHER, PLATE, SK 22885-1030A
053-05A. [01] 09086-00230 SLEEVE SUB-ASSY, F 22305-1160A
053-05B. [01] 09095-90200 LEVER ASSY, GUIDE 22307-1110A
055. [01] 09116-90034 NUT 22825-1950A
057. [01] 09003-20040 CAP 22342-1110A
058. [01] 09102-60040 SHAFT & BUSHING KI 22322-1890A
060. [02] 94915-01150 SEAL, OIL 22827-1150A
061. [01] 09082-10010 STOPPER 22395-1290A
062. [01] 09107-03190 LEVER SUB-ASSY, AD
063. [02] 94901-80350 WASHER, COPPER PLA 22847-1950A
064. [02] 91418-06141 BOLT, W/WASHER 22815-1480A
065. [02] 09104-10080 SPRING SUB-ASSY, R 22341-1360A
066. [01] 09098-90051 SHAFT, LEVER SUPPO 22338-1160A
067. [01] 09099-10010 PLUG, SCREW 22845-1210A
068. [01] 09091-81310 SPRING, MECHANICAL 22411-1060
071. [02] 94901-02480 WASHER 22847-1940A
072. [01] 94905-30140 NUT, HEXAGON, W/ H 22825-1250A
074. [01] 09100-60180 SCREW, STROKE ADJU 22396-1220A
075. [01] 09092-30070 NUT, ADAPTER LOCK 22825-1390A
076. [01] 09003-20080 CAP 22342-1180A
077. [01] 09103-50183 SHAFT, MECHANICAL 22318-1020A
078. [02] 09101-60221 BUSHING, BEARING 22845-1370A
079. [01] 09104-80110 LEVER SUB-ASSY, SU 22306-1050A
080. [01] 09099-20431 SPRING, SPEED CONT 22321-1120A
081. [01] 09089-20011 BUSHING, LEVER 22322-1440A
082. [01] 09089-20040 BUSHING, LEVER 22322-1590A
083. [01] 09109-40010 CAP, LEVER 22855-1060A
084. [02] 94907-10090 WASHER, SNAP 22887-1050A
085. [02] 94914-00080 O-RING 22817-1190A
086. [01] 09104-20690 SPRING, RETURN 22341-1750A
087. [01] 09154-60010 SHIM 22885-1800A
088. [01] 09107-11240 LEVER, ADJUSTING 22415-1720A
089. [01] 09102-40031 SCREW, ADJUSTING 22395-1010A
090. [1C] 94901-32220 WASHER, PLATE, SK 22885-5220A
090. [1C] 94901-31970 WASHER, PLATE, SK 22885-3440A
090. [1C] 94901-31960 WASHER, PLATE, SK 22885-3430A
091. [1C] 94901-34060 WASHER, PLATE, SK 22885-5120A
091. [1C] 94901-34070 WASHER, PLATE, SK 22885-5130A
091. [1C] 94901-34080 WASHER, PLATE, SK 22885-5140A
091. [1C] 94901-34090 WASHER, PLATE, SK 22885-5150A
091. [1C] 94901-34100 WASHER, PLATE, SK 22885-5160A
093. [05] 94901-35550 WASHER, PLATE, SK 22885-1490A
096. [1C] 09154-60030 SHIM 22885-5090A
096. [1C] 09154-60040 SHIM 22885-5100A
096. [1C] 09154-60050 SHIM 22885-5110A
096. [1C] 09154-60080 SHIM 22885-1700A
099. [1C] 09091-70170 SEAT, SPRING 22885-5040A
099. [1C] 09091-70180 SEAT, SPRING 22885-5050A
099. [1C] 09091-70190 SEAT, SPRING 22885-5060A
099. [1C] 09091-70200 SEAT, SPRING 22885-5070A
099. [1C] 09091-70210 SEAT, SPRING 22885-5080A
099. [1C] 09091-70160 SEAT, SPRING 22885-5030A
099. [1C] 09091-70150 SEAT, SPRING 22885-5020A
099. [1C] 09091-70140 SEAT, SPRING 22885-5010A
099. [1C] 09091-70090 SEAT, SPRING 22885-4960A
099. [1C] 09091-70100 SEAT, SPRING 22885-4970A
099. [1C] 09091-70110 SEAT, SPRING 22885-4980A
099. [1C] 09091-70120 SEAT, SPRING 22885-4990A
099. [1C] 09091-70130 SEAT, SPRING 22885-5000A
100. [01] 09104-90270 COLLAR 22351-1620A
105. [01] 94918-00050 SCREW, HOLLOW 22835-1280A
106. [1C] 94901-31360 WASHER, PLATE, SK 22885-1200A
106. [1C] 94901-35040 WASHER, PLATE, SK 22885-1210A
107. [01] 94915-00030 SEAL, OIL 22827-1290A

Include in #3:

19080-01640 as GOVERNOR ASSY, MEC
19100-05920

Cross reference number



Part num Firm num Firm Name
19080-01640  22310-3820  GOVERNOR ASSY, MEC
22310-3820A    HINO GOVERNOR ASSY, MEC




Information:


When handling the piston assembly, be aware that the piston pin plug which fits on the end of the piston pin, is only used to prevent the piston pin from scuffing the cylinders. It does not retain the pin in the assembly, once the piston assembly is removed from the cylinder, the pin is free to fall out of the assembly at any time.
(1) Crater. The piston is a symmetrical piston with an "on center" crater. Thoroughly lubricate piston group 360 degrees in zone (A) with clean
