19080-01451 GOVERNOR ASSY, MEC Denso Cross




Information governor assy, mec

19080-01451 GOVERNOR ASSY, MEC
Rating:
1
Buy GOVERNOR ASSY, MEC 19080-01451 genuine, new aftermarket engine parts with delivery

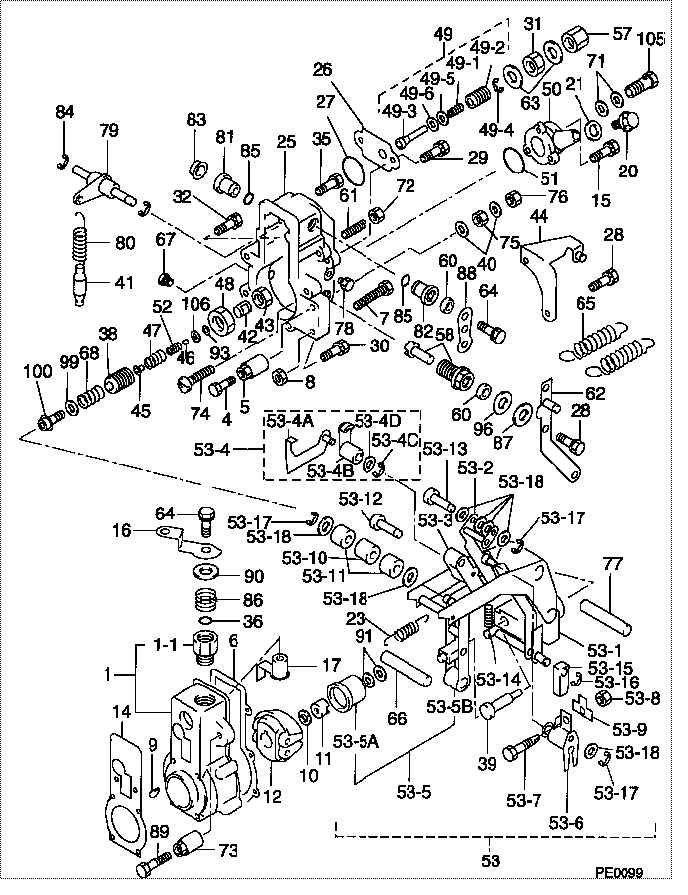

Scheme ###:

GOVERNOR ASSY, MEC
000. [01] 19080-01451 GOVERNOR ASSY, MEC
001. [01] 09081-00222 HOUSING SUB-ASSY, 22390-1180A
001-001. [01] 09101-60020 BUSHING, BEARING 22322-1180A
004. [01] 09082-10310 STOPPER 22865-1360A
005. [01] 09116-90024 NUT 22825-1890A
006. [01] 09082-30141 GASKET 22847-1800A
006. [01] 09082-30400 GASKET 22847-2390A
007. [01] 09128-40080 SCREW, ADJUSTING 22395-1470A
008. [01] 90160-06051 NUT, HEXAGON 22825-1480A
009. [01] 94913-00050 KEY, WOODRUFF 22891-1040A
010. [01] 94901-50500 WASHER, SPRING 22877-1540A
011. [01] 09084-40010 NUT, ROUND 22353-1070A
012. [01] 09084-00480 FLYWEIGHT ASSY 22360-1200A
014. [01] 09011-90040 GASKET, PUMP BODY 22352-1180A
014. [01] 09011-90160 GASKET, PUMP BODY 22847-2510A
015. [01] 94904-74620 BOLT, W/WASHER 22815-2920A
016. [01] 09109-81751 STOPPER 22348-2191A
017. [01] 09115-90110 ARM SUB-ASSY 22348-1700A
020. [01] 09116-70031 PLUG, SCREW 22845-1320A
021. [01] 09024-10010 WASHER, AIR BLEEDE 22847-2150A
023. [01] 09099-30140 SPRING, START 22331-1130A
025. [01] 09101-11591 COVER, GOVERNOR 22302-1270A
026. [01] 09105-10200 PLATE, COVER 22386-1240A
027. [01] 94914-02030 O-RING 22817-1310A
028. [03] 91418-06201 BOLT, W/WASHER 22815-1290A
029. [02] 94904-71790 BOLT, W/WASHER 22815-1430A
030. [03] 94904-71740 BOLT, W/WASHER 22815-1460A
031. [01] 94805-30090 NUT, HEXAGON, W/HO 22825-1270A
032. [02] 94904-71780 BOLT, W/WASHER 22815-1470A
035. [01] 94904-72220 BOLT, W/WASHER 22815-2590A
036. [01] 94914-00130 O-RING 22817-1440A
038. [01] 09091-10200 SCREW, ADPTER 22375-1030A
039. [01] 09091-90380 ADAPTER 22385-1550A
040. [02] 09025-10010 WASHER, INJECTION 22865-1290A
041. [01] 09133-70050 DAMPER, FLYWEIGHT 22385-1060A
042. [01] 09091-10231 SCREW, ADPTER 22375-1050A
043. [01] 09092-30011 NUT, ADAPTER LOCK 22825-2090A
044. [01] 09097-51040 ARM, SPRING 22343-3440A
045. [01] 09091-70070 SEAT, SPRING 22351-1030A
046. [01] 09091-80880 SPRING, MECHANICAL 22411-1050A
047. [01] 09091-82260 SPRING, MECHANICAL 22411-2000A
048. [01] 09092-30050 NUT, ADAPTER LOCK 22825-1030A
049. [01] 09091-00421 ADAPTER ASSY 22404-1480A
049-001. [01] 09091-80441 SPRING, MECHANICAL 22411-1550
049-002. [01] 09091-10061 SCREW, ADPTER 22385-1370
049-003. [01] 09091-90170 ADAPTER 6 306 1341 80
049-004. [01] 09089-40010 E-RING 22863-1810A
049-005. [01] 90208-05000 WASHER, PLATE
049-006. [ C] 94901-33910 WASHER, PLATE, SK 6 303 1301 80
049-006. [ C] 94901-33920 WASHER, PLATE, SK 6 306 1319 00
050. [01] 09105-00261 PLATE SUB-ASSY, CO 22386-1190A
051. [01] 94914-01900 O-RING 22817-1550A
052. [01] 09091-81040 SPRING, MECHANICAL 22411-1060A
053. [01] 09092-90220 ASSY DRAWING, CONT
053-001. [01] 09092-00270 LEVER KIT, CONTROL 22407-1090A
053-002. [01] 09143-60220 LEVER SUB-ASSY, FL 22350-1200A
053-003. [01] 09093-00180 LEVER ASSY, CONTRO 22041-1050A
053-004. [01] 09093-00540 LEVER ASSY, CONTRO 22041-1240A
053-005. [01] 09084-30030 ASSY DRAWING, SLEE
053-006. [01] 09094-00470 LEVER SUB-ASSY, CO 22042-1220A
053-007. [01] 09152-40190 SCREW, STOPPER 22395-1090A
053-008. [01] 90177-06361 NUT, HEXAGON 22825-1220A
053-009. [01] 09140-30100 WASHER, LOCK 22877-1210A
053-010. [01] 09104-90260 COLLAR 22332-1150A
053-011. [02] 09104-90340 COLLAR 22877-1730A
053-011. [02] 09104-90250 COLLAR 22332-1140A
053-012. [01] 09098-30370 PIN, CONNECTING 22455-1280A
053-013. [01] 09098-30190 PIN, CONNECTING 22455-1040A
053-014. [01] 09104-20740 SPRING, RETURN 22341-2030A
053-015. [01] 09094-40120 BUSHING 22322-1600A
053-016. [01] 09089-40070 E-RING 22456-1130A
053-017. [04] 90577-05000 E-RING 22887-1170A
053-018. [ C] 94901-33960 WASHER, PLATE, SK 22885-1030A
053-018. [ C] 94901-33950 WASHER, PLATE, SK 22855-1020A
053-04A. [01] 09097-00320 SHACKLE ASSY 22041-1170A
053-04B. [01] 09094-00460 LEVER SUB-ASSY, CO 22042-1270A
053-04C. [01] 90577-05000 E-RING 22887-1170A
053-04D. [01] 94901-34110 WASHER, PLATE, SK 22885-1220A
053-05A. [01] 09086-00230 SLEEVE SUB-ASSY, F 22305-1160A
053-05B. [01] 09095-90200 LEVER ASSY, GUIDE 22307-1110A
057. [01] 09003-20040 CAP 22342-1110A
058. [01] 09102-60040 SHAFT & BUSHING KI 22322-1890A
060. [02] 94915-01150 SEAL, OIL 22827-1150A
061. [01] 09082-10010 STOPPER 22395-1290A
062. [01] 09107-02920 LEVER SUB-ASSY, AD 22309-2910A
063. [02] 94901-80350 WASHER, COPPER PLA 22847-1950A
064. [02] 91418-06141 BOLT, W/WASHER 22815-1480A
065. [02] 09104-10110 SPRING SUB-ASSY, R 22341-1720A
066. [01] 09098-90051 SHAFT, LEVER SUPPO 22338-1160A
067. [01] 09099-10010 PLUG, SCREW 22845-1210A
068. [01] 09091-82220 SPRING, MECHANICAL 22411-1930A
071. [02] 94901-02480 WASHER 22847-1940A
072. [01] 94905-30140 NUT, HEXAGON, W/ H 22825-1250A
073. [01] 09116-90034 NUT 22825-1950A
074. [01] 09100-60180 SCREW, STROKE ADJU 22396-1220A
075. [01] 09092-30070 NUT, ADAPTER LOCK 22825-1390A
076. [01] 09003-20080 CAP 22342-1180A
077. [01] 09103-50183 SHAFT, MECHANICAL 22318-1020A
078. [02] 09101-60221 BUSHING, BEARING 22845-1370A
079. [01] 09104-80110 LEVER SUB-ASSY, SU 22306-1050A
080. [01] 09099-20670 SPRING, SPEED CONT 22321-1980A
081. [01] 09089-20011 BUSHING, LEVER 22322-1440A
082. [01] 09089-20040 BUSHING, LEVER 22322-1590A
083. [01] 09109-40010 CAP, LEVER 22855-1060A
084. [02] 94907-10090 WASHER, SNAP 22887-1050A
085. [02] 94914-00080 O-RING 22817-1190A
086. [01] 09104-20690 SPRING, RETURN 22341-1750A
087. [01] 09154-60010 SHIM 22885-1800A
088. [01] 09107-10941 LEVER, ADJUSTING 22415-1400A
089. [01] 09082-10291 STOPPER 22865-1370A
090. [1C] 94901-32220 WASHER, PLATE, SK 22885-5220A
090. [1C] 94901-31970 WASHER, PLATE, SK 22885-3440A
090. [1C] 94901-31960 WASHER, PLATE, SK 22885-3430A
091. [1C] 94901-34060 WASHER, PLATE, SK 22885-5120A
091. [1C] 94901-34070 WASHER, PLATE, SK 22885-5130A
091. [1C] 94901-34080 WASHER, PLATE, SK 22885-5140A
091. [1C] 94901-34090 WASHER, PLATE, SK 22885-5150A
091. [1C] 94901-34100 WASHER, PLATE, SK 22885-5160A
093. [05] 94901-35550 WASHER, PLATE, SK 22885-1490A
096. [1C] 09154-60080 SHIM 22885-1700A
096. [1C] 09154-60050 SHIM 22885-5110A
096. [1C] 09154-60040 SHIM 22885-5100A
096. [1C] 09154-60030 SHIM 22885-5090A
099. [1C] 09091-70210 SEAT, SPRING 22885-5080A
099. [1C] 09091-70200 SEAT, SPRING 22885-5070A
099. [1C] 09091-70190 SEAT, SPRING 22885-5060A
099. [1C] 09091-70180 SEAT, SPRING 22885-5050A
099. [1C] 09091-70170 SEAT, SPRING 22885-5040A
099. [1C] 09091-70160 SEAT, SPRING 22885-5030A
099. [1C] 09091-70150 SEAT, SPRING 22885-5020A
099. [1C] 09091-70140 SEAT, SPRING 22885-5010A
099. [1C] 09091-70090 SEAT, SPRING 22885-4960A
099. [1C] 09091-70100 SEAT, SPRING 22885-4970A
099. [1C] 09091-70110 SEAT, SPRING 22885-4980A
099. [1C] 09091-70120 SEAT, SPRING 22885-4990A
099. [1C] 09091-70130 SEAT, SPRING 22885-5000A
100. [01] 09104-90270 COLLAR 22351-1620A
104. [01] 94919-80270 COLLAR, PRESSBOARD 22843-2240A
105. [01] 94918-00050 SCREW, HOLLOW 22835-1280A
106. [1C] 94901-31360 WASHER, PLATE, SK 22885-1200A
106. [1C] 94901-35040 WASHER, PLATE, SK 22885-1210A

Include in #3:

19080-01451 as GOVERNOR ASSY, MEC
19100-05611

Cross reference number



Part num Firm num Firm Name
19080-01451    GOVERNOR ASSY, MEC




Information:

(6) Depth of bore in head for valve seat insert ... 13.01 0.35 mm (.512 .014 in)(7) Diameter of valve seat insert for intake valve ... 46.025 0.013 mm (1.8120 .0005 in) Bore in head for valve seat insert for intake valve ... 45.949 0.025 mm (1.8090 .0010 in)Diameter of valve seat insert for exhaust valve ... 42.850 0.013 mm (1.6870 .0005 in)Bore in head for valve seat insert for exhaust valve ... 42.774 0.025 mm (1.6840 .0010 in)(8) Angle of face of intake valve seat insert ... 30 1/4 1/2°Angle of face of exhaust valve seat insert ... 44 3/4 1/2°(9) Dimension from end of closed valve to machined face of head. Maximum permissible dimension:Below (recessed from) machined face ... 1.22 mm (.048 in)Above (extended from) machined face ... 0.20 mm (.008 in)(10) Outside diameter of the face of the valve seat insert: Exhaust seat ... 40.41 0.13 mm (1.591 .005 in)Intake seat ... 44.04 0.13 mm (1.734 .005 in)(11) "Use again" thickness of valve lip: Exhaust valve ... 2.03 mm (.080 in)Intake valve ... 2.51 mm (.099 in)

Have questions with 19080-01451?





19080-07140 GOVERNOR ASSY, MEC 19080-07130 19080-07120 19080-07110 19080-07100
04250-70102 GOVERNOR ASSY, MEC 04250-70122 04250-70142 04250-70152 04250-70533

Group cross 19080-01451
