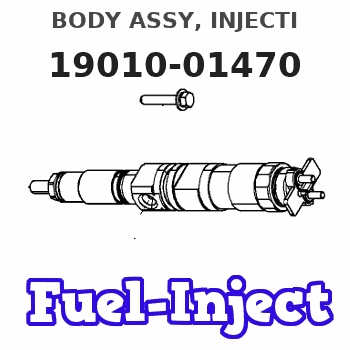

19010-01470 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

19010-01470 BODY ASSY, INJECTI
Rating:
33
Buy BODY ASSY, INJECTI 19010-01470 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320

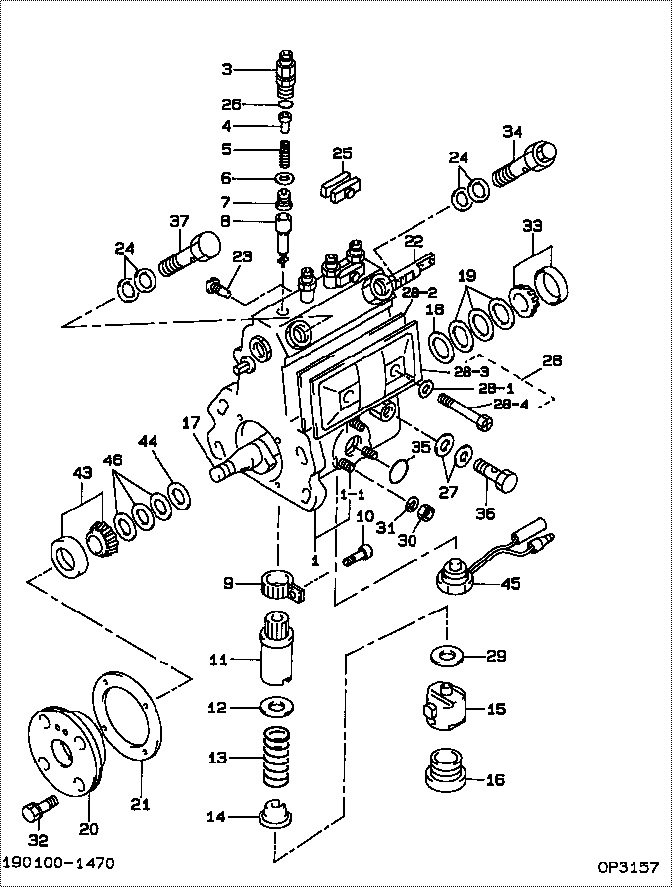

Scheme ###:

BODY ASSY, INJECTI
000. [01] 19010-01470 BODY ASSY, INJECTI ME743391
001. [01] 19011-05240 HOUSING KIT, INJEC ME736671
001-001. [03] 94904-30010 BOLT, STUD ME702091
003. [04] 09013-10330 HOLDER, DELIVERY V MM501668
004. [04] 09013-30030 STOPPER, DELIVERY ME022082
005. [04] 09013-61180 SPRING, DELIVERY V ME736260
006. [04] 09013-70100 GASKET, DELIVERY V ME702053
007. [04] 09014-00660 VALVE SUB-ASSY, IN MM500343
008. [04] 09015-03830 ELEMENT SUB-ASSY, ME728763
009. [04] 09015-60010 PINION, PLUNGER CO ME702058
010. [04] 09015-70010 SCREW, PLUNGER CON ME702059
011. [04] 09016-10330 SLEEVE, PLUNGER CO ME702060
012. [04] 09016-30191 SEAT, SPRING, UPR ME736080
013. [04] 09016-40090 SPRING, PUMP PLUNG ME702554
014. [04] 09016-50160 SEAT, SPRING, LWR MM514055
015. [04] 09017-00070 TAPPET SUB-ASSY,IN ME702556
016. [03] 09018-90090 PLUG, INJECTION PU ME703276
017. [01] 09019-11840 CAMSHAFT, INJECTIO ME743385
018. [01] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [3C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [3C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [3C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [3C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [3C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [3C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [3C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [3C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [3C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [3C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [3C] 09019-40010 PLATE, CAMSHAFT SH ME702075
020. [01] 09020-10351 COVER, BEARING ME703059
021. [01] 09020-60150 GASKET, BEARING CO ME728350
022. [01] 09021-20020 RACK, CONTROL MM500699
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [04] 09022-20070 WASHER, FUEL PIPE ME702217
025. [02] 09023-00050 PLATE SET, VALVE H ME702558
026. [04] 94914-02570 O-RING ME702098
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-01460 COVER SUB-ASSY, IN ME736539
028-001. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-002. [01] 09027-20210 GASKET, INJECTION ME703052
028-003. [01] 09027-50182 PROCESSING DRAWING ME703051
028-004. [02] 09027-60030 SCREW ME703028
029. [4C] 09031-10100 PLATE, TAPPET ADJU MM500308
029. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
029. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
029. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
029. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
029. [4C] 09031-10150 PLATE, TAPPET ADJU MM500313
029. [4C] 09031-10290 PLATE, TAPPET ADJU ME728060
029. [4C] 09031-10090 PLATE, TAPPET ADJU MM500307
029. [4C] 09031-10080 PLATE, TAPPET ADJU MM500306
029. [4C] 09031-10070 PLATE, TAPPET ADJU MM500305
029. [4C] 09031-10060 PLATE, TAPPET ADJU MM500304
029. [4C] 09031-10050 PLATE, TAPPET ADJU MM500303
029. [4C] 09031-10040 PLATE, TAPPET ADJU MM500302
029. [4C] 09031-10030 PLATE, TAPPET ADJU MM500301
029. [4C] 09031-10020 PLATE, TAPPET ADJU MM500300
029. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [01] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09031-00110 VALVE ASSY, OVERFL ME702087
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
043. [01] 94910-10071 BEARING, ROLLER ME702562
044. [01] 09019-30050 RING, CAMSHAFT ADJ ME702073
045. [01] 07630-00030 PICKUP ASSY, TACHO MC851010
046. [3C] 09019-40360 PLATE, CAMSHAFT SH ME703469
046. [3C] 09019-40350 PLATE, CAMSHAFT SH ME703468
046. [3C] 09019-40340 PLATE, CAMSHAFT SH ME703467
046. [3C] 09019-40170 PLATE, CAMSHAFT SH ME703271
046. [3C] 09019-40160 PLATE, CAMSHAFT SH ME703270
046. [3C] 09019-40100 PLATE, CAMSHAFT SH MM500694
046. [3C] 09019-40090 PLATE, CAMSHAFT SH MM500693
046. [3C] 09019-40080 PLATE, CAMSHAFT SH MM500692
046. [3C] 09019-40070 PLATE, CAMSHAFT SH ME702076
046. [3C] 09019-40410 PLATE, CAMSHAFT SH ME728353

Include in #3:

09300-06122 as BODY ASSY, INJECTI
09300-06661
19010-01470

Cross reference number



Part num Firm num Firm Name
19010-01470  ME743391  BODY ASSY, INJECTI
ME743391    MITSUBISHI BODY ASSY, INJECTI




Information:

Caterpillar: Confidential Yellow
Termination Date
January 31, 1993Problem
The fuel injection pumps used on certain Remanufactured 1160 and 3208 Engines need to be inspected for gummy deposits.
Affected Product
Model & Identification Number
1160 (57V1-34325)
3208 (9WC1-730; 5CD1-5868; 62W1-68596; 93Z1-8374)
Remanufactured Fuel Pump Part Numbers
0R07660R09030R23840R23860R09020R23740R23850R2877 The above list of remanufactured pumps are affected only if they are stamped with a date code of 12/91 (UMDU) or earlier.
Parts Needed
Not Applicable
Action Required
Before installing or delivering any of the affected product, perform the following steps to ensure the internal fuel injection pump components are not stuck due to fuel pump gumming:
1. Remove the top cover of the fuel injection pump and check to ensure that all sleeves and levers are free and there are no gummy deposits on any of these components.2. If inspection performed in Step 1 indicates everything is clean, install top cover and return to parts stock.3. If inspection reveals components have gummy deposits, remove 12 ounces of fuel from the fuel pump housing and replace it with: - Fuel Injector Cleaner or
- Carburetor/Choke Cleaner
4. Allow the components to soak in cleaning solution for 45 minutes, then rotate the engine crankshaft to rotate the fuel injection pump (on pumps only, rotate the fuel pump camshaft). This will ensure the components have the gummy deposits removed. If the engine or fuel pump will be used immediately, install the cover on the fuel injection pump, and install or deliver the engine or pump.5. If the engine or fuel pump will be returned to stock, DO NOT leave the fuel injection pump full of cleaning solution because it may not contain any rust inhibitors. Remove the cleaning solution, fill the fuel injector pump with clean diesel fuel, and install the cover on the pump.Service Claim Allowances
It is a .5-hr. job to inspect the pump. An additional .5-hr. may be claimed if cleaning is required.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
