19010-01370 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

19010-01370 BODY ASSY, INJECTI
Rating:
36
Buy BODY ASSY, INJECTI 19010-01370 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320

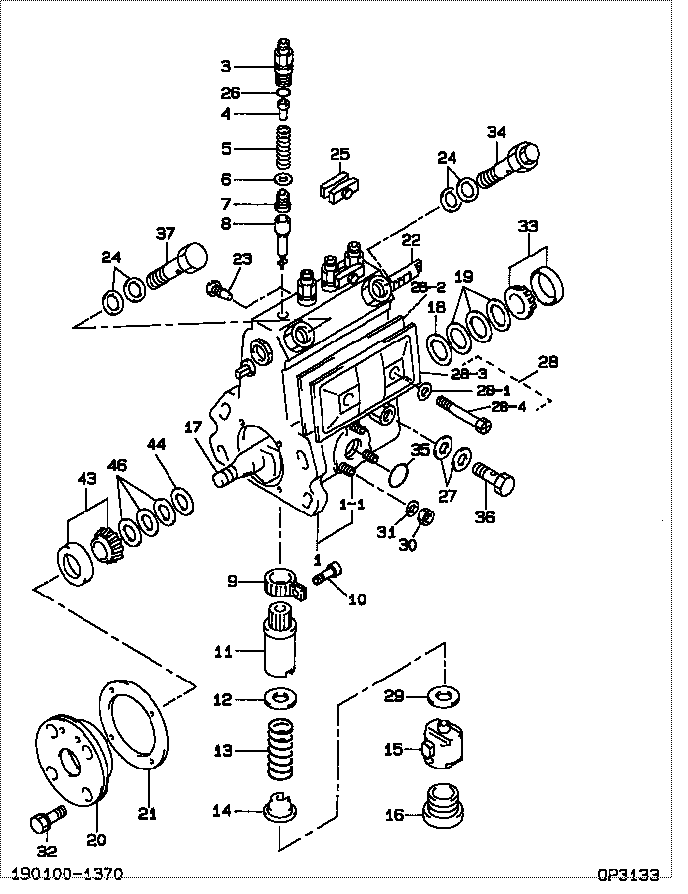

Scheme ###:

000. [01] 19010-01370 BODY ASSY, INJECTI ME743347
001. [01] 19011-05240 HOUSING KIT, INJEC ME736671
001-001. [03] 94904-30010 BOLT, STUD ME702091
003. [04] 09013-10330 HOLDER, DELIVERY V MM501668
004. [04] 09013-30030 STOPPER, DELIVERY ME022082
005. [04] 09013-61180 SPRING, DELIVERY V ME736260
006. [04] 09013-70100 GASKET, DELIVERY V ME702053
007. [04] 09014-00660 VALVE SUB-ASSY, IN MM500343
008. [04] 09015-03830 ELEMENT SUB-ASSY, ME728763
009. [04] 09015-60010 PINION, PLUNGER CO ME702058
010. [04] 09015-70010 SCREW, PLUNGER CON ME702059
011. [04] 09016-10330 SLEEVE, PLUNGER CO ME702060
012. [04] 09016-30191 SEAT, SPRING, UPR ME736080
013. [04] 09016-40090 SPRING, PUMP PLUNG ME702554
014. [04] 09016-50160 SEAT, SPRING, LWR MM514055
015. [04] 09017-00070 TAPPET SUB-ASSY,IN ME702556
016. [04] 09018-90090 PLUG, INJECTION PU ME703276
017. [01] 09019-11840 CAMSHAFT, INJECTIO ME743385
018. [01] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [3C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [3C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [3C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [3C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [3C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [3C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [3C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [3C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [3C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [3C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [3C] 09019-40010 PLATE, CAMSHAFT SH ME702075
020. [01] 09020-10351 COVER, BEARING ME703059
021. [01] 09020-60150 GASKET, BEARING CO ME728350
022. [01] 09021-20020 RACK, CONTROL MM500699
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [04] 09022-20070 WASHER, FUEL PIPE ME702217
025. [02] 09023-00050 PLATE SET, VALVE H ME702558
026. [04] 94914-02570 O-RING ME702098
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-01460 COVER SUB-ASSY, IN ME736539
028-001. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-002. [01] 09027-20210 GASKET, INJECTION ME703052
028-003. [01] 09027-50182 PROCESSING DRAWING ME703051
028-004. [02] 09027-60030 SCREW ME703028
029. [4C] 09031-10100 PLATE, TAPPET ADJU MM500308
029. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
029. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
029. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
029. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
029. [4C] 09031-10150 PLATE, TAPPET ADJU MM500313
029. [4C] 09031-10090 PLATE, TAPPET ADJU MM500307
029. [4C] 09031-10080 PLATE, TAPPET ADJU MM500306
029. [4C] 09031-10070 PLATE, TAPPET ADJU MM500305
029. [4C] 09031-10060 PLATE, TAPPET ADJU MM500304
029. [4C] 09031-10050 PLATE, TAPPET ADJU MM500303
029. [4C] 09031-10040 PLATE, TAPPET ADJU MM500302
029. [4C] 09031-10030 PLATE, TAPPET ADJU MM500301
029. [4C] 09031-10020 PLATE, TAPPET ADJU MM500300
029. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
029. [4C] 09031-10290 PLATE, TAPPET ADJU ME728060
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [01] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09031-00110 VALVE ASSY, OVERFL ME702087
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
043. [01] 94910-10071 BEARING, ROLLER ME702562
044. [01] 09019-30050 RING, CAMSHAFT ADJ ME702073
046. [3C] 09019-40360 PLATE, CAMSHAFT SH ME703469
046. [3C] 09019-40350 PLATE, CAMSHAFT SH ME703468
046. [3C] 09019-40340 PLATE, CAMSHAFT SH ME703467
046. [3C] 09019-40170 PLATE, CAMSHAFT SH ME703271
046. [3C] 09019-40160 PLATE, CAMSHAFT SH ME703270
046. [3C] 09019-40100 PLATE, CAMSHAFT SH MM500694
046. [3C] 09019-40090 PLATE, CAMSHAFT SH MM500693
046. [3C] 09019-40080 PLATE, CAMSHAFT SH MM500692
046. [3C] 09019-40070 PLATE, CAMSHAFT SH ME702076
046. [3C] 09019-40410 PLATE, CAMSHAFT SH ME728353

Include in #3:

Cross reference number



Part num Firm num Firm Name
19010-01370  ME743347  BODY ASSY, INJECTI
ME743347    MITSUBISHI BODY ASSY, INJECTI




Information:

start by:a) remove oil pump1. Turn the crankshaft until two pistons are at bottom center. Remove the connecting rod caps from the two connecting rods. Remove the lower half of the bearings from the caps.2. Push the connecting rods away from the crankshaft and remove the upper half of the bearings.3. Clean the bearing contact surfaces in the caps and rods. Install the upper halves of the bearings in the connecting rods. Put clean SAE 30 engine oil on the bearings and crankshaft journals. Put the connecting rods in position on the crankshaft.4. Install the lower halves of the new bearings in the caps. Put clean SAE 30 engine oil on the bearings and on the threads of all bolts. 5. Put Plastigage (A) on the bearing to check the bearing clearance. Put the caps in position on the connecting rods and install the nuts on the bolts. Tighten the nuts to a torque of 30 3 lb.ft. (40 4 N m). Put a mark across the nuts and bolts, and turn the nuts 90° more from the marks as shown. 6. Remove the rod cap and measure the thickness of the Plastigage to find the bearing clearance. Clearance with new bearings must be .0030 to .0066 in. (0.076 to 0.168 mm). Maximum permissible clearance with used bearings is .010 in. (0.25 mm).7. Put clean oil on the lower halves of the bearings and on the threads of the bolts. Put the caps in position on the connecting rods and install the nuts on the bolts. Tighten both nuts to a torque of 30 3 lb.ft. (40 4 N m). Put a mark across the nuts and bolts, and turn the nuts 90° more from the mark as shown.
Make sure the number on the side of the connecting rod is the same number and on the same side as the number on the cap.
8. Do the above steps again for the remainder of the connecting rod bearings.end by:a) install oil pump
