Buy 19010-01140 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

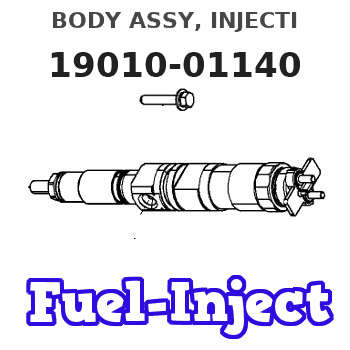

19010-01140 BODY ASSY, INJECTI
Rating:
35
Buy BODY ASSY, INJECTI 19010-01140 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400360
Body assy, injecti 1904400360
Body assy, injecti 1904400360

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below
ABB NE-7757 Circuit Breaker ME743135
$178.77


04 Nov 2023
5.81[2.61] pounds
US: Mara Industrial
ABB NE-7757 Circuit Breaker ME743135
ABB Amps: 20 || Poles: 3 || Temperature: 40°C || Type : ES || Volts: 500 DC

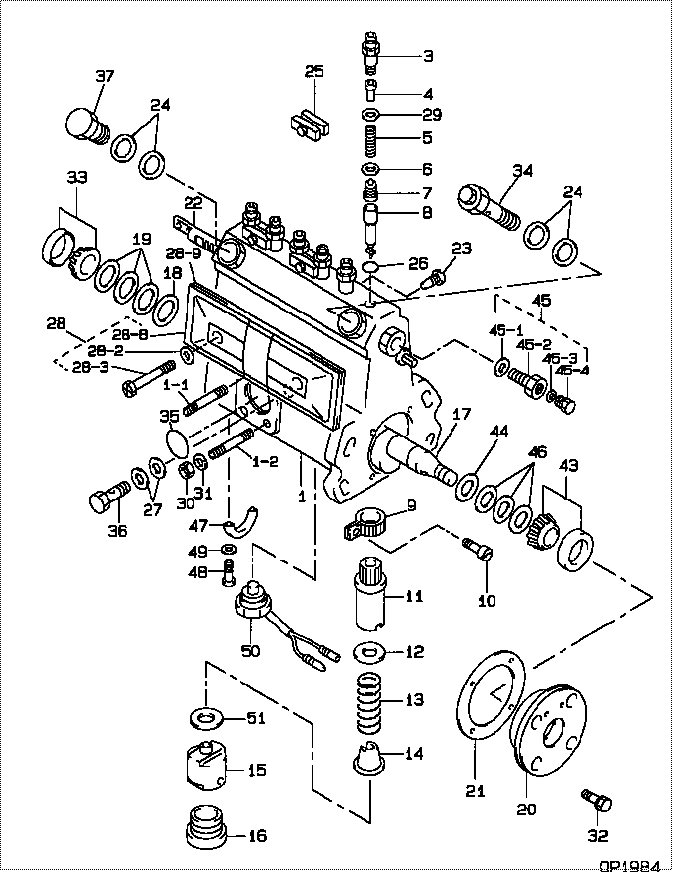

Scheme ###:

BODY ASSY, INJECTI
000. [01] 19010-01140 BODY ASSY, INJECTI ME743135
001. [01] 19011-03050 HOUSING KIT, INJEC ME702627
001-001. [01] 94904-30010 BOLT, STUD ME702091
001-002. [02] 94904-31630 BOLT, STUD ME702092
003. [06] 09013-10420 HOLDER, DELIVERY V ME703579
004. [06] 09013-30140 STOPPER, DELIVERY ME703580
005. [06] 09013-60490 SPRING, DELIVERY V ME728287
006. [06] 09013-70110 GASKET, DELIVERY V ME702624
007. [06] 09014-01070 VALVE SUB-ASSY, IN 09014-01070
008. [06] 09015-05910 ELEMENT SUB-ASSY, ME743197
009. [06] 09015-60010 PINION, PLUNGER CO ME702058
010. [06] 09015-70010 SCREW, PLUNGER CON ME702059
011. [06] 09016-10330 SLEEVE, PLUNGER CO ME702060
012. [06] 09016-30191 SEAT, SPRING, UPR ME736080
013. [06] 09016-40090 SPRING, PUMP PLUNG ME702554
014. [06] 09016-50160 SEAT, SPRING, LWR MM514055
015. [06] 09017-00070 TAPPET SUB-ASSY,IN ME702556
016. [05] 09018-90090 PLUG, INJECTION PU ME703276
017. [01] 09019-10620 CAMSHAFT, INJECTIO ME702072
018. [01] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [3C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [3C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [3C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [3C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [3C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [3C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [3C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [3C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [3C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [3C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [3C] 09019-40010 PLATE, CAMSHAFT SH ME702075
020. [01] 09020-10351 COVER, BEARING ME703059
021. [01] 09020-60150 GASKET, BEARING CO ME728350
022. [01] 09021-20010 RACK, CONTROL ME702079
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [04] 09022-20070 WASHER, FUEL PIPE ME702217
025. [03] 09023-00050 PLATE SET, VALVE H ME702558
026. [06] 90801-10180 O-RING ME702649
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-00622 COVER SUB-ASSY, IN 09027-00621
028-002. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-003. [02] 09027-60030 SCREW ME703028
028-008. [01] 09027-50083 PROCESSING DRAWING ME702602
028-009. [01] 09027-20220 GASKET, INJECTION ME702085
029. [6C] 90218-04620 WASHER, PLATE ME703668
029. [6C] 94901-35930 WASHER, PLATE, SK ME703514
029. [6C] 94901-35140 WASHER, PLATE, SK ME703632
029. [6C] 90208-04610 WASHER, PLATE ME702093
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [01] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09031-00110 VALVE ASSY, OVERFL ME702087
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
043. [01] 94910-10071 BEARING, ROLLER ME702562
044. [01] 09019-30050 RING, CAMSHAFT ADJ ME702073
045. [01] 09024-00010 BLEEDER SUB-ASSY, ME702083
045-001. [01] 09024-10010 WASHER, AIR BLEEDE ME702102
045-002. [01] 09024-20010 NIPPLE, AIR BLEEDE ME022094
045-003. [01] 09024-30030 PACKING, AIR BLEED ME702057
045-004. [01] 09024-40010 SCREW, AIR BLEEDER MM501930
046. [3C] 09019-40340 PLATE, CAMSHAFT SH ME703467
046. [3C] 09019-40350 PLATE, CAMSHAFT SH ME703468
046. [3C] 09019-40360 PLATE, CAMSHAFT SH ME703469
046. [3C] 09019-40410 PLATE, CAMSHAFT SH ME728353
046. [3C] 09019-40170 PLATE, CAMSHAFT SH ME703271
046. [3C] 09019-40160 PLATE, CAMSHAFT SH ME703270
046. [3C] 09019-40100 PLATE, CAMSHAFT SH MM500694
046. [3C] 09019-40090 PLATE, CAMSHAFT SH MM500693
046. [3C] 09019-40080 PLATE, CAMSHAFT SH MM500692
046. [3C] 09019-40070 PLATE, CAMSHAFT SH ME702076
047. [01] 09036-10040 BEARING, CENTER ME702088
048. [02] 94900-66550 SCREW ME736044
049. [02] 94901-81030 WASHER, COPPER PLA ME702094
050. [01] 07630-00030 PICKUP ASSY, TACHO MC851010
051. [6C] 09031-10150 PLATE, TAPPET ADJU MM500313
051. [6C] 09031-10140 PLATE, TAPPET ADJU MM500312
051. [6C] 09031-10130 PLATE, TAPPET ADJU MM500311
051. [6C] 09031-10120 PLATE, TAPPET ADJU MM500310
051. [6C] 09031-10110 PLATE, TAPPET ADJU MM500309
051. [6C] 09031-10100 PLATE, TAPPET ADJU MM500308
051. [6C] 09031-10090 PLATE, TAPPET ADJU MM500307
051. [6C] 09031-10080 PLATE, TAPPET ADJU MM500306
051. [6C] 09031-10070 PLATE, TAPPET ADJU MM500305
051. [6C] 09031-10060 PLATE, TAPPET ADJU MM500304
051. [6C] 09031-10050 PLATE, TAPPET ADJU MM500303
051. [6C] 09031-10040 PLATE, TAPPET ADJU MM500302
051. [6C] 09031-10030 PLATE, TAPPET ADJU MM500301
051. [6C] 09031-10020 PLATE, TAPPET ADJU MM500300
051. [6C] 09031-10010 PLATE, TAPPET ADJU ME702559
051. [6C] 09031-10290 PLATE, TAPPET ADJU ME728060

Include in #3:

09200-02720 as BODY ASSY, INJECTI
19010-01140
19100-06041

Cross reference number



Part num Firm num Firm Name
19010-01140  ME743135  BODY ASSY, INJECTI
ME743135    MITSUBISHI BODY ASSY, INJECTI




Information:

Removal of Lubrication System (2)
Disassembly Inspection and Reassembly Of Lubrication System
Oil Pump
Disassembly and Inspection of Oil Pump
Measurement of Clearance between Outer Rotor and Inner Rotor
Measure the clearance between the outer rotor and inner rotor, and, if the limit value is exceeded, replace the pump assembly.
Measurement of clearance between outer rotor and inner rotor Measurement of Rotor and Case End Play
Measure the rotor and case end play, and, if the limit value is exceeded, replace the pump assembly.
Measurement of rotor and case end play Measurement of Clearance Between Outer Rotor and Pump Case
Measure the clearance between the outer rotor and pump case, and, if the limit value is exceeded, replace the pump assembly.
Measure the clearance between the outer rotor and case Reassembly of Oil Pump
Install the outer rotor to the pump case, check alignment mark (indentation) on the pump case cover, and then tighten the bolts. If the alignment marks are not aligned during the reassembly, the pump will not suck oil.
Alignment marks on pump case and pump case coverOil Filter and Oil Cooler
Disassembly and Inspection of Oil Filter and Oil Cooler
Relief Valve
Inspection of Relief Valve
Relief Valve(1) Check the relief valve and valve seat for contact condition, and the spring for fatigue and damage, and replace any defective parts.(2) Measure the valve opening pressure (oil pressure when the engine is running at rated rpm) of the relief valve, and, if the standard valve is exceeded, remove the cap bolt and make an adjustment by increasing or decreasing the shim thickness.Engine oil pressure take-out port Next to oil filter - Rp 1/8 thread (PS 1/8) Installation of Lubrication System (1)
Installation of Lubrication System (2)

Have questions with 19010-01140?





19010-01660 BODY ASSY, INJECTI 19010-01550 19010-01511 19010-01510 19010-01490
04203-00033 BODY ASSY, INJECTI 04203-20112 04203-30000 09010-01010 0901001180

Group cross 19010-01140
