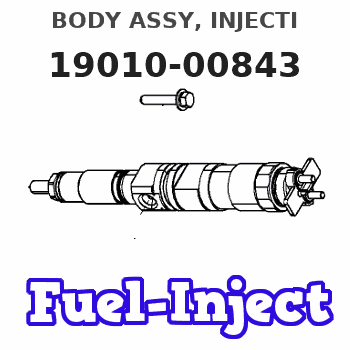

19010-00843 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

19010-00843 BODY ASSY, INJECTI
Rating:
2
Buy BODY ASSY, INJECTI 19010-00843 genuine, new aftermarket engine parts with delivery

Scheme ###:

000. [01] 19010-00843 BODY ASSY, INJECTI 22110-3190A
001. [01] 09011-05212 HOUSING SUB-ASSY, 22101-3680A
001. [01] 09011-05640 HOUSING SUB-ASSY,
001-001. [03] 94904-30010 BOLT, STUD S2285-71060-A
002. [05] 09013-11091 HOLDER, DELIVERY V S2211-61210-A
002. [05] 09013-11220 HOLDER, DELIVERY V S2211-61230-A
003. [05] 09013-61201 SPRING, DELIVERY V S2212-51430-A
004. [05] 94914-02570 O-RING S2281-71260-A
005. [05] 09014-02551 VALVE SUB-ASSY, IN S2210-32390-A
006. [05] 09015-05732 ELEMENT SUB-ASSY, S2210-43800-A
006. [05] 09015-06470 ELEMENT SUB-ASSY, S2210-44550-A
007. [05] 09016-00150 SLEEVE SUB-ASSY, C S2211-81320-A
008. [01] 09021-20630 RACK, CONTROL S2211-31490-A
009. [05] 09016-30160 SEAT, SPRING, UPR S2211-91090-A
010. [05] 09016-40250 SPRING, PUMP PLUNG 22121-1230A
011. [05] 09016-50150 SEAT, SPRING, LWR 22122-1100A
012. [05] 09017-00320 TAPPET SUB-ASSY,IN S2210-51480-A
013. [ C] 09043-80471 SHIM, ELEMENT HOLD 22885-5590A
013. [ C] 09043-80481 SHIM, ELEMENT HOLD 22885-5600A
013. [ C] 09043-80491 SHIM, ELEMENT HOLD S2288-55611-A
013. [ C] 09043-80501 SHIM, ELEMENT HOLD S2288-55621-A
013. [ C] 09043-80901 SHIM, ELEMENT HOLD 22885-2410A
013. [ C] 09043-80911 SHIM, ELEMENT HOLD S2288-52420-A
013. [ C] 09043-80461 SHIM, ELEMENT HOLD S2288-55580-A
013. [ C] 09043-80451 SHIM, ELEMENT HOLD S2288-55570-A
013. [ C] 09043-80391 SHIM, ELEMENT HOLD S2288-52300-A
013. [ C] 09043-80401 SHIM, ELEMENT HOLD S2288-52310-A
013. [ C] 09043-80411 SHIM, ELEMENT HOLD S2288-52320-A
013. [ C] 09043-80421 SHIM, ELEMENT HOLD S2288-52330-A
013. [ C] 09043-80431 SHIM, ELEMENT HOLD S2288-52340-A
013. [ C] 09043-80441 SHIM, ELEMENT HOLD S2288-55560-A
014. [12] 90196-08651 NUT, HEXAGON 22825-1380A
015. [12] 94901-35880 WASHER, PLATE, SK 22885-2290A
016. [12] 90258-08001 WASHER, SPRING S2287-71720-A
017. [01] 94914-03940 O-RING S2281-71470-A
018. [18] 09013-90020 O-RING S2281-71270-A
018. [12] 09013-90340 O-RING S2281-72280-A
019. [05] 94901-81730 WASHER, COPPER PLA S2284-71550-A
020. [01] 09019-11710 CAMSHAFT, INJECTIO S2212-32140-A
021. [01] 94910-10140 BEARING, ROLLER S2283-71180-A
022. [01] 09019-30050 RING, CAMSHAFT ADJ S2212-41090-A
023. [3C] 09019-40410 PLATE, CAMSHAFT SH S2288-56670-A
023. [3C] 09019-40360 PLATE, CAMSHAFT SH S2288-55700-A
023. [3C] 09019-40350 PLATE, CAMSHAFT SH S2288-55690-A
023. [3C] 09019-40340 PLATE, CAMSHAFT SH S2288-55680-A
023. [3C] 09019-40100 PLATE, CAMSHAFT SH S2288-51580-A
023. [3C] 09019-40090 PLATE, CAMSHAFT SH S2288-51570-A
023. [3C] 09019-40080 PLATE, CAMSHAFT SH S2288-51560-A
023. [3C] 09019-40070 PLATE, CAMSHAFT SH S2288-51550-A
025. [01] 94915-02820 SEAL, OIL S2282-71750-A
026. [01] 09020-10430 COVER, BEARING S2211-11320-A
027. [04] 91518-06161 BOLT, W/WASHER S2281-51310-A
028. [01] 09043-30020 RETAINER, BEARING S2211-11310-A
029. [01] 09036-10180 BEARING, CENTER
029. [01] 09036-10240 BEARING, CENTER S2283-71350-A
030. [02] 94900-66510 SCREW
030. [02] 94900-67300 SCREW S2286-51510-A
031. [02] 09024-80010 WASHER, DRAIN SCRE S2284-71730-A
032. [01] 09021-50060 SCREW, RACK GUIDE S2281-14850-A
033. [01] 09031-70140 PLUG, SCREW 22845-1280A
033. [01] 09031-70420 PLUG, SCREW S2284-51550-A
034. [01] 94910-10130 BEARING, ROLLER S2283-71050-A
035. [01] 09019-30060 RING, CAMSHAFT ADJ S2212-41100-A
036. [04] 94901-02490 WASHER S2287-71100-A
038. [01] 94918-00310 SCREW, HOLLOW S2283-51310-A
039. [3C] 09019-40420 PLATE, CAMSHAFT SH S2288-56730-A
039. [3C] 09019-40390 PLATE, CAMSHAFT SH S2288-56710-A
039. [3C] 09019-40380 PLATE, CAMSHAFT SH S2288-56700-A
039. [3C] 09019-40370 PLATE, CAMSHAFT SH S2288-56690-A
039. [3C] 09019-40330 PLATE, CAMSHAFT SH S2212-91240-A
039. [3C] 09019-40320 PLATE, CAMSHAFT SH S2212-91230-A
039. [3C] 09019-40310 PLATE, CAMSHAFT SH S2212-91220-A
039. [3C] 09019-40300 PLATE, CAMSHAFT SH S2212-91210-A
040. [02] 09011-40110 BUSHING, CONTROL R S2213-11200-A
041. [01] 09036-70040 BUSHING, CONTROL R S2213-11190-A
042. [02] 94901-02470 WASHER S2284-71900-A
044. [01] 94918-00060 SCREW, HOLLOW S2283-51110-A
046. [01] 94914-00380 O-RING S2281-71540-A
047. [03] 90258-06001 WASHER, SPRING S2821-91110-A
048. [03] 90160-06051 NUT, HEXAGON S2282-51480-A
053. [01] 94901-80350 WASHER, COPPER PLA 22847-1950A
053. [01] 94901-81040 WASHER, COPPER PLA 22843-1430A
054. [01] 09011-80580 NEEDLE, TIMING S2213-21860-A
055. [02] 94904-70620 BOLT, W/WASHER S2281-51620-A
056. [02] 09020-80320 PLATE, SHIM S2288-56740-A
059. [05] 09013-30390 STOPPER, DELIVERY S2211-71310-A
061. [01] 09015-32050 CYLINDER
061. [01] 09015-32090 CYLINDER S2284-51610-A

Include in #3:

19010-00843 as BODY ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
19010-00843  22110-3190  BODY ASSY, INJECTI




Information:

Cooling System (Extended Life Coolant Only)
Drain/Flush/Replace Coolant
Only clean water is needed to clean and flush the cooling system when ELC is drained and replaced.Drain
1. Stop the engine and allow the engine to cool. Loosen the coolant filler cap slowly to relieve any pressure, and remove the cap.2. Open the cooling system drain valve (if equipped). If not equipped with a drain valve, remove the engine block drain plug. Remove the oil cooler drain plug. Remove the drain plug from the bottom of the water pump housing. Allow the coolant to drain.
Dispose of used engine coolant properly or recycle. Various methods have been proposed to reclaim used coolant for reuse in engine cooling systems. The full distillation procedure is the only method acceptable by Caterpillar to reclaim the used coolant.
For information regarding disposal and recycling of used coolant, contact your Caterpillar dealer or contact Caterpillar Service Technology Group:Outside Illinois: 1-800-542-TOOLInside Illinois: 1-800-541-TOOLCanada: 1-800-523-TOOLFlush
3. Flush the cooling system with clean water to remove any debris.4. Close the drain valve (if equipped). Clean the drain plugs. Clean the drain plug receptacles. Install the drain plugs. Refer to the Torque Specifications section in this manual.5. Fill the cooling system with clean water. Install the filler cap. Operate the engine until the temperature reaches 49 to 66°C (150 to 120°F).6. Stop the engine and allow the engine to cool. Loosen the cooling system filler cap slowly to relieve any pressure, and remove the cap. Open the drain valve (if equipped) or remove the cooling system drain plugs. Allow the water to drain. Flush the cooling system with clean water.7. Repeat steps 5 and 6.Fill
8. Fill the cooling system with ELC. Refer to the refill capacities chart in this manual for the amount of ELC needed to refill your system.9. Start and run the engine with the filler cap removed. Allow the ELC to warm, the thermostat to open, and the coolant level to stabilize. Add ELC if necessary to bring the coolant to the proper level.10. Clean the filler cap. Clean the filler cap receptacle. Inspect the filler cap gasket. If the gasket is damaged, discard the old filler cap and install a new filler cap. If the gasket is not damaged, use a 9S-8140 Pressurized Pump Group to pressure test the filler cap. The correct filler cap pressure is stamped on the face of the filler cap. If the filler cap does not hold the correct pressure, install a new filler cap.11. Install the filler cap. Start the engine. Inspect for coolant leaks and proper operating temperature.
