19010-00760 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

19010-00760 BODY ASSY, INJECTI
Rating:
35
Buy BODY ASSY, INJECTI 19010-00760 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400360
Body assy, injecti 1904400360
Body assy, injecti 1904400360
Body assy, injecti 1904400360
Body assy, injecti 1904400360

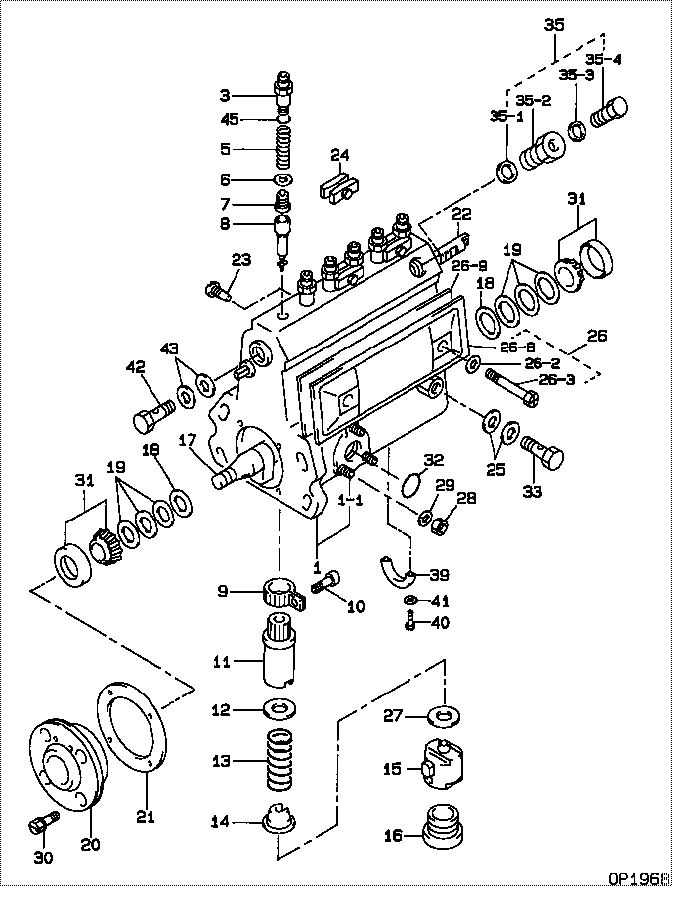

Scheme ###:

BODY ASSY, INJECTI
000. [01] 19010-00761 BODY ASSY, INJECTI
001. [01] 19011-05190 HOUSING KIT, INJEC
001-001. [03] 94904-30010 BOLT, STUD 85265-00057
003. [06] 09013-10330 HOLDER, DELIVERY V
005. [06] 09013-60020 SPRING, DELIVERY V
006. [06] 09013-70100 GASKET, DELIVERY V 09013-70100
007. [06] 09014-00660 VALVE SUB-ASSY, IN
008. [06] 09015-02980 ELEMENT SUB-ASSY,
009. [06] 09015-60010 PINION, PLUNGER CO 85265-00074
010. [06] 09015-70010 SCREW, PLUNGER CON 85265-00027
011. [06] 09016-10330 SLEEVE, PLUNGER CO
012. [06] 09016-30191 SEAT, SPRING, UPR
013. [06] 09016-40090 SPRING, PUMP PLUNG 09016-40090
014. [06] 09016-50160 SEAT, SPRING, LWR 09016-50160
015. [06] 09017-00070 TAPPET SUB-ASSY,IN 09017-00070
016. [06] 09018-90090 PLUG, INJECTION PU 09018-90090
017. [01] 09019-10811 CAMSHAFT, INJECTIO 09019-10810
018. [02] 09019-30020 RING, CAMSHAFT ADJ 09019-30020
019. [6C] 09019-40400 PLATE, CAMSHAFT SH
019. [6C] 09019-40290 PLATE, CAMSHAFT SH
019. [6C] 09019-40150 PLATE, CAMSHAFT SH
019. [6C] 09019-40140 PLATE, CAMSHAFT SH
019. [6C] 09019-40110 PLATE, CAMSHAFT SH 09019-40110
019. [6C] 09019-40060 PLATE, CAMSHAFT SH 09019-40060
019. [6C] 09019-40050 PLATE, CAMSHAFT SH 09019-40050
019. [6C] 09019-40040 PLATE, CAMSHAFT SH 09019-40040
019. [6C] 09019-40030 PLATE, CAMSHAFT SH 09019-40030
019. [6C] 09019-40020 PLATE, CAMSHAFT SH 09019-40020
019. [6C] 09019-40010 PLATE, CAMSHAFT SH 09019-40010
020. [01] 09020-10300 COVER, BEARING 09020-10300
021. [01] 09020-60160 GASKET, BEARING CO
022. [01] 09021-20010 RACK, CONTROL 85265-00023
023. [01] 09021-50060 SCREW, RACK GUIDE 09021-50060
023. [01] 09021-50070 SCREW, RACK GUIDE
024. [03] 09023-00050 PLATE SET, VALVE H 09023-00050
025. [02] 09025-10010 WASHER, INJECTION 85265-00077
026. [01] 09027-00622 COVER SUB-ASSY, IN
026-002. [02] 09024-30030 PACKING, AIR BLEED 85265-00016
026-003. [02] 09027-60030 SCREW
026-008. [01] 09027-50083 PROCESSING DRAWING
026-009. [01] 09027-20220 GASKET, INJECTION
027. [6C] 09031-10100 PLATE, TAPPET ADJU 09031-10100
027. [6C] 09031-10110 PLATE, TAPPET ADJU 09031-10110
027. [6C] 09031-10120 PLATE, TAPPET ADJU 09031-10120
027. [6C] 09031-10130 PLATE, TAPPET ADJU 09031-10130
027. [6C] 09031-10140 PLATE, TAPPET ADJU 09031-10140
027. [6C] 09031-10150 PLATE, TAPPET ADJU 09031-10150
027. [6C] 09031-10290 PLATE, TAPPET ADJU
027. [6C] 09031-10090 PLATE, TAPPET ADJU 09031-10090
027. [6C] 09031-10080 PLATE, TAPPET ADJU 09031-10080
027. [6C] 09031-10010 PLATE, TAPPET ADJU 09031-10010
027. [6C] 09031-10020 PLATE, TAPPET ADJU 09031-10020
027. [6C] 09031-10030 PLATE, TAPPET ADJU 09031-10030
027. [6C] 09031-10040 PLATE, TAPPET ADJU 09031-10040
027. [6C] 09031-10050 PLATE, TAPPET ADJU 09031-10050
027. [6C] 09031-10060 PLATE, TAPPET ADJU 09031-10060
027. [6C] 09031-10070 PLATE, TAPPET ADJU 09031-10070
028. [03] 90160-06051 NUT, HEXAGON 85265-00085
029. [03] 90258-06001 WASHER, SPRING 90258-06001
030. [04] 94904-71360 BOLT, W/WASHER 94904-71360
031. [02] 94910-10120 BEARING, ROLLER 94910-10121
032. [01] 94914-00380 O-RING 85265-00084
033. [01] 94918-00060 SCREW, HOLLOW 85265-00076
035. [01] 09024-00010 BLEEDER SUB-ASSY, 09024-00010
035-001. [01] 09024-10010 WASHER, AIR BLEEDE MM500486
035-002. [01] 09024-20010 NIPPLE, AIR BLEEDE 85265-00013
035-003. [01] 09024-30030 PACKING, AIR BLEED 85265-00016
035-004. [01] 09024-40010 SCREW, AIR BLEEDER 09024-40010
039. [01] 09036-10040 BEARING, CENTER 09036-10040
040. [02] 94900-66550 SCREW
041. [02] 94901-81030 WASHER, COPPER PLA 85265-00068
042. [01] 94918-00310 SCREW, HOLLOW 85265-00078
043. [02] 09022-20070 WASHER, FUEL PIPE 85265-00079
045. [04] 94914-02570 O-RING 94914-02570

Include in #3:

09200-01560 as BODY ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
19010-00760    BODY ASSY, INJECTI




Information:

Features and BenefitsCat? Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors by providing immediate, off-the-shelf availability at a fraction of the new price. Core Acceptance Core Acceptance Crietira for Catperillar Remanufactured injectors is simple. Full core credit is issued when the core is fully assembled, there is no excessive rust or non-operational damage and it is an acceptable part number. Consult your Core Acceptance Guide for complete details.WarrantyPlease consult the appropriate warranty statement for your area.
PELJ0827 CATERPILLAR? ?2007 Caterpillar
