19010-00750 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

19010-00750 BODY ASSY, INJECTI
Rating:
13
Buy BODY ASSY, INJECTI 19010-00750 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300
Body assy, injecti 1904400300

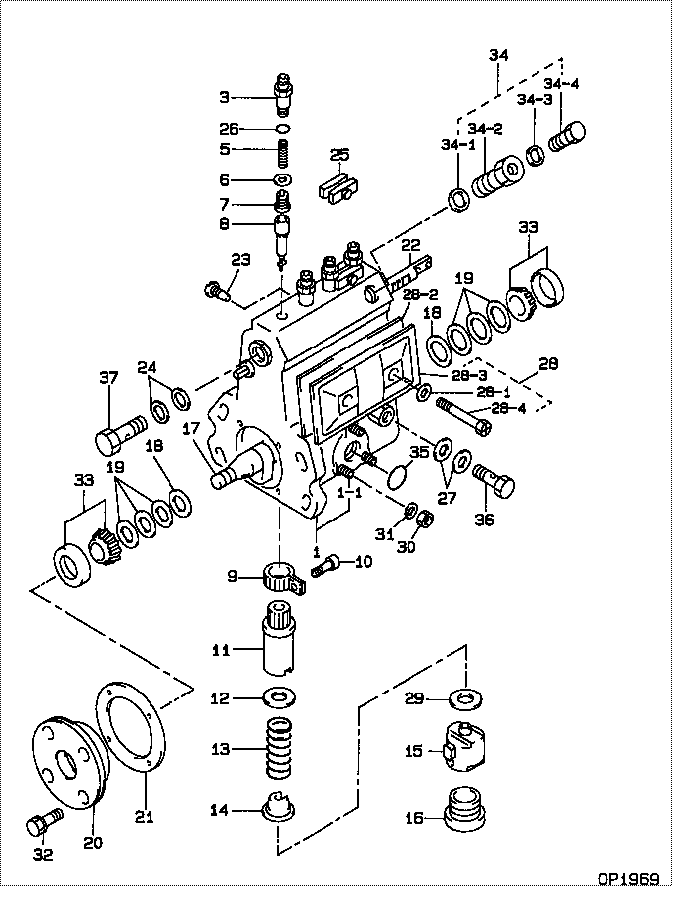

Scheme ###:

000. [01] 19010-00750 BODY ASSY, INJECTI
001. [01] 19011-05060 HOUSING KIT, INJEC
001-001. [03] 94904-30010 BOLT, STUD 85265-00057
003. [04] 09013-10330 HOLDER, DELIVERY V
005. [04] 09013-60020 SPRING, DELIVERY V
006. [04] 09013-70100 GASKET, DELIVERY V 09013-70100
007. [04] 09014-00660 VALVE SUB-ASSY, IN
008. [04] 09015-03830 ELEMENT SUB-ASSY,
009. [04] 09015-60010 PINION, PLUNGER CO 85265-00074
010. [04] 09015-70010 SCREW, PLUNGER CON 85265-00027
011. [04] 09016-10330 SLEEVE, PLUNGER CO
012. [04] 09016-30191 SEAT, SPRING, UPR
013. [04] 09016-40090 SPRING, PUMP PLUNG 09016-40090
014. [04] 09016-50160 SEAT, SPRING, LWR 09016-50160
015. [04] 09017-00070 TAPPET SUB-ASSY,IN 09017-00070
016. [04] 09018-90090 PLUG, INJECTION PU 09018-90090
017. [01] 09019-10082 CAMSHAFT, INJECTIO 09019-10081
018. [02] 09019-30020 RING, CAMSHAFT ADJ 09019-30020
019. [6C] 09019-40010 PLATE, CAMSHAFT SH 09019-40010
019. [6C] 09019-40400 PLATE, CAMSHAFT SH
019. [6C] 09019-40290 PLATE, CAMSHAFT SH
019. [6C] 09019-40150 PLATE, CAMSHAFT SH
019. [6C] 09019-40140 PLATE, CAMSHAFT SH
019. [6C] 09019-40110 PLATE, CAMSHAFT SH 09019-40110
019. [6C] 09019-40060 PLATE, CAMSHAFT SH 09019-40060
019. [6C] 09019-40050 PLATE, CAMSHAFT SH 09019-40050
019. [6C] 09019-40040 PLATE, CAMSHAFT SH 09019-40040
019. [6C] 09019-40030 PLATE, CAMSHAFT SH 09019-40030
019. [6C] 09019-40020 PLATE, CAMSHAFT SH 09019-40020
020. [01] 09020-10300 COVER, BEARING 09020-10300
021. [01] 09020-60160 GASKET, BEARING CO
022. [01] 09021-20020 RACK, CONTROL 09021-20020
023. [01] 09021-50060 SCREW, RACK GUIDE 09021-50060
024. [02] 09022-20070 WASHER, FUEL PIPE 85265-00079
025. [02] 09023-00050 PLATE SET, VALVE H 09023-00050
026. [04] 94914-02570 O-RING 94914-02570
027. [02] 09025-10010 WASHER, INJECTION 85265-00077
028. [01] 09027-01460 COVER SUB-ASSY, IN
028-001. [02] 09024-30030 PACKING, AIR BLEED 85265-00016
028-002. [01] 09027-20210 GASKET, INJECTION
028-003. [01] 09027-50182 PROCESSING DRAWING
028-004. [02] 09027-60030 SCREW
029. [4C] 09031-10100 PLATE, TAPPET ADJU 09031-10100
029. [4C] 09031-10110 PLATE, TAPPET ADJU 09031-10110
029. [4C] 09031-10120 PLATE, TAPPET ADJU 09031-10120
029. [4C] 09031-10130 PLATE, TAPPET ADJU 09031-10130
029. [4C] 09031-10140 PLATE, TAPPET ADJU 09031-10140
029. [4C] 09031-10150 PLATE, TAPPET ADJU 09031-10150
029. [4C] 09031-10290 PLATE, TAPPET ADJU
029. [4C] 09031-10090 PLATE, TAPPET ADJU 09031-10090
029. [4C] 09031-10080 PLATE, TAPPET ADJU 09031-10080
029. [4C] 09031-10010 PLATE, TAPPET ADJU 09031-10010
029. [4C] 09031-10020 PLATE, TAPPET ADJU 09031-10020
029. [4C] 09031-10030 PLATE, TAPPET ADJU 09031-10030
029. [4C] 09031-10040 PLATE, TAPPET ADJU 09031-10040
029. [4C] 09031-10050 PLATE, TAPPET ADJU 09031-10050
029. [4C] 09031-10060 PLATE, TAPPET ADJU 09031-10060
029. [4C] 09031-10070 PLATE, TAPPET ADJU 09031-10070
030. [03] 90160-06051 NUT, HEXAGON 85265-00085
031. [03] 90258-06001 WASHER, SPRING 90258-06001
032. [04] 94904-71360 BOLT, W/WASHER 94904-71360
033. [02] 94910-10120 BEARING, ROLLER 94910-10121
034. [01] 09024-00010 BLEEDER SUB-ASSY, 09024-00010
034-001. [01] 09024-10010 WASHER, AIR BLEEDE MM500486
034-002. [01] 09024-20010 NIPPLE, AIR BLEEDE 85265-00013
034-003. [01] 09024-30030 PACKING, AIR BLEED 85265-00016
034-004. [01] 09024-40010 SCREW, AIR BLEEDER 09024-40010
035. [01] 94914-00380 O-RING 85265-00084
036. [01] 94918-00060 SCREW, HOLLOW 85265-00076
037. [01] 94918-00310 SCREW, HOLLOW 85265-00078

Cross reference number



Part num Firm num Firm Name
19010-00750    BODY ASSY, INJECTI




Information:

Measurement of Distortion of Cylinder Head Bottom Surface
Place a straight edge on the bottom surface of the cylinder head, measure the amount of surface distortion using feeler gages, and, if the limit value is exceeded, reface the surface with a surface grinder.
Measurement of distortion of cylinder head bottom surfaceMeasurement of Rocker Arm Inside Diameter and Rocker Shaft Diameter
Measure the inside diameter of the rocker arm (bushing) and the diameter of the rocker shaft to calculate the clearance between the rocker arm and shaft, and replace the rocker arm if the clearance is within the limit value. If the limit value is exceeded, replace the rocker arm and shaft.
Measurement of rocker arm inside diameter and rocker shaft diameterMeasurement of Valve Spring Perpendicularity and Free Length
Inspect each valve spring for perpendicularity and free length, and, if the limit value is exceeded, replace the valve.
Measurement of valve spring perpendicularity and free lengthMeasurement of Pushrod Runout
If the pushrod runout exceeds the standard value, replace the pushrod. The standard value above is based on dial gage reading.
Measurement of pushrod runoutMeasurement of Valve Stem Diameter
If the stem diameter exceeds the limit value, replace the valve stem. Also replace the valve stem if it is unevenly worn.
Measurement of valve stem diameterMeasurement of Clearance Between Valve Stem and Valve Guide
Measure the valve guide bore with and internal bore micrometer.Because the valve guide wears more rapidly at the upper and lower ends, measure the diameter at both ends in two crossing directions. If the limit is exceeded, replace worn parts. Remove carbon deposits from the valve and valve guide before measuring the clearance.
Measurement of valve guide inside diameter
Removal of valve guideReplacement of Valve Guides
(1) To remove the valve guides, use the valve guide remover.(2) To press-fit the valve guides, use the valve guide installer and a press.
Be sure to use the valve guide installer in order to drive the valve guide to the prescribed depth.
(3) After installing the valve guide, insert a new valve and check the smoothness of the movement.(4) When the valve guide is replaced, check the contact of the valve with the valve seat.
Installation of valve guideInspection of Valve Faces
Coat the valve face lightly with shinmeitan, and use the valve lapper to inspect the valve contact with the valve seat. If the contact is not uniform and the valve is defective, or if a limit is exceeded, correct or replace the valve and valve seat.
Inspection of valve face (a) Inspect the valve face after the valve guide is inspected or replaced.(b) When pressing the valve coated with shinmeitan against the valve seat, do not rotate the valve.(c) After the valve or valve seat is corrected or replaced, lap the valve against the valve seat.
Valve seat contact with seat
Valve contact with seatReplacement of Valve Seats
(1) Removal of valve seatWeld a stud or bar to the valve seat, insert a shaft into the valve guide bore from the top of the cylinder head, and drive the seat off the cylinder head. When welding the stud, do
