19010-00320 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

19010-00320 BODY ASSY, INJECTI
Rating:
41
Buy BODY ASSY, INJECTI 19010-00320 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Body assy, injecti 1904400320

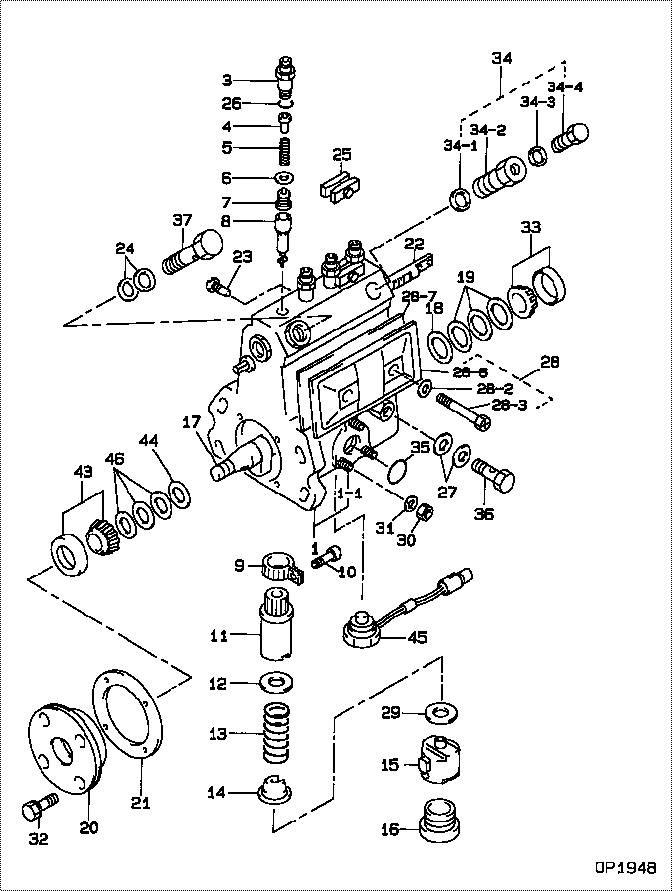

Scheme ###:

BODY ASSY, INJECTI
000. [01] 19010-00320 BODY ASSY, INJECTI ME736197
001. [01] 19011-05130 HOUSING KIT, INJEC
001-001. [03] 94904-30010 BOLT, STUD ME702091
003. [04] 09013-10330 HOLDER, DELIVERY V MM501668
004. [04] 09013-30030 STOPPER, DELIVERY ME022082
005. [04] 09013-61180 SPRING, DELIVERY V
006. [04] 09013-70100 GASKET, DELIVERY V ME702053
007. [04] 09014-00660 VALVE SUB-ASSY, IN MM500343
008. [04] 09015-05510 ELEMENT SUB-ASSY,
009. [04] 09015-60010 PINION, PLUNGER CO ME702058
010. [04] 09015-70010 SCREW, PLUNGER CON ME702059
011. [04] 09016-10330 SLEEVE, PLUNGER CO ME702060
012. [04] 09016-30191 SEAT, SPRING, UPR ME736080
013. [04] 09016-40350 SPRING, PUMP PLUNG ME736081
014. [04] 09016-50160 SEAT, SPRING, LWR MM514055
015. [04] 09017-00070 TAPPET SUB-ASSY,IN ME702556
016. [03] 09018-90090 PLUG, INJECTION PU ME703276
017. [01] 09019-10740 CAMSHAFT, INJECTIO
018. [01] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [3C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [3C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [3C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [3C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [3C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [3C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [3C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [3C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [3C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [3C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [3C] 09019-40010 PLATE, CAMSHAFT SH ME702075
020. [01] 09020-10351 COVER, BEARING ME703059
021. [01] 09020-60150 GASKET, BEARING CO ME728350
022. [01] 09021-20441 RACK, CONTROL ME703731
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [02] 09022-20070 WASHER, FUEL PIPE ME702217
025. [02] 09023-00050 PLATE SET, VALVE H ME702558
026. [04] 94914-02570 O-RING ME702098
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-01200 COVER SUB-ASSY, IN ME703732
028. [01] 09027-01460 COVER SUB-ASSY, IN ME736539
028-002. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-003. [02] 09027-60030 SCREW ME703028
028-006. [01] 09027-50182 PROCESSING DRAWING ME703051
028-007. [01] 09027-20210 GASKET, INJECTION ME703052
029. [4C] 09031-10290 PLATE, TAPPET ADJU ME728060
029. [4C] 09031-10150 PLATE, TAPPET ADJU MM500313
029. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
029. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
029. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
029. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
029. [4C] 09031-10100 PLATE, TAPPET ADJU MM500308
029. [4C] 09031-10090 PLATE, TAPPET ADJU MM500307
029. [4C] 09031-10080 PLATE, TAPPET ADJU MM500306
029. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
029. [4C] 09031-10020 PLATE, TAPPET ADJU MM500300
029. [4C] 09031-10030 PLATE, TAPPET ADJU MM500301
029. [4C] 09031-10040 PLATE, TAPPET ADJU MM500302
029. [4C] 09031-10050 PLATE, TAPPET ADJU MM500303
029. [4C] 09031-10060 PLATE, TAPPET ADJU MM500304
029. [4C] 09031-10070 PLATE, TAPPET ADJU MM500305
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [01] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09024-00010 BLEEDER SUB-ASSY, ME702083
034-001. [01] 09024-10010 WASHER, AIR BLEEDE ME702102
034-002. [01] 09024-20010 NIPPLE, AIR BLEEDE ME022094
034-003. [01] 09024-30030 PACKING, AIR BLEED ME702057
034-004. [01] 09024-40010 SCREW, AIR BLEEDER MM501930
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
043. [01] 94910-10071 BEARING, ROLLER ME702562
044. [01] 09019-30050 RING, CAMSHAFT ADJ ME702073
045. [01] 07630-00670 PICKUP ASSY, TACHO ME016374
046. [3C] 09019-40360 PLATE, CAMSHAFT SH ME703469
046. [3C] 09019-40350 PLATE, CAMSHAFT SH ME703468
046. [3C] 09019-40340 PLATE, CAMSHAFT SH ME703467
046. [3C] 09019-40170 PLATE, CAMSHAFT SH ME703271
046. [3C] 09019-40160 PLATE, CAMSHAFT SH ME703270
046. [3C] 09019-40100 PLATE, CAMSHAFT SH MM500694
046. [3C] 09019-40090 PLATE, CAMSHAFT SH MM500693
046. [3C] 09019-40080 PLATE, CAMSHAFT SH MM500692
046. [3C] 09019-40070 PLATE, CAMSHAFT SH ME702076
046. [3C] 09019-40410 PLATE, CAMSHAFT SH ME728353

Include in #3:

09300-04890 as BODY ASSY, INJECTI
19010-00320

Cross reference number



Part num Firm num Firm Name
19010-00320  ME736197  BODY ASSY, INJECTI
ME736197    MITSUBISHI BODY ASSY, INJECTI




Information:

Problem
The 9Y3222 Injector Rocker Arms may fail on certain 205B, 206B, 211B, 212B, 213B, 214B, 224B, and 325 Excavators; D20D and D250D Articulated Trucks; 446 Backhoe Loaders; 950F Loaders; 3114 Industrial Engines; 3116 Industrial Engines; 3116 Marine Engines; and 3116 Truck Engines. The arm may fail near the adjusting screw or the insert on the injector end of the arm may break.
Affected Product
Model & Identification Number
205B (5ZF1-91)
206B (9BF1-691)
211B (6XG1-162)
212B (3PJ1-912)
213B (1EJ1-378)
214B (4CF1-517; 9MF1-386)
224B (7WF1-181)
325 (2JK174-254)
D20D (9MG1-46)
D250D (6NG1-35)
446 (6XF1-689)
950F (6YG1-2729; 7ZF1-1045)
3114 (Industrial) (5EF1-974)
3116 (Industrial) (2WG1-2506; 4PG1-847)
3116 (Marine) (4KF1-1154)
3116 (Truck) (2BK10000-14485)
Parts Needed
6 - 9Y3222 Injector Arm AssemblyAction Required
If one 9Y3222 Injector Arm Assembly fails, follow the procedures in the Service Manual and replace all six 9Y3222 Injector Arm Assemblies.
In marine applications where there is more than one engine per vessel, install six new 9Y3222 Injector Arm Assemblies on all engines if there is a 9Y3222 Injector Arm Assembly failure.
Service Claim Allowances
All Affected Product Except Truck Engines
This is a 4-hour job.
Truck Engines
Labor segment for test after repair not allowed for this repair.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
