19010-00220 BODY ASSY, INJECTI Denso Cross




Information body assy, injecti

19010-00220 BODY ASSY, INJECTI
Rating:
12
Buy BODY ASSY, INJECTI 19010-00220 genuine, new aftermarket engine parts with delivery

KIT List:

Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320
Body assy, injecti 1904400320

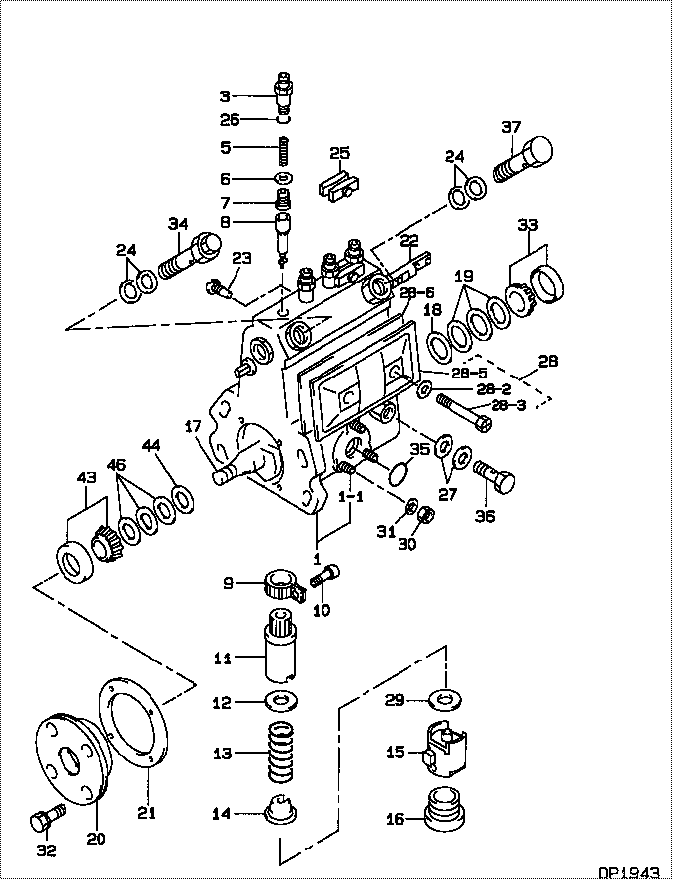

Scheme ###:

BODY ASSY, INJECTI
000. [01] 19010-00220 BODY ASSY, INJECTI ME736155
001. [01] 19011-04950 HOUSING KIT, INJEC ME736075
001-001. [03] 94904-30010 BOLT, STUD ME702091
003. [04] 09013-00580 HOLDER SUB-ASSY, D ME736076
005. [04] 09013-61141 SPRING, DELIVERY V ME736077
006. [04] 09013-70100 GASKET, DELIVERY V ME702053
007. [04] 09014-02420 VALVE SUB-ASSY, IN ME736078
008. [04] 09015-05290 ELEMENT SUB-ASSY, ME736079
009. [04] 09015-60010 PINION, PLUNGER CO ME702058
010. [04] 09015-70010 SCREW, PLUNGER CON ME702059
011. [04] 09016-10500 SLEEVE, PLUNGER CO ME728904
012. [04] 09016-30191 SEAT, SPRING, UPR ME736080
013. [04] 09016-40350 SPRING, PUMP PLUNG ME736081
014. [04] 09016-50320 SEAT, SPRING, LWR ME728907
015. [04] 09017-00310 TAPPET SUB-ASSY,IN ME728908
016. [04] 09018-90080 PLUG, INJECTION PU ME728913
017. [01] 09019-11462 CAMSHAFT, INJECTIO ME736082
018. [01] 09019-30020 RING, CAMSHAFT ADJ ME702074
019. [3C] 09019-40400 PLATE, CAMSHAFT SH ME728352
019. [3C] 09019-40290 PLATE, CAMSHAFT SH ME703274
019. [3C] 09019-40150 PLATE, CAMSHAFT SH ME703273
019. [3C] 09019-40140 PLATE, CAMSHAFT SH ME703272
019. [3C] 09019-40110 PLATE, CAMSHAFT SH ME703583
019. [3C] 09019-40060 PLATE, CAMSHAFT SH ME022103
019. [3C] 09019-40050 PLATE, CAMSHAFT SH ME022102
019. [3C] 09019-40040 PLATE, CAMSHAFT SH ME022101
019. [3C] 09019-40030 PLATE, CAMSHAFT SH ME022100
019. [3C] 09019-40020 PLATE, CAMSHAFT SH ME022099
019. [3C] 09019-40010 PLATE, CAMSHAFT SH ME702075
020. [01] 09020-10351 COVER, BEARING ME703059
021. [01] 09020-60150 GASKET, BEARING CO ME728350
022. [01] 09021-20441 RACK, CONTROL ME703731
023. [01] 09021-50060 SCREW, RACK GUIDE ME728163
024. [04] 09022-20070 WASHER, FUEL PIPE ME702217
025. [02] 09023-00050 PLATE SET, VALVE H ME702558
026. [04] 94914-02570 O-RING ME702098
027. [02] 09025-10010 WASHER, INJECTION ME702595
028. [01] 09027-01220 COVER SUB-ASSY, IN ME703060
028. [01] 09027-01460 COVER SUB-ASSY, IN ME736539
028-002. [02] 09024-30030 PACKING, AIR BLEED ME702057
028-003. [02] 09027-60030 SCREW ME703028
028-005. [01] 09027-50182 PROCESSING DRAWING ME703051
028-006. [01] 09027-20210 GASKET, INJECTION ME703052
029. [4C] 09031-10100 PLATE, TAPPET ADJU MM500308
029. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
029. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
029. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
029. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
029. [4C] 09031-10150 PLATE, TAPPET ADJU MM500313
029. [4C] 09031-10090 PLATE, TAPPET ADJU MM500307
029. [4C] 09031-10080 PLATE, TAPPET ADJU MM500306
029. [4C] 09031-10070 PLATE, TAPPET ADJU MM500305
029. [4C] 09031-10060 PLATE, TAPPET ADJU MM500304
029. [4C] 09031-10050 PLATE, TAPPET ADJU MM500303
029. [4C] 09031-10040 PLATE, TAPPET ADJU MM500302
029. [4C] 09031-10030 PLATE, TAPPET ADJU MM500301
029. [4C] 09031-10020 PLATE, TAPPET ADJU MM500300
029. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
029. [4C] 09031-10290 PLATE, TAPPET ADJU ME728060
030. [03] 90160-06051 NUT, HEXAGON ME702588
031. [03] 90258-06001 WASHER, SPRING ME702596
032. [04] 91418-06201 BOLT, W/WASHER ME702041
033. [01] 94910-10120 BEARING, ROLLER ME702096
034. [01] 09031-00310 VALVE ASSY, OVERFL ME703733
035. [01] 94914-00380 O-RING ME702097
036. [01] 94918-00060 SCREW, HOLLOW ME702598
037. [01] 94918-00310 SCREW, HOLLOW ME702236
043. [01] 94910-10071 BEARING, ROLLER ME702562
044. [01] 09019-30050 RING, CAMSHAFT ADJ ME702073
046. [3C] 09019-40360 PLATE, CAMSHAFT SH ME703469
046. [3C] 09019-40350 PLATE, CAMSHAFT SH ME703468
046. [3C] 09019-40340 PLATE, CAMSHAFT SH ME703467
046. [3C] 09019-40170 PLATE, CAMSHAFT SH ME703271
046. [3C] 09019-40160 PLATE, CAMSHAFT SH ME703270
046. [3C] 09019-40100 PLATE, CAMSHAFT SH MM500694
046. [3C] 09019-40090 PLATE, CAMSHAFT SH MM500693
046. [3C] 09019-40080 PLATE, CAMSHAFT SH MM500692
046. [3C] 09019-40070 PLATE, CAMSHAFT SH ME702076
046. [3C] 09019-40410 PLATE, CAMSHAFT SH ME728353

Include in #3:

09300-04672 as BODY ASSY, INJECTI
09300-04682
09300-04692
09300-04702
09300-05011
19010-00220

Cross reference number



Part num Firm num Firm Name
19010-00220  ME736155  BODY ASSY, INJECTI
ME736155    MITSUBISHI BODY ASSY, INJECTI




Information:

} } @media print { div.divFooter { position: fixed; bottom: 0; right: 0; } } Caterpillar: Confidential Yellow
PSP FOR REPLACING ERODED CYLINDER HEAD INJECTOR SLEEVES IN CERTAIN IT14B INTEGRATED TOOLCARRIERS; E110B, E120B, E200B, EL2 00B, 213B, 214B, 224B, E240B, EL240B EXCAVATORS; 446 BACKHOE LOADERS; AND 3114 AND 3116 INDUSTRIAL AND GENERATOR SET EN GINES - PS0456 - MAILED CFEL
  The information supplied in this service letter may not be valid after the termination date of this program.   Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
E-81 1100, 1290 PS0456 This Program can only be administered after a failure occurs. The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS0456" as Part Number, "7755" as Group Number, and "96" as Description Code. If this Program is administered on E200B or EL200B Excavators, it is recommended that the June 23, 1990 Service Letter - PS4442 be done at the same time. Termination Date
June 30, 1991
Problem
The fuel injector sleeves in the cylinder head of certain IT14B Integrated Toolcarriers; E110B, E120B, E200B, EL200B, 213B, 214B, 224B, E240B, and EL240B Excavators; 446 Backhoe Loaders; and 3114 and 3116 Industrial and Generator Set Engines are subject to pitting and erosion due to fuel cavitation between the injector and the sleeve. The sleeves may pit or crack through, allowing fuel to contaminate the coolant. Coolant contaminated with fuel may also damage the radiator and coolant hoses.
Affected Product
Model Identification Number IT14B 3NJ1-42 E110B 8MF1-151 E120B 6JF1-212 E200B* 6KF1-439 6KG1-249 EL200B* 7DF1-986 213B 1EJ1-233, 236-245, 247, 248 214B 4CF1-261, 263, 265-275, 278 9MF1-171, 173-182, 185 224B 7WF1-47, 51, 56, 65 E240B 8SF1-36 9PF1-196 EL240B 5WG1-166 6MG1-104 446 6XF1-227 3114 5EF1-675 6AF1-581 1ZG1-432 5JG1-743 3116 2SG1-936 2WG1-859 4PG1-611 1NJ1-999 * The E200B and EL200B Excavators need to be updated to a new injector design released for that machine. The new
