Information pump assy, injecti
Rating:
Components :
| 001. | PUMP ASSY, INJECTI | 19000-07542 |
| 002. | BODY ASSY, INJECTI | 09010-05171 |
| 003. | TIMER ASSY, AUTOMA | 09180-01690 |
| 004. | PUMP ASSY, FUEL FE | 09210-00990 |
| 004. | PUMP ASSY, FUEL FE | 09210-00990 |
| 005. | PUMP ASSY, FUEL FE | 09210-01440 |

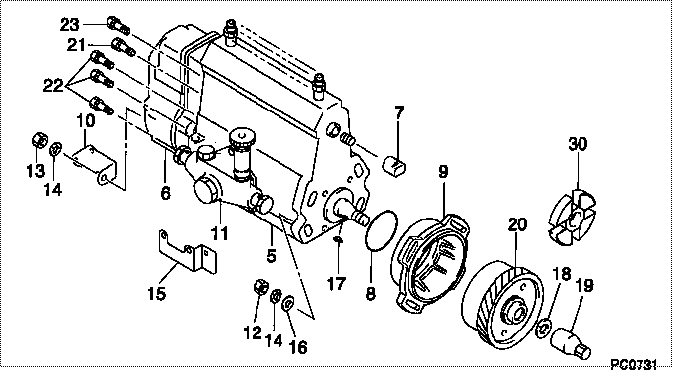

Scheme ###:
| 000. | [01] | 19000-07542 | PUMP ASSY, INJECTI | ME035890 |
| 005. | [01] | 09010-05171 | BODY ASSY, INJECTI | ME035707 |
| 006. | [01] | 09130-00572 | GOVERNOR ASSY, MEC | ME035708 |
| 007. | [01] | 09001-80081 | COVER, CONTROL RAC | ME702034 |
| 008. | [01] | 94914-02840 | O-RING | MH035502 |
| 009. | [01] | 09006-00071 | COVER SUB-ASSY, TI | ME039698 |
| 010. | [01] | 09009-20170 | BRACKET | |
| 011. | [01] | 09210-00990 | PUMP ASSY, FUEL FE | ME036900 |
| 011. | [01] | 09210-01440 | PUMP ASSY, FUEL FE | ME035928 |
| 012. | [04] | 94905-02680 | NUT, HEXAGON | ME702046 |
| 013. | [01] | 91266-10081 | NUT, HEXAGON | MF430122 |
| 014. | [05] | 90258-10001 | WASHER, SPRING | MC327716 |
| 015. | [01] | 09009-20100 | BRACKET | ME702036 |
| 016. | [04] | 94901-15020 | WASHER, STEEL PLAT | MH005068 |
| 017. | [01] | 94913-00210 | KEY, WOODRUFF | ME702047 |
| 018. | [01] | 94901-40210 | WASHER, COUNTERSUN | ME702043 |
| 019. | [01] | 09001-20220 | NUT, TIMER ROUND | ME702033 |
| 020. | [01] | 09180-01690 | TIMER ASSY, AUTOMA | ME035709 |
| 021. | [01] | 94904-73910 | BOLT, W/WASHER | ME703449 |
| 022. | [05] | 94904-72690 | BOLT, W/WASHER | ME702045 |
| 023. | [01] | 91418-06201 | BOLT, W/WASHER | ME702041 |
| 030. | [01] | 09243-60180 | COUPLING, INJECTIO | 31860-90300 |
Include in #3:
19000-07542
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19000-07542 | ME035890 | PUMP ASSY, INJECTI |
Information:
Remove & Install Fuel Ration Control
1. Disconnect air line (1) from the fuel ratio control.2. Remove wire seal (4) from the bolts.3. Remove bolts (3) that hold fuel ratio control (2).4. Remove the fuel ratio control by pulling down and out from the collar. The following steps are for the installation of the fuel ratio control.5. Put fuel ratio control (2)
