Information pump assy, injecti
Rating:
Components :
| 001. | PUMP ASSY, INJECTI | 19000-02301 |
| 002. | BODY ASSY, INJECTI | 09010-03620 |
| 003. | GOVERNOR ASSY, MEC | 09080-05640 |
| 004. | TIMER ASSY, AUTOMA | 09180-01060 |
| 005. | PUMP ASSY, FUEL FE | 09210-01041 |

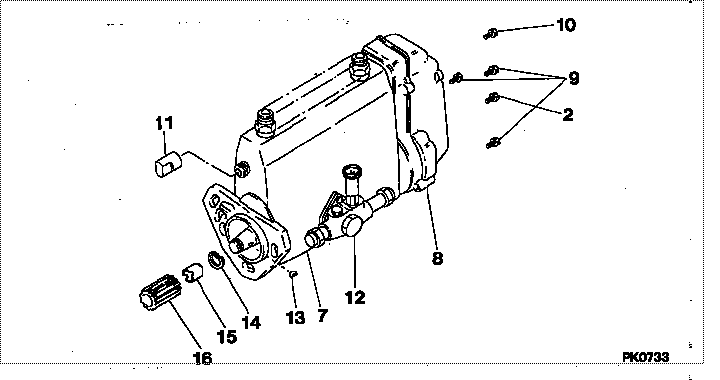

Scheme ###:
| 000. | [01] | 19000-02301 | PUMP ASSY, INJECTI | 22100-87335-000 |
| 002. | [01] | 94904-70620 | BOLT, W/WASHER | 90099-04526-000 |
| 007. | [01] | 09010-03620 | BODY ASSY, INJECTI | |
| 008. | [01] | 09080-05640 | GOVERNOR ASSY, MEC | |
| 009. | [05] | 91518-06161 | BOLT, W/WASHER | 22128-87702-000 |
| 010. | [01] | 91518-08221 | BOLT, W/WASHER | 90091-20804-000 |
| 011. | [01] | 09001-80061 | COVER, CONTROL RAC | 22166-46010-000 |
| 012. | [01] | 09210-01041 | PUMP ASSY, FUEL FE | |
| 013. | [01] | 94913-00050 | KEY, WOODRUFF | 90099-13002-000 |
| 014. | [01] | 94901-50490 | WASHER, SPRING | 22173-46010-000 |
| 015. | [01] | 09001-20020 | NUT, TIMER ROUND | 22611-46010-000 |
| 016. | [01] | 09257-50020 | SHAFT, SPLINE | 22174-47010-000 |
| 100. | [01] | 09180-01060 | TIMER ASSY, AUTOMA | 22610-87305-000 |
Include in #3:
19000-02301
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 19000-02301 | 22100-8733 | PUMP ASSY, INJECTI |
Information:
Remove Oil Pump
Start By:a. remove oil pan 1. Remove the bolts (2) that hold suction bell and tubes (1) to the engine block. 2. Remove O-ring seals (3) from the tubes. Inspect O-ring seals for damage. Make a replacement if necessary. 3. Remove clip (5) and then remove screen (4). Clean the screen if necessary. 4. Remove the bolts (7) that hold the oil pump to the engine block. Remove oil pump (6).Install Oil Pump
1. Put the oil pump (1) in position on the engine block and install the bolts that hold it. 2. Install screen (2) with the clip (3) that holds it. 3. Put a small amount of clean oil on O-ring seals (4). Install the O-ring seals on the tubes. 4. Put tubes (5) in position in the oil pump.5. Put suction bell (6) and support in position on the engine block and install the four bolts
Start By:a. remove oil pan 1. Remove the bolts (2) that hold suction bell and tubes (1) to the engine block. 2. Remove O-ring seals (3) from the tubes. Inspect O-ring seals for damage. Make a replacement if necessary. 3. Remove clip (5) and then remove screen (4). Clean the screen if necessary. 4. Remove the bolts (7) that hold the oil pump to the engine block. Remove oil pump (6).Install Oil Pump
1. Put the oil pump (1) in position on the engine block and install the bolts that hold it. 2. Install screen (2) with the clip (3) that holds it. 3. Put a small amount of clean oil on O-ring seals (4). Install the O-ring seals on the tubes. 4. Put tubes (5) in position in the oil pump.5. Put suction bell (6) and support in position on the engine block and install the four bolts
