Information compensator sub-as
Rating:

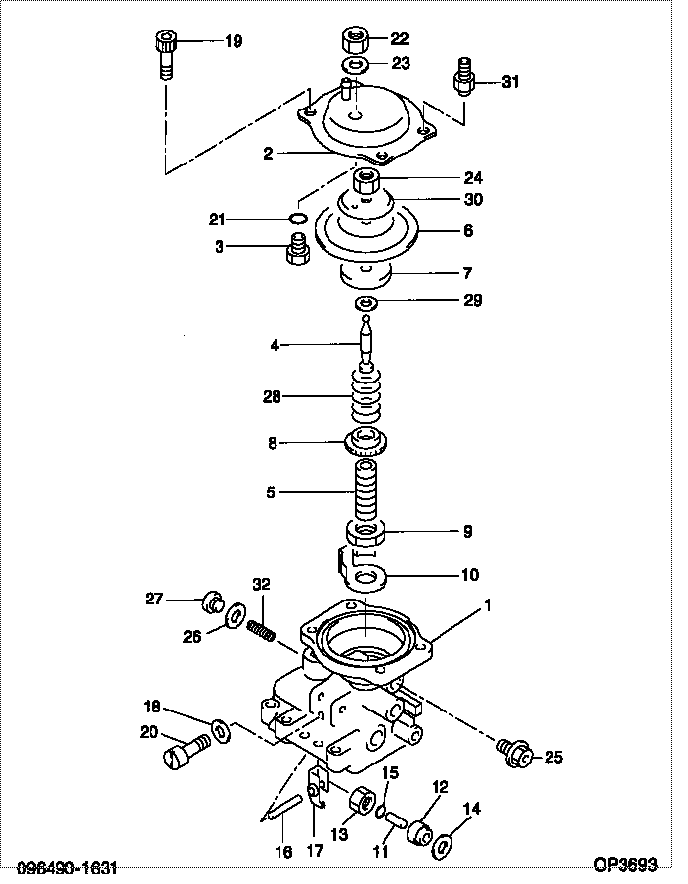

Scheme ###:
| 000. | [01] | 09649-01650 | COMPENSATOR SUB-AS | |
| 001. | [01] | 09644-01760 | COVER SUB-ASSY, GO | |
| 002. | [01] | 09644-01770 | COVER SUB-ASSY, GO | |
| 003. | [01] | 09621-60030 | STOPPER, TIMER SLI | ME736268 |
| 004. | [01] | 09646-50760 | R0D, PUSH | ME736269 |
| 005. | [01] | 09611-80160 | BUSHING, GUIDE | ME736270 |
| 006. | [01] | 19263-10010 | DIAPHRAGM | ME736271 |
| 007. | [01] | 09624-60020 | SHEET, PLUNGER SPR | ME736272 |
| 008. | [01] | 09611-80190 | BUSHING, GUIDE | ME736273 |
| 009. | [01] | 94905-04070 | NUT, HEXAGON | ME736274 |
| 010. | [01] | 09621-10070 | CLIP, TIMER | ME736275 |
| 011. | [01] | 09645-50090 | PIN, LEVER CONECTI | ME736276 |
| 012. | [01] | 09611-80020 | BUSHING, GUIDE | ME736277 |
| 013. | [01] | 09625-40021 | NUT, GOVERNOR SHAF | ME736278 |
| 014. | [01] | 94901-81680 | WASHER, COPPER PLA | ME736279 |
| 015. | [01] | 09604-90230 | O-RING | ME736280 |
| 016. | [01] | 09627-20040 | PIN, LEVER SUPPORT | ME736281 |
| 017. | [01] | 09629-50670 | LEVER SUB-ASSY, CO | |
| 018. | [02] | 09642-60110 | GASKET, DELIVERY V | |
| 019. | [03] | 09644-90130 | BOLT, SOCKET | ME736283 |
| 020. | [02] | 09626-90032 | BOLT, GOVERNOR LIN | ME736284 |
| 021. | [01] | 09604-90180 | O-RING | ME736285 |
| 022. | [01] | 94905-04100 | NUT, HEXAGON | ME736286 |
| 022. | [01] | 94905-05430 | NUT, HEXAGON | |
| 023. | [01] | 90200-08211 | WASHER, PLATE | ME736287 |
| 024. | [01] | 90176-06361 | NUT, HEXAGON | ME736288 |
| 025. | [01] | 09602-00110 | SCREW SUB-ASSY, OV | |
| 026. | [01] | 09642-60120 | GASKET, DELIVERY V | |
| 027. | [01] | 09031-70240 | PLUG, SCREW | |
| 028. | [1C] | 09649-20640 | SPRING, BOOST COMP | |
| 028. | [1C] | 09649-20600 | SPRING, BOOST COMP | |
| 028. | [1C] | 09649-20590 | SPRING, BOOST COMP | |
| 028. | [1C] | 09649-20580 | SPRING, BOOST COMP | |
| 028. | [1C] | 09649-20310 | SPRING, BOOST COMP | |
| 028. | [1C] | 09649-20140 | SPRING, BOOST COMP | |
| 028. | [1C] | 09649-20610 | SPRING, BOOST COMP | |
| 029. | [1C] | 09649-30100 | SHIM, BOOST COMPEN | ME736298 |
| 029. | [1C] | 09649-30110 | SHIM, BOOST COMPEN | ME736299 |
| 029. | [1C] | 09649-30120 | SHIM, BOOST COMPEN | ME736300 |
| 029. | [1C] | 09649-30210 | SHIM, BOOST COMPEN | ME736301 |
| 029. | [1C] | 09649-30220 | SHIM, BOOST COMPEN | ME736302 |
| 029. | [1C] | 09649-30230 | SHIM, BOOST COMPEN | ME736303 |
| 029. | [1C] | 09649-30240 | SHIM, BOOST COMPEN | ME736304 |
| 029. | [1C] | 09649-30090 | SHIM, BOOST COMPEN | ME736297 |
| 029. | [1C] | 09649-30080 | SHIM, BOOST COMPEN | ME736296 |
| 029. | [1C] | 09649-30010 | SHIM, BOOST COMPEN | ME736305 |
| 029. | [1C] | 09649-30020 | SHIM, BOOST COMPEN | ME736306 |
| 029. | [1C] | 09649-30030 | SHIM, BOOST COMPEN | ME736307 |
| 029. | [1C] | 09649-30040 | SHIM, BOOST COMPEN | ME736292 |
| 029. | [1C] | 09649-30050 | SHIM, BOOST COMPEN | ME736293 |
| 029. | [1C] | 09649-30060 | SHIM, BOOST COMPEN | ME736294 |
| 029. | [1C] | 09649-30070 | SHIM, BOOST COMPEN | ME736295 |
| 030. | [01] | 19263-30010 | WASHER, THRUST | ME736308 |
| 031. | [01] | 09266-40310 | SCREW, LEVER STOP | |
| 032. | [01] | 09646-60090 | SPRING |
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09649-01650 | COMPENSATOR SUB-AS |
