Information compensator sub-as
Rating:

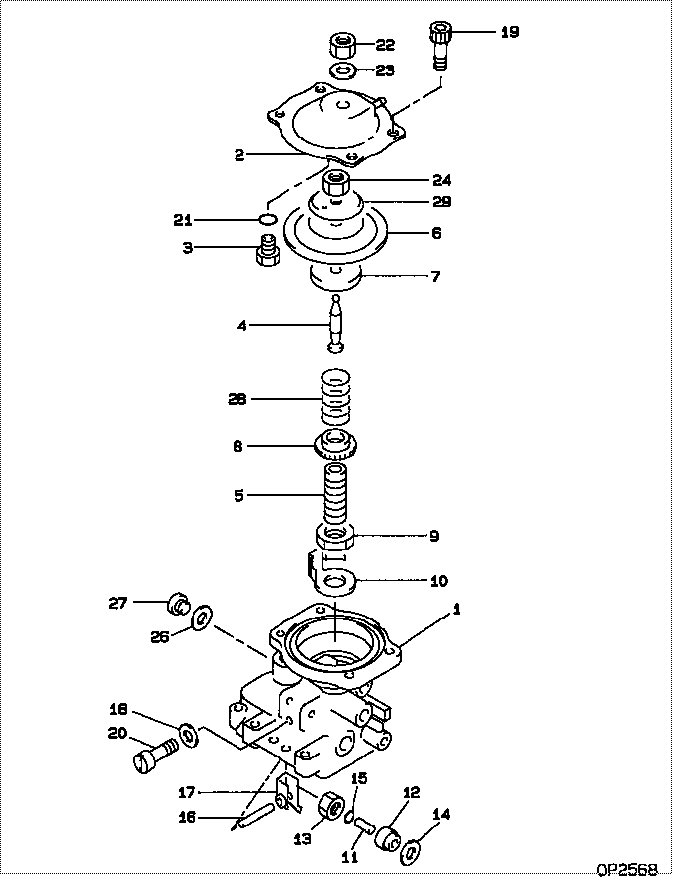

Scheme ###:
| 000. | [01] | 09649-01160 | COMPENSATOR SUB-AS | 22540-87606-000 |
| 001. | [01] | 09644-00550 | COVER SUB-ASSY, GO | 22703-54490-000 |
| 002. | [01] | 09644-00870 | COVER SUB-ASSY, GO | 22703-87705-000 |
| 003. | [01] | 09621-60030 | STOPPER, TIMER SLI | 22419-87701-000 |
| 004. | [01] | 09646-50530 | R0D, PUSH | |
| 005. | [01] | 09611-80160 | BUSHING, GUIDE | 22348-87702-000 |
| 006. | [01] | 19263-10010 | DIAPHRAGM | 22303-87701-000 |
| 007. | [01] | 09624-60020 | SHEET, PLUNGER SPR | 22143-87702-000 |
| 008. | [01] | 09611-80190 | BUSHING, GUIDE | 22348-87701-000 |
| 009. | [01] | 94905-04070 | NUT, HEXAGON | 22493-87702-000 |
| 010. | [01] | 09621-10070 | CLIP, TIMER | 22293-87701-000 |
| 011. | [01] | 09645-50090 | PIN, LEVER CONECTI | 22338-87701-000 |
| 012. | [01] | 09611-80020 | BUSHING, GUIDE | 22348-87703-000 |
| 013. | [01] | 09625-40021 | NUT, GOVERNOR SHAF | 22722-87702-000 |
| 014. | [01] | 94901-81680 | WASHER, COPPER PLA | 22119-87702-000 |
| 015. | [01] | 09604-90230 | O-RING | 22193-55031-000 |
| 016. | [01] | 09627-20040 | PIN, LEVER SUPPORT | 22526-87701-000 |
| 017. | [01] | 09629-50680 | LEVER SUB-ASSY, CO | 22308-17570-000 |
| 017. | [01] | 09629-50080 | LEVER SUB-ASSY, CO | 22308-87701-000 |
| 018. | [02] | 09024-80010 | WASHER, DRAIN SCRE | 22378-87701-000 |
| 018. | [02] | 09642-60110 | GASKET, DELIVERY V | 22149-6D450-000 |
| 019. | [04] | 09644-90130 | BOLT, SOCKET | 22395-54263-000 |
| 020. | [02] | 09626-90032 | BOLT, GOVERNOR LIN | 22739-87703-000 |
| 021. | [01] | 09604-90180 | O-RING | 22292-87703-000 |
| 022. | [01] | 94905-04100 | NUT, HEXAGON | 22493-87703-000 |
| 022. | [01] | 94905-05430 | NUT, HEXAGON | 90092-05252-000 |
| 023. | [01] | 90200-08211 | WASHER, PLATE | 22113-87701-000 |
| 024. | [01] | 90176-06361 | NUT, HEXAGON | 22135-87701-000 |
| 026. | [02] | 09024-10010 | WASHER, AIR BLEEDE | 22393-87301-000 |
| 026. | [02] | 09642-60120 | GASKET, DELIVERY V | 22149-54800-000 |
| 027. | [01] | 09031-70130 | PLUG, SCREW | 22129-54120-000 |
| 028. | [1C] | 09649-20160 | SPRING, BOOST COMP | 22546-54491-000 |
| 028. | [1C] | 09649-20310 | SPRING, BOOST COMP | 22546-67040-000 |
| 028. | [1C] | 09649-20170 | SPRING, BOOST COMP | 22546-54492-000 |
| 029. | [01] | 19263-30010 | WASHER, THRUST | 22332-87701-000 |
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09649-01160 | 22540-8760 | COMPENSATOR SUB-AS | |
| 22540-87606-000 | DAIHATSU | COMPENSATOR SUB-AS |
