09649-01090 COMPENSATOR SUB-AS Denso Cross




Information compensator sub-as

09649-01090 COMPENSATOR SUB-AS
Rating:
14
Buy COMPENSATOR SUB-AS 09649-01090 genuine, new aftermarket engine parts with delivery

Scheme ###:

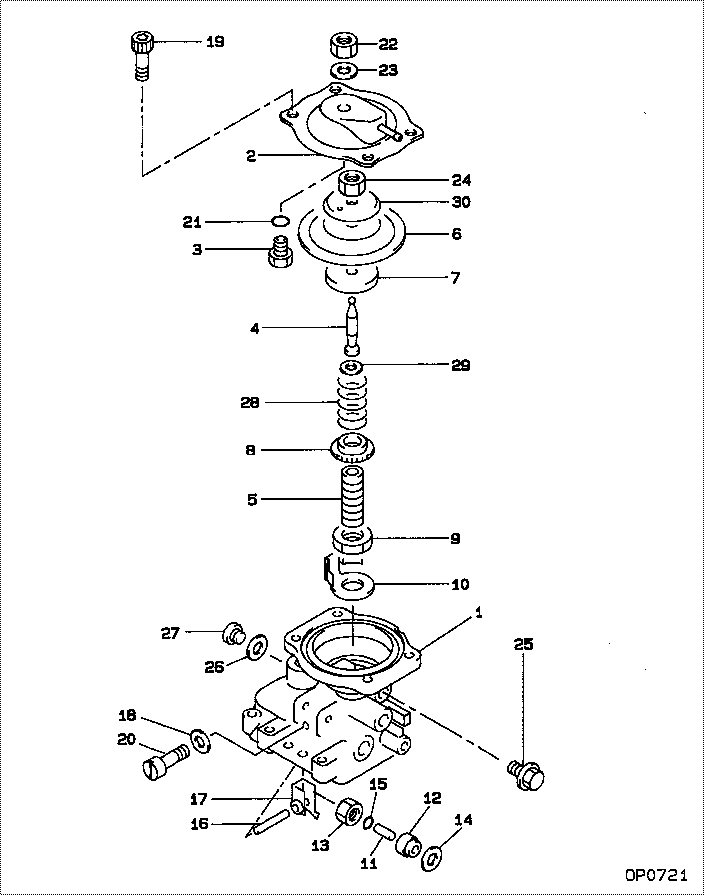

COMPENSATOR SUB-AS
000. [01] 09649-01090 COMPENSATOR SUB-AS
001. [01] 09644-01390 COVER SUB-ASSY, GO
002. [01] 09644-00800 COVER SUB-ASSY, GO
003. [01] 09621-60030 STOPPER, TIMER SLI ME736268
004. [01] 09646-50760 R0D, PUSH ME736269
005. [01] 09611-80160 BUSHING, GUIDE ME736270
006. [01] 19263-10010 DIAPHRAGM ME736271
007. [01] 09624-60020 SHEET, PLUNGER SPR ME736272
008. [01] 09611-80190 BUSHING, GUIDE ME736273
009. [01] 94905-04070 NUT, HEXAGON ME736274
010. [01] 09621-10070 CLIP, TIMER ME736275
011. [01] 09645-50090 PIN, LEVER CONECTI ME736276
012. [01] 09611-80020 BUSHING, GUIDE ME736277
013. [01] 09625-40021 NUT, GOVERNOR SHAF ME736278
014. [01] 94901-81680 WASHER, COPPER PLA ME736279
015. [01] 09604-90230 O-RING ME736280
016. [01] 09627-20040 PIN, LEVER SUPPORT ME736281
017. [01] 09629-50080 LEVER SUB-ASSY, CO ME736482
017. [01] 09629-50680 LEVER SUB-ASSY, CO
018. [02] 09642-60110 GASKET, DELIVERY V
018. [02] 09024-80010 WASHER, DRAIN SCRE ME702175
019. [04] 09644-90130 BOLT, SOCKET ME736283
020. [02] 09626-90032 BOLT, GOVERNOR LIN ME736284
021. [01] 09604-90180 O-RING ME736285
022. [01] 94905-05430 NUT, HEXAGON
022. [01] 94905-04100 NUT, HEXAGON ME736286
023. [01] 90200-08211 WASHER, PLATE ME736287
024. [01] 90176-06361 NUT, HEXAGON ME736288
025. [01] 09602-00110 SCREW SUB-ASSY, OV
026. [01] 09642-60120 GASKET, DELIVERY V
026. [01] 09024-10010 WASHER, AIR BLEEDE ME702102
027. [01] 09031-70130 PLUG, SCREW ME703104
028. [1C] 09649-20060 SPRING, BOOST COMP
028. [1C] 09649-20070 SPRING, BOOST COMP
028. [1C] 09649-20180 SPRING, BOOST COMP
029. [1C] 09649-30010 SHIM, BOOST COMPEN ME736305
029. [1C] 09649-30020 SHIM, BOOST COMPEN ME736306
029. [1C] 09649-30030 SHIM, BOOST COMPEN ME736307
030. [01] 19263-30010 WASHER, THRUST ME736308

Include in #3:

09600-08113 as COMPENSATOR SUB-AS
09600-08123
09600-09231
09600-09550
09649-01090

Cross reference number



Part num Firm num Firm Name
09649-01090    COMPENSATOR SUB-AS
