09649-00930 COMPENSATOR SUB-AS Denso Cross




Information compensator sub-as

09649-00930 COMPENSATOR SUB-AS
Rating:
54
Buy COMPENSATOR SUB-AS 09649-00930 genuine, new aftermarket engine parts with delivery

Scheme ###:

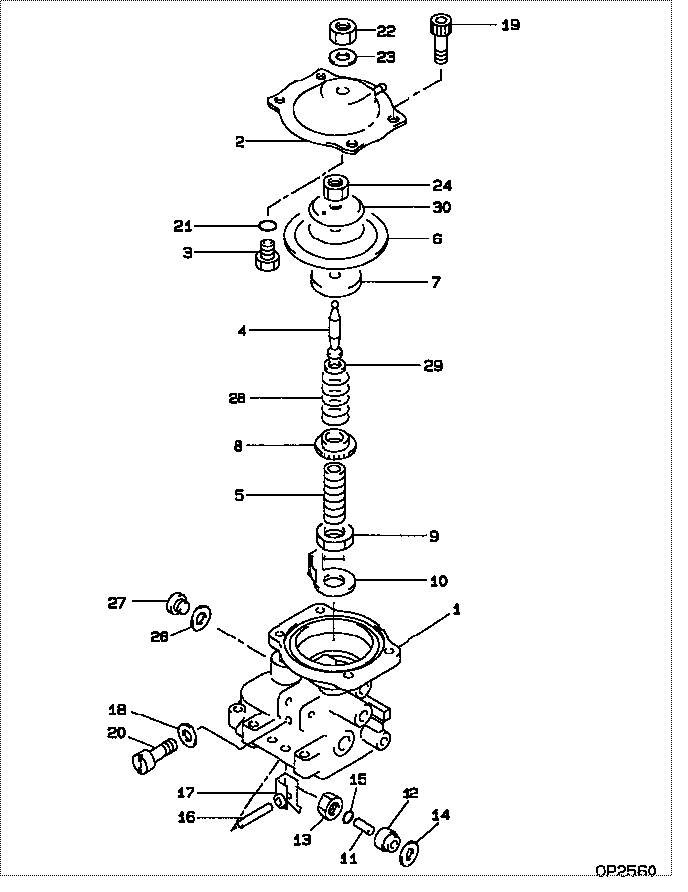

COMPENSATOR SUB-AS
000. [01] 09649-00930 COMPENSATOR SUB-AS 22540-87604-000
001. [01] 09644-00351 COVER SUB-ASSY, GO 22703-87704-000
002. [01] 09644-00870 COVER SUB-ASSY, GO 22703-87705-000
003. [01] 09621-60030 STOPPER, TIMER SLI 22419-87701-000
004. [01] 09646-50530 R0D, PUSH
005. [01] 09611-80160 BUSHING, GUIDE 22348-87702-000
006. [01] 19263-10010 DIAPHRAGM 22303-87701-000
007. [01] 09624-60020 SHEET, PLUNGER SPR 22143-87702-000
008. [01] 09611-80190 BUSHING, GUIDE 22348-87701-000
009. [01] 94905-04070 NUT, HEXAGON 22493-87702-000
010. [01] 09621-10070 CLIP, TIMER 22293-87701-000
011. [01] 09645-50090 PIN, LEVER CONECTI 22338-87701-000
012. [01] 09611-80020 BUSHING, GUIDE 22348-87703-000
013. [01] 09625-40021 NUT, GOVERNOR SHAF 22722-87702-000
014. [01] 94901-81680 WASHER, COPPER PLA 22119-87702-000
015. [01] 09604-90230 O-RING 22193-55031-000
016. [01] 09627-20040 PIN, LEVER SUPPORT 22526-87701-000
017. [01] 09629-50670 LEVER SUB-ASSY, CO
017. [01] 09629-50070 LEVER SUB-ASSY, CO 22308-87702-000
018. [02] 09024-80010 WASHER, DRAIN SCRE 22378-87701-000
018. [02] 09642-60110 GASKET, DELIVERY V 22149-6D450-000
019. [04] 09644-90130 BOLT, SOCKET 22395-54263-000
020. [02] 09626-90032 BOLT, GOVERNOR LIN 22739-87703-000
021. [01] 09604-90180 O-RING 22292-87703-000
022. [01] 94905-04100 NUT, HEXAGON 22493-87703-000
022. [01] 94905-05430 NUT, HEXAGON 90092-05252-000
023. [01] 90200-08211 WASHER, PLATE 22113-87701-000
024. [01] 90170-06361 NUT, HEXAGON 94120-40600-000
024. [01] 90176-06361 NUT, HEXAGON 22135-87701-000
026. [02] 09024-10010 WASHER, AIR BLEEDE 22393-87301-000
026. [02] 09642-60120 GASKET, DELIVERY V 22149-54800-000
027. [01] 09031-70130 PLUG, SCREW 22129-54120-000
028. [1C] 09649-20180 SPRING, BOOST COMP
028. [1C] 09649-20050 SPRING, BOOST COMP 22546-87703-000
029. [1C] 09649-30120 SHIM, BOOST COMPEN 22713-87708-000
029. [1C] 09649-30110 SHIM, BOOST COMPEN 22713-87707-000
029. [1C] 09649-30100 SHIM, BOOST COMPEN 22713-87706-000
029. [1C] 09649-30090 SHIM, BOOST COMPEN 22713-87705-000
029. [1C] 09649-30240 SHIM, BOOST COMPEN 22713-87712-000
029. [1C] 09649-30230 SHIM, BOOST COMPEN 22713-87711-000
029. [1C] 09649-30220 SHIM, BOOST COMPEN 22713-87710-000
029. [1C] 09649-30210 SHIM, BOOST COMPEN 22713-87709-000
029. [1C] 09649-30030 SHIM, BOOST COMPEN 22713-87704-000
029. [1C] 09649-30020 SHIM, BOOST COMPEN 22713-87703-000
029. [1C] 09649-30010 SHIM, BOOST COMPEN 22713-87702-000
030. [01] 19263-30010 WASHER, THRUST 22332-87701-000

Include in #3:

09600-07280 as COMPENSATOR SUB-AS
09649-00930

Cross reference number



Part num Firm num Firm Name
09649-00930  22540-8760  COMPENSATOR SUB-AS
22540-87604-000    DAIHATSU COMPENSATOR SUB-AS
