09649-00800 COMPENSATOR SUB-AS Denso Cross




Information compensator sub-as

09649-00800 COMPENSATOR SUB-AS
Rating:
18
Buy COMPENSATOR SUB-AS 09649-00800 genuine, new aftermarket engine parts with delivery

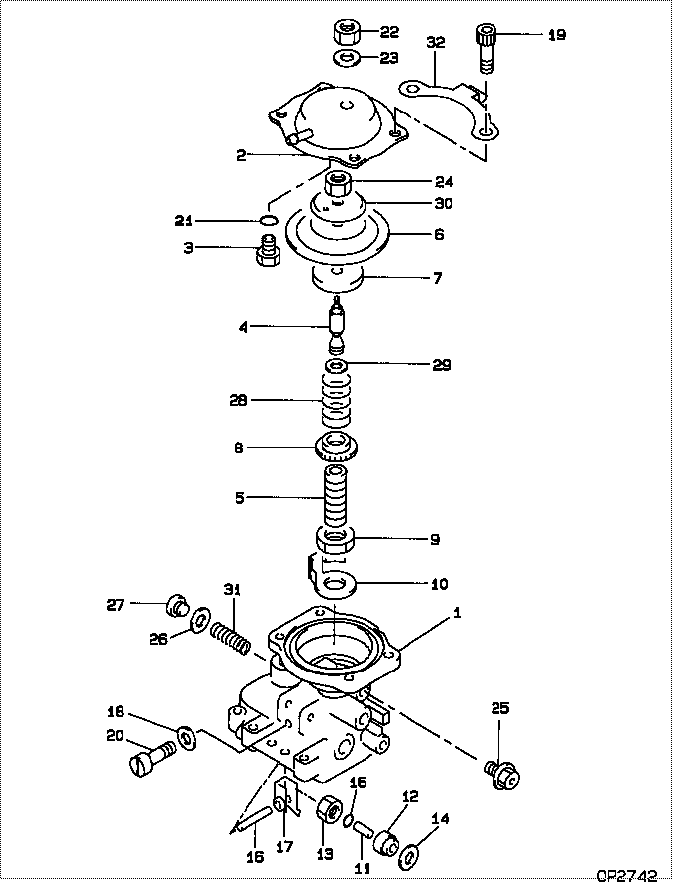

Scheme ###:

000. [01] 09649-00800 COMPENSATOR SUB-AS 22540-58790
001. [01] 09644-00664 COVER SUB-ASSY, GO 22703-64850
002. [01] 09644-00860 COVER SUB-ASSY, GO 22703-54262
003. [01] 09621-60030 STOPPER, TIMER SLI 22658-64518
004. [01] 09646-50600 R0D, PUSH 22321-58780
005. [01] 09611-80160 BUSHING, GUIDE 22348-64360
006. [01] 19263-10010 DIAPHRAGM 22542-54260
007. [01] 09624-60020 SHEET, PLUNGER SPR 22143-54260
008. [01] 09611-80190 BUSHING, GUIDE 22348-54490
009. [01] 94905-04070 NUT, HEXAGON 90099-05156
010. [01] 09621-10070 CLIP, TIMER 22656-54490
011. [01] 09645-50090 PIN, LEVER CONECTI 22338-54120
012. [01] 09611-80020 BUSHING, GUIDE 22348-54121
013. [01] 09625-40021 NUT, GOVERNOR SHAF 22722-54120
014. [01] 94901-81680 WASHER, COPPER PLA 90099-01473
015. [01] 09604-90230 O-RING 22193-55031
016. [01] 09627-20040 PIN, LEVER SUPPORT 22526-54120
017. [01] 09629-50080 LEVER SUB-ASSY, CO 22308-54140
017. [01] 09629-50680 LEVER SUB-ASSY, CO 22308-17570
018. [02] 09642-60110 GASKET, DELIVERY V 22149-6D450
018. [02] 09024-80010 WASHER, DRAIN SCRE 22378-76010
019. [04] 09644-90130 BOLT, SOCKET 22395-54263
020. [02] 09626-90032 BOLT, GOVERNOR LIN 22739-54120
021. [01] 09604-90180 O-RING 22193-54561
022. [01] 94905-04100 NUT, HEXAGON 90099-05181
022. [01] 94905-05430 NUT, HEXAGON 90099-05252
023. [01] 90200-08211 WASHER, PLATE 90093-00802
024. [01] 90170-06361 NUT, HEXAGON 94120-40600
024. [01] 90176-06361 NUT, HEXAGON 90092-20608
025. [01] 09602-00110 SCREW SUB-ASSY, OV 22160-54262
026. [01] 09024-10010 WASHER, AIR BLEEDE 22119-77020
026. [01] 09642-60120 GASKET, DELIVERY V 22149-54800
027. [01] 09031-70240 PLUG, SCREW 22129-55110
028. [1C] 09649-20130 SPRING, BOOST COMP 22546-58790
028. [1C] 09649-20121 SPRING, BOOST COMP 22546-64360
028. [1C] 09649-20060 SPRING, BOOST COMP 22546-55030
028. [1C] 09649-20050 SPRING, BOOST COMP 22546-58780
028. [1C] 09649-20040 SPRING, BOOST COMP 22546-54260
029. [1C] 09649-30120 SHIM, BOOST COMPEN 22547-54267
029. [1C] 09649-30110 SHIM, BOOST COMPEN 22547-54266
029. [1C] 09649-30100 SHIM, BOOST COMPEN 22547-54265
029. [1C] 09649-30090 SHIM, BOOST COMPEN 22547-54490
029. [1C] 09649-30080 SHIM, BOOST COMPEN 22547-64361
029. [1C] 09649-30070 SHIM, BOOST COMPEN 22547-64360
029. [1C] 09649-30060 SHIM, BOOST COMPEN 22547-54268
029. [1C] 09649-30050 SHIM, BOOST COMPEN 22547-54264
029. [1C] 09649-30040 SHIM, BOOST COMPEN 22547-54263
029. [1C] 09649-30030 SHIM, BOOST COMPEN 22547-54262
029. [1C] 09649-30020 SHIM, BOOST COMPEN 22547-54261
029. [1C] 09649-30010 SHIM, BOOST COMPEN 22547-54260
030. [01] 19263-30010 WASHER, THRUST 22549-17140
031. [01] 09646-60120 SPRING 22327-58780
032. [01] 09602-91150 CLIP, CONNECTOR SU 22172-58790

Include in #3:

09600-06200 as COMPENSATOR SUB-AS
09649-00800

Cross reference number



Part num Firm num Firm Name
09649-00800  22540-5879  COMPENSATOR SUB-AS
22540-58790    TOYOTA COMPENSATOR SUB-AS
