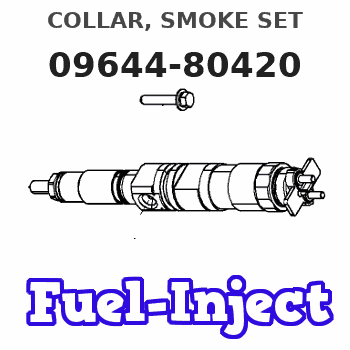

Information collar, smoke set
Rating:
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09644-80420 | 22749-5C39 | COLLAR, SMOKE SET | |
| 22749-5C390 | TOYOTA | COLLAR, SMOKE SET | |
| ME743905 | MITSUBISHI | COLLAR, SMOKE SET |
Information:
3. Remove clamp (4).4. Remove nuts, spacers and brackets (5).5. Remove exhaust manifold (3).6. Remove the gaskets from the exhaust manifold or studs. 7. Separate section (6), sections (7) and section (8).Install Exhaust Manifold
Make sure the 2P-2333 Manifold Sealer does not get on the inside of each manifold. Damage to the turbocharger could be the result if the manifold sealer gets on the impeller on the turbocharger.
1. Apply a thin coat of 2P-2333 Manifold Sealer to the O.D. of male end of the manifold sections (7) and section (8). Coat the female ends of the manifold with clean engine oil.2. Connect sections (6), sections (7) and section (8). 3. Install 5P-3931 Anti-Seize Compound on the threads of studs (9).4. Install the gaskets on the studs. 5. Install exhaust manifold (3).6. Install nuts, spacers and brackets (5). Tighten the nuts to a torque of 38 5 N m (28 4 lb ft).7. Install clamp (4). 8. Install two shields (2) to exhaust manifold (3).9. Using a new O-ring seal at the bottom and a new gasket at the top, install turbocharger return oil line (1).
Make sure the 2P-2333 Manifold Sealer does not get on the inside of each manifold. Damage to the turbocharger could be the result if the manifold sealer gets on the impeller on the turbocharger.
1. Apply a thin coat of 2P-2333 Manifold Sealer to the O.D. of male end of the manifold sections (7) and section (8). Coat the female ends of the manifold with clean engine oil.2. Connect sections (6), sections (7) and section (8). 3. Install 5P-3931 Anti-Seize Compound on the threads of studs (9).4. Install the gaskets on the studs. 5. Install exhaust manifold (3).6. Install nuts, spacers and brackets (5). Tighten the nuts to a torque of 38 5 N m (28 4 lb ft).7. Install clamp (4). 8. Install two shields (2) to exhaust manifold (3).9. Using a new O-ring seal at the bottom and a new gasket at the top, install turbocharger return oil line (1).
