Information cover sub-assy, ti
Rating:
Scheme ###:

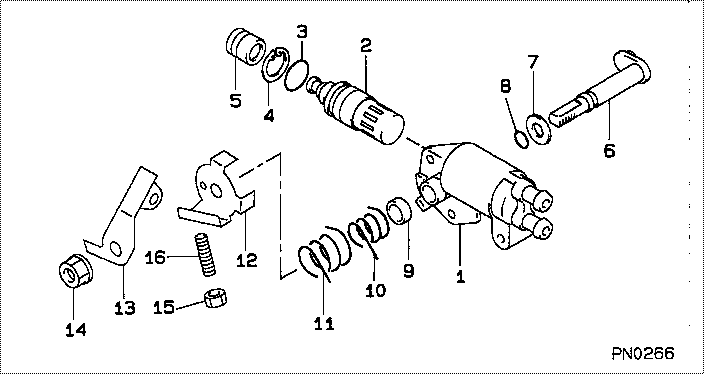

| 000. | [01] | 09621-00910 | COVER SUB-ASSY, TI | 22790-87604-000 |
| 001. | [01] | 09621-80321 | COVER, TIMER | |
| 002. | [01] | 09648-50160 | THERMO-ELEMENT SUB | |
| 003. | [01] | 09604-90280 | O-RING | |
| 004. | [01] | 90567-28001 | RING, HOLE SNAP | |
| 005. | [01] | 09007-80121 | COVER | |
| 006. | [01] | 09645-10441 | SHAFT SUB-ASSY, AD | |
| 007. | [01] | 09627-30140 | WASHER, GOVERNOR T | 22378-64010-000 |
| 008. | [01] | 09604-90300 | O-RING | 22193-54770-000 |
| 008. | [01] | 94914-02910 | O-RING | 22541-87702-000 |
| 009. | [01] | 94919-25581 | COLLAR, STEEL | |
| 010. | [01] | 09644-40060 | SPRING, RETURN | |
| 011. | [01] | 09644-40070 | SPRING, RETURN | |
| 012. | [01] | 09644-50220 | GUIDE, RETURN SPRI | |
| 013. | [01] | 09643-63530 | LEVER, ADJUSTING | |
| 014. | [01] | 94905-63320 | NUT | |
| 014. | [01] | 92156-08081 | NUT, FLANGE | |
| 015. | [01] | 91160-05041 | NUT, HEXAGON | 90092-10581-000 |
| 016. | [01] | 09266-40100 | SCREW, LEVER STOP |
Include in #3:
09600-08942
as COVER SUB-ASSY, TI
09621-00910
Cross reference number
| Part num | Firm num | Firm | Name |
| 09621-00910 | 22790-8760 | COVER SUB-ASSY, TI | |
| 22790-87604-000 | DAIHATSU | COVER SUB-ASSY, TI |
