Information cover sub-assy, ti
Rating:
Scheme ###:

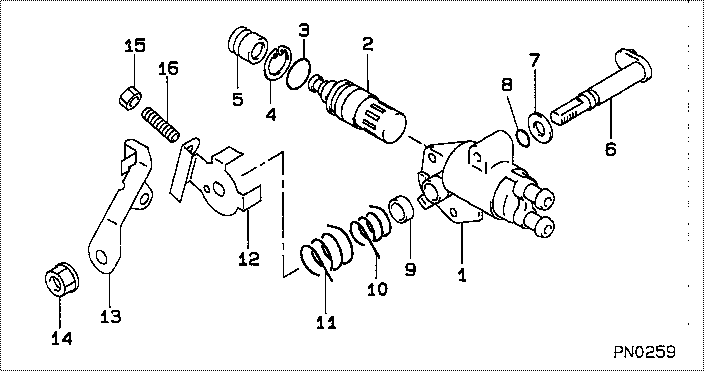

| 000. | [01] | 09621-00210 | COVER SUB-ASSY, TI | |
| 001. | [01] | 09621-80092 | COVER, TIMER | |
| 002. | [01] | 09648-50041 | THERMO-ELEMENT SUB | |
| 003. | [01] | 09604-90280 | O-RING | |
| 004. | [01] | 90567-28001 | RING, HOLE SNAP | |
| 005. | [01] | 09007-80121 | COVER | |
| 006. | [01] | 09645-10441 | SHAFT SUB-ASSY, AD | |
| 007. | [01] | 09627-30140 | WASHER, GOVERNOR T | 22378-64010 |
| 008. | [01] | 09604-90300 | O-RING | 22193-54770 |
| 008. | [01] | 94914-02910 | O-RING | 90099-14048 |
| 009. | [01] | 94919-25581 | COLLAR, STEEL | |
| 010. | [01] | 09644-40060 | SPRING, RETURN | |
| 011. | [01] | 09644-40070 | SPRING, RETURN | |
| 012. | [01] | 09644-50042 | GUIDE, RETURN SPRI | |
| 013. | [01] | 09643-61160 | LEVER, ADJUSTING | |
| 014. | [01] | 94905-63320 | NUT | |
| 015. | [01] | 91160-05041 | NUT, HEXAGON | 94115-40500 |
| 016. | [01] | 09266-40100 | SCREW, LEVER STOP |
