09600-09830 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935004150
09600-09830 PUMP ASSY, INJECTI
Rating:
9
Buy PUMP ASSY, INJECTI 09600-09830 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100561

Components :

001. PUMP ASSY, INJECTI 09600-09830
002. RING SUB-ASSY, ROL 09618-00050
003. COVER SUB-ASSY, TI 09621-00740
004. GOVERNOR ASSY, TOR 09627-00450
005. SHIM, PLUNGER ADJU 09640-60020
006. COMPENSATOR SUB-AS 09649-01310
007. COVER SUB-ASSY, GO 09644-01160

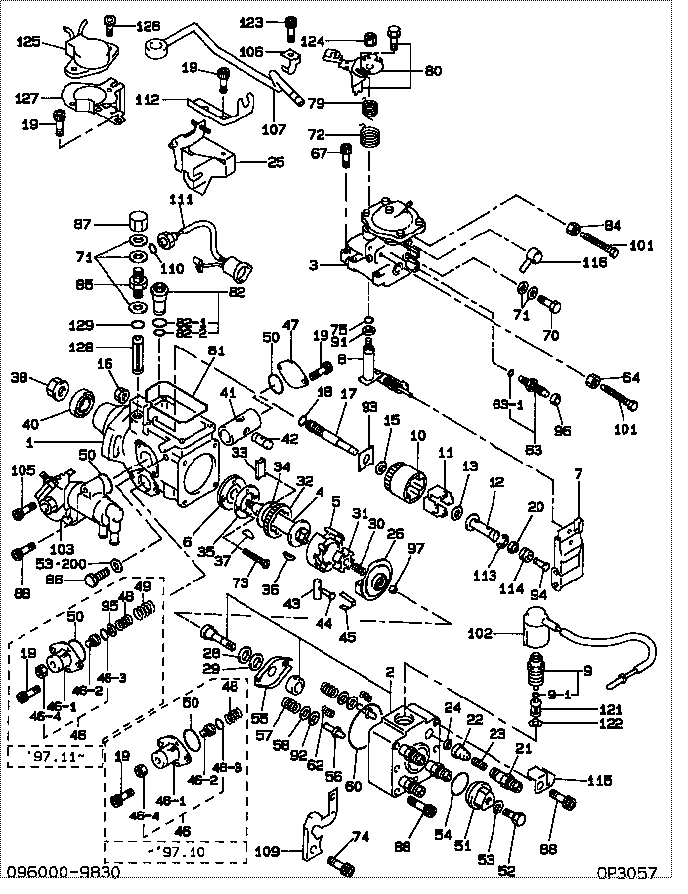

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-09830 PUMP ASSY, INJECTI 22100-55310
001. [01] 09611-00292 HOUSING SUB-ASSY, 22101-54260
002. [01] 09640-01160 HEAD SUB-ASSY, DIS 22140-5B270
003. [01] 09649-01310 COMPENSATOR SUB-AS
004. [01] 09612-10100 SHAFT, DRIVE 22170-6A510
005. [01] 09618-00050 RING SUB-ASSY, ROL 22108-54180
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
007. [01] 09627-00450 GOVERNOR ASSY, TOR 22350-55030
008. [01] 09646-01441 SHAFT SUB-ASSY, SP 22302-55200
009. [01] 09603-00160 SOLENOID ASSY, FUE 22390-6A510
009. [01] 09603-00520 SOLENOID ASSY, FUE 22390-6A511
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010
012. [1C] 09625-21530 SLEEVE, GOVERNOR 22316-6D390
012. [1C] 09625-21520 SLEEVE, GOVERNOR 22316-6D840
012. [1C] 09625-21510 SLEEVE, GOVERNOR 22316-6D200
012. [1C] 09625-21380 SLEEVE, GOVERNOR 22316-5C081
012. [1C] 09625-21091 SLEEVE, GOVERNOR 22316-6D190
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020
018. [01] 94914-02930 O-RING 90099-14049
019. [09] 09644-90110 BOLT, SOCKET 22395-56351
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
021. [04] 09643-00150 VALVE SUB-ASSY, SN 22190-6A290
022. [04] 09642-00500 VALVE SUB-ASSY, DI 22104-55160
023. [04] 09642-70010 SPRING, DELIVERY V 22148-54010
024. [04] 09642-60070 GASKET, DELIVERY V 22149-56351
025. [01] 09647-00420 IDLE UP SUB-ASSY 22305-55200
026. [01] 09623-00290 CAMPLATE SUB-ASSY, 22130-55200
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
030. [01] 09622-40040 SPRING, COUPLING 22659-64150
031. [01] 09622-20020 COUPLING 22632-54010
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
035. [01] 09614-70040 COVER, FEED PUMP 22511-54020
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
038. [01] 94905-62390 NUT 90099-05166
040. [01] 09603-90040 SEAL, 0IL 22544-64740
041. [01] 09619-01370 PISTON ASSY, TIMER 22582-6E010
041. [01] 09619-00761 PISTON ASSY, TIMER 22582-55200
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
045. [01] 09621-10080 CLIP, TIMER 22656-17840
045. [01] 09621-10050 CLIP, TIMER 22656-54010
046. [01] 09621-00700 COVER SUB-ASSY, TI 22790-17010
046. [01] 09621-00870 COVER SUB-ASSY, TI 22790-17020
046-001. [01] 09621-80290 COVER, TIMER 22612-17010
046-001. [01] 09621-80870 COVER, TIMER 22612-17020
046-002. [01] 09621-60110 STOPPER, TIMER SLI 22658-17020
046-002. [01] 09621-60091 STOPPER, TIMER SLI 22658-17010
046-003. [01] 09604-90190 O-RING 22193-64750
046-003. [01] 09604-90290 O-RING 22193-17020
046-004. [01] 94905-05010 NUT, HEXAGON 90099-05225
047. [01] 09621-80270 COVER, TIMER 22612-56350
048. [1C] 09620-81320 SPRING, TIMER, OUT 22615-17020
048. [1C] 09620-82080 SPRING, TIMER, OUT
048. [1C] 09620-81820 SPRING, TIMER, OUT
048. [1C] 09620-82100 SPRING, TIMER, OUT
048. [1C] 09620-82110 SPRING, TIMER, OUT
048. [1C] 09620-81340 SPRING, TIMER, OUT 22615-17021
048. [1C] 09620-81300 SPRING, TIMER, OUT 22615-6D380
048. [1C] 09620-81200 SPRING, TIMER, OUT 22615-6D310
048. [1C] 09620-81180 SPRING, TIMER, OUT
048. [1C] 09620-80950 SPRING, TIMER, OUT 22615-55200
048. [1C] 09620-80910 SPRING, TIMER, OUT 22615-17010
048. [1C] 09620-80900 SPRING, TIMER, OUT 22615-18011
049. [01] 09620-81370 SPRING, TIMER, OUT 22615-17030
050. [03] 94914-05820 O-RING 90099-14105
050. [03] 09604-90400 O-RING 22193-17840
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
052. [01] 09641-80020 BOLT, DISTRIBUTIVE 22128-54010
053. [01] 09642-60030 GASKET, DELIVERY V 22149-56200
053. [03] 09642-60030 GASKET, DELIVERY V 22149-56200
054. [01] 94914-02970 O-RING 90099-14052
054. [01] 09604-90510 O-RING 22193-54772
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-54010
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-54010
057. [02] 09623-60040 SPRING, PLUNGER 22144-54190
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-54010
060. [01] 94914-02980 O-RING 90099-14053
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
063. [01] 09648-00020 SMOKE SET SUB-ASSY
063-001. [01] 09604-90470 O-RING 22193-54771
063-001. [01] 94914-02900 O-RING 90099-14047
064. [01] 90166-06051 NUT, HEXAGON 90092-10608
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
070. [01] 09602-00030 SCREW SUB-ASSY, OV 22160-64010
071. [05] 09024-10010 WASHER, AIR BLEEDE 22119-77020
072. [01] 09644-40580 SPRING, RETURN 22322-55040
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
074. [01] 09644-90140 BOLT, SOCKET 22395-56350
075. [01] 09604-90300 O-RING 22193-54770
079. [01] 09644-40490 SPRING, RETURN 22322-64740
080. [1C] 09643-54040 LEVER SUB-ASSY, AD 22701-55211
080. [1C] 09643-54030 LEVER SUB-ASSY, AD 22701-55210
081. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
082. [01] 09616-00030 VALVE SUB-ASSY, RE 22180-54010
082-001. [01] 09604-90180 O-RING 22193-54561
082-002. [01] 94914-02920 O-RING 90099-14080
082-002. [01] 09604-90500 O-RING
084. [01] 09634-20010 NUT, LOCK 22775-77121
085. [01] 94918-00770 SCREW, HOLLOW 90099-18022
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
087. [01] 94905-50300 NUT, CAP 90099-05161
088. [05] 09644-90070 BOLT, SOCKET 22395-58200
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
092. [2C] 09624-80220 SHIM, PLUNGER SPRI
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60500 PLUG, GOVERNOR SLE 22787-54033
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60520 PLUG, GOVERNOR SLE 22787-64680
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60460 PLUG, GOVERNOR SLE 22787-54029
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60400 PLUG, GOVERNOR SLE 22787-64641
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60420 PLUG, GOVERNOR SLE 22787-64643
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60440 PLUG, GOVERNOR SLE 22787-54027
095. [01] 09621-40180 WASHER, TIMER SENS 22625-17020
096. [01] 09644-80111 COLLAR, SMOKE SET
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
101. [02] 94904-50210 BOLT, HEXAGON, W/ 90099-04954
102. [01] 09604-50600 WIRE SUB-ASSY 22751-55200
103. [01] 09621-00740 COVER SUB-ASSY, TI 22790-55200
105. [02] 09644-90100 BOLT, SOCKET 22395-56352
106. [01] 09602-90251 CLIP, CONNECTOR SU 22172-64150
107. [01] 09221-80070 NIPPLE SUB-ASSY, S 22548-55030
109. [01] 09602-91050 CLIP, CONNECTOR SU 22172-6A670
110. [01] 09604-90190 O-RING 22193-64750
111. [01] 07630-01990 PICKUP ASSY, TACHO 83180-10010
112. [01] 09643-82270 BRACKET, IDLE UP 22178-55210
113. [01] 90577-02000 E-RING 90096-90024
114. [01] 94910-02860 BEARING, BALL 90099-10148
115. [01] 09602-90990 CLIP, CONNECTOR SU 22172-6A370
116. [01] 09646-80300 CAP RUBBER 22777-6A640
121. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350
122. [01] 09606-40110 WASHER 22689-56350
123. [01] 09644-90130 BOLT, SOCKET 22395-54263
123. [01] 09644-90110 BOLT, SOCKET 22395-56351
124. [01] 94905-61680 NUT 90179-06009
125. [01] 19850-05011 SENSOR, ROTARY POS 89452-10020
126. [02] 91370-04121 SCREW, W/WASHER 93315-14012
127. [01] 09643-82720 BRACKET, IDLE UP 22178-55280
128. [01] 09653-00111 FILTER, SUB-ASSY 22602-5B320
129. [01] 09604-90460 O-RING 22193-5B320
200. [02] 09642-60130 GASKET, DELIVERY V 22149-54771

Include in #3:

09600-09830 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09600-09830  22100-5531  PUMP ASSY, INJECTI
22100-55310    TOYOTA PUMP ASSY, INJECTI




Information:

2. Remove three nuts and washers (1).3. Move Peec unit (2) out of the way. (If so equipped). 4. Remove elbows (5) and pipes (7).5. Remove fuel line brackets (4).6. Remove bolts (6). Remove cover (3). 7. Remove elbows (10). Remove adapters (8) and adapters (9) from the aftercooler core. Remove bolts (11). 8. Move aftercooler core (12) toward the front of the engine and use two people to remove the aftercooler core from the lower aftercooler housing. The weight of the aftercooler core is approximately 29 kg (65 lb). Remove the O-ring seals from the aftercooler core extensions.Install Aftercooler
1. Install O-ring seals (13) on the aftercooler core extensions. Put clean engine oil or glycerin on the seals.2. Use two people to put aftercooler core (12) into position in the lower aftercooler housing. The weight of the aftercooler core is approximately 29 kg (65 lb). 3. Install bolts (11). Put clean engine oil or glycerin on O-ring seal (14) and in bores (15) and (16). 4. Put clean engine oil or glycerin on O-ring seals (17) and adapters (8) and (9). Install adapters (8) and (9) in the aftercooler core. 5. Install elbows (10). 6. Put cover (3) into position on the engine. Install bolts (6).7. Install fuel injection line brackets (4). Tighten bolts (20) to a torque of 4.5 1.1 N m (40 10 lb in).8. Put clean engine oil or glycerin on pipes (7). Install pipes (7) and elbows (5).9. Fill the cooling system with coolant. See Operation & Maintenance Manual for the proper procedure and levels.
