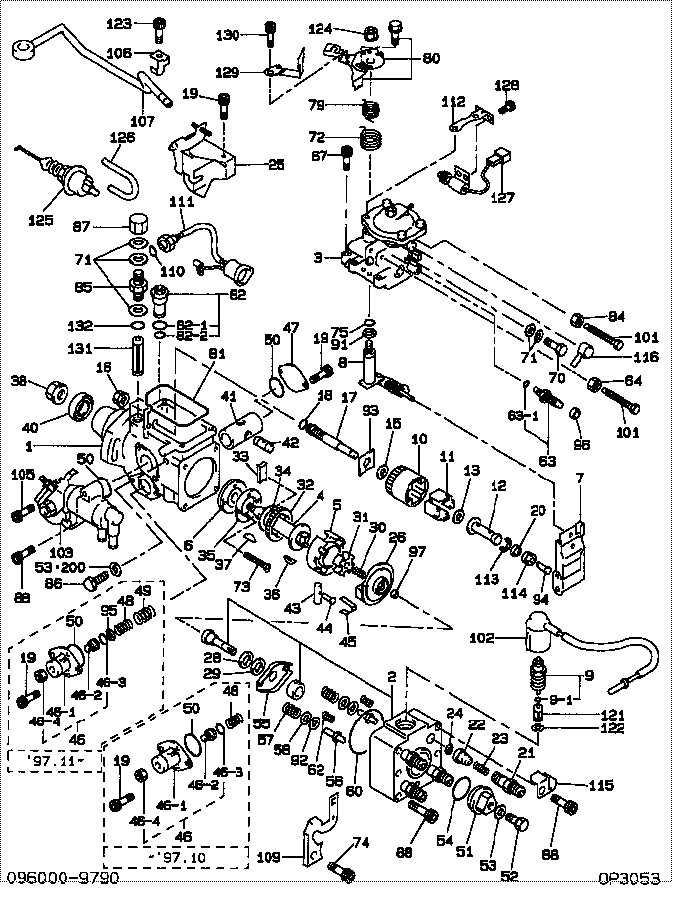

09600-09790 PUMP ASSY, INJECTI Denso Cross

Flangeless Liners
(1) Outside diameter of cylinder liner ... 103.28 to 103.30 mm (4.066 to 4.067 in)(2) Inside diameter of cylinder liner ... 98.48 to 98.50 mm (3.877 to 3.878 in) Maximum diameter wear (when boring or new liners are needed) ... 0.20 mm (0.008 in)Interference fit of liner in cylinder block ... 0.08 to 0.13 mm (0.003 to 0.005 in)Length of cylinder liner ... 228.73 to 228.98 mm (9.005 to 9.015 in)Maximum cylinder liner can be bored (made larger than original size) ... 0.76 mm (0.030 in) The 4.236 flangeless cylinder liners are the only ones that can be bored. All other liners must be replaced when worn beyond specifications.(3) Liner projection (height of liner above face of cylinder block) ... 0.71 to 0.94 mm (0.028 to 0.037 in)(4) Diameter of parent bore in cylinder block for liner ... 103.162 to 103.188 mm (4.0615 to 4.0625 in)Flanged Liners
New cylinder blocks have been introduced on the 4.236 engine. The 4.236 engine has a larger cylinder liner parent bore diameter and the outside diameter of the cylinder liner is also larger. The liners will no longer have a flame ring. Effective with this change only flanged liners will be available. The change became effective at engine serial number LDU106654N and up. See General Information in Systems Operation for the serial number location.(1) Outside diameter of cylinder liner.Earlier engines with thin wall liners: Production liner ... 103.238 to 103.264 mm (4.0645 to 4.0655 in)Service liner ... 103.188 to 103.213 mm (4.0625 to 4.0635 in)Current engines with thick wall liners: Production liner ... 104.254 to 104.280 mm (4.1045 to 4.1055 in)Service liner ... 104.204 to 104.229 mm (4.1025 to 4.1035 in)(2) Inside diameter of cylinder liner: Production liner ... 98.48 to 98.50 mm (3.877 to 3.878 in)Service liner ... 98.50 to 98.53 mm (3.878 to 3.879 in)Maximum diameter wear (when new liners are needed ... 0.20 mm (0.008 in)Transition fit of service liner in cylinder block ... 0.03 mm ( 0.001 in)Length of cylinder liner with flame ring ... 227.10 to 227.43 mm (8.941 to 8.954 in)Length of cylinder liner without flame ring ... 226.03 to 226.82 mm (8.899 to 8.930 in)(3) Liner (flange) projection [do not measure from flame ring (if equipped)] ... 0.10 mm (0.004 in) above to 0.10 mm (0.004 in) below face of cylinder block. Flange thickness of cylinder liner ... 3.81 to 3.86 mm (0.150 to 0.152 in)(4) Diameter of parent bore in cylinder block in liner: Earlier engines with thin wall liners ... 103.188 to 103.213 mm (4.0625 to 4.0635 in)Current engines with thick wall liners ... 104.204 to 104.229 mm (4.1025 to 4.1035 in)Depth of recess for cylinder liner flange ... 3.81 to 3.91 mm (0.150 to 0.154 in)All Engine Blocks
(5) Diameter of bore in cylinder block for camshaft No. 1 front bearing [has only front bearing (6)] ... 55.563
