09600-09590 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

PUMP ASSY, INJECTI EA
  • *ORDER GEAR COVER FROM CAR MANUFACTURER.
Nozzle: 0935004470
09600-09590 PUMP ASSY, INJECTI
Rating:
1
Buy PUMP ASSY, INJECTI 09600-09590 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100561

Components :

001. PUMP ASSY, INJECTI 09600-09590
002. RING SUB-ASSY, ROL 09618-00050
003. COVER SUB-ASSY, TI 09621-00981
004. SHIM, PLUNGER ADJU 09640-60020
005. COMPENSATOR SUB-AS 09649-01260
006. COVER SUB-ASSY, GO 09644-01540

Scheme ###:

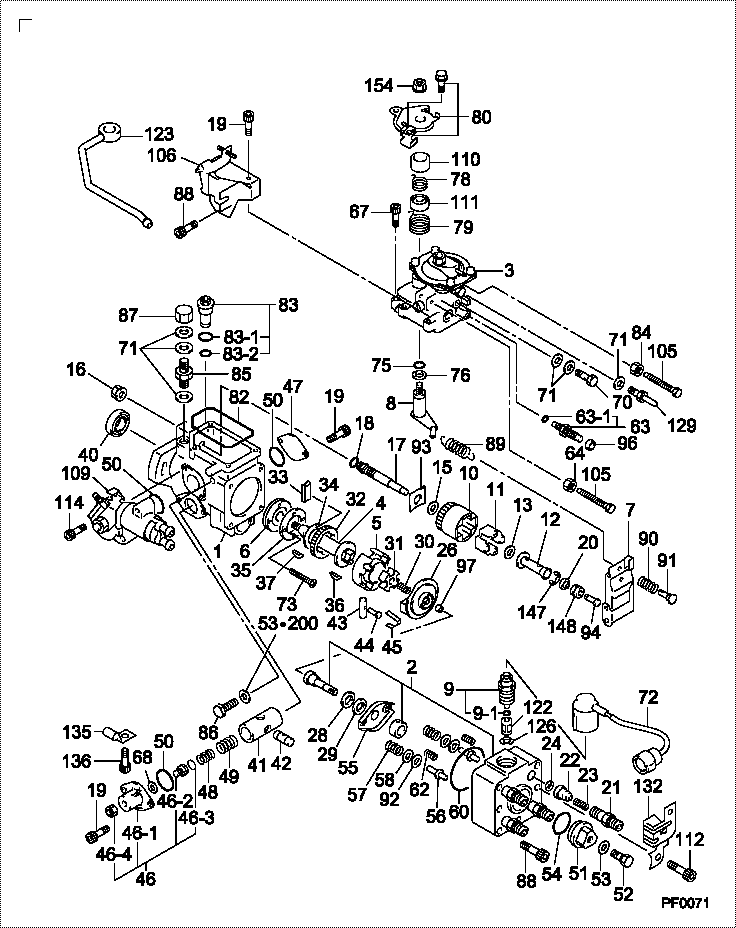

PUMP ASSY, INJECTI
000. [01] 09600-09590 PUMP ASSY, INJECTI ME001394
001. [01] 09611-00881 HOUSING SUB-ASSY, ME736467
002. [01] 09640-01510 HEAD SUB-ASSY, DIS ME736264
003. [01] 09649-01260 COMPENSATOR SUB-AS ME736474
004. [01] 09612-10060 SHAFT, DRIVE ME736309
005. [01] 09618-00050 RING SUB-ASSY, ROL ME736310
006. [01] 09614-00030 PUMP SUB-ASSY, FUE ME736311
007. [01] 09627-01270 GOVERNOR ASSY, TOR ME736476
008. [01] 09645-00521 SHAFT SUB-ASSY, GO ME736477
009. [01] 09603-00540 SOLENOID ASSY, FUE
009. [01] 09603-00170 SOLENOID ASSY, FUE ME736314
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F ME736316
011. [04] 09626-30030 FLYWEIGHT, DISTRIB ME736317
012. [1C] 09625-21260 SLEEVE, GOVERNOR ME736470
012. [1C] 09625-20780 SLEEVE, GOVERNOR ME736469
012. [1C] 09625-20680 SLEEVE, GOVERNOR ME736480
013. [01] 09626-50030 WASHER, FLYWEIGHT ME736319
015. [01] 09626-50020 WASHER, FLYWEIGHT ME736320
016. [01] 09625-40050 NUT, GOVERNOR SHAF ME736321
017. [01] 09625-00030 SHAFT SUB-ASSY, GO ME736468
018. [01] 94914-02930 O-RING ME736323
019. [06] 09644-90110 BOLT, SOCKET ME736324
020. [01] 09625-50020 RING, GOVERNOR SLE ME736325
021. [04] 09643-00150 VALVE SUB-ASSY, SN ME736326
022. [04] 09642-00510 VALVE SUB-ASSY, DI ME736327
023. [04] 09642-70010 SPRING, DELIVERY V ME736328
024. [04] 09642-60070 GASKET, DELIVERY V ME736329
026. [01] 09623-00100 CAMPLATE SUB-ASSY, ME736330
028. [01] 09624-50020 PLATE, PLUNGER, LW ME736331
029. [01] 09624-40040 PLATE, PLUNGER, UP ME736332
030. [01] 09622-40040 SPRING, COUPLING ME736333
031. [01] 09622-20020 COUPLING ME736334
032. [01] 09612-40030 GEAR, GOVERNOR DRI ME736335
033. [02] 09612-60020 JOINT, RUBBER ME736336
034. [01] 09612-50010 WASHER, DRIVE SHAF ME736337
035. [01] 09614-70052 COVER, FEED PUMP ME736338
036. [01] 94913-00260 KEY, WOODRUFF ME736339
037. [01] 94913-00300 KEY, WOODRUFF ME736340
040. [01] 09603-90040 SEAL, 0IL ME736342
041. [01] 09619-01130 PISTON ASSY, TIMER ME736343
041. [01] 09619-01240 PISTON ASSY, TIMER
042. [01] 09621-30020 SUB-PISTON, TIMER ME736344
043. [01] 09620-50020 PIN, TIMER SLIDE ME736345
044. [01] 09621-60020 STOPPER, TIMER SLI ME736346
044. [01] 09621-60120 STOPPER, TIMER SLI ME736849
045. [01] 09621-10050 CLIP, TIMER ME736347
045. [01] 09621-10080 CLIP, TIMER ME736850
046. [01] 09621-00870 COVER SUB-ASSY, TI ME736348
046-001. [01] 09621-80870 COVER, TIMER ME736349
046-002. [01] 09621-60110 STOPPER, TIMER SLI ME736350
046-003. [01] 09604-90290 O-RING ME736351
046-004. [01] 94905-05010 NUT, HEXAGON ME736352
047. [01] 09621-80270 COVER, TIMER ME736353
048. [1C] 09620-81780 SPRING, TIMER, OUT ME736354
048. [1C] 09620-81790 SPRING, TIMER, OUT ME736355
048. [1C] 09620-81800 SPRING, TIMER, OUT ME736356
048. [1C] 09620-81810 SPRING, TIMER, OUT ME736357
049. [01] 09620-81370 SPRING, TIMER, OUT ME736358
050. [03] 09604-90400 O-RING
050. [03] 94914-05820 O-RING ME736359
051. [01] 09641-70040 PLUG, DISTRIBUTIVE ME736360
052. [01] 09641-80020 BOLT, DISTRIBUTIVE ME736361
053. [01] 09642-60030 GASKET, DELIVERY V ME736362
053. [03] 09642-60030 GASKET, DELIVERY V ME736362
054. [01] 94914-02970 O-RING ME736363
054. [01] 09604-90510 O-RING
055. [01] 09624-70010 SHEET, PLUNGER SPR ME736364
056. [02] 09623-70010 GUIDE SUB-ASSY, PL ME736365
057. [02] 09623-60040 SPRING, PLUNGER ME736366
058. [02] 09624-60010 SHEET, PLUNGER SPR ME736367
060. [01] 94914-02980 O-RING ME736368
062. [02] 09627-90010 SPRING, LEVER SUPP ME736369
063. [01] 09648-00010 SMOKE SET SUB-ASSY ME736370
063-001. [01] 09604-90470 O-RING
063-001. [01] 94914-02900 O-RING ME736371
064. [01] 90166-06051 NUT, HEXAGON ME736372
067. [04] 09644-90020 BOLT, SOCKET ME736373
068. [01] 09621-40180 WASHER, TIMER SENS ME736374
070. [01] 09602-00030 SCREW SUB-ASSY, OV ME736376
071. [06] 09024-10010 WASHER, AIR BLEEDE ME702102
072. [01] 09604-50880 WIRE SUB-ASSY ME736466
073. [02] 94900-20420 SCREW, COUNTERSUNK ME736377
075. [01] 09604-90300 O-RING ME736378
076. [01] 09627-30140 WASHER, GOVERNOR T ME736379
078. [01] 09644-41210 SPRING, RETURN ME736380
079. [01] 09644-41220 SPRING, RETURN ME736381
080. [1C] 09643-55410 LEVER SUB-ASSY, AD ME736483
080. [1C] 09643-55420 LEVER SUB-ASSY, AD ME736484
082. [01] 09644-60100 GASKET, GOVERNOR C ME736386
083. [01] 09616-00030 VALVE SUB-ASSY, RE ME736387
083-001. [01] 09604-90180 O-RING ME736285
083-002. [01] 94914-02920 O-RING ME736388
083-002. [01] 09604-90500 O-RING
084. [01] 09634-20010 NUT, LOCK ME702196
085. [01] 94918-00770 SCREW, HOLLOW ME736389
086. [02] 09626-90020 BOLT, GOVERNOR LIN ME736390
087. [01] 94905-50300 NUT, CAP ME736391
088. [05] 09644-90070 BOLT, SOCKET ME736392
089. [01] 09626-10960 SPRING, SPEED CONT ME736471
090. [01] 09628-90380 SPRING, GOVERNOR I ME736472
091. [01] 09626-70030 SHEET, GOVERNOR SP ME736475
092. [2C] 09624-80080 SHIM, PLUNGER SPRI ME736400
092. [2C] 09624-80090 SHIM, PLUNGER SPRI ME736401
092. [2C] 09624-80100 SHIM, PLUNGER SPRI ME736402
092. [2C] 09624-80110 SHIM, PLUNGER SPRI ME736403
092. [2C] 09624-80220 SHIM, PLUNGER SPRI ME736404
092. [2C] 09624-80070 SHIM, PLUNGER SPRI ME736399
092. [2C] 09624-80060 SHIM, PLUNGER SPRI ME736398
092. [2C] 09624-80050 SHIM, PLUNGER SPRI ME736397
092. [2C] 09624-80040 SHIM, PLUNGER SPRI ME736396
092. [2C] 09624-80030 SHIM, PLUNGER SPRI ME736395
092. [2C] 09624-80020 SHIM, PLUNGER SPRI ME736394
092. [2C] 09624-80010 SHIM, PLUNGER SPRI ME736393
093. [1C] 09626-60280 WASHER, GOVERNOR G ME736415
093. [1C] 09626-60290 WASHER, GOVERNOR G ME736416
093. [1C] 09626-60300 WASHER, GOVERNOR G ME736417
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G ME736414
093. [1C] 09626-60180 WASHER, GOVERNOR G ME736413
093. [1C] 09626-60170 WASHER, GOVERNOR G ME736412
093. [1C] 09626-60100 WASHER, GOVERNOR G ME736405
093. [1C] 09626-60110 WASHER, GOVERNOR G ME736406
093. [1C] 09626-60120 WASHER, GOVERNOR G ME736407
093. [1C] 09626-60130 WASHER, GOVERNOR G ME736408
093. [1C] 09626-60140 WASHER, GOVERNOR G ME736409
093. [1C] 09626-60150 WASHER, GOVERNOR G ME736410
093. [1C] 09626-60160 WASHER, GOVERNOR G ME736411
094. [1C] 09625-60600 PLUG, GOVERNOR SLE ME736430
094. [1C] 09625-60590 PLUG, GOVERNOR SLE ME736429
094. [1C] 09625-60580 PLUG, GOVERNOR SLE ME736428
094. [1C] 09625-60570 PLUG, GOVERNOR SLE ME736427
094. [1C] 09625-60560 PLUG, GOVERNOR SLE ME736426
094. [1C] 09625-60550 PLUG, GOVERNOR SLE ME736425
094. [1C] 09625-60540 PLUG, GOVERNOR SLE ME736424
094. [1C] 09625-60530 PLUG, GOVERNOR SLE ME736423
094. [1C] 09625-60520 PLUG, GOVERNOR SLE ME736422
094. [1C] 09625-60510 PLUG, GOVERNOR SLE ME736421
094. [1C] 09625-60500 PLUG, GOVERNOR SLE ME736420
094. [1C] 09625-60490 PLUG, GOVERNOR SLE ME736419
094. [1C] 09625-60480 PLUG, GOVERNOR SLE ME736418
096. [01] 09644-80111 COLLAR, SMOKE SET ME736431
097. [1C] 09640-60520 SHIM, PLUNGER ADJU ME736436
097. [1C] 09640-60420 SHIM, PLUNGER ADJU ME736435
097. [1C] 09640-60270 SHIM, PLUNGER ADJU ME736434
097. [1C] 09640-60170 SHIM, PLUNGER ADJU ME736433
097. [1C] 09640-60020 SHIM, PLUNGER ADJU ME736432
105. [02] 94904-50210 BOLT, HEXAGON, W/ ME736437
106. [01] 09647-00390 IDLE UP SUB-ASSY ME736438
109. [01] 09621-00981 COVER SUB-ASSY, TI ME736439
110. [01] 09644-50230 GUIDE, RETURN SPRI ME736440
111. [01] 09644-50240 GUIDE, RETURN SPRI ME736441
112. [01] 09644-90140 BOLT, SOCKET ME736442
114. [02] 09644-90100 BOLT, SOCKET ME736443
122. [01] 09653-00071 FILTER, SUB-ASSY ME736445
123. [01] 09221-70670 NIPPLE, SWIVEL ME736486
126. [01] 09606-40110 WASHER ME736446
129. [01] 09602-10090 SCREW, OVERFLOW ME736447
132. [01] 09602-91540 CLIP, CONNECTOR SU ME736452
135. [01] 09602-91550 CLIP, CONNECTOR SU ME736455
136. [01] 09644-90151 BOLT, SOCKET ME736456
147. [01] 90577-02000 E-RING ME736460
148. [01] 94910-02860 BEARING, BALL ME736459
149. [01] 09185-10600 GEAR, TIMER DRIVIN ME001482
154. [01] 94905-61680 NUT ME736463
200. [02] 09642-60130 GASKET, DELIVERY V ME743647
