09600-08750 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935005820
09600-08750 PUMP ASSY, INJECTI
Rating:
61
Buy PUMP ASSY, INJECTI 09600-08750 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100541

Components :

001. PUMP ASSY, INJECTI 09600-08750
002. RING SUB-ASSY, ROL 09618-00220
003. GOVERNOR ASSY, TOR 09627-00910
004. SHIM, PLUNGER ADJU 09640-60020

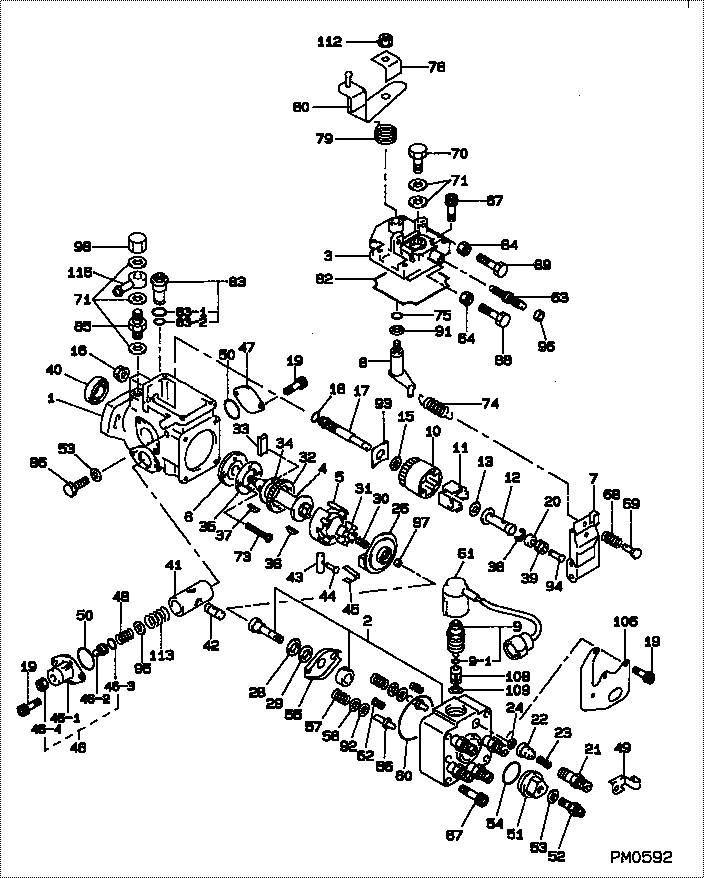

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-08750 PUMP ASSY, INJECTI 22100-18051
001. [01] 09611-00562 HOUSING SUB-ASSY, 22101-54770
002. [01] 09640-01340 HEAD SUB-ASSY, DIS 22140-18040
003. [01] 09644-01330 COVER SUB-ASSY, GO 22703-17080
004. [01] 09612-10121 SHAFT, DRIVE 22170-18010
005. [01] 09618-00220 RING SUB-ASSY, ROL 22108-18010
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
007. [01] 09627-00910 GOVERNOR ASSY, TOR 22350-18010
008. [1C] 09645-00470 SHAFT SUB-ASSY, GO 22740-6A630
008. [1C] 09645-00440 SHAFT SUB-ASSY, GO 22740-58480
008. [1C] 09645-00100 SHAFT SUB-ASSY, GO 22740-54310
008. [1C] 09645-00020 SHAFT SUB-ASSY, GO 22740-54010
009. [01] 09603-00160 SOLENOID ASSY, FUE 22390-6A510
009-001. [01] 09604-90251 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010
012. [1C] 09625-20890 SLEEVE, GOVERNOR
012. [1C] 09625-20720 SLEEVE, GOVERNOR 22316-18010
012. [1C] 09625-20380 SLEEVE, GOVERNOR 22316-18011
012. [1C] 09625-20290 SLEEVE, GOVERNOR 22316-54261
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020
018. [01] 94914-02930 O-RING 90099-14049
019. [07] 09644-90110 BOLT, SOCKET 22395-56351
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
021. [05] 09643-00180 VALVE SUB-ASSY, SN 22190-6A680
022. [05] 09642-00550 VALVE SUB-ASSY, DI 22104-17010
023. [05] 09642-70010 SPRING, DELIVERY V 22148-54010
024. [05] 09642-60070 GASKET, DELIVERY V 22149-56351
026. [01] 09623-00280 CAMPLATE SUB-ASSY, 22130-18010
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
030. [01] 09622-40040 SPRING, COUPLING 22659-64150
031. [01] 09622-20020 COUPLING 22632-54010
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
035. [01] 09614-70052 COVER, FEED PUMP 22511-58650
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
038. [01] 90577-02000 E-RING 90096-90024
039. [01] 94910-02860 BEARING, BALL 90099-10148
040. [01] 09603-90040 SEAL, 0IL 22544-64740
041. [01] 09619-00900 PISTON ASSY, TIMER 22550-17020
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010
045. [01] 09621-10050 CLIP, TIMER 22656-54010
045. [01] 09621-10080 CLIP, TIMER 22656-17840
046. [01] 09621-00870 COVER SUB-ASSY, TI 22790-17020
046-001. [01] 09621-80870 COVER, TIMER 22612-17020
046-002. [01] 09621-60110 STOPPER, TIMER SLI 22658-17020
046-003. [01] 09604-90290 O-RING 22193-17020
046-004. [01] 94905-05010 NUT, HEXAGON 90099-05225
047. [01] 09621-80270 COVER, TIMER 22612-56350
048. [1C] 09620-81330 SPRING, TIMER, OUT 22615-18021
048. [1C] 09620-81350 SPRING, TIMER, OUT 22615-18022
048. [1C] 09620-81410 SPRING, TIMER, OUT 22615-18020
049. [01] 09602-90950 CLIP, CONNECTOR SU 22172-6A330
050. [02] 94914-02960 O-RING 90099-14051
050. [02] 94914-05820 O-RING 90099-14105
050. [02] 09604-90400 O-RING 22193-17840
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
052. [01] 09641-80020 BOLT, DISTRIBUTIVE 22128-54010
053. [03] 09642-60030 GASKET, DELIVERY V 22149-56200
054. [01] 94914-02970 O-RING 90099-14052
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-54010
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-54010
057. [02] 09623-60040 SPRING, PLUNGER 22144-54190
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-54010
060. [01] 94914-02980 O-RING 90099-14053
061. [01] 09604-50561 WIRE SUB-ASSY 22751-18070
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
063. [01] 09648-00010 SMOKE SET SUB-ASSY
064. [01] 90166-06051 NUT, HEXAGON 90092-10608
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
068. [01] 09628-90420 SPRING, GOVERNOR I 22317-17040
069. [01] 09626-70030 SHEET, GOVERNOR SP 22369-54010
070. [01] 09602-00030 SCREW SUB-ASSY, OV 22160-64010
071. [05] 09024-10010 WASHER, AIR BLEEDE 22119-77020
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
074. [01] 09626-10960 SPRING, SPEED CONT 22726-18010
075. [01] 09604-90300 O-RING 22193-54770
078. [01] 09644-50011 GUIDE, RETURN SPRI 22728-54010
079. [01] 09644-40021 SPRING, RETURN 22322-54020
080. [1C] 09643-52470 LEVER SUB-ASSY, AD 22701-56350
080. [1C] 09643-53830 LEVER SUB-ASSY, AD 22701-17010
080. [1C] 09643-53840 LEVER SUB-ASSY, AD 22701-17011
082. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
083. [1C] 09616-00050 VALVE SUB-ASSY, RE 22180-58200
083. [1C] 09616-00030 VALVE SUB-ASSY, RE 22180-54010
083-001. [01] 09604-90180 O-RING 22193-54561
083-002. [01] 94914-02920 O-RING 90099-14080
084. [01] 09634-20010 NUT, LOCK 22775-77121
085. [01] 94918-00770 SCREW, HOLLOW 90099-18022
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
087. [04] 09644-90070 BOLT, SOCKET 22395-58200
088. [01] 94904-50180 BOLT, HEXAGON, W/ 90099-04576
089. [01] 94904-50190 BOLT, HEXAGON, W/ 90099-04946
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60500 PLUG, GOVERNOR SLE 22787-54033
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60520 PLUG, GOVERNOR SLE 22787-64680
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60460 PLUG, GOVERNOR SLE 22787-54029
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60400 PLUG, GOVERNOR SLE 22787-64641
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60420 PLUG, GOVERNOR SLE 22787-64643
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60440 PLUG, GOVERNOR SLE 22787-54027
095. [01] 09621-40180 WASHER, TIMER SENS 22625-17020
096. [01] 09644-80111 COLLAR, SMOKE SET
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
098. [01] 94905-50300 NUT, CAP 90099-05161
106. [01] 09647-10411 BRACKET SUB-ASSY, 22601-18010
108. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350
109. [01] 09606-40110 WASHER 22689-56350
112. [01] 94905-61680 NUT 90179-06009
113. [01] 09620-81370 SPRING, TIMER, OUT 22615-17030
116. [01] 09221-80150 NIPPLE SUB-ASSY, S 22548-17010

Include in #3:

09600-08750 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09600-08750  22100-1805  PUMP ASSY, INJECTI
22100-18051    TOYOTA PUMP ASSY, INJECTI
