09600-07900 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935005260
09600-07900 PUMP ASSY, INJECTI
Rating:
33
Buy PUMP ASSY, INJECTI 09600-07900 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100541

Components :

001. PUMP ASSY, INJECTI 09600-07900
002. RING SUB-ASSY, ROL 09618-00050
003. COVER SUB-ASSY, TI 09621-00860
004. GOVERNOR ASSY, TOR 09627-00090
005. SHIM, PLUNGER ADJU 09640-60020
006. COVER SUB-ASSY, GO 09644-01281

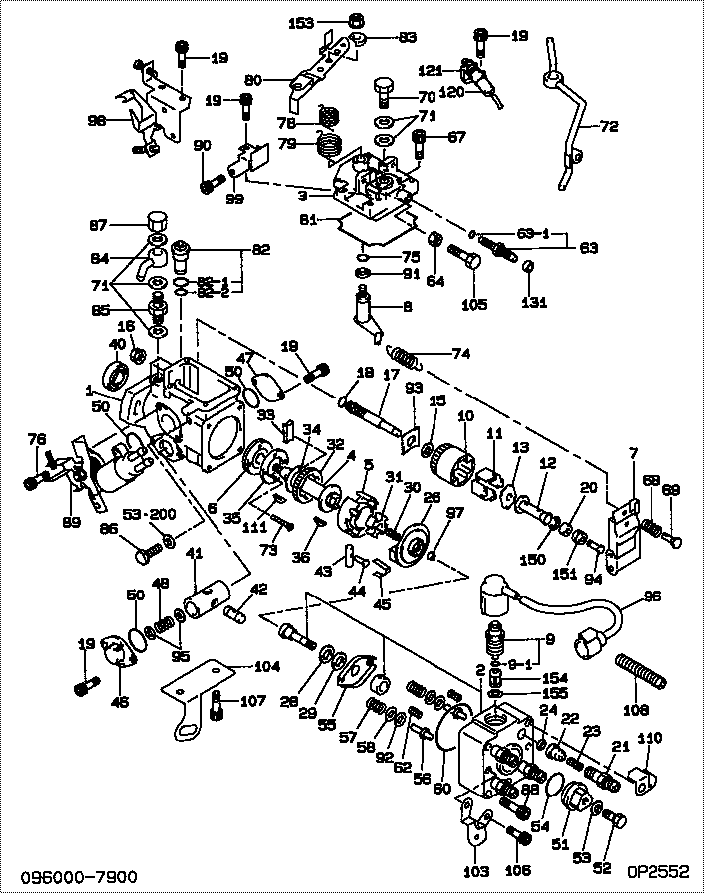

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-07900 PUMP ASSY, INJECTI VS02 13 800
001. [01] 09611-01020 HOUSING SUB-ASSY,
002. [01] 09640-01411 HEAD SUB-ASSY, DIS
003. [01] 09644-01281 COVER SUB-ASSY, GO
004. [01] 09612-10050 SHAFT, DRIVE
005. [01] 09618-00050 RING SUB-ASSY, ROL S503 24 040
006. [01] 09614-00020 PUMP SUB-ASSY, FUE S501 24 020
007. [01] 09627-00090 GOVERNOR ASSY, TOR S501 24 200
008. [01] 09645-00531 SHAFT SUB-ASSY, GO
009. [01] 09603-00160 SOLENOID ASSY, FUE
009. [01] 09603-00520 SOLENOID ASSY, FUE
009-001. [01] 09604-90350 O-RING S5A1 13 VJ7
010. [01] 09626-00050 HOLDER SUB-ASSY, F S501 24 231
011. [04] 09626-30030 FLYWEIGHT, DISTRIB S501 24 232
012. [1C] 09625-21290 SLEEVE, GOVERNOR
012. [1C] 09625-21300 SLEEVE, GOVERNOR
012. [1C] 09625-21320 SLEEVE, GOVERNOR
013. [01] 09626-50030 WASHER, FLYWEIGHT S501 24 233
015. [01] 09626-50020 WASHER, FLYWEIGHT S501 24 229
016. [01] 09625-40040 NUT, GOVERNOR SHAF
017. [01] 09625-00040 SHAFT SUB-ASSY, GO RF10 24 222
018. [01] 94914-02930 O-RING S501 24 223
019. [09] 09644-90110 BOLT, SOCKET
020. [01] 09625-50020 RING, GOVERNOR SLE RF10 24 130
021. [04] 09643-00150 VALVE SUB-ASSY, SN
022. [04] 09642-00530 VALVE SUB-ASSY, DI
023. [04] 09642-70010 SPRING, DELIVERY V S501 24 142
024. [04] 09642-60070 GASKET, DELIVERY V
026. [01] 09623-00331 CAMPLATE SUB-ASSY,
028. [01] 09624-50020 PLATE, PLUNGER, LW S501 24 071
029. [01] 09624-40040 PLATE, PLUNGER, UP S501 24 072
030. [01] 09622-40040 SPRING, COUPLING
031. [01] 09622-20020 COUPLING S501 24 047
031. [01] 09622-20090 COUPLING
032. [01] 09612-40030 GEAR, GOVERNOR DRI S501 24 035
033. [02] 09612-60020 JOINT, RUBBER
034. [01] 09612-50010 WASHER, DRIVE SHAF S501 24 036
035. [01] 09614-70052 COVER, FEED PUMP
036. [01] 94913-00260 KEY, WOODRUFF S501 24 032
040. [01] 09603-90020 SEAL, 0IL S501 24 012
041. [01] 09620-10890 PISTON, TIMER
042. [01] 09621-30020 SUB-PISTON, TIMER S501 24 053
043. [01] 09620-50020 PIN, TIMER SLIDE S501 24 044
044. [01] 09621-60020 STOPPER, TIMER SLI S501 24 045
044. [01] 09621-60120 STOPPER, TIMER SLI
045. [01] 09621-10050 CLIP, TIMER S501 24 046
045. [01] 09621-10080 CLIP, TIMER
046. [01] 09621-80040 COVER, TIMER S501 24 057
047. [01] 09621-80270 COVER, TIMER
048. [1C] 09620-80100 SPRING, TIMER, OUT S501 24 055
048. [1C] 09620-80161 SPRING, TIMER, OUT
048. [1C] 09620-80650 SPRING, TIMER, OUT
050. [03] 09604-90400 O-RING
050. [03] 94914-05820 O-RING
050. [03] 94914-02960 O-RING S501 24 051
051. [01] 09641-70040 PLUG, DISTRIBUTIVE S501 24 151
052. [01] 09641-80020 BOLT, DISTRIBUTIVE S501 24 152
053. [03] 09642-60030 GASKET, DELIVERY V
053. [01] 09642-60030 GASKET, DELIVERY V
054. [01] 09604-90510 O-RING S501 24 153
054. [01] 94914-02970 O-RING
055. [01] 09624-70010 SHEET, PLUNGER SPR S501 24 073
056. [02] 09623-70010 GUIDE SUB-ASSY, PL S501 24 076
057. [02] 09623-60040 SPRING, PLUNGER RF10 24 074
058. [02] 09624-60010 SHEET, PLUNGER SPR S501 24 075
060. [01] 94914-02980 O-RING S501 24 105
062. [02] 09627-90010 SPRING, LEVER SUPP S501 24 078
063. [01] 09648-00010 SMOKE SET SUB-ASSY
063-001. [01] 94914-02900 O-RING
063-001. [01] 09604-90470 O-RING S501 24 196
064. [01] 09634-20010 NUT, LOCK S501 24 182
067. [04] 09644-90020 BOLT, SOCKET S501 24 163
068. [01] 09628-90200 SPRING, GOVERNOR I
069. [01] 09626-70030 SHEET, GOVERNOR SP S501 24 261
070. [01] 09602-00030 SCREW SUB-ASSY, OV S501 24 280
071. [05] 09024-10010 WASHER, AIR BLEEDE S501 24 283
072. [01] 09221-80231 NIPPLE SUB-ASSY, S
073. [02] 94900-20420 SCREW, COUNTERSUNK S501 24 024
074. [01] 09626-10910 SPRING, SPEED CONT
075. [01] 09604-90300 O-RING
076. [02] 09644-90110 BOLT, SOCKET
076. [02] 09644-90100 BOLT, SOCKET VS01 13 TP3
078. [01] 09644-41000 SPRING, RETURN
079. [01] 09644-41010 SPRING, RETURN
080. [1C] 09643-54530 LEVER SUB-ASSY, AD
080. [1C] 09643-54541 LEVER SUB-ASSY, AD
080. [1C] 09643-54730 LEVER SUB-ASSY, AD
081. [01] 09644-60100 GASKET, GOVERNOR C
082. [01] 09616-00050 VALVE SUB-ASSY, RE S501 24 270
082-001. [01] 09604-90180 O-RING S501 24 271
082-002. [01] 94914-02920 O-RING
082-002. [01] 09604-90500 O-RING S501 24 272
083. [01] 09644-50140 GUIDE, RETURN SPRI
084. [01] 09221-80250 NIPPLE SUB-ASSY, S
084. [01] 09221-80220 NIPPLE SUB-ASSY, S
085. [01] 94918-00770 SCREW, HOLLOW
086. [02] 09626-90020 BOLT, GOVERNOR LIN S501 24 201
087. [01] 94905-50300 NUT, CAP
088. [04] 09644-90070 BOLT, SOCKET
089. [01] 09621-00860 COVER SUB-ASSY, TI
090. [01] 09644-90250 BOLT, SOCKET
091. [01] 09627-30140 WASHER, GOVERNOR T
092. [2C] 09624-80150 SHIM, PLUNGER SPRI
092. [2C] 09624-80170 SHIM, PLUNGER SPRI
092. [2C] 09624-80180 SHIM, PLUNGER SPRI
092. [2C] 09624-80190 SHIM, PLUNGER SPRI
092. [2C] 09624-80200 SHIM, PLUNGER SPRI
092. [2C] 09624-80210 SHIM, PLUNGER SPRI
092. [2C] 09624-80220 SHIM, PLUNGER SPRI
092. [2C] 09624-80230 SHIM, PLUNGER SPRI
092. [2C] 09624-80240 SHIM, PLUNGER SPRI
092. [2C] 09624-80250 SHIM, PLUNGER SPRI
092. [2C] 09624-80140 SHIM, PLUNGER SPRI
092. [2C] 09624-80130 SHIM, PLUNGER SPRI
092. [2C] 09624-80110 SHIM, PLUNGER SPRI S501 24 092
092. [2C] 09624-80010 SHIM, PLUNGER SPRI S501 24 081
092. [2C] 09624-80020 SHIM, PLUNGER SPRI S501 24 082
092. [2C] 09624-80030 SHIM, PLUNGER SPRI S501 24 083
092. [2C] 09624-80040 SHIM, PLUNGER SPRI S501 24 084
092. [2C] 09624-80050 SHIM, PLUNGER SPRI S501 24 085
092. [2C] 09624-80060 SHIM, PLUNGER SPRI S501 24 086
092. [2C] 09624-80070 SHIM, PLUNGER SPRI S501 24 087
092. [2C] 09624-80080 SHIM, PLUNGER SPRI S501 24 088
092. [2C] 09624-80090 SHIM, PLUNGER SPRI S501 24 089
092. [2C] 09624-80100 SHIM, PLUNGER SPRI S501 24 091
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G S501 24 249
093. [1C] 09626-60100 WASHER, GOVERNOR G S501 24 224
093. [1C] 09626-60110 WASHER, GOVERNOR G S501 24 225
093. [1C] 09626-60120 WASHER, GOVERNOR G S501 24 226
093. [1C] 09626-60130 WASHER, GOVERNOR G S501 24 227
093. [1C] 09626-60140 WASHER, GOVERNOR G S501 24 228
093. [1C] 09626-60150 WASHER, GOVERNOR G S501 24 248
094. [1C] 09625-60570 PLUG, GOVERNOR SLE RF10 24 629
094. [1C] 09625-60580 PLUG, GOVERNOR SLE RF10 24 630
094. [1C] 09625-60590 PLUG, GOVERNOR SLE
094. [1C] 09625-60600 PLUG, GOVERNOR SLE RF10 24 632
094. [1C] 09625-60610 PLUG, GOVERNOR SLE RF10 24 633
094. [1C] 09625-60620 PLUG, GOVERNOR SLE RF10 24 634
094. [1C] 09625-60560 PLUG, GOVERNOR SLE RF10 24 628
094. [1C] 09625-60550 PLUG, GOVERNOR SLE RF10 24 627
094. [1C] 09625-60460 PLUG, GOVERNOR SLE
094. [1C] 09625-60400 PLUG, GOVERNOR SLE RF10 24 622
094. [1C] 09625-60410 PLUG, GOVERNOR SLE RF10 24 623
094. [1C] 09625-60420 PLUG, GOVERNOR SLE RF10 24 624
094. [1C] 09625-60430 PLUG, GOVERNOR SLE
094. [1C] 09625-60440 PLUG, GOVERNOR SLE
094. [1C] 09625-60450 PLUG, GOVERNOR SLE
095. [2C] 09621-40100 WASHER, TIMER SENS 4782 13 TE7
095. [2C] 09621-40090 WASHER, TIMER SENS 4782 13 TE6
095. [2C] 09621-40080 WASHER, TIMER SENS 4782 13 TE5
095. [2C] 09621-40070 WASHER, TIMER SENS 4782 13 TE4
095. [2C] 09621-40060 WASHER, TIMER SENS 4782 13 TE3
095. [2C] 09621-40050 WASHER, TIMER SENS 4782 13 TE2
095. [2C] 09621-40040 WASHER, TIMER SENS 4782 13 TE1
096. [01] 09604-50650 WIRE SUB-ASSY
097. [1C] 09640-60520 SHIM, PLUNGER ADJU S501 24 122
097. [1C] 09640-60420 SHIM, PLUNGER ADJU S501 24 119
097. [1C] 09640-60270 SHIM, PLUNGER ADJU S501 24 116
097. [1C] 09640-60170 SHIM, PLUNGER ADJU S501 24 114
097. [1C] 09640-60020 SHIM, PLUNGER ADJU S501 24 111
098. [01] 09647-00450 IDLE UP SUB-ASSY
099. [01] 09643-82470 BRACKET, IDLE UP
103. [01] 09643-82480 BRACKET, IDLE UP
104. [01] 09643-80080 BRACKET, IDLE UP S501 24 147
105. [01] 94904-50190 BOLT, HEXAGON, W/
106. [02] 09644-90260 BOLT, SOCKET
107. [02] 09644-90151 BOLT, SOCKET
108. [01] 09071-60200 COVER
110. [01] 09602-90990 CLIP, CONNECTOR SU
111. [01] 94913-00410 KEY, WOODRUFF
120. [01] 09009-00300 SWITCH SUB-ASSY, C
121. [01] 09643-82511 BRACKET, IDLE UP
131. [01] 09644-80111 COLLAR, SMOKE SET S501 24 197
150. [01] 90577-02000 E-RING
151. [01] 94910-02860 BEARING, BALL
153. [01] 94905-61680 NUT
154. [01] 09653-00071 FILTER, SUB-ASSY S5A1 13 VF5
155. [01] 09606-40110 WASHER
200. [02] 09642-60130 GASKET, DELIVERY V

Include in #3:

09600-07900 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09600-07900  VS02 13 80  PUMP ASSY, INJECTI
VS02 13 800    MAZDA PUMP ASSY, INJECTI
