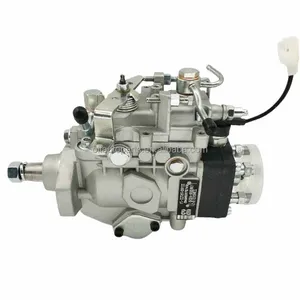

09600-07590 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935004180
09600-07590 PUMP ASSY, INJECTI
Rating:
18
Buy PUMP ASSY, INJECTI 09600-07590 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100541

Components :

001. PUMP ASSY, INJECTI 09600-07590
002. RING SUB-ASSY, ROL 09618-00050
003. COVER SUB-ASSY, TI 09621-00531
004. GOVERNOR ASSY, TOR 09627-00060
005. SHIM, PLUNGER ADJU 09640-60020

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-07590 PUMP ASSY, INJECTI 22100-5B340
001. [01] 09611-00462 HOUSING SUB-ASSY, 22101-64260
002. [01] 09640-01250 HEAD SUB-ASSY, DIS 22140-54730
003. [01] 09644-00590 COVER SUB-ASSY, GO 22703-54132
004. [01] 09612-10110 SHAFT, DRIVE 22170-55130
005. [01] 09618-00050 RING SUB-ASSY, ROL 22108-54180
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
007. [01] 09627-00060 GOVERNOR ASSY, TOR 22350-54060
008. [01] 09645-00310 SHAFT SUB-ASSY, GO 22740-64820
009. [01] 09603-00520 SOLENOID ASSY, FUE 22390-6A511
009. [01] 09603-00160 SOLENOID ASSY, FUE 22390-6A510
009-001. [01] 09604-90350 O-RING 22193-5D191
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010
012. [1C] 09625-20720 SLEEVE, GOVERNOR 22316-18010
012. [1C] 09625-20710 SLEEVE, GOVERNOR 22316-17810
012. [1C] 09625-20630 SLEEVE, GOVERNOR 22316-54730
012. [1C] 09625-20290 SLEEVE, GOVERNOR 22316-54261
013. [01] 09626-50040 WASHER, FLYWEIGHT 22753-54290
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020
018. [01] 94914-02930 O-RING 90099-14049
019. [06] 09644-90110 BOLT, SOCKET 22395-56351
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
021. [04] 09643-00150 VALVE SUB-ASSY, SN 22190-6A290
022. [04] 09642-00510 VALVE SUB-ASSY, DI 22104-6A290
023. [04] 09642-70010 SPRING, DELIVERY V 22148-54010
024. [04] 09642-60070 GASKET, DELIVERY V 22149-56351
026. [01] 09623-00070 CAMPLATE SUB-ASSY, 22130-54010
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
030. [01] 09622-40040 SPRING, COUPLING 22659-64150
031. [01] 09622-20020 COUPLING 22632-54010
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
035. [01] 09614-70052 COVER, FEED PUMP 22511-58650
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
038. [01] 90577-02000 E-RING 90096-90024
039. [01] 94910-02860 BEARING, BALL 90099-10148
040. [01] 09603-90040 SEAL, 0IL 22544-64740
041. [01] 09620-10530 PISTON, TIMER 22654-54630
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
045. [01] 09621-10080 CLIP, TIMER 22656-17840
045. [01] 09621-10050 CLIP, TIMER 22656-54010
046. [01] 09621-00450 COVER SUB-ASSY, TI 22790-6A220
046-001. [01] 09621-80230 COVER, TIMER 22612-54450
046-002. [01] 09621-60040 STOPPER, TIMER SLI 22658-54450
046-003. [01] 09604-90190 O-RING 22193-64750
046-004. [01] 94905-05010 NUT, HEXAGON 90099-05225
047. [01] 09621-80020 COVER, TIMER 22612-54010
047. [01] 09621-80270 COVER, TIMER 22612-56350
048. [1C] 09620-80161 SPRING, TIMER, OUT 22615-54180
048. [1C] 09620-80220 SPRING, TIMER, OUT
048. [1C] 09620-80330 SPRING, TIMER, OUT 22615-54490
048. [1C] 09620-80341 SPRING, TIMER, OUT 22615-54500
049. [01] 09602-90930 CLIP, CONNECTOR SU 22172-54263
050. [03] 09604-90400 O-RING 22193-17840
050. [03] 94914-05820 O-RING 90099-14105
050. [03] 94914-02960 O-RING 90099-14051
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
052. [01] 09641-80020 BOLT, DISTRIBUTIVE 22128-54010
053. [03] 09642-60030 GASKET, DELIVERY V 22149-56200
053. [01] 09642-60030 GASKET, DELIVERY V 22149-56200
054. [01] 09604-90510 O-RING 90099-14052
054. [01] 94914-02970 O-RING 90099-14052
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-54010
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-54010
057. [02] 09623-60040 SPRING, PLUNGER 22144-54190
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-54010
060. [01] 94914-02980 O-RING 90099-14053
061. [01] 09604-50390 WIRE SUB-ASSY 22751-6A220
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
063. [01] 09648-00010 SMOKE SET SUB-ASSY
063-001. [01] 09604-90470 O-RING 22193-54771
063-001. [01] 94914-02900 O-RING 90099-14047
064. [01] 90166-06051 NUT, HEXAGON 90092-10608
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
068. [1C] 09628-90380 SPRING, GOVERNOR I 22317-54730
068. [1C] 09628-90540 SPRING, GOVERNOR I
069. [01] 09626-70030 SHEET, GOVERNOR SP 22369-54010
070. [01] 09602-00030 SCREW SUB-ASSY, OV 22160-64010
071. [05] 09024-10010 WASHER, AIR BLEEDE 22119-77020
072. [01] 07630-00642 PICKUP ASSY, TACHO 83180-30011
072. [01] 07630-01830 PICKUP ASSY, TACHO
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
074. [01] 09626-10910 SPRING, SPEED CONT
075. [01] 94914-02910 O-RING 90099-14048
075. [01] 09604-90300 O-RING 22193-54770
079. [01] 09644-40800 SPRING, RETURN 22322-54730
080. [1C] 09643-51310 LEVER SUB-ASSY, AD 22701-54452
080. [1C] 09643-51300 LEVER SUB-ASSY, AD 22701-54451
082. [01] 09644-60093 GASKET, GOVERNOR C 22774-54010
082. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
083. [01] 09616-00070 VALVE SUB-ASSY, RE 22180-55050
083-001. [01] 09604-90180 O-RING 22193-54561
083-002. [01] 09604-90500 O-RING
083-002. [01] 94914-02920 O-RING 90099-14080
084. [01] 09634-20010 NUT, LOCK 22775-77121
085. [01] 94918-00770 SCREW, HOLLOW 90099-18022
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
087. [05] 09644-90070 BOLT, SOCKET 22395-58200
088. [01] 94904-50180 BOLT, HEXAGON, W/ 90099-04576
089. [01] 94904-50190 BOLT, HEXAGON, W/ 90099-04946
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60500 PLUG, GOVERNOR SLE 22787-54033
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60460 PLUG, GOVERNOR SLE 22787-54029
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60440 PLUG, GOVERNOR SLE 22787-54027
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60420 PLUG, GOVERNOR SLE 22787-64643
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60400 PLUG, GOVERNOR SLE 22787-64641
094. [1C] 09625-60520 PLUG, GOVERNOR SLE 22787-64680
095. [01] 09621-40100 WASHER, TIMER SENS 22625-54277
096. [01] 09644-80111 COLLAR, SMOKE SET
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
098. [01] 94905-50300 NUT, CAP 90099-05161
102. [01] 09644-90140 BOLT, SOCKET 22395-56350
103. [01] 09621-00531 COVER SUB-ASSY, TI 22790-54730
104. [01] 09647-00331 IDLE UP SUB-ASSY 22305-54730
105. [02] 09644-90100 BOLT, SOCKET 22395-56352
107. [01] 09604-90190 O-RING 22193-64750
108. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350
109. [01] 09606-40110 WASHER 22689-56350
110. [01] 09602-90940 CLIP, CONNECTOR SU 22172-54264
111. [01] 09644-90110 BOLT, SOCKET 22395-56351
111. [01] 09644-90130 BOLT, SOCKET 22395-54263
112. [01] 94905-61680 NUT 90179-06009
113. [01] 09653-00111 FILTER, SUB-ASSY 22602-5B320
114. [01] 09604-90460 O-RING 22193-5B320
200. [02] 09642-60130 GASKET, DELIVERY V 22149-54771

Include in #3:

09600-07590 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09600-07590  22100-5B34  PUMP ASSY, INJECTI
22100-5B340    TOYOTA PUMP ASSY, INJECTI




Information:

Illustrations show fuel injection pump housing and governor removed from engines. Service work can be done with it installed on engine. 1. Remove the flange (1) and flange assembly (2) from the cover (3).2. Remove the cover from the pump housing by removing seven bolts. 3. Remove the solenoid (4) from the cover.4. Remove cover (6).5. Remove two bolts (5) that hold the cover to the shutoff housing. 6. Remove the cover from the shutoff housing (7). 7. Remove the lever (10) from the shaft (11).8. Remove the shaft (9) from the shutoff housing.9. Remove the lever (8) from the shaft (11).10. Remove the shaft (11) from the shutoff housing.11. Remove the seal (12) from the shutoff housing.Install Shutoff Housing
1. Put 5S1454 Sealing Compound on the outside diameter of the seal and install the seal (1) with tooling (A) in the shutoff housing with the lip toward the outside. The outer face of the seal must be .039 in. (1.0 mm) below the surface of the housing. Remove the extra sealing compound from the housing and the seal after installation. 2. Install the shaft (3) in the shutoff housing.3. Install the lever (5) on the shaft (3).4. Install shaft (2) in the shutoff housing.5. Install the lever (4) on shaft (3). 6. Put the cover (6) in position on the shutoff housing and install two bolts that hold the cover to the housing. 7. Install the cover (8).8. Install the solenoid (7) on the cover.9. Install the cover (6) on the pump housing.10. Install the flange assembly and the flange on the cover.
