Buy 09600-07300 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935003990
09600-07300 PUMP ASSY, INJECTI
Rating:
4
Buy PUMP ASSY, INJECTI 09600-07300 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100541

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below
Hacus - Forklift FPE293423 INJECTION PUMP 12Z Hacus Aftermarket - New
$5,205.20

28 Dec 2024
14.66[6.60] Pounds
Amazon.com
Hacus - Forklift FPE293423 INJECTION PUMP 12Z Hacus Aftermarket - New
Hacus HIGH-QUALITY CONSTRUCTION: Made with premium materials; built to withstand the demands of industrial environments; offering excellent resistance to wear; corrosion; and mechanical stress. || VERSATILE COMPATIBILITY: Engineered to fit a wide range of forklift models; making it a versatile choice for various equipment configurations. || SAFETY FIRST - FPE products are ready for use with all certifications. || LEADING THE INDUSTRY - FPE is a leader in forklift products and accessories. We take pride in making the highest quality, premium, reliable forklifts on the market. || All products tested for durability, reliability, and performance.

Components :

001. PUMP ASSY, INJECTI 09600-07300
001. PUMP ASSY, INJECTI 09600-07300
002. RING SUB-ASSY, ROL 09618-00190
002. RING SUB-ASSY, ROL 09618-00190
003. SHIM, PLUNGER ADJU 09640-60020

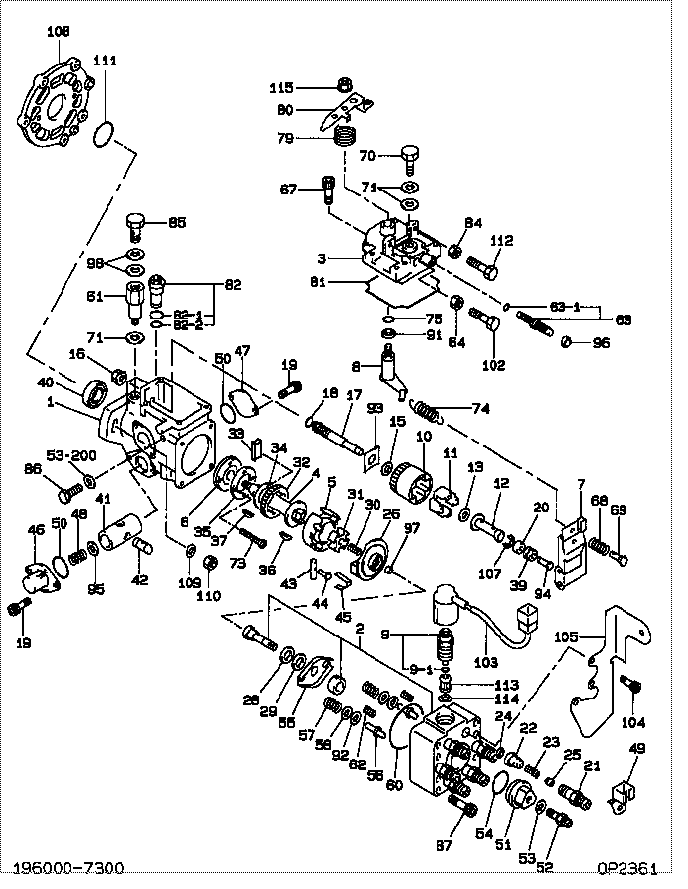

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-07300 PUMP ASSY, INJECTI 22100-78360-71
000. [01] 09600-07300 PUMP ASSY, INJECTI
001. [01] 09611-00442 HOUSING SUB-ASSY, 22301-22060-71
001. [01] 09611-00442 HOUSING SUB-ASSY, 22301-22060-71
002. [01] 09640-01210 HEAD SUB-ASSY, DIS 22140-78330-71
002. [01] 09640-01210 HEAD SUB-ASSY, DIS
003. [01] 09644-00590 COVER SUB-ASSY, GO 22703-54132
003. [01] 09644-00590 COVER SUB-ASSY, GO 22703-54132
004. [01] 09612-10090 SHAFT, DRIVE 22170-78300-71
004. [01] 09612-10090 SHAFT, DRIVE 22170-96300
005. [01] 09618-00190 RING SUB-ASSY, ROL
005. [01] 09618-00190 RING SUB-ASSY, ROL 22108-78330-71
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
007. [01] 09627-00950 GOVERNOR ASSY, TOR
007. [01] 09627-00950 GOVERNOR ASSY, TOR 22350-78360-71
008. [01] 09645-00050 SHAFT SUB-ASSY, GO 22740-21910
008. [01] 09645-00050 SHAFT SUB-ASSY, GO 22740-21910-71
009. [01] 09603-00170 SOLENOID ASSY, FUE 22390-78330-71
009. [01] 09603-00170 SOLENOID ASSY, FUE 22390-56290
009. [01] 09603-00540 SOLENOID ASSY, FUE 22390-56291
009. [01] 09603-00540 SOLENOID ASSY, FUE
009-001. [01] 09604-90350 O-RING
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010
012. [1C] 09625-20310 SLEEVE, GOVERNOR 22316-56201
012. [1C] 09625-20740 SLEEVE, GOVERNOR
012. [1C] 09625-20310 SLEEVE, GOVERNOR 22316-56201
012. [1C] 09625-20740 SLEEVE, GOVERNOR 22316-78360-71
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020
018. [01] 94914-02930 O-RING 90099-14049
018. [01] 94914-02930 O-RING 90099-14049
019. [04] 09644-90110 BOLT, SOCKET 22395-56351
019. [04] 09644-90110 BOLT, SOCKET 22395-56351
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
021. [06] 09642-50130 HOLDER, DELIVERY V 22131-54730
021. [06] 09642-50130 HOLDER, DELIVERY V 22131-54730
022. [06] 09642-00560 VALVE SUB-ASSY, DI
022. [06] 09642-00560 VALVE SUB-ASSY, DI 22104-78301-71
023. [06] 09642-70040 SPRING, DELIVERY V 22148-56350
023. [06] 09642-70040 SPRING, DELIVERY V 22148-56350
024. [06] 09642-60070 GASKET, DELIVERY V 22149-56351
024. [06] 09642-60070 GASKET, DELIVERY V 22149-56351
025. [06] 09643-30150 SEAT, SNUBBER VALV 22565-56350
025. [06] 09643-30150 SEAT, SNUBBER VALV 22565-56350
026. [01] 09623-00200 CAMPLATE SUB-ASSY,
026. [01] 09623-00200 CAMPLATE SUB-ASSY, 22130-78330-71
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
030. [01] 09622-40081 SPRING, COUPLING 22659-58650
030. [01] 09622-40081 SPRING, COUPLING 22659-78301-71
031. [01] 09622-20050 COUPLING 22632-78301-71
031. [01] 09622-20050 COUPLING 22632-56350
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
035. [01] 09614-70040 COVER, FEED PUMP 22511-54020
035. [01] 09614-70040 COVER, FEED PUMP 22511-54020
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
039. [01] 94910-02860 BEARING, BALL 90099-10148
039. [01] 94910-02860 BEARING, BALL 90099-10148
040. [01] 09603-90040 SEAL, 0IL 22544-64740
040. [01] 09603-90040 SEAL, 0IL 22544-64740
041. [01] 09620-10370 PISTON, TIMER
041. [01] 09620-10370 PISTON, TIMER 22654-78201-71
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010
045. [01] 09621-10080 CLIP, TIMER 22656-17840
045. [01] 09621-10050 CLIP, TIMER 22656-54010
045. [01] 09621-10080 CLIP, TIMER 22656-17840
045. [01] 09621-10050 CLIP, TIMER 22656-54010
046. [01] 09621-80040 COVER, TIMER 22612-54020
046. [01] 09621-80040 COVER, TIMER 22612-54020
047. [01] 09621-80270 COVER, TIMER 22612-56350
047. [01] 09621-80020 COVER, TIMER 22612-54010
047. [01] 09621-80270 COVER, TIMER 22612-56350
047. [01] 09621-80020 COVER, TIMER 22612-54010
048. [1C] 09620-80410 SPRING, TIMER, OUT
048. [1C] 09620-81080 SPRING, TIMER, OUT
048. [1C] 09620-80410 SPRING, TIMER, OUT 22615-78300-71
048. [1C] 09620-80420 SPRING, TIMER, OUT 22615-78760-71
048. [1C] 09620-81080 SPRING, TIMER, OUT
048. [1C] 09620-80420 SPRING, TIMER, OUT
049. [01] 09602-90020 CLIP, CONNECTOR SU 22172-54020
049. [01] 09602-90020 CLIP, CONNECTOR SU 22172-54020
050. [02] 09604-90400 O-RING 22193-17840
050. [02] 94914-02960 O-RING 90099-14051
050. [02] 94914-05820 O-RING 90099-14105
050. [02] 94914-02960 O-RING 90099-14051
050. [02] 94914-05820 O-RING 90099-14105
050. [02] 09604-90400 O-RING 22193-17840
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
052. [01] 09641-80050 BOLT, DISTRIBUTIVE 22128-54580
052. [01] 09641-80050 BOLT, DISTRIBUTIVE 22128-54580
053. [03] 09642-60030 GASKET, DELIVERY V 22149-56200
053. [03] 09642-60030 GASKET, DELIVERY V 22149-56200
053. [01] 09642-60030 GASKET, DELIVERY V 22149-56200
054. [01] 94914-02970 O-RING 90099-14052
054. [01] 09604-90510 O-RING 22193-54772
054. [01] 94914-02970 O-RING 90099-14052
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-54010
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-54010
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-54010
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-54010
057. [02] 09623-60030 SPRING, PLUNGER 22144-54180
057. [02] 09623-60030 SPRING, PLUNGER 22144-54180
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-54010
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-54010
060. [01] 94914-02980 O-RING 90099-14053
060. [01] 94914-02980 O-RING 90099-14053
061. [01] 09022-10180 UNION, INJECTION P 22127-21910-71
061. [01] 09022-10180 UNION, INJECTION P 22127-21910-71
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
063. [01] 09648-00020 SMOKE SET SUB-ASSY
063. [01] 09648-00020 SMOKE SET SUB-ASSY
063-001. [01] 94914-02900 O-RING 90099-14047
063-001. [01] 09604-90470 O-RING 22193-54771
064. [01] 90166-06051 NUT, HEXAGON 90092-10608
064. [01] 90166-06051 NUT, HEXAGON 22138-73500-71
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
068. [01] 09628-90060 SPRING, GOVERNOR I 22317-6A210
068. [01] 09628-90060 SPRING, GOVERNOR I 22317-6A210
069. [01] 09626-70030 SHEET, GOVERNOR SP 22369-54010
069. [01] 09626-70030 SHEET, GOVERNOR SP 22369-54010
070. [01] 09602-00100 SCREW SUB-ASSY, OV 22160-96300
070. [01] 09602-00100 SCREW SUB-ASSY, OV 22160-78300-71
071. [03] 09024-10010 WASHER, AIR BLEEDE 22119-77020
071. [03] 09024-10010 WASHER, AIR BLEEDE 22191-73600-71
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
074. [01] 09626-10410 SPRING, SPEED CONT 22726-78300-71
074. [01] 09626-10410 SPRING, SPEED CONT 22726-96300
075. [01] 09604-90300 O-RING 22193-54770
075. [01] 94914-02910 O-RING 90099-14048
075. [01] 09604-90300 O-RING 22193-54770
075. [01] 94914-02910 O-RING 90099-14048
079. [01] 09644-40011 SPRING, RETURN 22322-54010
079. [01] 09644-40011 SPRING, RETURN 22322-54010
080. [1C] 09643-61980 LEVER, ADJUSTING 22708-96301
080. [1C] 09643-61980 LEVER, ADJUSTING 22708-78301-71
080. [1C] 09643-61970 LEVER, ADJUSTING 22708-96300
080. [1C] 09643-61970 LEVER, ADJUSTING 22708-78300-71
081. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
081. [01] 09644-60093 GASKET, GOVERNOR C 22774-54010
081. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
081. [01] 09644-60093 GASKET, GOVERNOR C 22774-54010
082. [01] 09616-00030 VALVE SUB-ASSY, RE 22180-54010
082. [01] 09616-00030 VALVE SUB-ASSY, RE 22180-54010
082-001. [01] 09604-90180 O-RING 22193-54561
082-001. [01] 09604-90180 O-RING 22193-54561
082-002. [01] 94914-02920 O-RING
082-002. [01] 94914-02920 O-RING 90099-14080
082-002. [01] 09604-90500 O-RING
084. [01] 09634-20010 NUT, LOCK 22775-77121
084. [01] 09634-20010 NUT, LOCK 22775-77121
085. [01] 94918-00310 SCREW, HOLLOW 90099-18010
085. [01] 94918-00310 SCREW, HOLLOW 90099-18010
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
087. [04] 09644-90070 BOLT, SOCKET 22395-58200
087. [04] 09644-90070 BOLT, SOCKET 22395-58200
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80260 SHIM, PLUNGER SPRI
092. [2C] 09624-80250 SHIM, PLUNGER SPRI
092. [2C] 09624-80240 SHIM, PLUNGER SPRI
092. [2C] 09624-80230 SHIM, PLUNGER SPRI
092. [2C] 09624-80270 SHIM, PLUNGER SPRI
092. [2C] 09624-80270 SHIM, PLUNGER SPRI
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80230 SHIM, PLUNGER SPRI
092. [2C] 09624-80240 SHIM, PLUNGER SPRI
092. [2C] 09624-80250 SHIM, PLUNGER SPRI
092. [2C] 09624-80260 SHIM, PLUNGER SPRI
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
094. [1C] 09625-60750 PLUG, GOVERNOR SLE 22787-17145
094. [1C] 09625-60760 PLUG, GOVERNOR SLE 22787-17146
094. [1C] 09625-60770 PLUG, GOVERNOR SLE 22787-17147
094. [1C] 09625-60780 PLUG, GOVERNOR SLE 22787-17148
094. [1C] 09625-60790 PLUG, GOVERNOR SLE 22787-17149
094. [1C] 09625-60800 PLUG, GOVERNOR SLE 22787-17150
094. [1C] 09625-60810 PLUG, GOVERNOR SLE 22787-17151
094. [1C] 09625-60820 PLUG, GOVERNOR SLE 22787-17152
094. [1C] 09625-60830 PLUG, GOVERNOR SLE 22787-56350
094. [1C] 09625-60840 PLUG, GOVERNOR SLE 22787-56351
094. [1C] 09625-60670 PLUG, GOVERNOR SLE 22787-54036
094. [1C] 09625-60650 PLUG, GOVERNOR SLE 22787-54035
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60580 PLUG, GOVERNOR SLE 22787-64663
094. [1C] 09625-60600 PLUG, GOVERNOR SLE 22787-64665
094. [1C] 09625-60620 PLUG, GOVERNOR SLE 22787-64667
094. [1C] 09625-60530 PLUG, GOVERNOR SLE 22787-54034
094. [1C] 09625-60650 PLUG, GOVERNOR SLE 22787-54035
094. [1C] 09625-60840 PLUG, GOVERNOR SLE 22787-56351
094. [1C] 09625-60830 PLUG, GOVERNOR SLE 22787-56350
094. [1C] 09625-60820 PLUG, GOVERNOR SLE 22787-17152
094. [1C] 09625-60810 PLUG, GOVERNOR SLE 22787-17151
094. [1C] 09625-60620 PLUG, GOVERNOR SLE 22787-64667
094. [1C] 09625-60670 PLUG, GOVERNOR SLE 22787-54036
094. [1C] 09625-60750 PLUG, GOVERNOR SLE 22787-17145
094. [1C] 09625-60760 PLUG, GOVERNOR SLE 22787-17146
094. [1C] 09625-60770 PLUG, GOVERNOR SLE 22787-17147
094. [1C] 09625-60600 PLUG, GOVERNOR SLE 22787-64665
094. [1C] 09625-60580 PLUG, GOVERNOR SLE 22787-64663
094. [1C] 09625-60530 PLUG, GOVERNOR SLE 22787-54034
094. [1C] 09625-60800 PLUG, GOVERNOR SLE 22787-17150
094. [1C] 09625-60780 PLUG, GOVERNOR SLE 22787-17148
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60790 PLUG, GOVERNOR SLE 22787-17149
095. [01] 09621-40100 WASHER, TIMER SENS 22625-54277
095. [01] 09621-40100 WASHER, TIMER SENS 22625-54277
096. [01] 09644-80111 COLLAR, SMOKE SET
096. [01] 09644-80111 COLLAR, SMOKE SET 22749-54020
097. [1C] 09640-60150 SHIM, PLUNGER ADJU 22179-17020
097. [1C] 09640-60130 SHIM, PLUNGER ADJU 22179-17018
097. [1C] 09640-60120 SHIM, PLUNGER ADJU 22179-54012
097. [1C] 09640-60370 SHIM, PLUNGER ADJU 22179-54017
097. [1C] 09640-60100 SHIM, PLUNGER ADJU 22179-17016
097. [1C] 09640-60090 SHIM, PLUNGER ADJU 22179-17015
097. [1C] 09640-60140 SHIM, PLUNGER ADJU 22179-17019
097. [1C] 09640-60160 SHIM, PLUNGER ADJU 22179-17021
097. [1C] 09640-60280 SHIM, PLUNGER ADJU 22179-17030
097. [1C] 09640-60290 SHIM, PLUNGER ADJU 22179-17031
097. [1C] 09640-60300 SHIM, PLUNGER ADJU 22179-17032
097. [1C] 09640-60310 SHIM, PLUNGER ADJU 22179-17033
097. [1C] 09640-60320 SHIM, PLUNGER ADJU 22179-54016
097. [1C] 09640-60330 SHIM, PLUNGER ADJU 22179-17034
097. [1C] 09640-60340 SHIM, PLUNGER ADJU 22179-17035
097. [1C] 09640-60350 SHIM, PLUNGER ADJU 22179-17036
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60260 SHIM, PLUNGER ADJU 22179-17029
097. [1C] 09640-60250 SHIM, PLUNGER ADJU 22179-17028
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60180 SHIM, PLUNGER ADJU 22179-17022
097. [1C] 09640-60190 SHIM, PLUNGER ADJU 22179-17023
097. [1C] 09640-60200 SHIM, PLUNGER ADJU 22179-17024
097. [1C] 09640-60210 SHIM, PLUNGER ADJU 22179-17025
097. [1C] 09640-60220 SHIM, PLUNGER ADJU 22179-54014
097. [1C] 09640-60230 SHIM, PLUNGER ADJU 22179-17026
097. [1C] 09640-60240 SHIM, PLUNGER ADJU 22179-17027
097. [1C] 09640-60360 SHIM, PLUNGER ADJU 22179-17037
097. [1C] 09640-60080 SHIM, PLUNGER ADJU 22179-17014
097. [1C] 09640-60070 SHIM, PLUNGER ADJU 22179-54011
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
097. [1C] 09640-60430 SHIM, PLUNGER ADJU 22179-17042
097. [1C] 09640-60440 SHIM, PLUNGER ADJU 22179-17043
097. [1C] 09640-60450 SHIM, PLUNGER ADJU 22179-17044
097. [1C] 09640-60460 SHIM, PLUNGER ADJU 22179-17045
097. [1C] 09640-60470 SHIM, PLUNGER ADJU 22179-54019
097. [1C] 09640-60480 SHIM, PLUNGER ADJU 22179-17046
097. [1C] 09640-60490 SHIM, PLUNGER ADJU 22179-17047
097. [1C] 09640-60500 SHIM, PLUNGER ADJU 22179-17048
097. [1C] 09640-60510 SHIM, PLUNGER ADJU 22179-17049
097. [1C] 09640-60110 SHIM, PLUNGER ADJU 22179-17017
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60410 SHIM, PLUNGER ADJU 22179-17041
097. [1C] 09640-60400 SHIM, PLUNGER ADJU 22179-17040
097. [1C] 09640-60060 SHIM, PLUNGER ADJU 22179-17013
097. [1C] 09640-60050 SHIM, PLUNGER ADJU 22179-17012
097. [1C] 09640-60040 SHIM, PLUNGER ADJU 22179-17011
097. [1C] 09640-60030 SHIM, PLUNGER ADJU 22179-17010
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60380 SHIM, PLUNGER ADJU 22179-17038
097. [1C] 09640-60390 SHIM, PLUNGER ADJU 22179-17039
098. [02] 09022-20070 WASHER, FUEL PIPE 94712-77121
098. [02] 09022-20070 WASHER, FUEL PIPE 94712-77121
102. [01] 94904-50180 BOLT, HEXAGON, W/ 90099-04576
102. [01] 94904-50180 BOLT, HEXAGON, W/ 90099-04576
103. [01] 09604-50070 WIRE SUB-ASSY 22751-54150
103. [01] 09604-50070 WIRE SUB-ASSY 22751-54150
104. [03] 09644-90130 BOLT, SOCKET 22395-54263
104. [03] 09644-90130 BOLT, SOCKET 22395-54263
105. [01] 09643-81850 BRACKET, IDLE UP 22178-78330-71
105. [01] 09643-81850 BRACKET, IDLE UP
107. [01] 90577-02000 E-RING 90096-90024
107. [01] 90577-02000 E-RING 90096-90024
108. [01] 09006-00280 COVER SUB-ASSY, TI 22661-78300-71
108. [01] 09006-00280 COVER SUB-ASSY, TI
109. [02] 94901-11480 WASHER, STEEL PLAT 90099-01477
109. [02] 94901-11480 WASHER, STEEL PLAT 90099-01477
110. [02] 94905-64200 NUT
110. [02] 90190-08651 NUT, HEXAGON 94110-40800
110. [02] 90190-08651 NUT, HEXAGON 94110-40800
110. [02] 94905-64200 NUT 90179-08022
111. [01] 09604-90430 O-RING
111. [01] 90804-20500 O-RING 96732-24050
111. [01] 90804-20500 O-RING
111. [01] 09604-90430 O-RING 22193-78780-71
112. [01] 94904-50190 BOLT, HEXAGON, W/ 90099-04946
112. [01] 94904-50190 BOLT, HEXAGON, W/ 90099-04946
113. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350-A
113. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350
114. [01] 09606-40110 WASHER 22689-56350
114. [01] 09606-40110 WASHER 22689-56350
115. [01] 94905-61680 NUT 90179-06009
115. [01] 94905-61680 NUT 90179-06009
200. [02] 09642-60130 GASKET, DELIVERY V

Include in #3:

09600-07300 as PUMP ASSY, INJECTI
09600-07300

Cross reference number



Part num Firm num Firm Name
09600-07300  22100-7836  PUMP ASSY, INJECTI
22100-78360-71    TICO PUMP ASSY, INJECTI




Information:

Start By:a. remove oil pumpb. remove oil pan plate 1. Turn the crankshaft until two pistons are at the bottom center. Remove connecting rod caps (1) from the two connecting rods. Remove the lower half of the rod bearing from the rod bearing cap.2. Push the connecting rods away from the crankshaft. Remove the upper half of the rod bearing from the connecting rod. Install the connecting rod bearings dry when the clearance checks are made. Put clean engine oil on the connecting rod bearings for final assembly.3. Install the upper half of the rod bearing in the connecting rod.4. Install the lower half of the rod bearing in the connecting rod cap. Be sure the tabs in the back of the connecting rod bearings are in the tab grooves of the connecting rod and cap. 5. Use Plastigage (A) to check the connecting rod bearing clearance.6. Put Plastigage (A) on the connecting rod bearing.7. Put 2P2506 Thread Lubricant on the threads of the rod bolts and seat surfaces of the nuts.
When connecting rod caps are installed, make sure the number on the side of the cap is next to and respective with the number on the side of the connecting rod.
Do not turn the crankshaft when Plastigage (A) is in position.
Do not use an impact wrench to tighten the nuts the additional 90°.
8. Install connecting rod cap (1). Install the nuts. Tighten the nuts to a torque of 40 4 N m (30 3 lb ft). Put a mark on each nut and the end of each bolt. Tighten the nuts 90° more. Remove the connecting rod caps. Remove Plastigage (A) and measure the width of the Plastigage. The connecting rod clearance must be 0.076 to 0.168 mm (.0030 to .0066 in) for new bearings. The maximum clearance with used bearings is 0.25 mm (.010 in).9. Install the connecting rod caps and tighten the nuts as in Step 8.10. Do Steps 1 through 9 for the remainder of the connecting rod bearings.End By:a. install oil pan plateb. install oil pump

Have questions with 09600-07300?





09614-00070 PUMP SUB-ASSY, FUE 09614-00060 09614-00040 09614-00030 09614-00020
01700061 PUMP ASSY, FUEL FE 01705213 PUMP ASSY, INJECTI 01705223 01705242 01705252

Group cross 09600-07300

Back to top
