09600-07250 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935004950
09600-07250 PUMP ASSY, INJECTI
Rating:
25
Buy PUMP ASSY, INJECTI 09600-07250 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100541

Components :

001. PUMP ASSY, INJECTI 09600-07250
002. RING SUB-ASSY, ROL 09618-00150

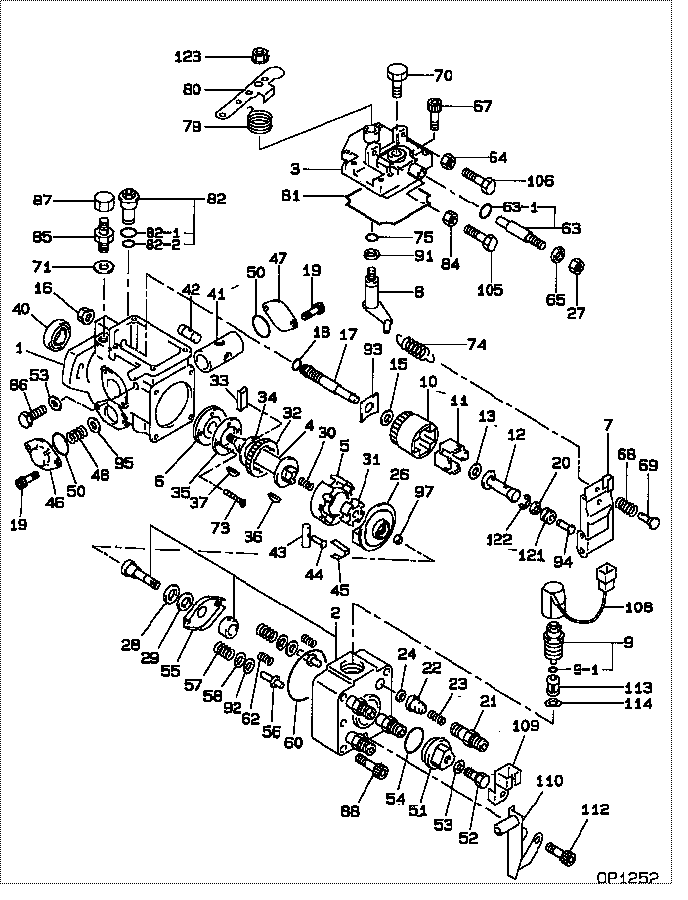

Scheme ###:

000. [01] 09600-07250 PUMP ASSY, INJECTI 62027-31111
001. [01] 09611-00372 HOUSING SUB-ASSY,
002. [01] 09640-01220 HEAD SUB-ASSY, DIS
003. [01] 09644-00080 COVER SUB-ASSY, GO
003. [01] 09644-00120 COVER SUB-ASSY, GO
004. [01] 09612-10070 SHAFT, DRIVE
005. [01] 09618-00150 RING SUB-ASSY, ROL
006. [01] 09614-00030 PUMP SUB-ASSY, FUE
007. [01] 09627-00940 GOVERNOR ASSY, TOR 09627-00940
008. [01] 09645-00050 SHAFT SUB-ASSY, GO
009. [01] 09603-00160 SOLENOID ASSY, FUE
009. [01] 09603-00520 SOLENOID ASSY, FUE
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F
011. [04] 09626-30030 FLYWEIGHT, DISTRIB
012. [01] 09625-20230 SLEEVE, GOVERNOR
013. [01] 09626-50030 WASHER, FLYWEIGHT
015. [01] 09626-50020 WASHER, FLYWEIGHT
016. [01] 09625-40050 NUT, GOVERNOR SHAF
017. [01] 09625-10020 SHAFT, GOVERNOR MA
018. [01] 94914-02930 O-RING
019. [04] 09644-90110 BOLT, SOCKET
020. [01] 09625-50020 RING, GOVERNOR SLE
021. [04] 09643-00150 VALVE SUB-ASSY, SN
022. [04] 09642-00510 VALVE SUB-ASSY, DI
023. [04] 09642-70010 SPRING, DELIVERY V
024. [04] 09642-60070 GASKET, DELIVERY V
026. [01] 09623-00130 CAMPLATE SUB-ASSY,
027. [01] 94905-30200 NUT, HEXAGON, W/ H 94905-30200
028. [01] 09624-50020 PLATE, PLUNGER, LW
029. [01] 09624-40040 PLATE, PLUNGER, UP
030. [01] 09622-40040 SPRING, COUPLING
031. [01] 09622-20020 COUPLING
032. [01] 09612-40030 GEAR, GOVERNOR DRI
033. [02] 09612-60020 JOINT, RUBBER
034. [01] 09612-50010 WASHER, DRIVE SHAF
035. [01] 09614-70040 COVER, FEED PUMP
036. [01] 94913-00260 KEY, WOODRUFF
037. [01] 94913-00300 KEY, WOODRUFF
040. [01] 09603-90040 SEAL, 0IL
041. [01] 09620-10100 PISTON, TIMER
042. [01] 09621-30020 SUB-PISTON, TIMER
043. [01] 09620-50020 PIN, TIMER SLIDE
044. [01] 09621-60020 STOPPER, TIMER SLI
044. [01] 09621-60120 STOPPER, TIMER SLI
045. [01] 09621-10050 CLIP, TIMER
045. [01] 09621-10080 CLIP, TIMER
046. [01] 09621-80040 COVER, TIMER
047. [01] 09621-80020 COVER, TIMER
047. [01] 09621-80270 COVER, TIMER
048. [1C] 09620-80120 SPRING, TIMER, OUT
048. [1C] 09620-80161 SPRING, TIMER, OUT
048. [1C] 09620-80180 SPRING, TIMER, OUT
050. [02] 94914-02960 O-RING
050. [02] 94914-05820 O-RING
050. [02] 09604-90400 O-RING
051. [01] 09641-70040 PLUG, DISTRIBUTIVE
052. [01] 09641-80050 BOLT, DISTRIBUTIVE
053. [03] 09642-60030 GASKET, DELIVERY V
053. [01] 09642-60030 GASKET, DELIVERY V
054. [01] 94914-02970 O-RING
054. [01] 09604-90510 O-RING
055. [01] 09624-70010 SHEET, PLUNGER SPR
056. [02] 09623-70010 GUIDE SUB-ASSY, PL
057. [02] 09623-60030 SPRING, PLUNGER
058. [02] 09624-60010 SHEET, PLUNGER SPR
060. [01] 94914-02980 O-RING
062. [02] 09627-90010 SPRING, LEVER SUPP
063. [01] 09648-00030 SMOKE SET SUB-ASSY
063-001. [01] 94914-02900 O-RING
063-001. [01] 09604-90470 O-RING
064. [01] 90166-06051 NUT, HEXAGON
065. [01] 90200-08211 WASHER, PLATE
067. [04] 09644-90020 BOLT, SOCKET
068. [01] 09628-90060 SPRING, GOVERNOR I
069. [01] 09626-70030 SHEET, GOVERNOR SP
070. [01] 09602-00030 SCREW SUB-ASSY, OV
071. [01] 09024-10010 WASHER, AIR BLEEDE 09024-10010
073. [02] 94900-20420 SCREW, COUNTERSUNK
074. [01] 09626-10410 SPRING, SPEED CONT
075. [01] 09604-90300 O-RING
075. [01] 94914-02910 O-RING
079. [01] 09644-40043 SPRING, RETURN
080. [1C] 09643-61170 LEVER, ADJUSTING
080. [1C] 09643-61180 LEVER, ADJUSTING
081. [01] 09644-60100 GASKET, GOVERNOR C
081. [01] 09644-60093 GASKET, GOVERNOR C
082. [01] 09616-00070 VALVE SUB-ASSY, RE
082-001. [01] 09604-90180 O-RING
082-002. [01] 94914-02920 O-RING
082-002. [01] 09604-90500 O-RING
084. [01] 09634-20010 NUT, LOCK 09634-20010
085. [01] 94918-00770 SCREW, HOLLOW
086. [02] 09626-90020 BOLT, GOVERNOR LIN
087. [01] 94905-50300 NUT, CAP
088. [04] 09644-90070 BOLT, SOCKET
091. [01] 09627-30140 WASHER, GOVERNOR T
091. [01] 09627-30060 WASHER, GOVERNOR T
092. [1C] 09624-80220 SHIM, PLUNGER SPRI
092. [2C] 09624-80110 SHIM, PLUNGER SPRI
092. [2C] 09624-80100 SHIM, PLUNGER SPRI
092. [2C] 09624-80090 SHIM, PLUNGER SPRI
092. [2C] 09624-80080 SHIM, PLUNGER SPRI
092. [2C] 09624-80070 SHIM, PLUNGER SPRI
092. [2C] 09624-80060 SHIM, PLUNGER SPRI
092. [2C] 09624-80050 SHIM, PLUNGER SPRI
092. [2C] 09624-80040 SHIM, PLUNGER SPRI
092. [2C] 09624-80030 SHIM, PLUNGER SPRI
092. [2C] 09624-80020 SHIM, PLUNGER SPRI
092. [2C] 09624-80010 SHIM, PLUNGER SPRI
093. [1C] 09626-60180 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G
093. [1C] 09626-60110 WASHER, GOVERNOR G
093. [1C] 09626-60120 WASHER, GOVERNOR G
093. [1C] 09626-60130 WASHER, GOVERNOR G
093. [1C] 09626-60140 WASHER, GOVERNOR G
094. [1C] 09625-60830 PLUG, GOVERNOR SLE
094. [1C] 09625-60820 PLUG, GOVERNOR SLE
094. [1C] 09625-60810 PLUG, GOVERNOR SLE
094. [1C] 09625-60800 PLUG, GOVERNOR SLE
094. [1C] 09625-60790 PLUG, GOVERNOR SLE 09625-60790
094. [1C] 09625-60780 PLUG, GOVERNOR SLE
094. [1C] 09625-60770 PLUG, GOVERNOR SLE
094. [1C] 09625-60760 PLUG, GOVERNOR SLE
094. [1C] 09625-60750 PLUG, GOVERNOR SLE
094. [1C] 09625-60700 PLUG, GOVERNOR SLE
095. [01] 09621-40100 WASHER, TIMER SENS
097. [1C] 09640-60520 SHIM, PLUNGER ADJU
097. [1C] 09640-60420 SHIM, PLUNGER ADJU
097. [1C] 09640-60270 SHIM, PLUNGER ADJU
097. [1C] 09640-60170 SHIM, PLUNGER ADJU
097. [1C] 09640-60020 SHIM, PLUNGER ADJU
105. [01] 94904-50190 BOLT, HEXAGON, W/
106. [01] 94904-50180 BOLT, HEXAGON, W/
108. [01] 09604-50060 WIRE SUB-ASSY
109. [01] 09602-90140 CLIP, CONNECTOR SU
110. [01] 09643-80901 BRACKET, IDLE UP
112. [02] 09644-90140 BOLT, SOCKET
113. [01] 09653-00071 FILTER, SUB-ASSY
114. [01] 09606-40110 WASHER
121. [01] 94910-02860 BEARING, BALL
122. [01] 90577-02000 E-RING
123. [01] 94905-61680 NUT
200. [02] 09642-60130 GASKET, DELIVERY V

Include in #3:

09600-07250 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09600-07250  62027-3111  PUMP ASSY, INJECTI
62027-31111    KOMATSU PUMP ASSY, INJECTI
