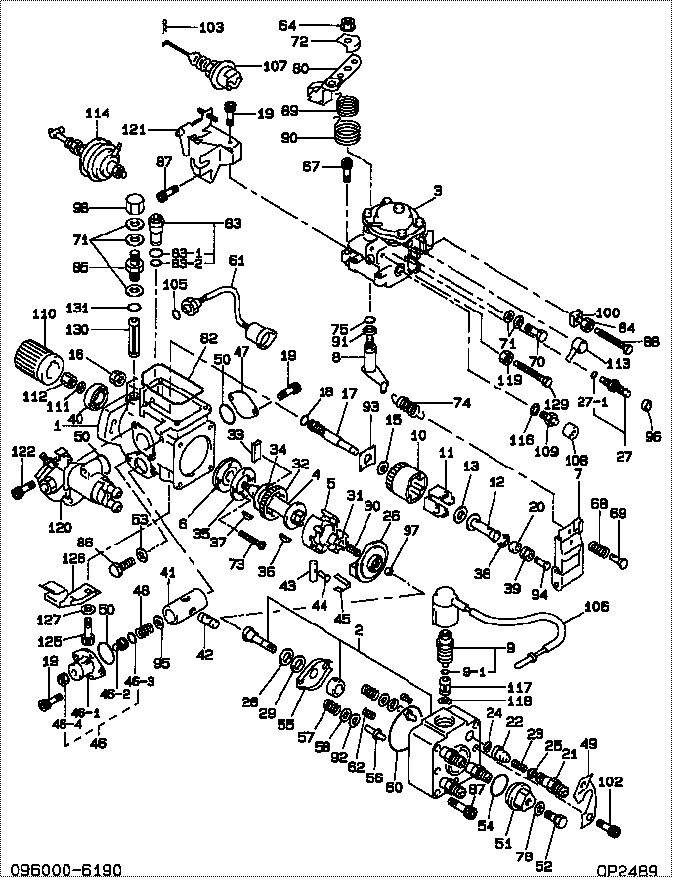

09600-06190 PUMP ASSY, INJECTI Denso Cross

13Dec2012
(Revised 30May2013)
H342
L100
L310
N014
N020
N025
N026
N030
N050
N070
N071
N083
N090
N120
N124
N140
N170
N172
N173
N176
N182
N184
N187
N18C
N600
Before/After
(Limited distribution)
PRODUCT SUPPORT PROGRAM FOR INSTALLING A NEW DIESEL PARTICULATE FILTER PRESSURE LINES GROUP, ENGINE COOLING FAN BYPASS ATTACHMENT, AND FLASHING NEW ENGINE SOFTWARE ON CERTAIN D8T TRACK-TYPE TRACTORS
1902 7620 108F 1718 1924 1923 1925 1916 1917 1408 1050 108D 5264 1356 1386 1387 5057 PS43798
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS43798" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 13Dec2012 (Revised 06Feb2013) Service Letter. Changes have been made to the Affected Product, Parts Needed, and Service Claim Allowances.
TERMINATION DATE
31Dec2014
PROBLEM
In cold weather operation, the existing Diesel Particulate Filter (DPF) pressure lines may become restricted due to the freezing of the condensation in the lines. This may result in diagnostic and event codes that can disable the DPF regeneration system. Additionally, some engine software strategies related to DPF regeneration performance were not optimized for cold weather operation.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
D8T FCT00260, 273, 275, 299
MLN00281, 333-334, 349, 351, 392, 402, 429-430, 499, 523, 530-532, 543, 545, 547, 565-571, 643-644, 655, 702, 710, 726-728, 737, 1507-1508, 1535, 1546-1549, 1551, 1555, 1565, 1582-1585, 1605-1606, 1614, 1616-1618, 1622, 1628, 1637, 1645-1646, 1657-1660, 1672-1673, 1694-1697, 1704-1720, 1743-1744, 1748
*******Group 2*******
D8T FCT00156, 290, 309, 341
MLN00381, 383, 444, 554, 616, 666, 1556-1558, 1607, 1619, 1641, 1661, 1663-1664, 1684, 1766-1768
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
3 1K4649 SPACER
