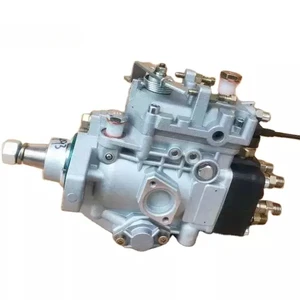

09600-04851 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

09600-04851 PUMP ASSY, INJECTI
Rating:
36
Buy PUMP ASSY, INJECTI 09600-04851 genuine, new aftermarket engine parts with delivery

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-04851 PUMP ASSY, INJECTI 22100-54770
001. [01] 09611-00401 HOUSING SUB-ASSY, 22101-64230
001. [01] 09611-00562 HOUSING SUB-ASSY, 22101-54770
002. [01] 09640-01250 HEAD SUB-ASSY, DIS 22140-54730
003. [01] 09644-00590 COVER SUB-ASSY, GO 22703-54132
004. [01] 09612-10310 SHAFT, DRIVE 22170-5B170
004. [01] 09612-10110 SHAFT, DRIVE 22170-55130
004. [01] 09612-10100 SHAFT, DRIVE 22170-6A510
005. [01] 09618-00020 RING SUB-ASSY, ROL 22108-54010
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
007. [01] 09627-00060 GOVERNOR ASSY, TOR 22350-54060
008. [01] 09645-00180 SHAFT SUB-ASSY, GO 22740-54320
009. [01] 09603-00160 SOLENOID ASSY, FUE 22390-6A510
009. [01] 09603-00520 SOLENOID ASSY, FUE 22390-6A511
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010
012. [1C] 09625-20640 SLEEVE, GOVERNOR 22316-5B060
012. [1C] 09625-20480 SLEEVE, GOVERNOR 22316-54630
012. [1C] 09625-20471 SLEEVE, GOVERNOR 22316-54750
013. [01] 09626-50040 WASHER, FLYWEIGHT 22753-54290
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020
018. [01] 94914-02930 O-RING 90099-14049
019. [04] 91518-06161 BOLT, W/WASHER 90091-20611
019. [04] 09644-90110 BOLT, SOCKET 22395-56351
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
021. [04] 09643-00050 VALVE SUB-ASSY, SN 22190-64740
021. [04] 09643-00150 VALVE SUB-ASSY, SN 22190-6A290
022. [04] 09642-00120 VALVE SUB-ASSY, DI 22104-64010
022. [04] 09642-00510 VALVE SUB-ASSY, DI 22104-6A290
023. [04] 09642-70010 SPRING, DELIVERY V 22148-54010
024. [04] 09642-60020 GASKET, DELIVERY V 22149-54010
024. [04] 09642-60070 GASKET, DELIVERY V 22149-56351
026. [01] 09623-00070 CAMPLATE SUB-ASSY, 22130-54010
027. [01] 09606-40220 WASHER 22689-5B170
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
030. [01] 09622-40040 SPRING, COUPLING 22659-64150
030. [01] 09622-50010 SPACER, COUPLING 90099-70002
031. [01] 09622-20020 COUPLING 22632-54010
031. [01] 09622-20110 COUPLING 22632-5B170
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
035. [01] 09614-70052 COVER, FEED PUMP 22511-58650
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
038. [01] 90577-02000 E-RING 90096-90024
039. [01] 94910-02860 BEARING, BALL 90099-10148
040. [01] 09603-90040 SEAL, 0IL 22544-64740
041. [01] 09620-10570 PISTON, TIMER 22654-54770
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010
045. [01] 09621-10050 CLIP, TIMER 22656-54010
045. [01] 09621-10080 CLIP, TIMER 22656-17840
046. [01] 09621-00450 COVER SUB-ASSY, TI 22790-6A220
046-001. [01] 09621-80230 COVER, TIMER 22612-54450
046-002. [01] 09621-60040 STOPPER, TIMER SLI 22658-54450
046-003. [01] 09604-90190 O-RING 22193-64750
046-004. [01] 94905-05010 NUT, HEXAGON 90099-05225
047. [01] 09621-80020 COVER, TIMER 22612-54010
047. [01] 09621-80270 COVER, TIMER 22612-56350
048. [1C] 09620-80520 SPRING, TIMER, OUT 22615-54730
048. [1C] 09620-80330 SPRING, TIMER, OUT 22615-54490
048. [1C] 09620-80161 SPRING, TIMER, OUT 22615-54180
049. [01] 09602-90930 CLIP, CONNECTOR SU 22172-54263
050. [02] 94914-02960 O-RING 90099-14051
050. [02] 94914-05820 O-RING 90099-14105
050. [02] 09604-90400 O-RING 22193-17840
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
052. [01] 09641-80020 BOLT, DISTRIBUTIVE 22128-54010
053. [03] 09642-60030 GASKET, DELIVERY V 22149-56200
053. [01] 09642-60030 GASKET, DELIVERY V 22149-56200
054. [01] 09604-90510 O-RING 22193-54772
054. [01] 94914-02970 O-RING 90099-14052
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-54010
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-54010
057. [02] 09623-60040 SPRING, PLUNGER 22144-54190
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-54010
060. [01] 94914-02980 O-RING 90099-14053
061. [01] 09604-50401 WIRE SUB-ASSY 22751-54311
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
063. [01] 09648-00010 SMOKE SET SUB-ASSY
063-001. [01] 09604-90470 O-RING 22193-54771
063-001. [01] 94914-02900 O-RING 90099-14047
064. [01] 90160-06051 NUT, HEXAGON 90092-10101
064. [01] 90166-06051 NUT, HEXAGON 90092-10608
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
068. [1C] 09628-90750 SPRING, GOVERNOR I 22317-5B790
068. [1C] 09628-90480 SPRING, GOVERNOR I 22317-54870
068. [1C] 09628-90160 SPRING, GOVERNOR I 22317-54470
069. [01] 09626-70030 SHEET, GOVERNOR SP 22369-54010
070. [01] 09602-00030 SCREW SUB-ASSY, OV 22160-64010
071. [05] 09024-10010 WASHER, AIR BLEEDE 22119-77020
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
074. [01] 09626-10170 SPRING, SPEED CONT 22726-64010
075. [01] 09604-90300 O-RING 22193-54770
075. [01] 94914-02910 O-RING 90099-14048
077. [01] 90258-06001 WASHER, SPRING 94511-00600
078. [01] 09626-90060 BOLT, GOVERNOR LIN
078. [01] 09626-90070 BOLT, GOVERNOR LIN 22739-6D480
079. [01] 09644-40800 SPRING, RETURN 22322-54730
080. [1C] 09643-51310 LEVER SUB-ASSY, AD 22701-54452
080. [1C] 09643-51300 LEVER SUB-ASSY, AD 22701-54451
082. [01] 09644-60093 GASKET, GOVERNOR C 22774-54010
082. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
083. [01] 09616-00070 VALVE SUB-ASSY, RE 22180-55050
083-001. [01] 09604-90180 O-RING 22193-54561
083-002. [01] 94914-02920 O-RING 90099-14080
083-002. [01] 09604-90500 O-RING
084. [01] 09634-20010 NUT, LOCK 22775-77121
085. [01] 94918-00770 SCREW, HOLLOW 90099-18022
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
087. [04] 09644-90070 BOLT, SOCKET 22395-58200
088. [01] 94904-50180 BOLT, HEXAGON, W/ 90099-04576
089. [01] 94904-50190 BOLT, HEXAGON, W/ 90099-04946
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
094. [1C] 09625-60520 PLUG, GOVERNOR SLE 22787-64680
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60500 PLUG, GOVERNOR SLE 22787-54033
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60460 PLUG, GOVERNOR SLE 22787-54029
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60400 PLUG, GOVERNOR SLE 22787-64641
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60420 PLUG, GOVERNOR SLE 22787-64643
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60440 PLUG, GOVERNOR SLE 22787-54027
095. [01] 09621-40100 WASHER, TIMER SENS 22625-54277
096. [01] 09644-80111 COLLAR, SMOKE SET
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
098. [01] 94905-50300 NUT, CAP 90099-05161
102. [01] 91410-08141 BOLT, W/WASHER 91611-40814
102. [01] 09644-90140 BOLT, SOCKET 22395-56350
103. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350
104. [01] 09606-40110 WASHER 22689-56350
105. [01] 90160-06051 NUT, HEXAGON 90092-10101
105. [01] 94905-61680 NUT 90179-06009
106. [01] 09653-00111 FILTER, SUB-ASSY 22602-5B320
107. [01] 09604-90460 O-RING 22193-5B320
200. [02] 09642-60130 GASKET, DELIVERY V 22149-54771
