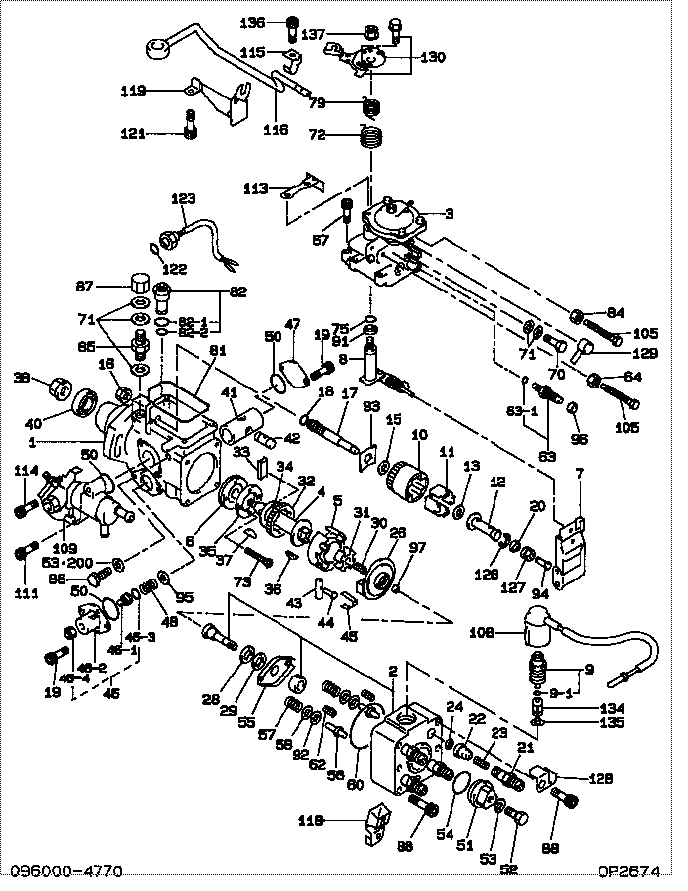

09600-04770 PUMP ASSY, INJECTI Denso Cross

Table 1
Introduction of New Parts
Sales Model New Part Number Part Name Former Part Number(1)
323, 330, and 330GC 573-8722 Tank 469-9108
580-1893 Plate As 507-9131
336 471-9926 Tank 469-9108
581-3324 Plate As 555-8193
336GC 573-8722 Tank 469-9108
581-5268 Plate As 514-0556
(1) The former part number listed is for reference only and may differ.The tank is not compatible. Refer to following replacement procedure for your machine.Replacement Procedure for 323, 330, 330 GC and 336 GC Excavators
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Table 2
Required Parts
Item Qty Part Number Part Name
1 1 580-1893(1) Plate As
581-5268(2) Plate As
2 1 573-8722 Tank
3 2 8T-4189 Bolt
4 2 8T-4224 Hard Washer
5 1 570-0813 Hose As
6 1 6S-8620 Hose Clamp
7 1 365-0162 Special Connector
8 4(3) 3S-2093 Cable Strap
(1) For 323, 330, and 330GC machines
(2) For 336GC
(3) For 336GC machines use three 3S-2093 Cable Strap
Illustration 1 g06426452
For 323, 330, and 330GC machines
(A) Upper cover
Illustration 2 g06426453
For 336GC machines
(A) Upper cover
(B) Upper cover
Remove the upper cover (A) and open the upper cover (B). Refer to Illustration 1 and Illustration 2.
Illustration 3 g06426454
(C) Tank assembly
(E) Hose
(F) Injector
(G) Coupler
Disconnect the hose (E) from tank assembly (C). Refer to Illustration 3.
Remove the coupler (G) from injector (F). Refer to Illustration 3.
Illustration 4 g06426455
(C) Tank assembly
(H) Bolt and washer
(J) Clamp
(K) Bracket
Remove bracket (K) with tank assembly (C) by loosening the bolts and washer (H). Refer to Illustration 4.
