09600-04760 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935004060
09600-04760 PUMP ASSY, INJECTI
Rating:
2
Buy PUMP ASSY, INJECTI 09600-04760 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100141

Components :

001. PUMP ASSY, INJECTI 09600-04760
002. RING SUB-ASSY, ROL 09618-00180
003. COVER SUB-ASSY, TI 09621-00512
003. COVER SUB-ASSY, TI 09621-00512
003. COVER SUB-ASSY, TI 09621-00512
004. SHIM, PLUNGER ADJU 09640-60020

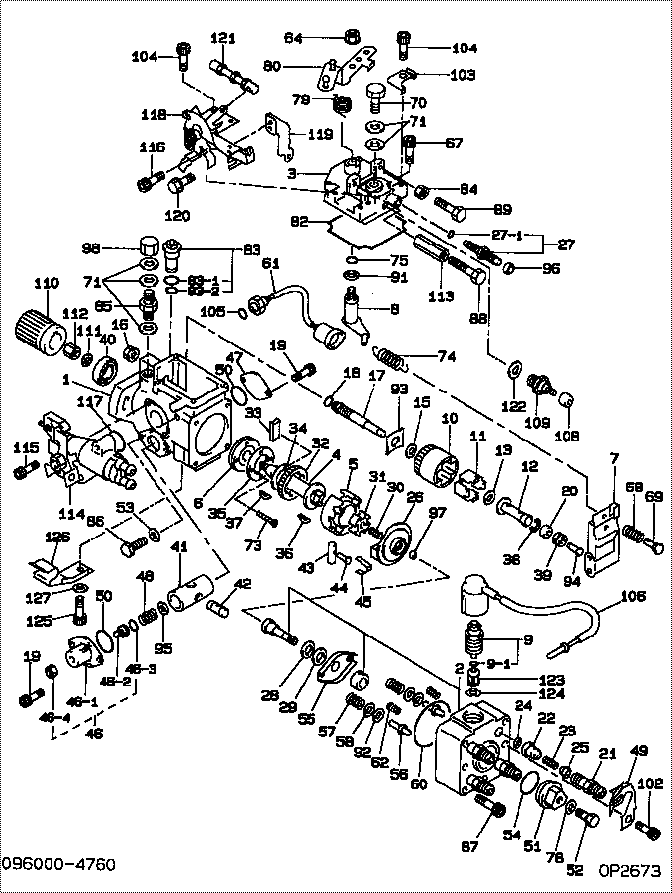

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-04760 PUMP ASSY, INJECTI 22100-58560
001. [01] 09611-00462 HOUSING SUB-ASSY, 22101-64260
002. [01] 09640-01240 HEAD SUB-ASSY, DIS 22140-56350
003. [01] 09644-00764 COVER SUB-ASSY, GO 22703-6A210
004. [01] 09612-10090 SHAFT, DRIVE 22170-96300
005. [01] 09618-00180 RING SUB-ASSY, ROL 22108-56350
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010
007. [01] 09627-00690 GOVERNOR ASSY, TOR 22350-58470
007. [01] 09627-01020 GOVERNOR ASSY, TOR 22350-58740
008. [01] 09645-00050 SHAFT SUB-ASSY, GO 22740-21910
009. [01] 09603-00160 SOLENOID ASSY, FUE 22390-6A510
009. [01] 09603-00520 SOLENOID ASSY, FUE 22390-6A511
009-001. [01] 09604-90350 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020
011. [04] 09626-30040 FLYWEIGHT, DISTRIB 22745-56350
012. [01] 09625-20450 SLEEVE, GOVERNOR 22316-55030
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010
016. [01] 09625-40050 NUT, GOVERNOR SHAF 22722-54470
017. [01] 09625-10020 SHAFT, GOVERNOR MA 22384-54010
018. [01] 94914-02930 O-RING 90099-14049
019. [04] 09644-90110 BOLT, SOCKET 22395-56351
020. [01] 09625-50020 RING, GOVERNOR SLE 22147-54290
021. [04] 09642-50020 HOLDER, DELIVERY V 22131-54010
022. [04] 09642-00291 VALVE SUB-ASSY, DI 22104-56350
023. [04] 09642-70040 SPRING, DELIVERY V 22148-56350
024. [04] 09642-60070 GASKET, DELIVERY V 22149-56351
025. [04] 09643-30150 SEAT, SNUBBER VALV 22565-56350
026. [01] 09623-00190 CAMPLATE SUB-ASSY, 22130-56350
027. [01] 09648-00020 SMOKE SET SUB-ASSY
027-001. [01] 94914-02900 O-RING 90099-14047
027-001. [01] 09604-90470 O-RING 22193-54771
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-54010
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-54010
030. [01] 09622-40081 SPRING, COUPLING 22659-58650
031. [01] 09622-20050 COUPLING 22632-56350
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-54010
033. [02] 09612-60020 JOINT, RUBBER 22169-54180
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-54010
035. [01] 09614-70052 COVER, FEED PUMP 22511-58650
036. [01] 94913-00260 KEY, WOODRUFF 90099-13017
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018
038. [01] 90577-02000 E-RING 90096-90024
039. [01] 94910-02860 BEARING, BALL 90099-10148
040. [01] 09603-90040 SEAL, 0IL 22544-64740
041. [01] 09620-10650 PISTON, TIMER 22654-56340
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010
044. [01] 09621-60120 STOPPER, TIMER SLI 22658-17840
045. [01] 09621-10050 CLIP, TIMER 22656-54010
045. [01] 09621-10080 CLIP, TIMER 22656-17840
046. [01] 09621-00490 COVER SUB-ASSY, TI 22790-56351
046-001. [01] 09621-80280 COVER, TIMER 22612-5C300
046-002. [01] 09621-60040 STOPPER, TIMER SLI 22658-54450
046-003. [01] 09604-90190 O-RING 22193-64750
046-004. [01] 94905-05010 NUT, HEXAGON 90099-05225
047. [01] 09621-80270 COVER, TIMER 22612-56350
048. [1C] 09620-80482 SPRING, TIMER, OUT 22615-56352
048. [1C] 09620-80510 SPRING, TIMER, OUT 22615-56332
048. [1C] 09620-80471 SPRING, TIMER, OUT 22615-56351
048. [1C] 09620-80500 SPRING, TIMER, OUT 22615-56331
048. [1C] 09620-80461 SPRING, TIMER, OUT 22615-56350
048. [1C] 09620-80490 SPRING, TIMER, OUT 22615-56330
049. [01] 09602-91041 CLIP, CONNECTOR SU 22172-56350
050. [02] 09604-90400 O-RING 22193-17840
050. [03] 94914-05820 O-RING 90099-14105
050. [02] 94914-05820 O-RING 90099-14105
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-54020
052. [01] 09641-80060 BOLT, DISTRIBUTIVE 22128-56330
053. [02] 09642-60030 GASKET, DELIVERY V 22149-56200
053. [02] 09642-60130 GASKET, DELIVERY V 22149-54771
054. [01] 09604-90510 O-RING 22193-54772
054. [01] 94914-02970 O-RING 90099-14052
055. [01] 09624-70030 SHEET, PLUNGER SPR 22145-56350
056. [02] 09623-70020 GUIDE SUB-ASSY, PL 22192-56350
057. [02] 09623-60080 SPRING, PLUNGER 22144-56350
058. [02] 09624-60030 SHEET, PLUNGER SPR 22143-56350
060. [01] 94914-02980 O-RING 90099-14053
061. [01] 07630-01900 PICKUP ASSY, TACHO 83180-87302
061. [01] 07630-00903 PICKUP ASSY, TACHO 83180
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-54010
064. [01] 94905-61680 NUT 90179-06009
067. [04] 09644-90020 BOLT, SOCKET 22395-54010
068. [01] 09628-90350 SPRING, GOVERNOR I 22317-56350
069. [01] 09626-70030 SHEET, GOVERNOR SP 22369-54010
070. [01] 09602-00180 SCREW SUB-ASSY, OV 22160-56350
071. [05] 09024-10010 WASHER, AIR BLEEDE 22119-77020
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723
074. [01] 09626-10800 SPRING, SPEED CONT 22726-58470
075. [01] 94914-02910 O-RING 90099-14048
075. [01] 09604-90300 O-RING 22193-54770
078. [01] 09642-60060 GASKET, DELIVERY V 22149-56350
079. [01] 09644-40021 SPRING, RETURN 22322-54020
080. [1C] 09643-52890 LEVER SUB-ASSY, AD 22701-58490
080. [1C] 09643-52900 LEVER SUB-ASSY, AD 22701-58491
082. [01] 09644-60093 GASKET, GOVERNOR C 22774-54010
082. [01] 09644-60100 GASKET, GOVERNOR C 22774-54270
083. [01] 09616-00140 VALVE SUB-ASSY, RE 22180-56351
083-001. [01] 09604-90180 O-RING 22193-54561
083-002. [01] 09604-90500 O-RING
083-002. [01] 94914-02920 O-RING 90099-14080
084. [01] 09634-20010 NUT, LOCK 22775-77121
085. [01] 94918-00770 SCREW, HOLLOW 90099-18022
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020
087. [04] 09644-90070 BOLT, SOCKET 22395-58200
088. [01] 94904-50210 BOLT, HEXAGON, W/ 90099-04954
089. [01] 94904-50190 BOLT, HEXAGON, W/ 90099-04946
091. [01] 09627-30140 WASHER, GOVERNOR T 22378-64010
092. [2C] 09624-80270 SHIM, PLUNGER SPRI
092. [2C] 09624-80260 SHIM, PLUNGER SPRI
092. [2C] 09624-80250 SHIM, PLUNGER SPRI
092. [2C] 09624-80240 SHIM, PLUNGER SPRI
092. [2C] 09624-80230 SHIM, PLUNGER SPRI
092. [2C] 09624-80110 SHIM, PLUNGER SPRI 22182-17013
092. [2C] 09624-80100 SHIM, PLUNGER SPRI 22182-17012
092. [2C] 09624-80090 SHIM, PLUNGER SPRI 22182-17011
092. [2C] 09624-80080 SHIM, PLUNGER SPRI 22182-17010
092. [2C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010
092. [2C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010
092. [2C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010
092. [2C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010
092. [2C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010
092. [2C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010
092. [2C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010
093. [1C] 09626-60280 WASHER, GOVERNOR G
093. [1C] 09626-60290 WASHER, GOVERNOR G
093. [1C] 09626-60300 WASHER, GOVERNOR G
093. [1C] 09626-60310 WASHER, GOVERNOR G
093. [1C] 09626-60320 WASHER, GOVERNOR G
093. [1C] 09626-60330 WASHER, GOVERNOR G
093. [1C] 09626-60340 WASHER, GOVERNOR G
093. [1C] 09626-60270 WASHER, GOVERNOR G
093. [1C] 09626-60170 WASHER, GOVERNOR G
093. [1C] 09626-60100 WASHER, GOVERNOR G 22713-54010
093. [1C] 09626-60110 WASHER, GOVERNOR G 22714-54010
093. [1C] 09626-60120 WASHER, GOVERNOR G 22715-54010
093. [1C] 09626-60130 WASHER, GOVERNOR G 22716-54010
093. [1C] 09626-60140 WASHER, GOVERNOR G 22717-54010
093. [1C] 09626-60150 WASHER, GOVERNOR G
093. [1C] 09626-60160 WASHER, GOVERNOR G
094. [1C] 09625-60680 PLUG, GOVERNOR SLE 22787-17142
094. [1C] 09625-60670 PLUG, GOVERNOR SLE 22787-54036
094. [1C] 09625-60660 PLUG, GOVERNOR SLE 22787-17141
094. [1C] 09625-60650 PLUG, GOVERNOR SLE 22787-54035
094. [1C] 09625-60540 PLUG, GOVERNOR SLE 22787-17140
094. [1C] 09625-60530 PLUG, GOVERNOR SLE 22787-54034
094. [1C] 09625-60900 PLUG, GOVERNOR SLE 22787-56357
094. [1C] 09625-60690 PLUG, GOVERNOR SLE 22787-17143
094. [1C] 09625-60700 PLUG, GOVERNOR SLE 22787-17144
094. [1C] 09625-60750 PLUG, GOVERNOR SLE 22787-17145
094. [1C] 09625-60760 PLUG, GOVERNOR SLE 22787-17146
094. [1C] 09625-60770 PLUG, GOVERNOR SLE 22787-17147
094. [1C] 09625-60780 PLUG, GOVERNOR SLE 22787-17148
094. [1C] 09625-60790 PLUG, GOVERNOR SLE 22787-17149
094. [1C] 09625-60800 PLUG, GOVERNOR SLE 22787-17150
094. [1C] 09625-60810 PLUG, GOVERNOR SLE 22787-17151
094. [1C] 09625-60820 PLUG, GOVERNOR SLE 22787-17152
094. [1C] 09625-60890 PLUG, GOVERNOR SLE 22787-56356
094. [1C] 09625-60880 PLUG, GOVERNOR SLE 22787-56355
094. [1C] 09625-60870 PLUG, GOVERNOR SLE 22787-56354
094. [1C] 09625-60400 PLUG, GOVERNOR SLE 22787-64641
094. [1C] 09625-60410 PLUG, GOVERNOR SLE 22787-64642
094. [1C] 09625-60420 PLUG, GOVERNOR SLE 22787-64643
094. [1C] 09625-60430 PLUG, GOVERNOR SLE 22787-54026
094. [1C] 09625-60440 PLUG, GOVERNOR SLE 22787-54027
094. [1C] 09625-60450 PLUG, GOVERNOR SLE 22787-54028
094. [1C] 09625-60460 PLUG, GOVERNOR SLE 22787-54029
094. [1C] 09625-60470 PLUG, GOVERNOR SLE 22787-54030
094. [1C] 09625-60480 PLUG, GOVERNOR SLE 22787-54031
094. [1C] 09625-60490 PLUG, GOVERNOR SLE 22787-54032
094. [1C] 09625-60500 PLUG, GOVERNOR SLE 22787-54033
094. [1C] 09625-60510 PLUG, GOVERNOR SLE 22787-64640
094. [1C] 09625-60520 PLUG, GOVERNOR SLE 22787-64680
094. [1C] 09625-60830 PLUG, GOVERNOR SLE 22787-56350
094. [1C] 09625-60840 PLUG, GOVERNOR SLE 22787-56351
094. [1C] 09625-60850 PLUG, GOVERNOR SLE 22787-56352
094. [1C] 09625-60860 PLUG, GOVERNOR SLE 22787-56353
095. [01] 09621-40100 WASHER, TIMER SENS 22625-54277
096. [01] 09644-80111 COLLAR, SMOKE SET
097. [1C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010
097. [1C] 09640-60520 SHIM, PLUNGER ADJU 22179-54020
097. [1C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013
097. [1C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015
097. [1C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018
098. [01] 94905-50300 NUT, CAP 90099-05161
102. [01] 09644-90140 BOLT, SOCKET 22395-56350
103. [01] 09602-90940 CLIP, CONNECTOR SU 22172-54264
104. [03] 09644-90110 BOLT, SOCKET 22395-56351
105. [01] 09604-90190 O-RING 22193-64750
106. [01] 09604-50390 WIRE SUB-ASSY 22751-6A220
108. [01] 09644-80290 COLLAR, SMOKE SET 22749-55050
109. [01] 09616-00191 VALVE SUB-ASSY, RE 22180-58590
110. [01] 09257-50162 SHAFT, SPLINE 22174-58270
111. [01] 94901-50590 WASHER, SPRING 90099-01449
112. [01] 09001-20190 NUT, TIMER ROUND 22611-58200
113. [01] 94905-04910 NUT, HEXAGON 90099-05240
114. [01] 09621-00512 COVER SUB-ASSY, TI 22790-58490
114. [01] 09621-00513 COVER SUB-ASSY, TI 22790-58490
115. [02] 09644-90100 BOLT, SOCKET 22395-56352
116. [01] 09644-90070 BOLT, SOCKET 22395-58200
117. [01] 94914-02960 O-RING 90099-14051
118. [01] 09647-00292 IDLE UP SUB-ASSY 22305-58490
119. [01] 09647-10341 BRACKET SUB-ASSY, 22601-58490
120. [02] 91808-06141 BOLT, FLANGE 90091-40602
121. [01] 09646-40050 ROD SUB-ASSY 22331-58490
122. [01] 94901-81580 WASHER, COPPER PLA 90099-01533
122. [01] 09024-10080 WASHER, AIR BLEEDE 22119-6A210
123. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350
124. [01] 09606-40110 WASHER 22689-56350
125. [01] 09644-90151 BOLT, SOCKET 22395-56290
126. [01] 09602-91081 CLIP, CONNECTOR SU 22172-56290
126. [01] 09602-91190 CLIP, CONNECTOR SU 22172-56291
127. [01] 90200-10231 WASHER, PLATE 90093-01003

Include in #3:

09600-04760 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09600-04760  22100-5856  PUMP ASSY, INJECTI
22100-58560    TOYOTA PUMP ASSY, INJECTI




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The improvement has been made to the 456-3493 Fuel Injector Gp, 456-3509 Fuel Injector Gp, and 460-8213 Fuel Injector Gp.This change is effective for the engine serial numbers listed in Table 1.
Table 1
Part Number Effective Serial Number
456-3493 S/N:MYE13870-UP
456-3509 S/N:SYE33275-UP
460-8213 S/N:WYE2009-UP

Have questions with 09600-04760?





09614-00070 PUMP SUB-ASSY, FUE 09614-00060 09614-00040 09614-00030 09614-00020
01700061 PUMP ASSY, FUEL FE 01705213 PUMP ASSY, INJECTI 01705223 01705242 01705252

Group cross 09600-04760

Back to top
