09600-02190 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935002400
09600-02190 PUMP ASSY, INJECTI
Rating:
17
Buy PUMP ASSY, INJECTI 09600-02190 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100031 0960100551

Components :

001. PUMP ASSY, INJECTI 09600-02190
002. BELLOWS ASSY, PNEU 09071-00081
003. RING SUB-ASSY, ROL 09618-00100
004. GOVERNOR ASSY, TOR 09627-00160
005. SHIM, PLUNGER ADJU 09640-60020

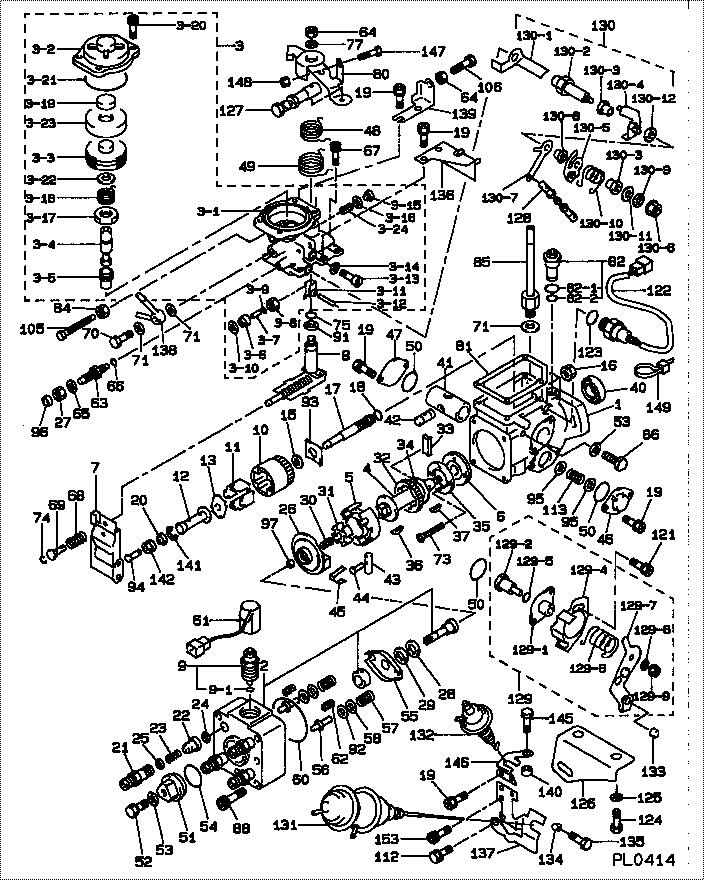

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-02190 PUMP ASSY, INJECTI RF45 13 800
001. [01] 09611-00391 HOUSING SUB-ASSY, RF10 24 010
002. [01] 09640-00151 HEAD SUB-ASSY, DIS RF10 24 100
003. [01] 09071-00081 BELLOWS ASSY, PNEU RF10 24 660
003-001. [01] 09644-00262 COVER SUB-ASSY, GO
003-001. [01] 09644-00851 COVER SUB-ASSY, GO
003-002. [01] 09071-60120 COVER
003-003. [01] 09071-10050 BELLOWS SUB-ASSY,
003-004. [01] 09611-80060 BUSHING, GUIDE
003-004. [01] 09611-80130 BUSHING, GUIDE
003-005. [01] 09611-80030 BUSHING, GUIDE
003-007. [01] 09645-50090 PIN, LEVER CONECTI
003-008. [01] 09625-40021 NUT, GOVERNOR SHAF
003-009. [01] 09604-90051 O-RING
003-010. [01] 94901-81680 WASHER, COPPER PLA
003-011. [01] 09629-50080 LEVER SUB-ASSY, CO
003-012. [01] 09627-20040 PIN, LEVER SUPPORT
003-013. [02] 09626-90032 BOLT, GOVERNOR LIN
003-014. [02] 09024-80010 WASHER, DRAIN SCRE
003-014. [02] 09642-60110 GASKET, DELIVERY V
003-015. [01] 09031-70200 PLUG, SCREW
003-015. [01] 09031-70240 PLUG, SCREW
003-016. [01] 09024-10010 WASHER, AIR BLEEDE S501 24 283
003-017. [01] 94905-04070 NUT, HEXAGON
003-018. [01] 09646-60050 SPRING
003-019. [01] 09646-80020 CAP RUBBER
003-020. [04] 91518-06121 BOLT, W/WASHER
003-020. [04] 09644-90130 BOLT, SOCKET RFP1 13 VV1
003-021. [01] 94914-03610 O-RING
003-022. [1C] 09621-70140 WASHER, TIMER ADJU
003-022. [1C] 09621-70080 WASHER, TIMER ADJU S501 24 063
003-022. [1C] 09621-70070 WASHER, TIMER ADJU S501 24 064
003-022. [1C] 09621-70060 WASHER, TIMER ADJU S501 24 069
003-022. [1C] 09621-70050 WASHER, TIMER ADJU S501 24 068
003-022. [1C] 09621-70040 WASHER, TIMER ADJU S501 24 067
003-022. [1C] 09621-70030 WASHER, TIMER ADJU S501 24 066
003-022. [1C] 09621-70020 WASHER, TIMER ADJU S501 24 065
003-023. [01] 09646-80140 CAP RUBBER
003-024. [01] 09646-60080 SPRING
004. [01] 09612-10060 SHAFT, DRIVE RF10 24 031
005. [01] 09618-00100 RING SUB-ASSY, ROL RF10 24 040
006. [01] 09614-00030 PUMP SUB-ASSY, FUE RF10 24 020
007. [01] 09627-00160 GOVERNOR ASSY, TOR RF10 24 200
008. [01] 09646-00081 SHAFT SUB-ASSY, SP RF10 24 170
008. [01] 09646-00330 SHAFT SUB-ASSY, SP
009. [01] 09601-00690 OVER-HAUL KIT, DIS
009-001. [01] 09604-90030 O-RING S501 24 303
010. [01] 09626-00050 HOLDER SUB-ASSY, F S501 24 231
011. [04] 09626-30030 FLYWEIGHT, DISTRIB S501 24 232
012. [01] 09625-20200 SLEEVE, GOVERNOR RF10 24 234
013. [01] 09626-50040 WASHER, FLYWEIGHT RF10 24 233
013. [01] 09626-50030 WASHER, FLYWEIGHT S501 24 233
015. [01] 09626-50020 WASHER, FLYWEIGHT S501 24 229
016. [01] 09625-40040 NUT, GOVERNOR SHAF
017. [01] 09625-00040 SHAFT SUB-ASSY, GO RF10 24 222
018. [01] 94914-02930 O-RING S501 24 223
019. [10] 91518-06161 BOLT, W/WASHER S501 24 058
020. [01] 09625-50020 RING, GOVERNOR SLE RF10 24 130
021. [04] 09643-00010 VALVE SUB-ASSY, SN
022. [04] 09642-00080 VALVE SUB-ASSY, DI RF10 24 140
023. [04] 09642-70010 SPRING, DELIVERY V S501 24 142
024. [04] 09642-60020 GASKET, DELIVERY V S501 24 141
025. [04] 09642-80020 SEAT, DELIVERY VAL
026. [01] 09623-00100 CAMPLATE SUB-ASSY, RF10 24 049
027. [01] 94905-30200 NUT, HEXAGON, W/ H
028. [01] 09624-50020 PLATE, PLUNGER, LW S501 24 071
029. [01] 09624-40040 PLATE, PLUNGER, UP S501 24 072
030. [01] 09622-40040 SPRING, COUPLING S501 24 048
031. [01] 09622-20020 COUPLING S501 24 047
032. [01] 09612-40030 GEAR, GOVERNOR DRI S501 24 035
033. [02] 09612-60020 JOINT, RUBBER S501 24 034
034. [01] 09612-50010 WASHER, DRIVE SHAF S501 24 036
035. [01] 09614-70040 COVER, FEED PUMP S501 24 023
036. [01] 94913-00260 KEY, WOODRUFF S501 24 032
037. [01] 94913-00300 KEY, WOODRUFF
040. [01] 09603-90040 SEAL, 0IL
041. [01] 09620-10060 PISTON, TIMER S501 24 052
042. [01] 09621-30020 SUB-PISTON, TIMER S501 24 053
043. [01] 09620-50020 PIN, TIMER SLIDE S501 24 044
044. [01] 09621-60020 STOPPER, TIMER SLI
045. [01] 09621-10050 CLIP, TIMER
046. [01] 09621-80040 COVER, TIMER S501 24 057
047. [01] 09621-80270 COVER, TIMER VS01 13 TA5
048. [01] 09644-40282 SPRING, RETURN RF10 24 177
048. [01] 09644-40510 SPRING, RETURN
049. [01] 09644-40292 SPRING, RETURN RF10 24 361
049. [01] 09644-40500 SPRING, RETURN
050. [03] 94914-02960 O-RING
050. [01] 94914-05820 O-RING
051. [01] 09641-70040 PLUG, DISTRIBUTIVE S501 24 151
052. [01] 09641-80020 BOLT, DISTRIBUTIVE S501 24 152
053. [03] 09642-60030 GASKET, DELIVERY V
053. [03] 94901-81020 WASHER, COPPER PLA S501 24 154
054. [01] 94914-02970 O-RING
055. [01] 09624-70010 SHEET, PLUNGER SPR S501 24 073
056. [02] 09623-70010 GUIDE SUB-ASSY, PL S501 24 076
057. [02] 09623-60040 SPRING, PLUNGER RF10 24 074
058. [02] 09624-60010 SHEET, PLUNGER SPR S501 24 075
060. [01] 94914-02980 O-RING S501 24 105
061. [01] 09604-50193 WIRE SUB-ASSY RF10 24 306
062. [02] 09627-90010 SPRING, LEVER SUPP S501 24 078
063. [01] 09644-70040 SCREW, SMOKE SET S501 24 191
064. [02] 90160-06051 NUT, HEXAGON 9990 60 600
065. [01] 90200-08211 WASHER, PLATE S501 24 194
066. [01] 09604-90470 O-RING S501 24 196
067. [04] 09644-90020 BOLT, SOCKET S501 24 163
068. [01] 09628-90020 SPRING, GOVERNOR I S501 24 265
069. [01] 09626-70060 SHEET, GOVERNOR SP RF10 24 665
070. [01] 09602-00030 SCREW SUB-ASSY, OV S501 24 280
071. [03] 09024-10010 WASHER, AIR BLEEDE S501 24 283
073. [02] 94900-20420 SCREW, COUNTERSUNK S501 24 024
074. [01] 09645-70010 WASHER, SNAP RF10 24 666
075. [01] 94914-02910 O-RING
077. [01] 90258-06001 WASHER, SPRING 0107 18 604
080. [1C] 09643-50611 LEVER SUB-ASSY, AD RF10 24 174
080. [1C] 09643-50601 LEVER SUB-ASSY, AD RF10 24 173
081. [01] 09644-60100 GASKET, GOVERNOR C S501 24 162
082. [01] 09616-00050 VALVE SUB-ASSY, RE S501 24 270
082-001. [01] 09604-90180 O-RING S501 24 271
082-002. [01] 94914-02920 O-RING
084. [01] 09634-20010 NUT, LOCK S501 24 182
085. [01] 09221-70142 NIPPLE, SWIVEL RF10 24 294
086. [02] 09626-90020 BOLT, GOVERNOR LIN S501 24 201
088. [03] 09644-90070 BOLT, SOCKET
091. [01] 09627-30140 WASHER, GOVERNOR T
092. [2C] 09624-80100 SHIM, PLUNGER SPRI S501 24 091
092. [2C] 09624-80110 SHIM, PLUNGER SPRI S501 24 092
092. [2C] 09624-80170 SHIM, PLUNGER SPRI
092. [2C] 09624-80180 SHIM, PLUNGER SPRI
092. [2C] 09624-80190 SHIM, PLUNGER SPRI
092. [2C] 09624-80200 SHIM, PLUNGER SPRI
092. [2C] 09624-80210 SHIM, PLUNGER SPRI
092. [2C] 09624-80090 SHIM, PLUNGER SPRI S501 24 089
092. [2C] 09624-80080 SHIM, PLUNGER SPRI S501 24 088
092. [2C] 09624-80010 SHIM, PLUNGER SPRI S501 24 081
092. [2C] 09624-80020 SHIM, PLUNGER SPRI S501 24 082
092. [2C] 09624-80030 SHIM, PLUNGER SPRI S501 24 083
092. [2C] 09624-80040 SHIM, PLUNGER SPRI S501 24 084
092. [2C] 09624-80050 SHIM, PLUNGER SPRI S501 24 085
092. [2C] 09624-80060 SHIM, PLUNGER SPRI S501 24 086
092. [2C] 09624-80070 SHIM, PLUNGER SPRI S501 24 087
093. [1C] 09626-60170 WASHER, GOVERNOR G RF10 24 129
093. [1C] 09626-60160 WASHER, GOVERNOR G S501 24 249
093. [1C] 09626-60150 WASHER, GOVERNOR G S501 24 248
093. [1C] 09626-60140 WASHER, GOVERNOR G S501 24 228
093. [1C] 09626-60130 WASHER, GOVERNOR G S501 24 227
093. [1C] 09626-60120 WASHER, GOVERNOR G S501 24 226
093. [1C] 09626-60110 WASHER, GOVERNOR G S501 24 225
093. [1C] 09626-60100 WASHER, GOVERNOR G S501 24 224
094. [1C] 09625-60580 PLUG, GOVERNOR SLE RF10 24 630
094. [1C] 09625-60590 PLUG, GOVERNOR SLE RF10 24 631
094. [1C] 09625-60600 PLUG, GOVERNOR SLE RF10 24 632
094. [1C] 09625-60610 PLUG, GOVERNOR SLE RF10 24 633
094. [1C] 09625-60620 PLUG, GOVERNOR SLE RF10 24 634
094. [1C] 09625-60570 PLUG, GOVERNOR SLE RF10 24 629
094. [1C] 09625-60560 PLUG, GOVERNOR SLE RF10 24 628
094. [1C] 09625-60550 PLUG, GOVERNOR SLE RF10 24 627
094. [1C] 09625-60440 PLUG, GOVERNOR SLE RF10 24 626
094. [1C] 09625-60430 PLUG, GOVERNOR SLE RF10 24 625
094. [1C] 09625-60420 PLUG, GOVERNOR SLE RF10 24 624
094. [1C] 09625-60410 PLUG, GOVERNOR SLE RF10 24 623
094. [1C] 09625-60400 PLUG, GOVERNOR SLE RF10 24 622
095. [2C] 09621-40100 WASHER, TIMER SENS 4782 13 TE7
095. [2C] 09621-40090 WASHER, TIMER SENS 4782 13 TE6
095. [2C] 09621-40080 WASHER, TIMER SENS 4782 13 TE5
095. [2C] 09621-40070 WASHER, TIMER SENS 4782 13 TE4
095. [2C] 09621-40060 WASHER, TIMER SENS 4782 13 TE3
095. [2C] 09621-40050 WASHER, TIMER SENS 4782 13 TE2
095. [2C] 09621-40040 WASHER, TIMER SENS 4782 13 TE1
096. [01] 09644-80111 COLLAR, SMOKE SET S501 24 197
097. [1C] 09640-60380 SHIM, PLUNGER ADJU
097. [1C] 09640-60370 SHIM, PLUNGER ADJU S501 24 118
097. [1C] 09640-60360 SHIM, PLUNGER ADJU
097. [1C] 09640-60350 SHIM, PLUNGER ADJU
097. [1C] 09640-60340 SHIM, PLUNGER ADJU
097. [1C] 09640-60330 SHIM, PLUNGER ADJU
097. [1C] 09640-60320 SHIM, PLUNGER ADJU S501 24 117
097. [1C] 09640-60310 SHIM, PLUNGER ADJU
097. [1C] 09640-60300 SHIM, PLUNGER ADJU
097. [1C] 09640-60290 SHIM, PLUNGER ADJU
097. [1C] 09640-60280 SHIM, PLUNGER ADJU
097. [1C] 09640-60390 SHIM, PLUNGER ADJU
097. [1C] 09640-60400 SHIM, PLUNGER ADJU
097. [1C] 09640-60410 SHIM, PLUNGER ADJU
097. [1C] 09640-60510 SHIM, PLUNGER ADJU
097. [1C] 09640-60500 SHIM, PLUNGER ADJU
097. [1C] 09640-60490 SHIM, PLUNGER ADJU
097. [1C] 09640-60480 SHIM, PLUNGER ADJU
097. [1C] 09640-60470 SHIM, PLUNGER ADJU S501 24 121
097. [1C] 09640-60460 SHIM, PLUNGER ADJU
097. [1C] 09640-60450 SHIM, PLUNGER ADJU
097. [1C] 09640-60440 SHIM, PLUNGER ADJU
097. [1C] 09640-60430 SHIM, PLUNGER ADJU
097. [1C] 09640-60420 SHIM, PLUNGER ADJU S501 24 119
097. [1C] 09640-60520 SHIM, PLUNGER ADJU S501 24 122
097. [1C] 09640-60270 SHIM, PLUNGER ADJU S501 24 116
097. [1C] 09640-60020 SHIM, PLUNGER ADJU S501 24 111
097. [1C] 09640-60120 SHIM, PLUNGER ADJU S501 24 113
097. [1C] 09640-60110 SHIM, PLUNGER ADJU
097. [1C] 09640-60100 SHIM, PLUNGER ADJU
097. [1C] 09640-60090 SHIM, PLUNGER ADJU
097. [1C] 09640-60080 SHIM, PLUNGER ADJU
097. [1C] 09640-60070 SHIM, PLUNGER ADJU S501 24 112
097. [1C] 09640-60060 SHIM, PLUNGER ADJU
097. [1C] 09640-60050 SHIM, PLUNGER ADJU
097. [1C] 09640-60040 SHIM, PLUNGER ADJU
097. [1C] 09640-60030 SHIM, PLUNGER ADJU
097. [1C] 09640-60130 SHIM, PLUNGER ADJU
097. [1C] 09640-60140 SHIM, PLUNGER ADJU
097. [1C] 09640-60150 SHIM, PLUNGER ADJU
097. [1C] 09640-60260 SHIM, PLUNGER ADJU
097. [1C] 09640-60250 SHIM, PLUNGER ADJU
097. [1C] 09640-60240 SHIM, PLUNGER ADJU
097. [1C] 09640-60230 SHIM, PLUNGER ADJU
097. [1C] 09640-60220 SHIM, PLUNGER ADJU S501 24 115
097. [1C] 09640-60210 SHIM, PLUNGER ADJU
097. [1C] 09640-60200 SHIM, PLUNGER ADJU
097. [1C] 09640-60190 SHIM, PLUNGER ADJU
097. [1C] 09640-60180 SHIM, PLUNGER ADJU
097. [1C] 09640-60170 SHIM, PLUNGER ADJU S501 24 114
097. [1C] 09640-60160 SHIM, PLUNGER ADJU
105. [01] 94904-50210 BOLT, HEXAGON, W/
106. [01] 94904-50180 BOLT, HEXAGON, W/
112. [02] 91418-08201 BOLT, W/WASHER 9080 12 820
113. [1C] 09620-80130 SPRING, TIMER, OUT S501 24 062
113. [1C] 09620-80110 SPRING, TIMER, OUT RF10 24 662
113. [1C] 09620-80100 SPRING, TIMER, OUT S501 24 055
121. [02] 94904-72280 BOLT, W/WASHER
122. [01] 07630-00300 PICKUP ASSY, TACHO
122. [01] 07630-01740 PICKUP ASSY, TACHO RF10 24 350
123. [01] 90802-10150 O-RING
123. [01] 09604-90190 O-RING S515 13 TS2
124. [02] 90120-10161 BOLT, HEXAGON S501 24 148
125. [02] 90258-10001 WASHER, SPRING S501 24 149
126. [01] 09643-80600 BRACKET, IDLE UP RF10 24 296
127. [01] 09646-40032 ROD SUB-ASSY RF10 24 670
128. [01] 09646-40023 ROD SUB-ASSY RF10 24 680
129. [01] 09621-00121 COVER SUB-ASSY, TI RF10 24 340
129. [01] 09621-00250 COVER SUB-ASSY, TI
129-001. [01] 09621-80170 COVER, TIMER
129-002. [01] 09645-10141 SHAFT SUB-ASSY, AD
129-004. [01] 09643-80351 BRACKET, IDLE UP
129-005. [01] 94914-02910 O-RING
129-005. [01] 09604-90300 O-RING S501 24 171
129-006. [01] 09644-40251 SPRING, RETURN
129-007. [01] 09643-51440 LEVER SUB-ASSY, AD
129-007. [01] 09643-51040 LEVER SUB-ASSY, AD
129-008. [01] 90258-06001 WASHER, SPRING 0107 18 604
129-009. [01] 90160-06051 NUT, HEXAGON 9990 60 600
129-009. [01] 94905-61680 NUT S5A1 13 VY1
130. [01] 09632-00100 LEVER SUB-ASSY RF10 24 650A
130. [01] 09632-00040 LEVER SUB-ASSY RF10 24 650
130-001. [01] 09643-80360 BRACKET, IDLE UP
130-002. [01] 09645-20130 SHAFT, LEVER VS10 13 VR8
130-003. [02] 09611-70430 BUSHING S501 24 333
130-004. [01] 09643-51610 LEVER SUB-ASSY, AD
130-004. [01] 09643-50490 LEVER SUB-ASSY, AD
130-005. [01] 09643-50500 LEVER SUB-ASSY, AD
130-006. [01] 90190-08051 NUT, HEXAGON S501 24 331
130-007. [01] 09643-50470 LEVER SUB-ASSY, AD
130-007. [01] 09643-51450 LEVER SUB-ASSY, AD
130-008. [01] 09611-70371 BUSHING
130-009. [01] 90258-08001 WASHER, SPRING S501 24 328
130-010. [01] 09644-40271 SPRING, RETURN
130-011. [01] 09606-40030 WASHER
130-012. [01] 09611-70390 BUSHING
131. [01] 09647-20230 ACTUATOR SET, IDLE RF10 24 810A
132. [01] 09647-20180 ACTUATOR SET, IDLE RF10 24 800A
133. [01] 09606-30020 COLLAR RF10 24 346
134. [01] 09606-30010 COLLAR RF10 24 811
135. [01] 91100-05061 BOLT, HEXAGON
136. [01] 09643-80381 BRACKET, IDLE UP RF10 24 175
137. [01] 09643-80560 BRACKET, IDLE UP RF10 24 147
138. [01] 09221-70163 NIPPLE, SWIVEL RF10 24 282
139. [01] 09643-80311 BRACKET, IDLE UP RF10 24 390
140. [01] 09611-70280 BUSHING RF10 24 407
141. [01] 90577-02000 E-RING RF10 24 235
142. [01] 94910-02860 BEARING, BALL RF10 24 467
145. [01] 90107-06161 BOLT, HEXAGON 0866 76 706
146. [01] 09643-80620 BRACKET, IDLE UP
147. [01] 91100-04201 BOLT, HEXAGON
148. [01] 91160-04321 NUT, HEXAGON 0223 91 526
149. [01] 94982-10210 BAND
153. [01] 09644-90080 BOLT, SOCKET

Include in #3:

09600-02190 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09600-02190  RF45 13 80  PUMP ASSY, INJECTI
RF45 13 800    MAZDA PUMP ASSY, INJECTI




Information:

Test 1 - Overspeed Switch (OS)
Table 1
Overspeed Switch (OS)
Step Engine RPM Action Correct Result
A 25 + 5 rpm less than 75% Overspeed Verify rpm Press the 75% Verify button No engine shutdown
B 25 + 5 rpm more than 75% Overspeed Verify rpm Press the 75% Verify button Air and fuel shutoff
C Manually reset the air shutoff lever at the top of the air inlet, if equipped. Press the ESS reset button. Test 2 - Emergency Stop Switch (ES)
Table 2
Emergency Stop Switch (ES)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Press the push button for the emergency stop switch Air and fuel shutoff
B Manually reset the air shutoff lever at the top of the air inlet, if equipped. Turn ES switch in the dirction that is shown on the face of the push button in order to reset the switch. Test 3 - Normal Stop Switch (NSS)
Table 3
Normal Stop Switch (NSS)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Push the normal stop switch (NSS) Fuel shutoff Test 4 - Water Temperature Contactor Switch
Table 4
Water Temperature Contactor Switch (WTS)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Place a jumper across terminals TS-2 and TS-7. Fuel shutoff
B Remove the jumper from terminals TS-2 and TS-7. Test 5 - Oil Pressure Switch (OPS1)
Table 5
Oil Pressure Switch (OPS1)
Step Engine RPM Action Correct Result
A Any rpm above the crank terminate rpm Place a jumper across terminals OPS1-1 and OPS1-3. Fuel shutoff
B Remove the jumper from terminals OPS1-1 and OPS1-3. Test 6 - Oil Pressure Switch (OPS2)
Table 6
Oil Pressure Switch (OPS2)
Step Engine RPM Action Correct Result
A 25 + 5 rpm less than the setting for the oil step speed Place a jumper across terminals OPS2-1 and OPS2-3. No engine shutdown.
B 25 + 5 rpm more than the setting for the oil step speed Place a jumper across terminals OPS2-1 and OPS2-3. Fuel shutoff 9 seconds after the oil step speed is reached.
C Remove the jumper from across terminals OPS2-1 and OPS2-3.

Have questions with 09600-02190?





09614-00070 PUMP SUB-ASSY, FUE 09614-00060 09614-00040 09614-00030 09614-00020
01700061 PUMP ASSY, FUEL FE 01705213 PUMP ASSY, INJECTI 01705223 01705242 01705252

Group cross 09600-02190

Back to top
