09600-01810 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

PUMP ASSY, INJECTI GA
  • * THE SPARE PARTS OF THE SOLENOID KIT IS 096010-0500
  • (INCLUDING O-RINGS).
Nozzle: 0935002760
09600-01810 PUMP ASSY, INJECTI
Rating:
19
Buy PUMP ASSY, INJECTI 09600-01810 genuine, new aftermarket engine parts with delivery

KIT List:

Pump assy, injecti 0960100021 0960100541

Components :

001. PUMP ASSY, INJECTI 09600-01810
001. PUMP ASSY, INJECTI 09600-01810
002. RING SUB-ASSY, ROL 09618-00020
002. RING SUB-ASSY, ROL 09618-00020
003. GOVERNOR ASSY, TOR 09627-00110
003. GOVERNOR ASSY, TOR 09627-00110
004. SHIM, PLUNGER ADJU 09640-60020
004. SHIM, PLUNGER ADJU 09640-60020

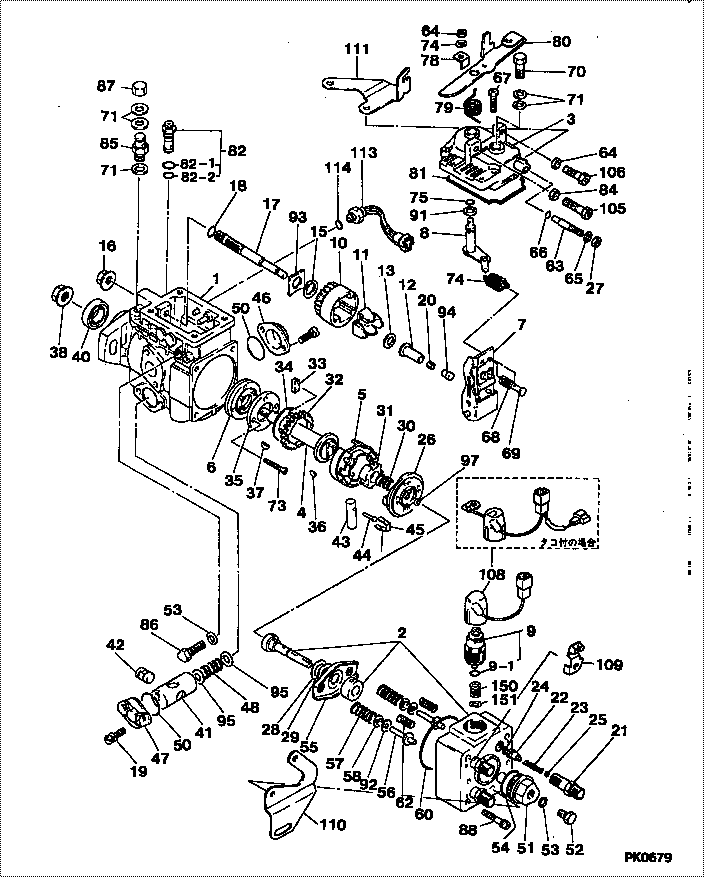

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09600-01810 PUMP ASSY, INJECTI 22100-87C04-000
000. [01] 09600-01810 PUMP ASSY, INJECTI
001. [01] 09611-00500 HOUSING SUB-ASSY,
001. [01] 09611-00500 HOUSING SUB-ASSY,
002. [01] 09640-01090 HEAD SUB-ASSY, DIS 22140-55130-000
002. [01] 09640-01090 HEAD SUB-ASSY, DIS
002. [01] 09640-00240 HEAD SUB-ASSY, DIS
002. [01] 09640-00240 HEAD SUB-ASSY, DIS 22140-64400-000
003. [01] 09644-00040 COVER SUB-ASSY, GO 22703-54020-000
003. [01] 09644-00040 COVER SUB-ASSY, GO
004. [01] 09612-10070 SHAFT, DRIVE
004. [01] 09612-10070 SHAFT, DRIVE 22170-54180-000
005. [01] 09618-00020 RING SUB-ASSY, ROL 22108-54010-000
005. [01] 09618-00020 RING SUB-ASSY, ROL 0 961 8000 20
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 0 961 4000 30
006. [01] 09614-00030 PUMP SUB-ASSY, FUE 22505-54010-000
007. [01] 09627-00110 GOVERNOR ASSY, TOR
007. [01] 09627-00110 GOVERNOR ASSY, TOR 22350-64020-000
008. [01] 09645-00050 SHAFT SUB-ASSY, GO
008. [01] 09645-00050 SHAFT SUB-ASSY, GO 22740-21910-000
009. [01] 09603-00070 SOLENOID ASSY, FUE 0 960 3000 70
009. [01] 09603-00160 SOLENOID ASSY, FUE 22390-6A510-000
009. [01] 09603-00070 SOLENOID ASSY, FUE 22390-54110-000
009. [01] 09603-00160 SOLENOID ASSY, FUE
009-001. [01] 09604-90030 O-RING
009-001. [01] 09604-90251 O-RING
009-001. [01] 09604-90030 O-RING 22193-64010-000
009-001. [01] 09604-90251 O-RING
010. [01] 09626-00050 HOLDER SUB-ASSY, F 0 962 6000 50
010. [01] 09626-00050 HOLDER SUB-ASSY, F 22741-54020-000
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 22745-54010-000
011. [04] 09626-30030 FLYWEIGHT, DISTRIB 0 962 6300 30
012. [01] 09625-20110 SLEEVE, GOVERNOR 22316-54260-000
012. [01] 09625-20110 SLEEVE, GOVERNOR
013. [01] 09626-50030 WASHER, FLYWEIGHT
013. [01] 09626-50030 WASHER, FLYWEIGHT 22753-54020-000
015. [01] 09626-50020 WASHER, FLYWEIGHT
015. [01] 09626-50020 WASHER, FLYWEIGHT 22753-54010-000
016. [01] 09625-40010 NUT, GOVERNOR SHAF
016. [01] 09625-40010 NUT, GOVERNOR SHAF 22722-54010-000
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 0 962 5000 30
017. [01] 09625-00030 SHAFT SUB-ASSY, GO 22380-54020-000
018. [01] 94914-02930 O-RING 90099-14049-000
018. [01] 94914-02930 O-RING 9 491 4029 30
019. [04] 91518-06161 BOLT, W/WASHER 90091-20607-000
019. [04] 91518-06161 BOLT, W/WASHER 22815-1310A
020. [01] 09625-50010 RING, GOVERNOR SLE 22147-54010-000
020. [01] 09625-50010 RING, GOVERNOR SLE
021. [04] 09642-50030 HOLDER, DELIVERY V 22131-54110-000
021. [04] 09642-50030 HOLDER, DELIVERY V
021. [04] 09642-50130 HOLDER, DELIVERY V 22131-54730-000
021. [04] 09642-50130 HOLDER, DELIVERY V
022. [04] 09642-00540 VALVE SUB-ASSY, DI 22104-54070-000
022. [04] 09642-00540 VALVE SUB-ASSY, DI
022. [04] 09642-00100 VALVE SUB-ASSY, DI
022. [04] 09642-00100 VALVE SUB-ASSY, DI 22104-54070-000
023. [04] 09642-70010 SPRING, DELIVERY V 0 964 2700 10
023. [04] 09642-70010 SPRING, DELIVERY V 22148-87701-000
024. [04] 09642-60070 GASKET, DELIVERY V 22149-56351-000
024. [04] 09642-60020 GASKET, DELIVERY V 22149-87701-000
024. [04] 09642-60070 GASKET, DELIVERY V
024. [04] 09642-60020 GASKET, DELIVERY V 0 964 2600 20
025. [04] 09642-80010 SEAT, DELIVERY VAL
025. [04] 09642-80010 SEAT, DELIVERY VAL 22141-54010-000
026. [01] 09623-00070 CAMPLATE SUB-ASSY, 0 962 3000 70
026. [01] 09623-00070 CAMPLATE SUB-ASSY, 22130-54010-000
027. [01] 94905-30200 NUT, HEXAGON, W/ H 22775-87702-000
027. [01] 94905-30200 NUT, HEXAGON, W/ H
028. [01] 09624-50020 PLATE, PLUNGER, LW 22163-87701-000
028. [01] 09624-50020 PLATE, PLUNGER, LW
029. [01] 09624-40040 PLATE, PLUNGER, UP
029. [01] 09624-40040 PLATE, PLUNGER, UP 22162-87702-000
030. [01] 09622-40040 SPRING, COUPLING 22228-87701-000
030. [01] 09622-40040 SPRING, COUPLING
031. [01] 09622-20020 COUPLING 22632-87701-000
031. [01] 09622-20020 COUPLING
032. [01] 09612-40030 GEAR, GOVERNOR DRI 0 961 2400 30
032. [01] 09612-40030 GEAR, GOVERNOR DRI 22341-87701-000
033. [02] 09612-60020 JOINT, RUBBER 22291-87701-000
033. [02] 09612-60020 JOINT, RUBBER
034. [01] 09612-50010 WASHER, DRIVE SHAF 0 961 2500 10
034. [01] 09612-50010 WASHER, DRIVE SHAF 22161-87701-000
035. [01] 09614-70040 COVER, FEED PUMP
035. [01] 09614-70040 COVER, FEED PUMP 22511-87701-000
036. [01] 94913-00260 KEY, WOODRUFF
036. [01] 94913-00260 KEY, WOODRUFF 22353-87702-000
037. [01] 94913-00300 KEY, WOODRUFF
037. [01] 94913-00300 KEY, WOODRUFF 90099-13018-000
038. [01] 94905-62390 NUT 90099-05166-000
038. [01] 94905-62390 NUT
040. [01] 94915-01620 SEAL, OIL 22827-1040A
040. [01] 94915-01620 SEAL, OIL 90099-15028-000
041. [01] 09620-10280 PISTON, TIMER
041. [01] 09620-10280 PISTON, TIMER 22654-87301-000
042. [01] 09621-30020 SUB-PISTON, TIMER 22657-54010-000
042. [01] 09621-30020 SUB-PISTON, TIMER
043. [01] 09620-50020 PIN, TIMER SLIDE 22655-54010-000
043. [01] 09620-50020 PIN, TIMER SLIDE
044. [01] 09621-60020 STOPPER, TIMER SLI
044. [01] 09621-60020 STOPPER, TIMER SLI 22658-54010-000
045. [01] 09621-10050 CLIP, TIMER 22656-54010-000
045. [01] 09621-10050 CLIP, TIMER 0 962 1100 50
045. [01] 09621-10080 CLIP, TIMER 22656-17840-000
045. [01] 09621-10080 CLIP, TIMER
046. [01] 09621-80040 COVER, TIMER
046. [01] 09621-80040 COVER, TIMER 22612-87702-000
047. [01] 09621-80020 COVER, TIMER 22612-87703-000
047. [01] 09621-80020 COVER, TIMER
048. [ C] 09620-80120 SPRING, TIMER, OUT
048. [ C] 09620-80180 SPRING, TIMER, OUT
048. [ C] 09620-80161 SPRING, TIMER, OUT
048. [ C] 09620-80120 SPRING, TIMER, OUT 22615-87702-000
048. [ C] 09620-80161 SPRING, TIMER, OUT 22615-54180-000
048. [ C] 09620-80180 SPRING, TIMER, OUT 22615-54413-000
050. [02] 94914-02960 O-RING 22541-87704-000
050. [02] 94914-02960 O-RING 9 491 4029 60
051. [01] 09641-70040 PLUG, DISTRIBUTIVE 22176-87701-000
051. [01] 09641-70040 PLUG, DISTRIBUTIVE
052. [01] 09641-80020 BOLT, DISTRIBUTIVE
052. [01] 09641-80020 BOLT, DISTRIBUTIVE 22128-87701-000
053. [03] 94901-81020 WASHER, COPPER PLA 90201-08106-000
053. [03] 94901-81020 WASHER, COPPER PLA 22867-1500A
054. [01] 94914-02970 O-RING 9 491 4029 70
054. [01] 94914-02970 O-RING 22541-87705-000
055. [01] 09624-70010 SHEET, PLUNGER SPR 22145-87701-000
055. [01] 09624-70010 SHEET, PLUNGER SPR
056. [02] 09623-70010 GUIDE SUB-ASSY, PL 22192-87701-000
056. [02] 09623-70010 GUIDE SUB-ASSY, PL
057. [02] 09623-60030 SPRING, PLUNGER 22144-54180-000
057. [02] 09623-60030 SPRING, PLUNGER
058. [02] 09624-60010 SHEET, PLUNGER SPR
058. [02] 09624-60010 SHEET, PLUNGER SPR 22143-87701-000
060. [01] 94914-02980 O-RING 22541-87706-000
060. [01] 94914-02980 O-RING 9 491 4029 80
062. [02] 09627-90010 SPRING, LEVER SUPP
062. [02] 09627-90010 SPRING, LEVER SUPP 22314-87701-000
063. [01] 09644-70040 SCREW, SMOKE SET 22776-87701-000
063. [01] 09644-70040 SCREW, SMOKE SET
064. [02] 90160-06051 NUT, HEXAGON 22825-1480A
064. [02] 90160-06051 NUT, HEXAGON 94110-40600-000
065. [01] 90200-08211 WASHER, PLATE 90093-00803-000
065. [01] 90200-08211 WASHER, PLATE
066. [01] 94914-02900 O-RING 90099-14047-000
066. [01] 94914-02900 O-RING 9 491 4029 00
067. [04] 09644-90020 BOLT, SOCKET 22395-54010-000
067. [04] 09644-90020 BOLT, SOCKET
068. [01] 09628-90020 SPRING, GOVERNOR I 0 962 8900 20
068. [01] 09628-90020 SPRING, GOVERNOR I 22317-54010-000
069. [01] 09626-70060 SHEET, GOVERNOR SP
069. [01] 09626-70060 SHEET, GOVERNOR SP 22369-54080-000
070. [01] 09602-00030 SCREW SUB-ASSY, OV 22160-64010-000
070. [01] 09602-00030 SCREW SUB-ASSY, OV
071. [04] 09024-10010 WASHER, AIR BLEEDE 22847-2150A
071. [04] 09024-10010 WASHER, AIR BLEEDE 22119-77020-000
073. [02] 94900-20420 SCREW, COUNTERSUNK 90099-00723-000
073. [02] 94900-20420 SCREW, COUNTERSUNK 9 490 0204 20
074. [01] 09626-10220 SPRING, SPEED CONT 22726-58200-000
074. [01] 09626-10220 SPRING, SPEED CONT
075. [01] 94914-02910 O-RING 90099-14048-000
075. [01] 94914-02910 O-RING 9 491 4029 10
077. [01] 90258-06001 WASHER, SPRING 28219-1110A
077. [01] 90258-06001 WASHER, SPRING 94511-00600-000
078. [01] 09644-50011 GUIDE, RETURN SPRI
078. [01] 09644-50011 GUIDE, RETURN SPRI 22728-54010-000
079. [01] 09644-40011 SPRING, RETURN 22322-54010-000
079. [01] 09644-40011 SPRING, RETURN 0 964 4400 11
080. [ C] 09643-61100 LEVER, ADJUSTING
080. [ C] 09643-61090 LEVER, ADJUSTING
080. [ C] 09643-61100 LEVER, ADJUSTING
080. [ C] 09643-61090 LEVER, ADJUSTING
081. [01] 09644-60093 GASKET, GOVERNOR C 22774-54010-000
081. [01] 09644-60093 GASKET, GOVERNOR C 0 964 4600 92
082. [01] 09616-00050 VALVE SUB-ASSY, RE 22180-58200-000
082. [01] 09616-00050 VALVE SUB-ASSY, RE
082-001. [01] 94914-02950 O-RING 90099-14078-000
082-001. [01] 94914-02950 O-RING 9 491 4029 50
082-002. [01] 94914-02920 O-RING 9 491 4029 20
082-002. [01] 94914-02920 O-RING 90099-14080-000
084. [01] 09634-20010 NUT, LOCK 22775-77121-000
084. [01] 09634-20010 NUT, LOCK 22821-1530A
085. [01] 09222-30110 SCREW, FUEL PIPE H
085. [01] 09222-30110 SCREW, FUEL PIPE H 22196-64150-000
086. [02] 09626-90020 BOLT, GOVERNOR LIN 22739-54020-000
086. [02] 09626-90020 BOLT, GOVERNOR LIN
087. [01] 94905-50300 NUT, CAP
087. [01] 94905-50300 NUT, CAP 90099-05161-000
088. [04] 94904-05600 BOLT, HEXAGON
088. [04] 94904-05600 BOLT, HEXAGON 90099-04942-000
091. [01] 09627-30060 WASHER, GOVERNOR T
091. [01] 09627-30060 WASHER, GOVERNOR T 22378-54010-000
092. [ C] 09624-80040 SHIM, PLUNGER SPRI
092. [ C] 09624-80050 SHIM, PLUNGER SPRI
092. [ C] 09624-80020 SHIM, PLUNGER SPRI
092. [ C] 09624-80010 SHIM, PLUNGER SPRI
092. [ C] 09624-80060 SHIM, PLUNGER SPRI
092. [ C] 09624-80070 SHIM, PLUNGER SPRI
092. [ C] 09624-80030 SHIM, PLUNGER SPRI
092. [ C] 09624-80030 SHIM, PLUNGER SPRI 22184-54010-000
092. [ C] 09624-80050 SHIM, PLUNGER SPRI 22186-54010-000
092. [ C] 09624-80070 SHIM, PLUNGER SPRI 22188-54010-000
092. [ C] 09624-80010 SHIM, PLUNGER SPRI 22182-54010-000
092. [ C] 09624-80020 SHIM, PLUNGER SPRI 22183-54010-000
092. [ C] 09624-80060 SHIM, PLUNGER SPRI 22187-54010-000
092. [ C] 09624-80040 SHIM, PLUNGER SPRI 22185-54010-000
093. [ C] 09626-60130 WASHER, GOVERNOR G 22716-54010-000
093. [ C] 09626-60140 WASHER, GOVERNOR G 22717-54010-000
093. [ C] 09626-60170 WASHER, GOVERNOR G
093. [ C] 09626-60140 WASHER, GOVERNOR G
093. [ C] 09626-60120 WASHER, GOVERNOR G 22715-54010-000
093. [ C] 09626-60110 WASHER, GOVERNOR G 22714-54010-000
093. [ C] 09626-60120 WASHER, GOVERNOR G
093. [ C] 09626-60110 WASHER, GOVERNOR G
093. [ C] 09626-60100 WASHER, GOVERNOR G
093. [ C] 09626-60130 WASHER, GOVERNOR G
093. [ C] 09626-60100 WASHER, GOVERNOR G 22713-54010-000
093. [ C] 09626-60170 WASHER, GOVERNOR G
094. [ C] 09625-60150 PLUG, GOVERNOR SLE 22787-54019-000
094. [ C] 09625-60160 PLUG, GOVERNOR SLE 22787-54020-000
094. [ C] 09625-60180 PLUG, GOVERNOR SLE 22787-54022-000
094. [ C] 09625-60190 PLUG, GOVERNOR SLE 22787-54023-000
094. [ C] 09625-60200 PLUG, GOVERNOR SLE 22787-54024-000
094. [ C] 09625-60210 PLUG, GOVERNOR SLE 22787-54025-000
094. [ C] 09625-60180 PLUG, GOVERNOR SLE
094. [ C] 09625-60160 PLUG, GOVERNOR SLE
094. [ C] 09625-60140 PLUG, GOVERNOR SLE 22787-54018-000
094. [ C] 09625-60170 PLUG, GOVERNOR SLE 22787-54021-000
094. [ C] 09625-60140 PLUG, GOVERNOR SLE
094. [ C] 09625-60150 PLUG, GOVERNOR SLE
094. [ C] 09625-60210 PLUG, GOVERNOR SLE
094. [ C] 09625-60170 PLUG, GOVERNOR SLE
094. [ C] 09625-60190 PLUG, GOVERNOR SLE
094. [ C] 09625-60200 PLUG, GOVERNOR SLE
095. [ C] 09621-70040 WASHER, TIMER ADJU 22622-54010-000
095. [ C] 09621-70040 WASHER, TIMER ADJU
095. [ C] 09621-70030 WASHER, TIMER ADJU
095. [ C] 09621-70020 WASHER, TIMER ADJU
095. [ C] 09621-70020 WASHER, TIMER ADJU 22624-54010-000
095. [ C] 09621-70030 WASHER, TIMER ADJU 22621-54010-000
097. [ C] 09640-60420 SHIM, PLUNGER ADJU
097. [ C] 09640-60370 SHIM, PLUNGER ADJU
097. [ C] 09640-60320 SHIM, PLUNGER ADJU
097. [ C] 09640-60270 SHIM, PLUNGER ADJU
097. [ C] 09640-60220 SHIM, PLUNGER ADJU
097. [ C] 09640-60170 SHIM, PLUNGER ADJU
097. [ C] 09640-60120 SHIM, PLUNGER ADJU
097. [ C] 09640-60070 SHIM, PLUNGER ADJU
097. [ C] 09640-60020 SHIM, PLUNGER ADJU
097. [ C] 09640-60470 SHIM, PLUNGER ADJU
097. [ C] 09640-60170 SHIM, PLUNGER ADJU 22179-54013-000
097. [ C] 09640-60470 SHIM, PLUNGER ADJU 22179-54019-000
097. [ C] 09640-60420 SHIM, PLUNGER ADJU 22179-54018-000
097. [ C] 09640-60370 SHIM, PLUNGER ADJU 22179-54017-000
097. [ C] 09640-60320 SHIM, PLUNGER ADJU 22179-54016-000
097. [ C] 09640-60270 SHIM, PLUNGER ADJU 22179-54015-000
097. [ C] 09640-60220 SHIM, PLUNGER ADJU 22179-54014-000
097. [ C] 09640-60120 SHIM, PLUNGER ADJU 22179-54012-000
097. [ C] 09640-60070 SHIM, PLUNGER ADJU 22179-54011-000
097. [ C] 09640-60020 SHIM, PLUNGER ADJU 22179-54010-000
105. [01] 94904-50190 BOLT, HEXAGON, W/ 90099-04946-000
105. [01] 94904-50190 BOLT, HEXAGON, W/
106. [01] 94904-50180 BOLT, HEXAGON, W/ 90099-04576-000
106. [01] 94904-50180 BOLT, HEXAGON, W/
108. [01] 09604-50090 WIRE SUB-ASSY
108. [01] 09604-50100 WIRE SUB-ASSY
108. [01] 09604-50090 WIRE SUB-ASSY 22751-64020-000
108. [01] 09604-50100 WIRE SUB-ASSY 22751-64010-000
109. [01] 09602-90110 CLIP, CONNECTOR SU 22172-64040-000
109. [01] 09602-90110 CLIP, CONNECTOR SU
110. [01] 09643-80690 BRACKET, IDLE UP
110. [01] 09643-80690 BRACKET, IDLE UP
111. [01] 09643-80680 BRACKET, IDLE UP
111. [01] 09643-80680 BRACKET, IDLE UP
112. [02] 91418-08201 BOLT, W/WASHER
112. [02] 91418-08201 BOLT, W/WASHER 90041-19251-000
113. [01] 07630-00151 PICKUP ASSY, TACHO
113. [01] 07630-01700 PICKUP ASSY, TACHO
113. [01] 07630-00151 PICKUP ASSY, TACHO 83180-14010-000
113. [01] 07630-01700 PICKUP ASSY, TACHO
114. [01] 90802-10150 O-RING 96712-19015-000
114. [01] 90802-10150 O-RING
115. [01] 09602-90100 CLIP, CONNECTOR SU 22172-64030-000
115. [01] 09602-90100 CLIP, CONNECTOR SU
150. [01] 09653-00071 FILTER, SUB-ASSY 22602-56350-000
150. [01] 09653-00071 FILTER, SUB-ASSY
151. [01] 09606-40110 WASHER 22689-56350-000
151. [01] 09606-40110 WASHER

Include in #3:

09600-01810 as PUMP ASSY, INJECTI
09600-01810

Cross reference number



Part num Firm num Firm Name
09600-01810  22100-87C0  PUMP ASSY, INJECTI
22100-87C04-000    DAIHATSU PUMP ASSY, INJECTI




Information:


Do not bend or add stress to the shaft when nut is loosened or tightened.
d. Remove nut from shaft and apply 6V1541 Quick Cure Primer on the threads of the shaft and nut followed by application of 9S3263 Retaining Compound.e. Tighten nut to 4 N m (30 lb in).f. Tighten nut more 90° rotation.(6) Thickness of each thrust ring ... 2.553 0.013 mm (.1005 .0005 in)(7) Bore in housing (new) ... 24.994 to 25.006 mm (.9840 to .9845 in) Outside diameter of the bearing (new) ... 24.882 to 24.892 mm (.9796 to .9800 in)Maximum permissible clearance between bearing and bore in housing (worn) ... 0.15 mm (.006 in)Tighten both band clamps (that hold the compressor and turbine housings to the cartridge group) with procedure that follows: a. Tighten to ... 14 1.1 N m (125 10 lb in)b. Tap (hit) clamp lightly all around.c. Tighten again to ... 14 1.1 N m (125 10 lb in)
Do not overtighten the clamps.
Torque for four nuts (put 5P3931 Anti-Seize Compound on threads) and bolts that hold turbocharger to exhaust manifold ... 55 5 N m (40 4 lb ft) Put clean engine oil in the oil inlet of the turbocharger after assembly or before installation to provide start up lubrication and/or storage protection.Turbocharger S3B And C3B
(1) End play for shaft (new) ... 0.102 0.025 mm (.004 .001 in) Maximum permissible end play (worn) ... 0.20 mm (.008 in)(2) Thickness of thrust bearing (where thrust rings contact bearing) ... 5.36 0.03 mm (.211 .001 in)(3) Diameter of shaft (new) ... 12.697 to 12.705 mm (.4999 to .5002 in) Bore in the bearing (new) ... 12.741 to 12.748 mm (.5016 to .5019 in)Maximum permissible clearance between bearing and shaft (worn) ... 0.05 mm (.002 in)(4) Maximum permissible gap of oil seal ring, measured in bore of housing ... 0.25 mm (.010 in)(5) Install the compressor wheel (at room temperature) as follows: a. Put compressor wheel on the shaft.b. Put a small amount of clean engine oil on the threads.c. Tighten the nut to 14 to 17 N m (125 to 150 lb in).d. Remove nut from shaft and apply 6V1541 Quick Cure Primer on the threads of the shaft and nut followed by application of 9S3263 Retaining Compound.e. Tighten nut to a torque of ... 24 2 N m (216 12 lb in)
Do not bend or add stress to the shaft when the nut is loosened or tightened.
(6) Thickness of each thrust ring ... 2.553 0.013 mm (.1005 .0005 in)(7) Bore in housing (new) ... 20.744 to 20.757 mm (.8167 to .8172 in) Outside diameter of the bearing (new) ... 20.630 to 20.643 mm (.8122 to .8127 in)Maximum permissible clearance between bearing and bore in housing (worn) ... 0.15 mm (.006 in)Torque for four nuts (put 5P3931 Anti-Seize Compound on threads) and bolts that hold turbocharger to exhaust manifold ... 55 5 N m (40

Have questions with 09600-01810?





09614-00040 PUMP SUB-ASSY, FUE 09614-00030 09614-00020 09600-01800 PUMP ASSY, INJECTI 09600-01790
01700061 PUMP ASSY, FUEL FE 01705213 PUMP ASSY, INJECTI 01705223 01705242 01705252

Group cross 09600-01810

Back to top
