Information injector assy
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

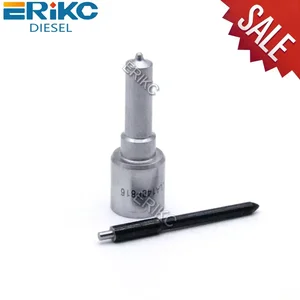

4PCS DLLA148P816 Oil Pump Nozzle DLLA 148P816 Nozzle DLLA 148 P 816 (093400-8160) Compatible For Nissan 095000-5135 095000-5130 095000-5131
UCLMCNID Made of high-strength and corrosion-resistant alloy materials to extend the service life. || It can spray fuel in extremely fine particle form, mix it thoroughly with air, achieve efficient combustion, and improve fuel economy. || Adapting to different working conditions, precise fuel injection can be achieved whether idling, accelerating, or driving at high speeds. || High precision manufacturing, utilizing advanced processing techniques to ensure the dimensional accuracy and performance consistency of fuel injectors. || 4PCS DLLA148P816 Oil Pump Nozzle DLLA 148P816 Nozzle DLLA 148 P 816 (093400-8160) Compatible For Nissan 095000-5135 095000-5130 095000-5131
UCLMCNID Made of high-strength and corrosion-resistant alloy materials to extend the service life. || It can spray fuel in extremely fine particle form, mix it thoroughly with air, achieve efficient combustion, and improve fuel economy. || Adapting to different working conditions, precise fuel injection can be achieved whether idling, accelerating, or driving at high speeds. || High precision manufacturing, utilizing advanced processing techniques to ensure the dimensional accuracy and performance consistency of fuel injectors. || 4PCS DLLA148P816 Oil Pump Nozzle DLLA 148P816 Nozzle DLLA 148 P 816 (093400-8160) Compatible For Nissan 095000-5135 095000-5130 095000-5131

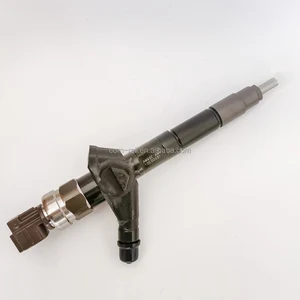

4Pcs Fuel Injection 095000-5135 0950005135 Compatible with Nissan X-Trail Primera Almera 2.2 Dci 2001-2013
Starhycfa Product name:Fuel Injection || Part Number:095000-5135 0950005135 || APPlication:Compatible with Nissan X-Trail Primera Almera 2.2 Dci 2001-2013 || 1.Please carefully compare the pictures or OE numbers to match your original parts before purchasing the product. || 2.Please make sure that the model number, part number and photo is the same as yours before order. To Avoid placing wrong orders and wasting your precious time.
Starhycfa Product name:Fuel Injection || Part Number:095000-5135 0950005135 || APPlication:Compatible with Nissan X-Trail Primera Almera 2.2 Dci 2001-2013 || 1.Please carefully compare the pictures or OE numbers to match your original parts before purchasing the product. || 2.Please make sure that the model number, part number and photo is the same as yours before order. To Avoid placing wrong orders and wasting your precious time.
0950005135 095000-5135 1X Fuel Injector for Nissan X-Trail Primera Almera 2.2 Dci 2001-2013
TUWODE Part Number: 950005135 095000-5135 || Item Type: Fuel Injector || Applicable Models: Fit for Nissan X-Trail Primera Almera 2.2 Dci 2001-2013 || Well-functioning fuel injectors ensure the correct air-fuel ratio, which is essential for minimizing harmful emissions. || Fuel is broken into fine droplets for optimal air mixing and enhanced combustion efficiency.
TUWODE Part Number: 950005135 095000-5135 || Item Type: Fuel Injector || Applicable Models: Fit for Nissan X-Trail Primera Almera 2.2 Dci 2001-2013 || Well-functioning fuel injectors ensure the correct air-fuel ratio, which is essential for minimizing harmful emissions. || Fuel is broken into fine droplets for optimal air mixing and enhanced combustion efficiency.
You can express buy:
USD 252.64
25-11-2022
25-11-2022
Made in China new Fuel Injector 095000-5135 16600-AW40C
USD 42.99
10-11-2022
10-11-2022
USD 42.99
10-11-2022
10-11-2022
Images:
USD 17.9
[10-Nov-2022]
USD 40.99
[10-Nov-2022]
USD 40.99
[10-Nov-2022]
USD 40.99
[10-Nov-2022]
Include in #3:
Cross reference number
| Part num | Firm num | Firm | Name |
| 09500-05135 | 16600AW40C | INJECTOR ASSY |
Information:
START BY:a. remove valve covers
Do not let the tops of the fuel nozzles turn when the fuel lines are loosened. The nozzles will be damaged if the top of the nozzles turn in the body.
1. Use tooling (A), and remove inner fuel injection lines (1). Install caps and plugs on all fuel injection line openings to keep dirt out of the fuel system. 2. Remove seal (2) from fuel injection line (1) if necessary. 3. Remove screw (3) from clamp (4) that holds fuel injection nozzle (5) in position. Clamp (4) cannot be removed until the fuel injection nozzle is lifted approximately 25.0 mm (1.00 in.). 4. Remove the fuel injection nozzles with tooling (B) as follows:a. Install 6V6983 Adapter (6) and 6V4152 Screw (7) into nozzle assembly (5). b. Install 6V6982 Tube Assembly (8) over the 6V4152 Screw. Use 2S5658 Washer (9) and 1B2406 Nut (10) on the 6V4152 Screw to pull the fuel injection nozzle from the adapter.
A replacement of compression seal washer (11) and of carbon dam seal (12) must be made each time the fuel nozzle is removed. Be sure that the replacement compression seal washer (11) is the same color code and part number as the original compression seal washer. If the wrong thickness washer is used, engine damage could occur. See Specifications For 3406B Diesel Truck Engines for more information.
5. Remove compression seal washer (11) and carbon dam seal (12) from fuel injection nozzle (5).Install Fuel Injection Nozzles (Earlier)
1. Install compression seal washer (1), and use tool (A) to install carbon dam seal (2) on the fuel injection nozzle.2. Make reference to Special Instruction SEHS7292 for the use of tooling (C). 3. Use tool (D) to clean adapter bore (3) for the fuel injection nozzle. Use an open end wrench or a tap driver to turn tool (D). 4. Install fuel injection nozzle (4) and clamp (5) as a unit. Install the bolt in the clamp to hold it in place. 5. Install O-ring seal (6) on the inner fuel injection line.
Do not let the tops of the fuel nozzles turn when the fuel lines are tightened. The nozzles will be damaged if the top of the nozzles turn in the body.
6. Install inner fuel injection line (7). Use tooling (B) to tighten the inner fuel line nuts to a torque of 40 7 N m (30 5 lb.ft.).END BY:a. install valve covers
Do not let the tops of the fuel nozzles turn when the fuel lines are loosened. The nozzles will be damaged if the top of the nozzles turn in the body.
1. Use tooling (A), and remove inner fuel injection lines (1). Install caps and plugs on all fuel injection line openings to keep dirt out of the fuel system. 2. Remove seal (2) from fuel injection line (1) if necessary. 3. Remove screw (3) from clamp (4) that holds fuel injection nozzle (5) in position. Clamp (4) cannot be removed until the fuel injection nozzle is lifted approximately 25.0 mm (1.00 in.). 4. Remove the fuel injection nozzles with tooling (B) as follows:a. Install 6V6983 Adapter (6) and 6V4152 Screw (7) into nozzle assembly (5). b. Install 6V6982 Tube Assembly (8) over the 6V4152 Screw. Use 2S5658 Washer (9) and 1B2406 Nut (10) on the 6V4152 Screw to pull the fuel injection nozzle from the adapter.
A replacement of compression seal washer (11) and of carbon dam seal (12) must be made each time the fuel nozzle is removed. Be sure that the replacement compression seal washer (11) is the same color code and part number as the original compression seal washer. If the wrong thickness washer is used, engine damage could occur. See Specifications For 3406B Diesel Truck Engines for more information.
5. Remove compression seal washer (11) and carbon dam seal (12) from fuel injection nozzle (5).Install Fuel Injection Nozzles (Earlier)
1. Install compression seal washer (1), and use tool (A) to install carbon dam seal (2) on the fuel injection nozzle.2. Make reference to Special Instruction SEHS7292 for the use of tooling (C). 3. Use tool (D) to clean adapter bore (3) for the fuel injection nozzle. Use an open end wrench or a tap driver to turn tool (D). 4. Install fuel injection nozzle (4) and clamp (5) as a unit. Install the bolt in the clamp to hold it in place. 5. Install O-ring seal (6) on the inner fuel injection line.
Do not let the tops of the fuel nozzles turn when the fuel lines are tightened. The nozzles will be damaged if the top of the nozzles turn in the body.
6. Install inner fuel injection line (7). Use tooling (B) to tighten the inner fuel line nuts to a torque of 40 7 N m (30 5 lb.ft.).END BY:a. install valve covers
