Information injector assy
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

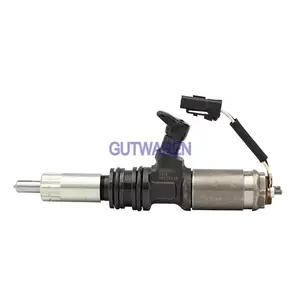

6X Fuel Injector Model 095000-0451 0950000451 for Denso Isuzu 6HK1 Diesel Engine Trucks
TUWODE Part Number: 095000-0451 950000451 || Item Type: Fuel Injector || Applicable Models: Fit for Denso Isuzu 6HK1 Diesel Engine Trucks || Well-functioning fuel injectors ensure the correct air-fuel ratio, which is essential for minimizing harmful emissions. || Fuel is broken into fine droplets for optimal air mixing and enhanced combustion efficiency.
TUWODE Part Number: 095000-0451 950000451 || Item Type: Fuel Injector || Applicable Models: Fit for Denso Isuzu 6HK1 Diesel Engine Trucks || Well-functioning fuel injectors ensure the correct air-fuel ratio, which is essential for minimizing harmful emissions. || Fuel is broken into fine droplets for optimal air mixing and enhanced combustion efficiency.
shsiyayh 1X Fuel Injector 095000-0451 0950000451 for Denso Isuzu 6HK1 Diesel Engine Trucks
shsiyayh Part Name:Fuel Injector || Part Number:095000-0451 0950000451 || APPlication: Compatible with Denso Isuzu 6HK1 Diesel Engine Trucks || 1.Please tell us of your engine model or a view of nameplate when order this item to lower the error rate.Thanks. || 2.There are no instructions included in this kit.it is recommended to install professionally.
shsiyayh Part Name:Fuel Injector || Part Number:095000-0451 0950000451 || APPlication: Compatible with Denso Isuzu 6HK1 Diesel Engine Trucks || 1.Please tell us of your engine model or a view of nameplate when order this item to lower the error rate.Thanks. || 2.There are no instructions included in this kit.it is recommended to install professionally.
SPAKYGIE 4Pcs 095000-0451 Fuel Injectors fit for Isuzu Engine 4HK1
SPAKYGIE ✨Including:4*Fuel Injectors || ✨Part Number:095000-0501, 095000-0612, 8-97602436-2, 8-97602436-0, 8-97602436-1 || ✨Fits for Isuzu Engine 4HK1 || ✨These parts are manufactured directly from high quality companies. This is a quality set that will last. || ✨Please contact us freely if you have any questions.
SPAKYGIE ✨Including:4*Fuel Injectors || ✨Part Number:095000-0501, 095000-0612, 8-97602436-2, 8-97602436-0, 8-97602436-1 || ✨Fits for Isuzu Engine 4HK1 || ✨These parts are manufactured directly from high quality companies. This is a quality set that will last. || ✨Please contact us freely if you have any questions.
You can express buy:
USD 168
10-11-2022
10-11-2022
Components :
| 001. | INJECTOR ASSY | 09500-00451 |
| 001. | INJECTOR ASSY | 09500-00451 |
Scheme ###:
| 000. | [01] | 09500-00450 | INJECTOR ASSY | 8-97601259-0 |
| 000. | [01] | 09500-00451 | INJECTOR ASSY | 8-97601259-1 |
Include in #3:
09500-00451
as INJECTOR ASSY
Cross reference number
| Part num | Firm num | Firm | Name |
| 09500-00451 | 8-97601259 | INJECTOR ASSY |
Information:
Before any service work is done on the fuel system, the outer surface of the injection pump housing must be clean.
The fuel injection pump housing and governor has been removed from the engine for illustration purposes. 1. Remove flange (1) and the flange assembly from the cover.2. Remove cover (2) from the pump housing. 3. Remove the bypass valve (3) and springs from the pump housing.4. Install tooling (A) on the fuel injection pump and loosen the bushing from the pump housing. Do not loosen screws (4) that hold the levers to the shaft when the pumps are removed or installed. If the levers are moved, fuel pump calibration will be changed. 5. Remove the fuel injection pump (5) from the pump housing. The sleeve on the plunger will slide off the lever as the pump is removed.6. Do Steps 4 and 5 for the remainder of the pumps.Install Fuel Injection Pumps
1. Turn the camshaft until the lifter for the pump to be installed is at its lowest position.2. Install the fuel injection pump (1) in the bore of the pump housing. 3. The sleeve (2) will be engaged with the lever when the pump is installed correctly.
If the levers have been moved on the shaft, fuel pump calibration must be made. (See TESTING AND ADJUSTING).
4. Tighten the bushing with tooling (A) to a torque of 80 7 N m (60 5 lb.ft.).5. Do Steps 1 through 4 for the remainder of the pumps. 6. Install the bypass valve and spring (3) in the pump housing.7. Install the cover (5) on the pump housing. Be sure the spring (3) is in the bore in the cover. 8. Install the flange (4) and the flange assembly on the cover.Disassemble Fuel Injection Pumps
1. Remove bushing (1) and O-ring seal (7) from bonnet (2).2. Remove ring (3) from the bonnet and barrel (4). 3. Remove check valve assembly (9) and spring (8) from the bonnet.4. Remove spring (10) and retainer washer (5).
Keep the plunger and sleeve with their respective barrel for installation. Do not use plungers, sleeves and barrels with other plungers, sleeves and barrels.
5. Remove plunger (11) and sleeve (6).Assemble Fuel Injection Pumps
1. Install the sleeve (4), plunger (5), spring (2) and washer (3) on barrel (1).
Be sure the sleeve and plunger are installed in their original barrel and the large hole in the plunger is up. The sleeve must be installed with the thin flange up.
2. Install the check valve assembly and spring in the bonnet. Connect the barrel and bonnet with the ring. Install the seal and bushing on the bonnet. end by:a) install fuel injection pumps
