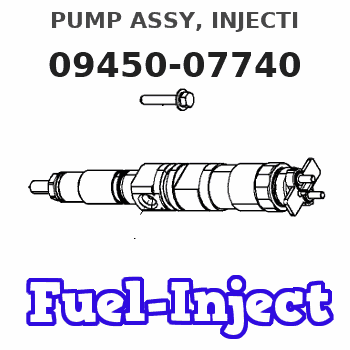

Information pump assy, injecti
Nozzle:
0935004540

Rating:
Components :
001. | PUMP ASSY, INJECTI | 09450-07740 |
Scheme ###:
000. | [01] | 09450-07740 | PUMP ASSY, INJECTI | 1G880-51011 |
001. | [01] | 09011-12490 | HOUSING, PUMP | |
002. | [03] | 09013-00450 | HOLDER SUB-ASSY, D | 16415-51221 |
003. | [03] | 09013-60970 | SPRING, DELIVERY V | 16475-51231 |
004. | [03] | 09013-70130 | GASKET, DELIVERY V | 11420-51241 |
005. | [03] | 09014-02050 | VALVE SUB-ASSY, IN | 16475-51031 |
006. | [03] | 09015-05310 | ELEMENT SUB-ASSY, | 17182-51051 |
008. | [03] | 09016-30082 | SEAT, SPRING, UPR | 15221-51271 |
009. | [03] | 09016-40170 | SPRING, PUMP PLUNG | 15221-51281 |
010. | [03] | 09016-10520 | SLEEVE, PLUNGER CO | |
011. | [03] | 09017-00170 | TAPPET SUB-ASSY,IN | 15221-51071 |
011-001. | [03] | 09017-10022 | TAPPET, INJECTION | 15021-51990 |
011-002. | [03] | 09217-60010 | ROLLER, FEED PUMP | 15109-52931 |
011-003. | [03] | 09017-60020 | PIN, INJECTION PUM | 15021-51970 |
012. | [01] | 09021-00790 | RACK ASSY, CONTROL | 17182-51061 |
015. | [01] | 09024-50160 | SCREW, HOLLOW | 15521-51321 |
016. | [02] | 09024-10010 | WASHER, AIR BLEEDE | 15221-96651 |
017. | [03] | 09018-30050 | PIN, INJECTION PUM | 14611-51251 |
018. | [03] | 09030-10060 | SEAT, SPRING, LWR | 15021-51291 |
019. | [01] | 09046-70040 | PLATE | 19484-51461 |
022. | [03] | 90802-20150 | O-RING | 14611-51201 |
022. | [03] | 09013-90410 | O-RING | |
024. | [3C] | 09031-10530 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10520 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10510 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10500 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10490 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10060 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10050 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10040 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10030 | PLATE, TAPPET ADJU | |
024. | [3C] | 09031-10020 | PLATE, TAPPET ADJU | |
025. | [01] | 09023-10070 | PLATE, DELIVERY VA | |
026. | [01] | 09023-20070 | PLATE, DELIVERY VA | |
029. | [02] | 94904-44330 | BOLT |
Include in #3:
09450-07740
as PUMP ASSY, INJECTI
Cross reference number
Part num | Firm num | Firm | Name |
09450-07740 | 1G880-5101 | PUMP ASSY, INJECTI | |
1G880-51011 | KUBOTA | PUMP ASSY, INJECTI |
Information:
Introduction
Do not perform any procedure that is outlined in the Special Instruction until the entire instruction has been read and understood.Check Valve Torque
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat products.Dispose of all fluids according to local regulations and mandates.
The check valves that are located within the fuel pressure regulator group are sensitive to assembly torque. In order to eliminate the risk of valve distortion, torque the check valves to 28 3 N m (21 2 lb ft). Refer to Table 1 for the check valve part numbers that required the torque that is listed above.
Table 1
Part Number Description
327-0376 Check Valve Gp
327-4448 Check Valve Gp
281-2725 Check Valve Gp
282-1915 Check Valve Gp
228-7381 Check Valve Gp
327-8044 Check Valve Gp
Do not perform any procedure that is outlined in the Special Instruction until the entire instruction has been read and understood.Check Valve Torque
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting, and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.Refer to Special Publication, NENG2500, "Dealer Service Tool Catalog" for tools and supplies suitable to collect and contain fluids on Cat products.Dispose of all fluids according to local regulations and mandates.
The check valves that are located within the fuel pressure regulator group are sensitive to assembly torque. In order to eliminate the risk of valve distortion, torque the check valves to 28 3 N m (21 2 lb ft). Refer to Table 1 for the check valve part numbers that required the torque that is listed above.
Table 1
Part Number Description
327-0376 Check Valve Gp
327-4448 Check Valve Gp
281-2725 Check Valve Gp
282-1915 Check Valve Gp
228-7381 Check Valve Gp
327-8044 Check Valve Gp
