09450-07430 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935003350
09450-07430 PUMP ASSY, INJECTI
Rating:
7
Buy PUMP ASSY, INJECTI 09450-07430 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-07430

Scheme ###:

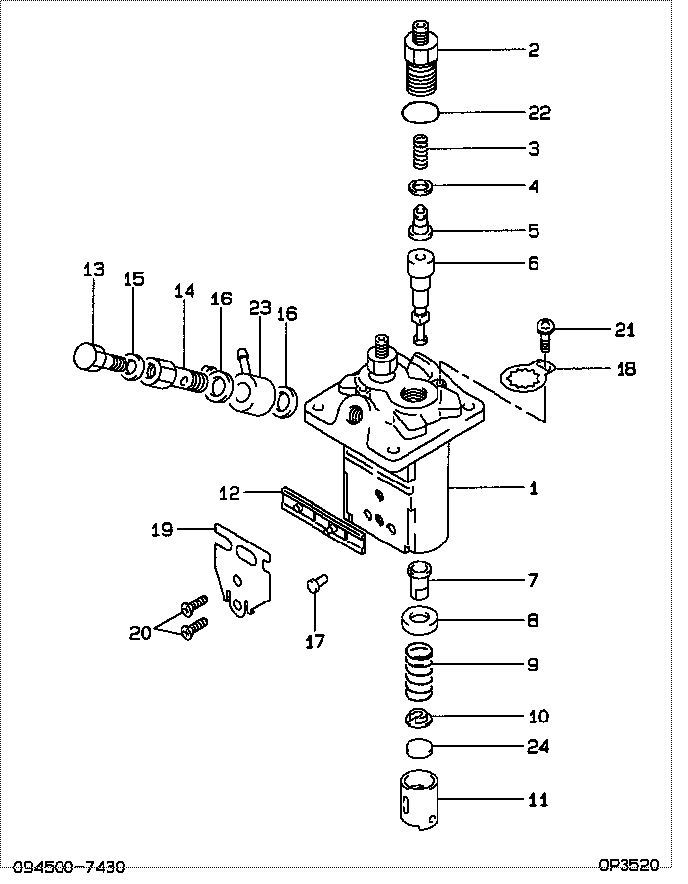

PUMP ASSY, INJECTI
000. [01] 09450-07430 PUMP ASSY, INJECTI 30L6502500
001. [01] 09011-03890 HOUSING SUB-ASSY,
002. [02] 09013-10830 HOLDER, DELIVERY V MM501918
003. [02] 09013-60530 SPRING, DELIVERY V
004. [02] 09013-70130 GASKET, DELIVERY V
005. [02] 09014-01900 VALVE SUB-ASSY, IN
006. [02] 09015-04270 ELEMENT SUB-ASSY,
007. [02] 09016-00140 SLEEVE SUB-ASSY, C
008. [02] 09016-30140 SEAT, SPRING, UPR
009. [02] 09016-40220 SPRING, PUMP PLUNG MM501926
010. [02] 09016-50170 SEAT, SPRING, LWR
011. [02] 09017-00220 TAPPET SUB-ASSY,IN
012. [01] 09021-00600 RACK ASSY, CONTROL
013. [01] 09024-40010 SCREW, AIR BLEEDER 09024-40010
014. [01] 09024-50310 SCREW, HOLLOW
015. [01] 09024-80010 WASHER, DRAIN SCRE 09024-80010
016. [02] 09025-10010 WASHER, INJECTION 85265-00077
017. [02] 09018-30090 PIN, INJECTION PUM
018. [02] 09023-00070 PLATE SET, VALVE H
019. [01] 09069-11270 BRACKET, STOP WIRE
020. [02] 94900-20500 SCREW, COUNTERSUNK
021. [02] 94900-75390 SCREW, W/WASHER
022. [02] 90801-10130 O-RING
022. [02] 09013-90400 O-RING 47X0122600
023. [01] 09221-70590 NIPPLE, SWIVEL
024. [2C] 09031-10400 PLATE, TAPPET ADJU
024. [2C] 09031-10410 PLATE, TAPPET ADJU
024. [2C] 09031-10420 PLATE, TAPPET ADJU
024. [2C] 09031-10430 PLATE, TAPPET ADJU
024. [2C] 09031-10440 PLATE, TAPPET ADJU
024. [2C] 09031-10390 PLATE, TAPPET ADJU
024. [2C] 09031-10380 PLATE, TAPPET ADJU
024. [2C] 09031-10370 PLATE, TAPPET ADJU
024. [2C] 09031-10360 PLATE, TAPPET ADJU
024. [2C] 09031-10350 PLATE, TAPPET ADJU
024. [2C] 09031-10340 PLATE, TAPPET ADJU
024. [2C] 09031-10330 PLATE, TAPPET ADJU
024. [2C] 09031-10320 PLATE, TAPPET ADJU
024. [2C] 09031-10450 PLATE, TAPPET ADJU

Include in #3:

09450-07430 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-07430  30L6502500  PUMP ASSY, INJECTI
30L6502500    MITSUBISHI PUMP ASSY, INJECTI




Information:

1. Remove two bolts (1) from the top of the water pump. Loosen two bolts (2) in the water pump.
TYPICAL EXAMPLE2. Remove oil supply line (3) from the turbocharger. Remove oil return line (4) from the turbocharger.
TYPICAL EXAMPLE3. Remove the bolts (5) that hold the cylinder head to the cylinder block.
TYPICAL EXAMPLE4. Fasten a hoist to the cylinder head assembly (6). Remove the cylinder head assembly from the block. Weight of the assembly is 290 lb. (131 kg). Remove O-ring seal from hollow dowel. Remove cylinder head gasket (7) and water ferrules.
Do not put the cylinder head down on a flat surface. This can cause damage to the fuel injection valves.
Always install a new gasket between spacer plate and cylinder block before cylinder head is installed. See REMOVE SPACER PLATE.Install Cylinder Head
TYPICAL EXAMPLE1. Thoroughly clean the spacer plate and bottom surface of the cylinder head. Install a new head gasket (2), water ferrules (1) and O-ring seal (3) on the hollow dowel. Be sure a new gasket has been installed between spacer plate and cylinder block. See INSTALL SPACER PLATE.2. Fasten a hoist and install the cylinder head assembly (4) on the cylinder block. 3. Install the push rods and put the rocker shaft in position on the cylinder head. Put 5P3931 Anti-Seize Compound on the threads of the cylinder head and rocker shaft bolts. Install the bolts and washers and tighten the bolts as follows: 1. Tighten all bolts in number sequence to a torque of 115 lb. ft. (155 N m).2. Again tighten all bolts in number sequence to a torque of 185 13 lb. ft. (250 17 N m).3. Again tighten all bolts in number sequence (hand torque only) to a torque of 185 13 lb. ft. (250 17 N m).4. Tighten all bolts in letter sequence to a torque of 32 5 lb. ft. (43 7 N m).4. Make adjustment of valves to have a clearance of .015 in. (0.38 mm) for intake and .025 in. (0.64 mm) for exhaust.
TYPICAL EXAMPLE5. Install oil return line (6) on the turbocharger.6. Install oil supply line (5) on the turbocharger. 7. Tighten the two bolts (8) in the water pump.8. Install the two bolts (7) that hold the water pump to the cylinder head.end by: a) install fuel injection lines
