09450-05730 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

PUMP ASSY, INJECTI EA
  • *1 090219-5360 IS 11,L16.85
  • 090219-5370 IS 12,L16.75
Nozzle: 0935001660
09450-05730 PUMP ASSY, INJECTI
Rating:
77
Buy PUMP ASSY, INJECTI 09450-05730 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-05730

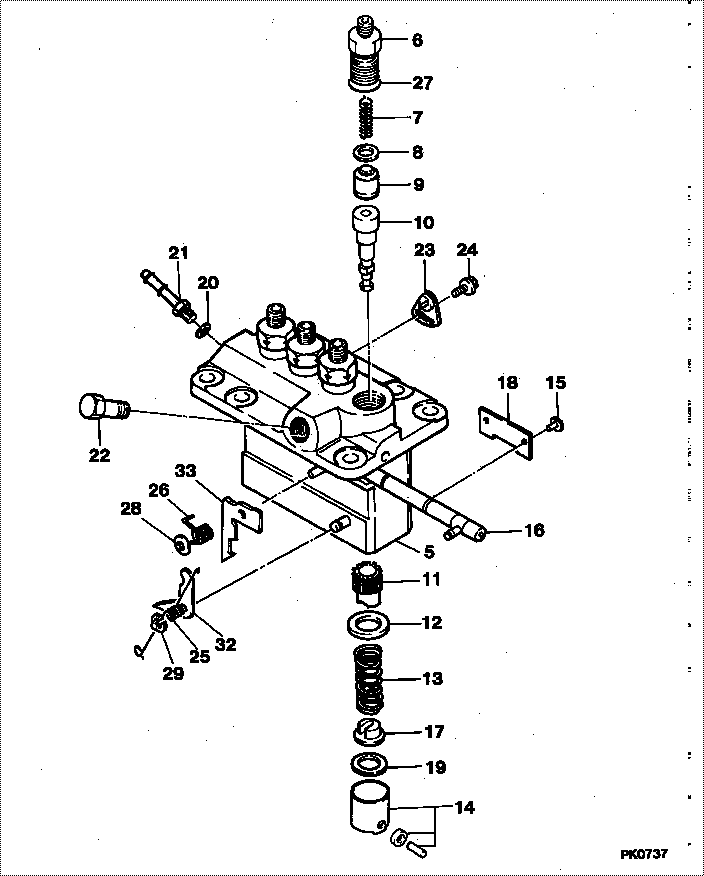

Scheme ###:

PUMP ASSY, INJECTI
000. [01] 09450-05730 PUMP ASSY, INJECTI
005. [01] 09011-02420 HOUSING SUB-ASSY, MM501253
006. [04] 09013-10280 HOLDER, DELIVERY V MM501075
006. [04] 09013-10520 HOLDER, DELIVERY V MM501507
007. [04] 09013-60540 SPRING, DELIVERY V MM501161
008. [04] 09013-70130 GASKET, DELIVERY V MM501856
009. [04] 09014-00790 VALVE SUB-ASSY, IN MM501046
010. [04] 09015-01531 ELEMENT SUB-ASSY, MM501211
011. [04] 09016-10210 SLEEVE, PLUNGER CO MM500229
012. [04] 09016-30082 SEAT, SPRING, UPR MM501098
013. [04] 09016-40170 SPRING, PUMP PLUNG MM500360
014. [04] 09017-00170 TAPPET SUB-ASSY,IN MM500230
014-001. [04] 09017-10021 TAPPET, INJECTION
014-002. [04] 09217-60010 ROLLER, FEED PUMP ME702227
014-003. [04] 09017-60020 PIN, INJECTION PUM P720-1429
015. [04] 09018-30050 PIN, INJECTION PUM MM500231
016. [01] 09021-00440 RACK ASSY, CONTROL MM501255
017. [04] 09030-10060 SEAT, SPRING, LWR MM500316
018. [02] 09046-70030 PLATE MM500232
019. [4C] 09031-10310 PLATE, TAPPET ADJU MM501365
019. [4C] 09031-10300 PLATE, TAPPET ADJU MM501364
019. [4C] 09031-10280 PLATE, TAPPET ADJU MM501246
019. [4C] 09031-10170 PLATE, TAPPET ADJU P760-15160
019. [4C] 09031-10160 PLATE, TAPPET ADJU MM500314
019. [4C] 09031-10140 PLATE, TAPPET ADJU MM500312
019. [4C] 09031-10130 PLATE, TAPPET ADJU MM500311
019. [4C] 09031-10120 PLATE, TAPPET ADJU MM500310
019. [4C] 09031-10110 PLATE, TAPPET ADJU MM500309
019. [4C] 09031-10010 PLATE, TAPPET ADJU ME702559
020. [01] 94901-81020 WASHER, COPPER PLA ME022309
021. [01] 09314-10170 NIPPLE, OIL LEAKAG MM500909
022. [01] 94918-00310 SCREW, HOLLOW ME702236
023. [03] 09006-80020 PLATE, ADJUSTING MM514109
024. [03] 94904-71980 BOLT, W/WASHER MM501244
024. [03] 94904-80800 BOLT, WASHER HEAD
025. [01] 09055-40300 SPRING, DIAPHRAGM MM501256
026. [01] 09055-40160 SPRING, DIAPHRAGM MM501073
027. [04] 90802-20150 O-RING MM500438
028. [01] 09089-40020 E-RING ME702639
029. [01] 09089-40010 E-RING ME702112
032. [1C] 09021-95370 STOPPER MM501748
032. [1C] 09021-95360 STOPPER MM501747
032. [1C] 09021-93120 STOPPER MM501501
032. [1C] 09021-93110 STOPPER MM501500
032. [1C] 09021-93100 STOPPER MM501499
032. [1C] 09021-93090 STOPPER MM501498
032. [1C] 09021-93080 STOPPER MM501497
033. [1C] 09021-93630 STOPPER MM501569
033. [1C] 09021-93640 STOPPER MM501270
033. [1C] 09021-93650 STOPPER MM501570
033. [1C] 09021-93660 STOPPER MM501271
033. [1C] 09021-93670 STOPPER MM501571
033. [1C] 09021-93680 STOPPER MM501272
033. [1C] 09021-93620 STOPPER MM501269
033. [1C] 09021-93610 STOPPER MM501568
033. [1C] 09021-93600 STOPPER MM501268
033. [1C] 09021-93590 STOPPER MM501567
033. [1C] 09021-93580 STOPPER MM501267
033. [1C] 09021-93570 STOPPER MM501566
033. [1C] 09021-93560 STOPPER MM501266
033. [1C] 09021-93550 STOPPER MM501565
033. [1C] 09021-93690 STOPPER MM501572

Include in #3:

09450-05730 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-05730    PUMP ASSY, INJECTI




Information:

Have questions with 09450-05730?





09450-05720 PUMP ASSY, INJECTI 09450-05710 09450-05700 09450-05690 09450-05680
01700061 PUMP ASSY, FUEL FE 01705213 PUMP ASSY, INJECTI 01705223 01705242 01705252

Group cross 09450-05730
