Information pump assy, injecti
Nozzle:
0935001660
Rating:
Components :
| 001. | PUMP ASSY, INJECTI | 09450-05570 |

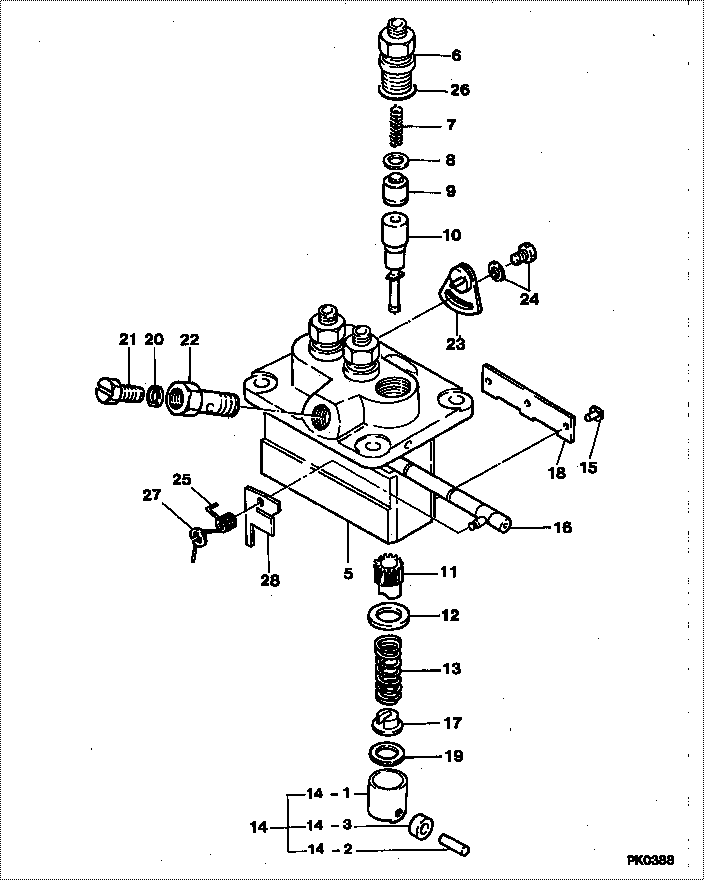

Scheme ###:
| 000. | [01] | 09450-05570 | PUMP ASSY, INJECTI | 30A6500900 |
| 005. | [01] | 09011-02090 | HOUSING SUB-ASSY, | |
| 006. | [03] | 09013-10520 | HOLDER, DELIVERY V | |
| 007. | [03] | 09013-60540 | SPRING, DELIVERY V | |
| 008. | [03] | 09013-70130 | GASKET, DELIVERY V | |
| 009. | [03] | 09014-00410 | VALVE SUB-ASSY, IN | 09014-00410 |
| 010. | [03] | 09015-04150 | ELEMENT SUB-ASSY, | MM514043 |
| 011. | [03] | 09016-10210 | SLEEVE, PLUNGER CO | |
| 012. | [03] | 09016-30082 | SEAT, SPRING, UPR | EZ40007012 |
| 013. | [03] | 09016-40170 | SPRING, PUMP PLUNG | |
| 014. | [03] | 09017-00170 | TAPPET SUB-ASSY,IN | EZ01775027 |
| 014-001. | [03] | 09017-10021 | TAPPET, INJECTION | |
| 014-002. | [03] | 09217-60010 | ROLLER, FEED PUMP | 09217-60010 |
| 014-003. | [03] | 09017-60020 | PIN, INJECTION PUM | |
| 015. | [03] | 09018-30050 | PIN, INJECTION PUM | |
| 016. | [01] | 09021-00371 | RACK ASSY, CONTROL | |
| 017. | [03] | 09030-10060 | SEAT, SPRING, LWR | EZ0177514 |
| 018. | [01] | 09046-70040 | PLATE | |
| 019. | [3C] | 09031-10310 | PLATE, TAPPET ADJU | |
| 019. | [3C] | 09031-10300 | PLATE, TAPPET ADJU | |
| 019. | [3C] | 09031-10280 | PLATE, TAPPET ADJU | |
| 019. | [3C] | 09031-10170 | PLATE, TAPPET ADJU | FR51530028 |
| 019. | [3C] | 09031-10160 | PLATE, TAPPET ADJU | FR51530027 |
| 019. | [3C] | 09031-10140 | PLATE, TAPPET ADJU | 09031-10140 |
| 019. | [3C] | 09031-10130 | PLATE, TAPPET ADJU | 09031-10130 |
| 019. | [3C] | 09031-10120 | PLATE, TAPPET ADJU | 09031-10120 |
| 019. | [3C] | 09031-10110 | PLATE, TAPPET ADJU | 09031-10110 |
| 019. | [3C] | 09031-10010 | PLATE, TAPPET ADJU | 09031-10010 |
| 020. | [01] | 09022-20080 | WASHER, FUEL PIPE | MM500114 |
| 021. | [01] | 09024-40180 | SCREW, AIR BLEEDER | |
| 022. | [01] | 09024-50210 | SCREW, HOLLOW | |
| 023. | [02] | 09006-80020 | PLATE, ADJUSTING | |
| 024. | [02] | 94904-80800 | BOLT, WASHER HEAD | MM514195 |
| 024. | [02] | 94904-71980 | BOLT, W/WASHER | |
| 025. | [01] | 09055-40280 | SPRING, DIAPHRAGM | |
| 026. | [03] | 90802-20150 | O-RING | |
| 027. | [01] | 09089-40020 | E-RING | MM501496 |
| 028. | [1C] | 09021-94620 | STOPPER | |
| 028. | [1C] | 09021-94630 | STOPPER | |
| 028. | [1C] | 09021-94640 | STOPPER | |
| 028. | [1C] | 09021-94650 | STOPPER | |
| 028. | [1C] | 09021-94660 | STOPPER | |
| 028. | [1C] | 09021-94670 | STOPPER | |
| 028. | [1C] | 09021-94610 | STOPPER | |
| 028. | [1C] | 09021-94600 | STOPPER | |
| 028. | [1C] | 09021-94590 | STOPPER | |
| 028. | [1C] | 09021-94580 | STOPPER | |
| 028. | [1C] | 09021-94570 | STOPPER | |
| 028. | [1C] | 09021-94560 | STOPPER | |
| 028. | [1C] | 09021-94550 | STOPPER | |
| 028. | [1C] | 09021-94540 | STOPPER | |
| 028. | [1C] | 09021-94680 | STOPPER |
Include in #3:
09450-05570
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09450-05570 | 30A6500900 | PUMP ASSY, INJECTI | |
| 30A6500900 | MITSUBISHI | PUMP ASSY, INJECTI |
