Information pump assy, injecti
Nozzle:
0935004320
Rating:
Components :
| 001. | PUMP ASSY, INJECTI | 09450-05430 |

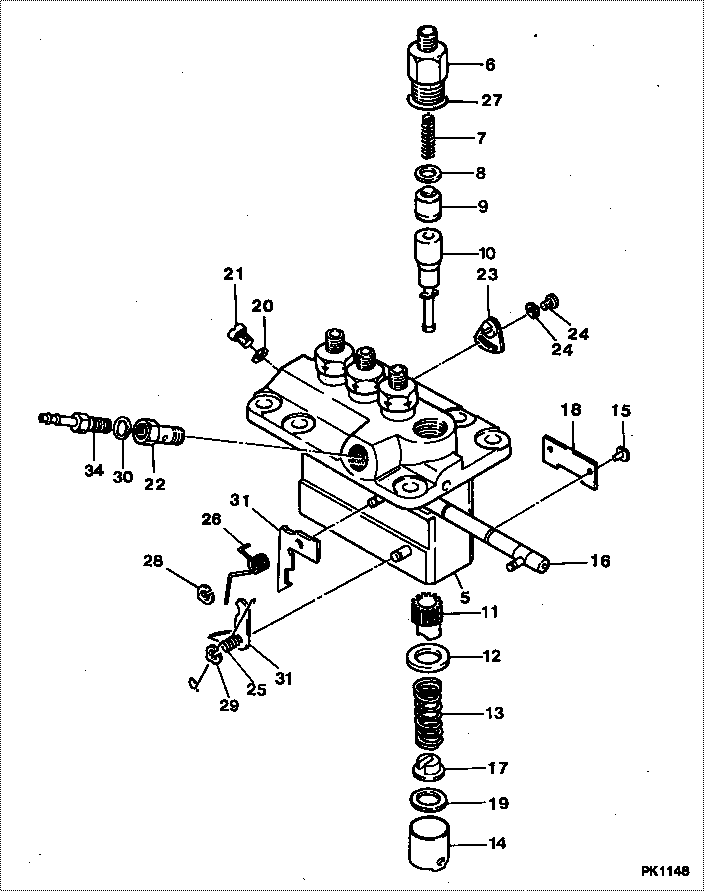

Scheme ###:
| 000. | [01] | 09450-05430 | PUMP ASSY, INJECTI | |
| 005. | [01] | 09011-02420 | HOUSING SUB-ASSY, | MM501253 |
| 006. | [04] | 09013-10720 | HOLDER, DELIVERY V | MM501754 |
| 007. | [04] | 09013-60900 | SPRING, DELIVERY V | MM514003 |
| 008. | [04] | 09013-70130 | GASKET, DELIVERY V | MM501856 |
| 009. | [04] | 09014-02030 | VALVE SUB-ASSY, IN | MM514165 |
| 010. | [04] | 09015-04400 | ELEMENT SUB-ASSY, | MM514119 |
| 011. | [04] | 09016-10210 | SLEEVE, PLUNGER CO | MM500229 |
| 012. | [04] | 09016-30082 | SEAT, SPRING, UPR | MM501098 |
| 013. | [04] | 09016-40170 | SPRING, PUMP PLUNG | MM500360 |
| 014. | [04] | 09017-00170 | TAPPET SUB-ASSY,IN | MM500230 |
| 014-001. | [04] | 09017-10021 | TAPPET, INJECTION | |
| 014-002. | [04] | 09217-60010 | ROLLER, FEED PUMP | ME702227 |
| 014-003. | [04] | 09017-60020 | PIN, INJECTION PUM | P720-1429 |
| 015. | [04] | 09018-30050 | PIN, INJECTION PUM | MM500231 |
| 016. | [01] | 09021-00440 | RACK ASSY, CONTROL | MM501255 |
| 017. | [04] | 09030-10060 | SEAT, SPRING, LWR | MM500316 |
| 018. | [02] | 09046-70030 | PLATE | MM500232 |
| 019. | [4C] | 09031-10310 | PLATE, TAPPET ADJU | MM501365 |
| 019. | [4C] | 09031-10300 | PLATE, TAPPET ADJU | MM501364 |
| 019. | [4C] | 09031-10280 | PLATE, TAPPET ADJU | MM501246 |
| 019. | [4C] | 09031-10170 | PLATE, TAPPET ADJU | P760-15160 |
| 019. | [4C] | 09031-10160 | PLATE, TAPPET ADJU | MM500314 |
| 019. | [4C] | 09031-10140 | PLATE, TAPPET ADJU | MM500312 |
| 019. | [4C] | 09031-10130 | PLATE, TAPPET ADJU | MM500311 |
| 019. | [4C] | 09031-10120 | PLATE, TAPPET ADJU | MM500310 |
| 019. | [4C] | 09031-10110 | PLATE, TAPPET ADJU | MM500309 |
| 019. | [4C] | 09031-10010 | PLATE, TAPPET ADJU | ME702559 |
| 020. | [01] | 09022-20080 | WASHER, FUEL PIPE | ME702235 |
| 021. | [01] | 09024-40180 | SCREW, AIR BLEEDER | MM501152 |
| 022. | [01] | 94918-00510 | SCREW, HOLLOW | MM500446 |
| 023. | [03] | 09006-80020 | PLATE, ADJUSTING | MM514109 |
| 024. | [03] | 94904-71980 | BOLT, W/WASHER | MM501244 |
| 024. | [03] | 94904-80800 | BOLT, WASHER HEAD | |
| 025. | [01] | 09055-40340 | SPRING, DIAPHRAGM | MM501382 |
| 026. | [01] | 09055-40440 | SPRING, DIAPHRAGM | MM501676 |
| 027. | [04] | 90802-20150 | O-RING | MM500438 |
| 028. | [01] | 09089-40020 | E-RING | ME702639 |
| 029. | [01] | 09089-40010 | E-RING | ME702112 |
| 030. | [01] | 94901-81020 | WASHER, COPPER PLA | ME022309 |
| 031. | [1C] | 09021-95370 | STOPPER | MM501748 |
| 031. | [1C] | 09021-95360 | STOPPER | MM501747 |
| 031. | [1C] | 09021-93120 | STOPPER | MM501501 |
| 031. | [1C] | 09021-93110 | STOPPER | MM501500 |
| 031. | [1C] | 09021-93100 | STOPPER | MM501499 |
| 031. | [1C] | 09021-93090 | STOPPER | MM501498 |
| 031. | [1C] | 09021-93080 | STOPPER | MM501497 |
| 032. | [1C] | 09021-93790 | STOPPER | MM501577 |
| 032. | [1C] | 09021-93800 | STOPPER | MM501388 |
| 032. | [1C] | 09021-93810 | STOPPER | MM501578 |
| 032. | [1C] | 09021-93820 | STOPPER | MM501395 |
| 032. | [1C] | 09021-93830 | STOPPER | MM501579 |
| 032. | [1C] | 09021-93840 | STOPPER | MM501396 |
| 032. | [1C] | 09021-93780 | STOPPER | MM501387 |
| 032. | [1C] | 09021-93770 | STOPPER | MM501576 |
| 032. | [1C] | 09021-93760 | STOPPER | MM501386 |
| 032. | [1C] | 09021-93750 | STOPPER | MM501575 |
| 032. | [1C] | 09021-93740 | STOPPER | |
| 032. | [1C] | 09021-93730 | STOPPER | MM501574 |
| 032. | [1C] | 09021-93720 | STOPPER | MM501274 |
| 032. | [1C] | 09021-93710 | STOPPER | |
| 032. | [1C] | 09021-93700 | STOPPER | MM501273 |
| 034. | [01] | 09314-10280 | NIPPLE, OIL LEAKAG | MM501866 |
Include in #3:
09450-05430
as PUMP ASSY, INJECTI
Cross reference number
| Part num | Firm num | Firm | Name |
| 09450-05430 | PUMP ASSY, INJECTI |
Information:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
To improve the reliability and performance of its products, Cat Reman has replaced the entire product line of HI315B Injectors with a version that includes a pre-screen that will capture a portion of the debris trapped in the fuel system during service. The pre-screen will not change the fit, form, or function of the injectors. If a Reman injector order has been filled with new injectors, the new injectors will not have the screen. Injectors both with and without the pre-screen can be used interchangeably.
Illustration 1 g06334704
Table 1
H1315B Injectors
New Part Number Reman Part Number
387-9426 20R-8071
387-9427 20R-8066
387-9428 20R-8059
387-9429 20R-8058
387-9430 20R-8057
387-9431 20R-8069
387-9432 20R-8065
387-9433 20R-8064
387-9434 20R-8063
387-9436 20R-8068
387-9437 20R-8062
387-9438 20R-8060
387-9439 20R-8061
387-9440 20R-8070
387-9441 20R-8067
