09450-05240 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935004320
09450-05240 PUMP ASSY, INJECTI
Rating:
3
Buy PUMP ASSY, INJECTI 09450-05240 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-05240

Scheme ###:

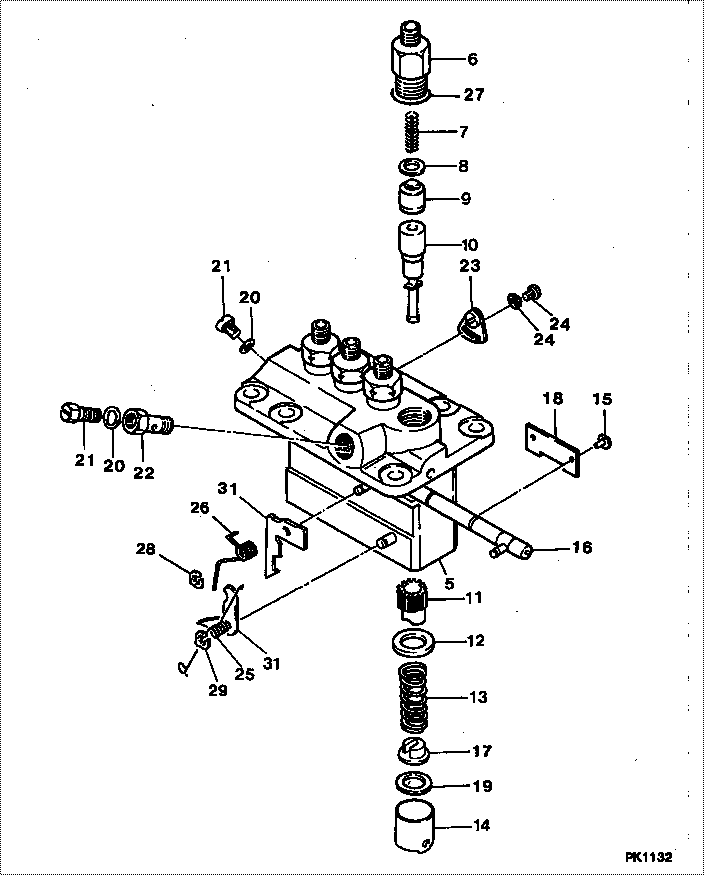

PUMP ASSY, INJECTI
000. [01] 09450-05240 PUMP ASSY, INJECTI MM438928
005. [01] 09011-02420 HOUSING SUB-ASSY,
006. [04] 09013-10720 HOLDER, DELIVERY V
007. [04] 09013-60900 SPRING, DELIVERY V
008. [04] 09013-70130 GASKET, DELIVERY V
009. [04] 09014-02030 VALVE SUB-ASSY, IN
010. [04] 09015-04640 ELEMENT SUB-ASSY,
011. [04] 09016-10210 SLEEVE, PLUNGER CO
012. [04] 09016-30082 SEAT, SPRING, UPR EZ40007012
013. [04] 09016-40170 SPRING, PUMP PLUNG
014. [04] 09017-00170 TAPPET SUB-ASSY,IN EZ01775027
014-001. [04] 09017-10021 TAPPET, INJECTION
014-002. [04] 09217-60010 ROLLER, FEED PUMP 09217-60010
014-003. [04] 09017-60020 PIN, INJECTION PUM
015. [04] 09018-30050 PIN, INJECTION PUM
016. [01] 09021-00440 RACK ASSY, CONTROL
017. [04] 09030-10060 SEAT, SPRING, LWR EZ0177514
018. [02] 09046-70030 PLATE
019. [ C] 09031-10310 PLATE, TAPPET ADJU
019. [ C] 09031-10300 PLATE, TAPPET ADJU
019. [ C] 09031-10280 PLATE, TAPPET ADJU
019. [ C] 09031-10170 PLATE, TAPPET ADJU FR51530028
019. [ C] 09031-10160 PLATE, TAPPET ADJU FR51530027
019. [ C] 09031-10140 PLATE, TAPPET ADJU 09031-10140
019. [ C] 09031-10130 PLATE, TAPPET ADJU 09031-10130
019. [ C] 09031-10120 PLATE, TAPPET ADJU 09031-10120
019. [ C] 09031-10110 PLATE, TAPPET ADJU 09031-10110
019. [ C] 09031-10010 PLATE, TAPPET ADJU 09031-10010
020. [01] 09022-20080 WASHER, FUEL PIPE MM500114
020. [01] 94901-81020 WASHER, COPPER PLA 94901-81020
021. [01] 09024-40180 SCREW, AIR BLEEDER
022. [01] 94918-00510 SCREW, HOLLOW MM500083
023. [03] 09006-80020 PLATE, ADJUSTING
024. [03] 94904-71980 BOLT, W/WASHER
024. [03] 94904-80800 BOLT, WASHER HEAD
025. [01] 09055-40470 SPRING, DIAPHRAGM
026. [01] 09055-40280 SPRING, DIAPHRAGM
027. [04] 90802-20150 O-RING
028. [01] 09089-40020 E-RING 09089-40020
029. [01] 09089-40010 E-RING 09089-40010
032. [1C] 09021-95370 STOPPER
032. [1C] 09021-95360 STOPPER
032. [1C] 09021-93120 STOPPER
032. [1C] 09021-93110 STOPPER
032. [1C] 09021-93100 STOPPER
032. [1C] 09021-93090 STOPPER
032. [1C] 09021-93080 STOPPER
033. [1C] 09021-94030 STOPPER
033. [1C] 09021-94040 STOPPER
033. [1C] 09021-94050 STOPPER
033. [1C] 09021-94060 STOPPER
033. [1C] 09021-94070 STOPPER
033. [1C] 09021-94080 STOPPER
033. [1C] 09021-94020 STOPPER
033. [1C] 09021-94010 STOPPER
033. [1C] 09021-94000 STOPPER
033. [1C] 09021-93990 STOPPER
033. [1C] 09021-93980 STOPPER
033. [1C] 09021-93970 STOPPER
033. [1C] 09021-93960 STOPPER
033. [1C] 09021-93950 STOPPER
033. [1C] 09021-94090 STOPPER

Include in #3:

09450-05240 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-05240  MM438928  PUMP ASSY, INJECTI
MM438928    MITSUBISHI PUMP ASSY, INJECTI
