09450-05020 PUMP ASSY, INJECTI Denso Cross




Information pump assy, injecti

Nozzle: 0935001660
09450-05020 PUMP ASSY, INJECTI
Rating:
4
Buy PUMP ASSY, INJECTI 09450-05020 genuine, new aftermarket engine parts with delivery

Components :

001. PUMP ASSY, INJECTI 09450-05020

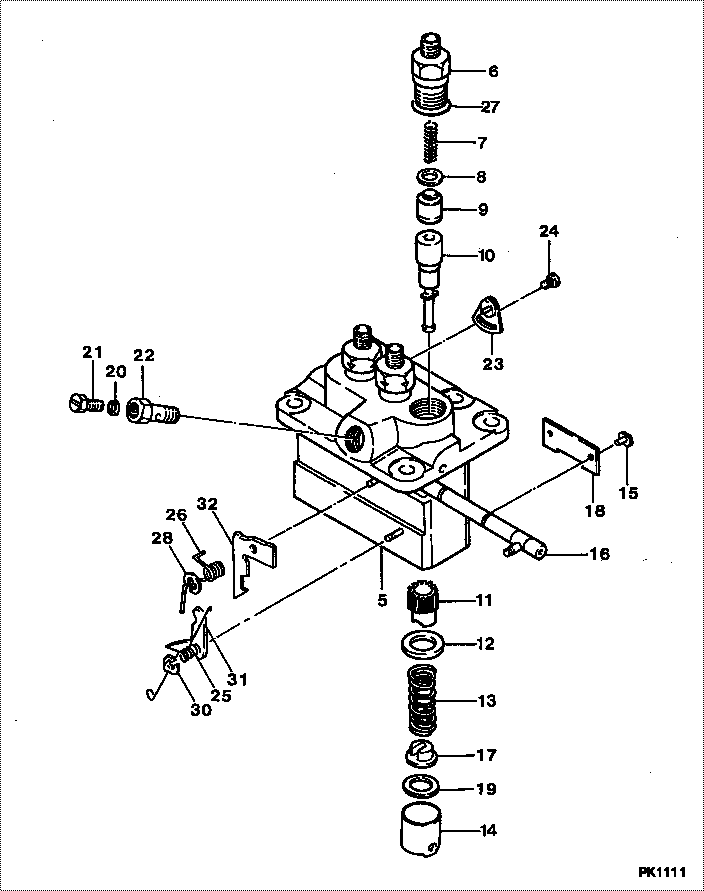

Scheme ###:

000. [01] 09450-05020 PUMP ASSY, INJECTI MM438022
005. [01] 09011-02590 HOUSING SUB-ASSY, MM501312
006. [03] 09013-10520 HOLDER, DELIVERY V MM501507
007. [03] 09013-60540 SPRING, DELIVERY V MM501161
008. [03] 09013-70061 GASKET, DELIVERY V P720-16141
008. [03] 09013-70130 GASKET, DELIVERY V MM501856
009. [03] 09014-00800 VALVE SUB-ASSY, IN MM501076
010. [03] 09015-04150 ELEMENT SUB-ASSY,
011. [03] 09016-10210 SLEEVE, PLUNGER CO MM500229
012. [03] 09016-30082 SEAT, SPRING, UPR MM501098
013. [03] 09016-40170 SPRING, PUMP PLUNG MM500360
014. [03] 09017-00170 TAPPET SUB-ASSY,IN MM500230
014-001. [03] 09017-10021 TAPPET, INJECTION
014-002. [03] 09217-60010 ROLLER, FEED PUMP ME702227
014-003. [03] 09017-60020 PIN, INJECTION PUM P720-1429
015. [03] 09018-30050 PIN, INJECTION PUM MM500231
016. [01] 09021-00470 RACK ASSY, CONTROL MM501311
017. [03] 09030-10060 SEAT, SPRING, LWR MM500316
018. [01] 09046-70040 PLATE MM501162
019. [3C] 09031-10310 PLATE, TAPPET ADJU MM501365
019. [3C] 09031-10300 PLATE, TAPPET ADJU MM501364
019. [3C] 09031-10280 PLATE, TAPPET ADJU MM501246
019. [3C] 09031-10170 PLATE, TAPPET ADJU P760-15160
019. [3C] 09031-10160 PLATE, TAPPET ADJU MM500314
019. [3C] 09031-10140 PLATE, TAPPET ADJU MM500312
019. [3C] 09031-10130 PLATE, TAPPET ADJU MM500311
019. [3C] 09031-10120 PLATE, TAPPET ADJU MM500310
019. [3C] 09031-10110 PLATE, TAPPET ADJU MM500309
019. [3C] 09031-10010 PLATE, TAPPET ADJU ME702559
020. [01] 94901-81020 WASHER, COPPER PLA ME022309
020. [01] 09022-20080 WASHER, FUEL PIPE ME702235
021. [01] 09024-40180 SCREW, AIR BLEEDER MM501152
022. [01] 09024-50210 SCREW, HOLLOW MM501320
023. [02] 09006-80020 PLATE, ADJUSTING MM514109
024. [02] 94904-71980 BOLT, W/WASHER MM501244
024. [02] 94904-80800 BOLT, WASHER HEAD
025. [01] 09055-40340 SPRING, DIAPHRAGM MM501382
026. [01] 09055-40280 SPRING, DIAPHRAGM MM501247
027. [03] 90802-20150 O-RING MM500438
028. [01] 09089-40020 E-RING ME702639
030. [01] 09089-40010 E-RING ME702112
031. [1C] 09021-92540 STOPPER MM501275
031. [1C] 09021-92530 STOPPER MM501260
031. [1C] 09021-92520 STOPPER MM501259
031. [1C] 09021-92510 STOPPER MM501258
031. [1C] 09021-92500 STOPPER MM501257
032. [1C] 09021-93800 STOPPER MM501388
032. [1C] 09021-93790 STOPPER MM501577
032. [1C] 09021-93780 STOPPER MM501387
032. [1C] 09021-93770 STOPPER MM501576
032. [1C] 09021-93760 STOPPER MM501386
032. [1C] 09021-93750 STOPPER MM501575
032. [1C] 09021-93740 STOPPER
032. [1C] 09021-93730 STOPPER MM501574
032. [1C] 09021-93720 STOPPER MM501274
032. [1C] 09021-93710 STOPPER
032. [1C] 09021-93700 STOPPER MM501273
032. [1C] 09021-93690 STOPPER MM501572
032. [1C] 09021-93680 STOPPER MM501272
032. [1C] 09021-93670 STOPPER MM501571
032. [1C] 09021-93810 STOPPER MM501578

Include in #3:

09450-05020 as PUMP ASSY, INJECTI

Cross reference number



Part num Firm num Firm Name
09450-05020  MM438022  PUMP ASSY, INJECTI
MM438022    MITSUBISHI PUMP ASSY, INJECTI




Information:

2. Remove the two bolts (1) from transfer pump, and pull the pump out of accessory drive housing.3. Remove the four bolts and lock from retainer (3). Remove the retainer.4. Remove the drive gear (2). 5. Remove the two bolts, locks, and plate (5).6. Remove the variable timing unit (4) from the accessory drive housing.Install Variable Timing Unit
1. Put the variable timing unit (1) in position in the accessory drive housing.2. Install the retaining plate, locks, and two bolts.3. Install the drive gear, retainer, lock, and four bolts. Do not tighten the four bolts.4. Make an adjustment to the timing of the camshaft for the fuel injection pump. See FUEL INJECTION PUMP CAMSHAFT TIMING in TESTING AND ADJUSTING. 5. Install the cover (4) on timing gear housing.6. Put the transfer pump (3) in position on the accessory drive housing, and install the two bolts (2).7. Check to be sure all timing pins and bolts have been removed from their timing holes, and are installed in their storage positions.Disassemble Variable Timing Unit
start by: a) remove variable timing unit 1. Push down on retainer (1), and remove the pin (2).2. Remove the retainer and spring. 3. Use a hammer and punch to remove the dowels (4). Remove the two weights.4. Remove the piston and rod assembly (5) from shaft assembly (3).5. Remove the pins from nut and rod.6. Remove the rod, nut, spring, and valve from the piston assembly.Assemble Variable Timing Unit
1. Install the valve, spring, and nut on the piston assembly. Turn the nut until the distance (X) between bottom face of nut and the piston is 1.760 in. (44.7 mm). Drill a .095 .002 in. (2.41 0.05 mm) diameter hole through the nut and the threads of piston assembly. Install the pin in nut. 1. Install the rod tight against the nut. Take a measurement .156 in. (3.96 mm) from top face of nut, and put a mark at this location on rod. Drill a .095 .0.05 mm) diameter hole (1) through the rod and piston assembly at this location. Install the pin in rod.3. Install the piston and rod assembly in the shaft assembly. Install the spring, retainer, and pin in shaft assembly.4. Install the weights and dowels. Use a hammer and punch to fasten both ends of the dowels in place. Both weights must move freely after the dowels have been fastened in place.end by: a) install variable timing unit
